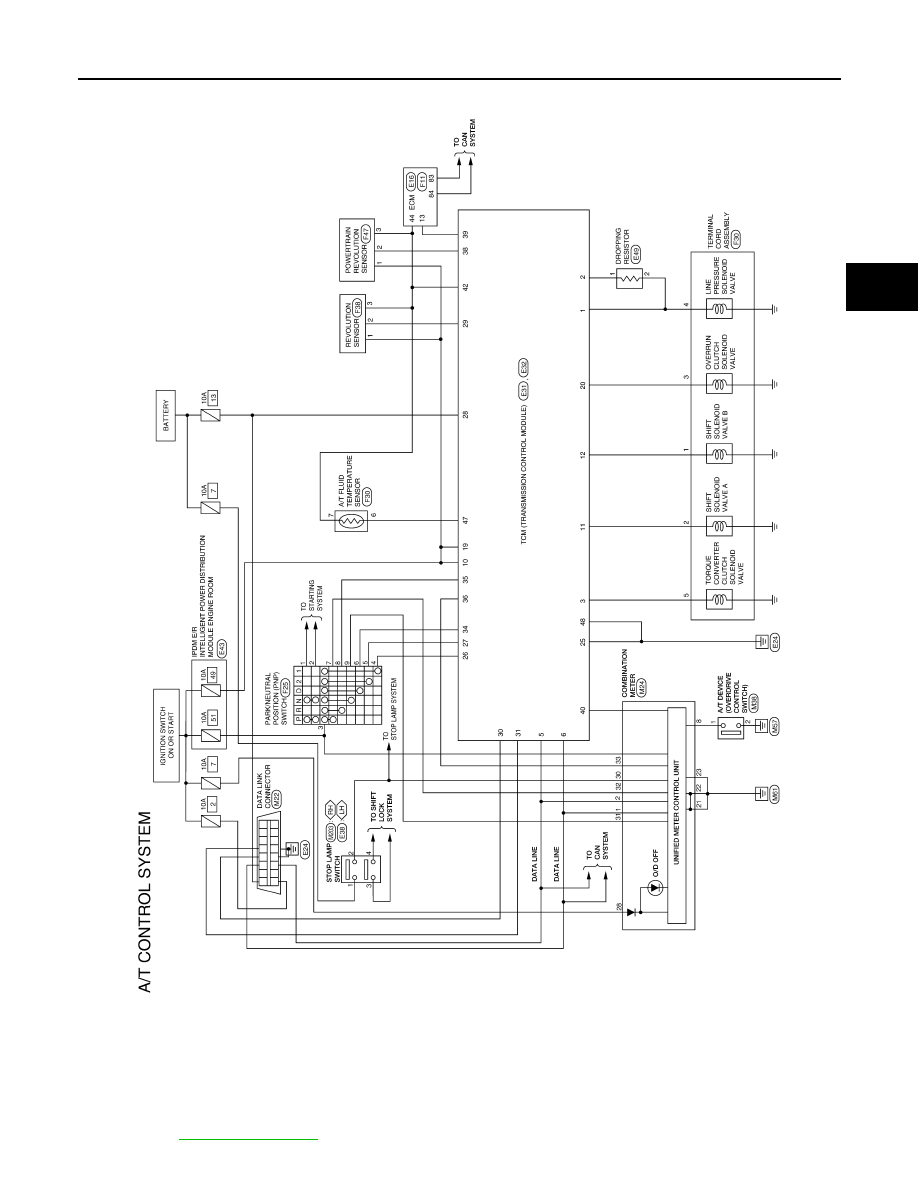

Wiring Diagram - A/T CONTROL SYSTEM -

INFOID:0000000001694443

Fail-Safe

INFOID:0000000001694442

The TCM has an electronic Fail-safe mode. This allows the vehicle to be driven even if a major electrical input/
output device circuit is damaged.
Under Fail-Safe, the vehicle always runs in third gear, even with a shift lever position of “1”, “2” or “D”. The cus-
tomer may complain of sluggish or poor acceleration.
Always follow

TM-10, "Work Flow"

.

ALDWA0057GB

TM-124

< ECU DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

TCM

The SELF-DIAGNOSIS results will be as follows:
• The first SELF-DIAGNOSIS will indicate damage to the vehicle speed sensor or the revolution sensor.
• During the next SELF-DIAGNOSIS, performed after checking the sensor, no damages will be indicated.

FAIL-SAFE FUNCTION

The following fail-safe functions allow vehicles to be driven even when sensor, switch or solenoid malfunction
occurs.

Vehicle Speed Sensor·A/T (Revolution Sensor)

Vehicle speed sensor·MTR signal is input from combination meter.

Accelerator Pedal Position Sensor Signal and Throttle Position Sensor Signal

TCM controls the throttle opening angle to a predetermined fixed position to enable driving if a malfunctioning
signal is input to TCM.

PNP Switch

When the multiple PNP switch signals are input to TCM, the priority of selector lever position becomes “D”,
“N”, “R”, “2” and “1” in order by internal TCM determination.
The use of 4th gear is inhibited until normal operation resumes. Because the hydraulic circuit of the control
valve is switched by manual valve according to the selector lever position, however, actual operating condition
of vehicle becomes as follows.

Shift Solenoid Valve A and B

If non-standard solenoid signal is sent to TCM, use of certain gears is limited. Refer to chart shown below.

: Solenoid ON

×

: Solenoid OFF

–: Non-standard condition

Line Pressure Solenoid Valve

If non-standard solenoid signal is sent to TCM, line pressure solenoid valve is turned OFF to achieve maxi-
mum oil pressure.

Torque Converter Clutch Solenoid Valve

Actual lever position

PNP switch input signal

Running status

“P”

“P” position and other position signals

P

“R”

“R” position and other position signals

R

“N”

“N” position and other position signals

N

“D”

“D” position and other position signals

D

1

D

2

D

3

D

4

“2”

“2” position and other position signals (Except “1” position)

2

1

2

2

2

3

“2” position and “1” position signals

2

1

2

2

“1”

“1” position and other position signals (Except “2” position)

1

1

1

2

1

3

“1” position and “2” position signals

1

1

1

2

Shift position

Normal

Malfunction in solenoid

valve A

Malfunction in solenoid

valve B

Malfunction in solenoid

valves A and B

A

B

Gear

A

B

Gear

A

B

Gear

A

B

Gear

“D” position

1st –

→×

3rd

→×

3rd

3rd

×

2nd –

→×

×

×

×

3rd –

x

×

×

4th –

x

→×

“2” position

1st –

→×

→×

×

2nd –

→×

×

×

×

3rd –

x

×

“1” position

1st –

→×

→×

×

2nd –

→×

×

×

×

3rd –

x

×

TCM

TM-125

< ECU DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

If non-standard solenoid signal is sent to TCM, torque converter clutch solenoid valve is turned OFF to release
lock-up.

Overrun Clutch Solenoid Valve

If non-standard solenoid signal is sent to TCM, overrun clutch solenoid valve is turned OFF to engage overrun
clutch. This will result in more effective engine brake during deceleration.

DTC Inspection Priority Chart

INFOID:0000000001694444

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
NOTE:
If DTC “CAN COMM CIRCUIT” is displayed with other DTCs, first perform the trouble diagnosis for
DTC “CAN COMM CIRCUIT”. Refer to

TM-43

.

DTC Index

INFOID:0000000001696263

NOTE:
If DTC “CAN COMM CIRCUIT” is displayed with other DTCs, first perform the trouble diagnosis for
DTC “CAN COMM CIRCUIT”. Refer to

TM-43

.

*1: This number is prescribed by ISO 15031-5.

*2: When the fail-safe operation occurs, the MIL illuminates.

*3: The MIL illuminates when both the “Revolution sensor signal” and the “Vehicle speed sensor signal” meet the fail-safe condition at
the same time.

Priority

Detected items

1

CAN communication line

2

Except above

DTC

Items

(CONSULT-III screen terms)

Reference page

CONSULT-III or GST

*1

P0705

PNP SW/CIRC

TM-44

P0710

ATF TEMP SEN/CIRC

TM-48

P0720

VHCL SPEED SEN-A/T*

3

TM-52

P0725

ENGINE SPEED SIG

TM-56

P0731

A/T 1ST GR FNCTN

TM-59

P0732

A/T 2ND GR FNCTN

TM-62

P0733

A/T 3RD GR FNCTN

TM-65

P0734

A/T 4TH GR FNCTN

TM-68

P0740

T/C CLUTCH SOL/V

TM-73

P0744

A/T TCC S/V FNCTN

TM-76

P0745

LINE PRESSURE S/V

TM-81

P0750

SHIFT SOLENOID/V A*

2

TM-85

P0755

SHIFT SOLENOID/V B*

2

TM-89

P1760

OVERRUN CLUTCH S/V

TM-93

U1000

CAN COMM CIRCUIT

TM-43

BATT/FLUID TEMP SEN

TM-99

CONTROL UNIT (RAM)

TM-108

CONTROL UNIT (ROM)

TM-108

TURBINE SENSOR

TM-104

VHCL SPEED SEN-MTR

TM-97

TM-126

< ECU DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

TCM

DTC Alphabetical Index

INFOID:0000000001696262

NOTE:
If DTC “CAN COMM CIRCUIT” is displayed with other DTCs, first perform the trouble diagnosis for
DTC “CAN COMM CIRCUIT”. Refer to

TM-43

.

*1: This number is prescribed by ISO 15031-5.

*2: When the fail-safe operation occurs, the MIL illuminates.

*3: The MIL illuminates when both the “Revolution sensor signal” and the “Vehicle speed sensor signal” meet the fail-safe condition at
the same time.

Items

(CONSULT-II screen terms)

DTC

Reference page

CONSULT-II or GST

*1

A/T 1ST GR FNCTN

P0731

TM-59

A/T 2ND GR FNCTN

P0732

TM-62

A/T 3RD GR FNCTN

P0733

TM-65

A/T 4TH GR FNCTN

P0734

TM-68

A/T TCC S/V FNCTN

P0744

TM-76

ATF TEMP SEN/CIRC

P0710

TM-48

BATT/FLUID TEMP SEN

TM-99

CAN COMM CIRCUIT

U1000

TM-43

CONTROL UNIT (RAM)

TM-108

CONTROL UNIT (ROM)

TM-108

ENGINE SPEED SIG

P0725

TM-56

LINE PRESSURE S/V

P0745

TM-81

OVERRUN CLUTCH S/V

P1760

TM-93

PNP SW/CIRC

P0705

TM-44

SHIFT SOLENOID/V A*

2

P0750

TM-85

SHIFT SOLENOID/V B*

2

P0755

TM-89

T/C CLUTCH SOL/V

P0740

TM-73

TURBINE SENSOR

TM-104

VHCL SPEED SEN-A/T*

3

P0720

TM-52

VHCL SPEED SEN-MTR

TM-97
