DTC P0745 LINE PRESSURE SOLENOID VALVE

TM-83

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

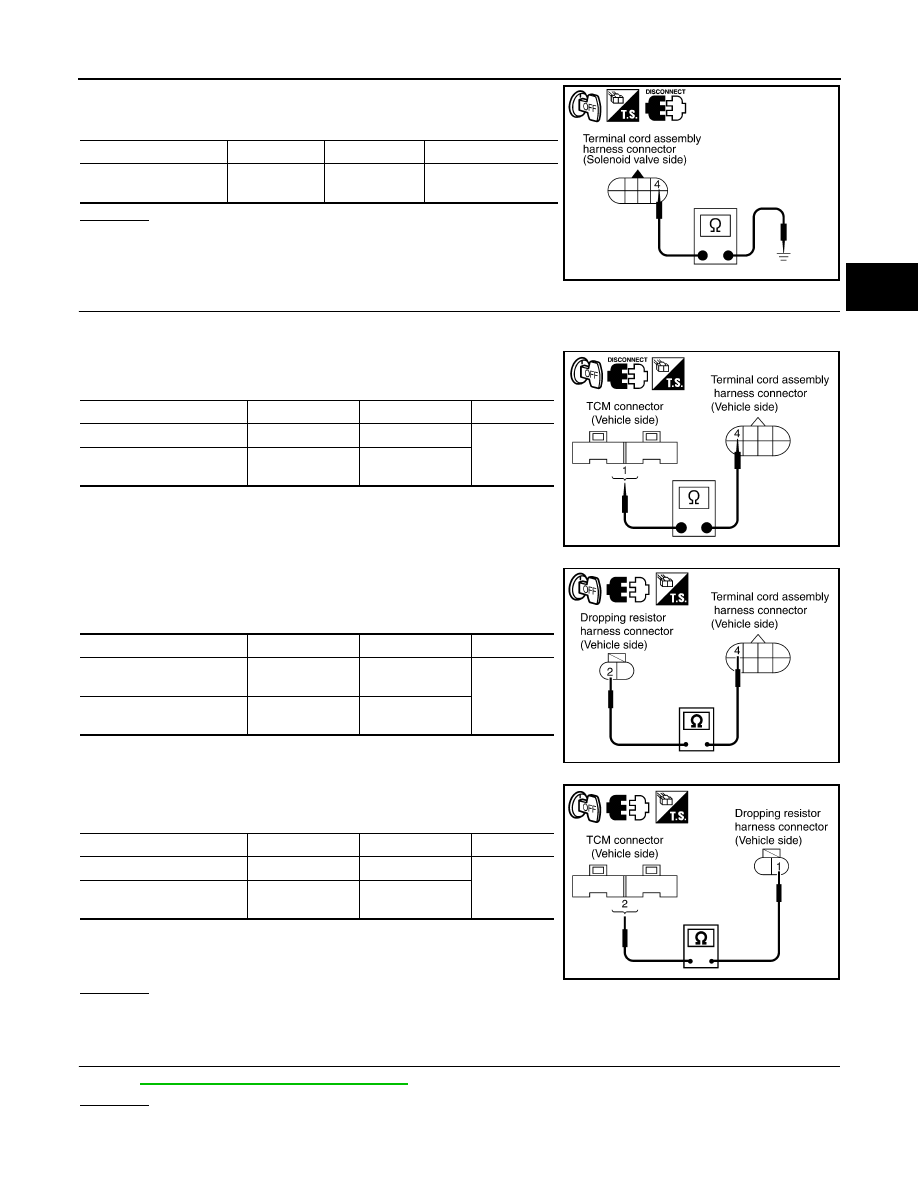

3.

Check resistance between terminal cord assembly harness con-
nector terminal and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

 CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly harness connector and TCM connector.

3.

Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.

4.

Check continuity between terminal cord assembly harness con-
nector terminal and dropping resistor harness connector termi-
nal.

5.

Check continuity between dropping resistor harness connector
terminal and TCM connector terminal.

6.

If OK, check harness for short to ground and short to power.

7.

If OK, check continuity between ground and transaxle assembly.

8.

Reinstall any part removed.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK DTC

Perform

TM-81, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

Solenoid valve

Connector

Terminal

Resistance (Approx.)

Line pressure solenoid
valve

F30

4 - Ground

2.5 - 5.0

Ω

SCIA3457E

Item

Connector

Terminal Continuity

TCM

E31

1

Yes

Terminal cord assembly
harness connector

F30

4

SCIA3272E

Item

Connector

Terminal Continuity

Dropping resistor harness
connector

E49

2

Yes

Terminal cord assembly
harness connector

F30

4

SCIA7194E

Item

Connector

Terminal

Continuity

TCM

E31

2

Yes

Dropping resistor harness
connector

E49

1

SCIA7195E

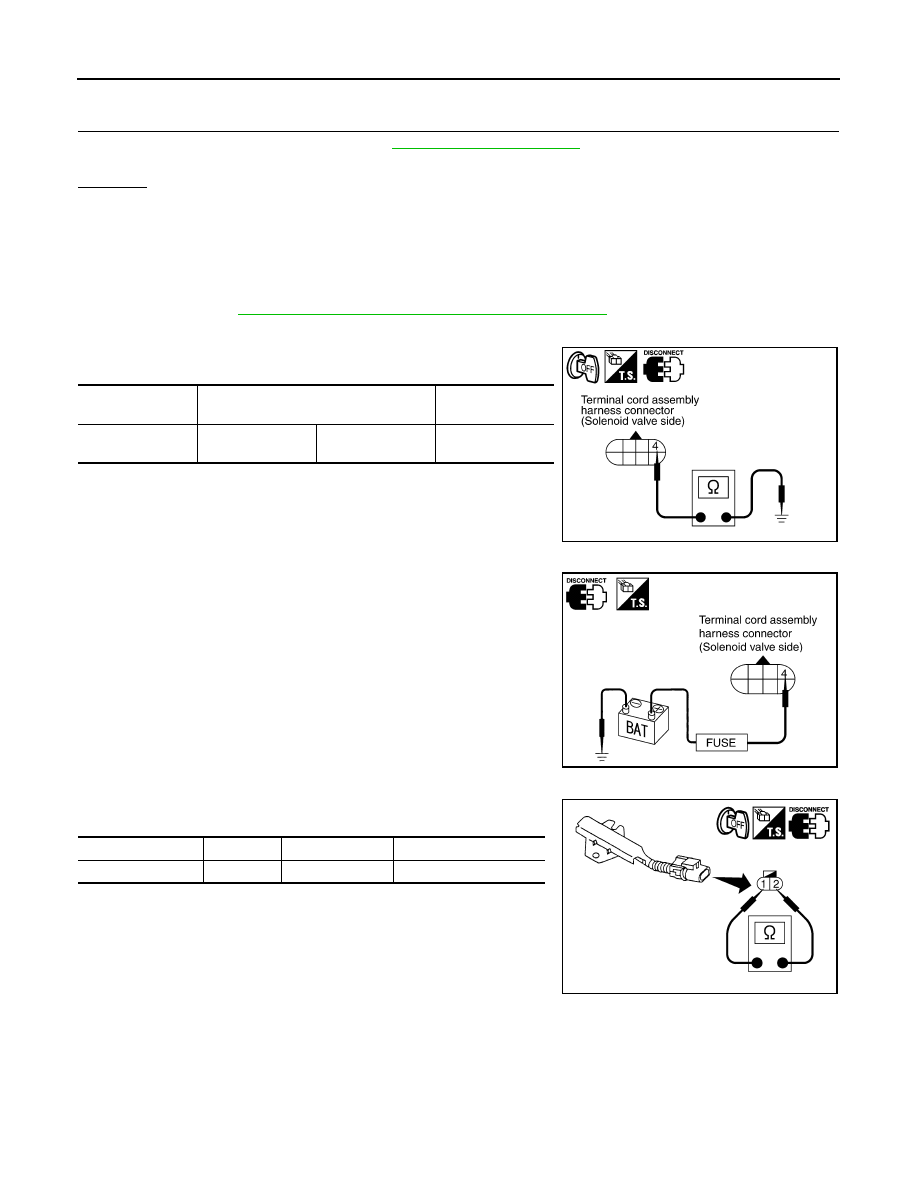

TM-84

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

DTC P0745 LINE PRESSURE SOLENOID VALVE

NG

>> GO TO 6.

6.

CHECK TCM

1.

Check TCM input/output signal. Refer to

TM-119, "Reference Value"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Component Inspection

INFOID:0000000001694355

LINE PRESSURE SOLENOID VALVE

• For removal, refer to

TM-191, "Control Valve Assembly and Accumulators"

.

Resistance Check

• Check resistance between terminal and ground.

Operation Check

• Check solenoid valve by listening for its operating sound while

applying battery voltage to the terminal and ground.

DROPPING RESISTOR

• Check resistance between terminals.

Solenoid valve

Terminal

Resistance (Ap-

prox.)

Line pressure so-

lenoid valve

4

Ground

2.5 - 5

Ω

SCIA3457E

SCIA3275E

Item

Connector

Terminal

Resistance (Approx.)

Dropping resistor

E7

1 - 2

12

Ω

SCIA4950E

DTC P0750 SHIFT SOLENOID VALVE A

TM-85

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DTC P0750 SHIFT SOLENOID VALVE A

Description

INFOID:0000000001694356

Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the PNP
switch, vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001694357

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001694358

• This is an OBD self-diagnostic item.
• Diagnostic trouble code “P0750 SHIFT SOLENOID/V A” with CONSULT-III or 4th judgement flicker without

CONSULT-III is detected when TCM detects an improper voltage drop when it tries to operate the solenoid
valve.

Possible Cause

INFOID:0000000001694359

• Harness or connector

(The solenoid circuit is open or shorted.)

• Shift solenoid valve A

DTC Confirmation Procedure

INFOID:0000000001694360

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON and select “DATA MONITOR” mode for “A/T” with CONSULT-III.

2.

Touch “START”.

3.

Start engine.

4.

Drive vehicle in “D” position and allow the transaxle to shift 1

→

 2 (“GEAR”).

5.

If the check result is NG, go to

TM-85, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT-III”.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle in D

1

→

 D

2

 position.

3.

Perform self-diagnosis. Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-85, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001694362

1.

CHECK INPUT SIGNAL

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

Item name

Condition

Display value

SHIFT S/V A

When shift solenoid valve A operates.
(When driving in “D

1

” or “D

4

”.)

ON

When shift solenoid valve A does not operate.
(When driving in “D

2

” or “D

3

”.)

OFF

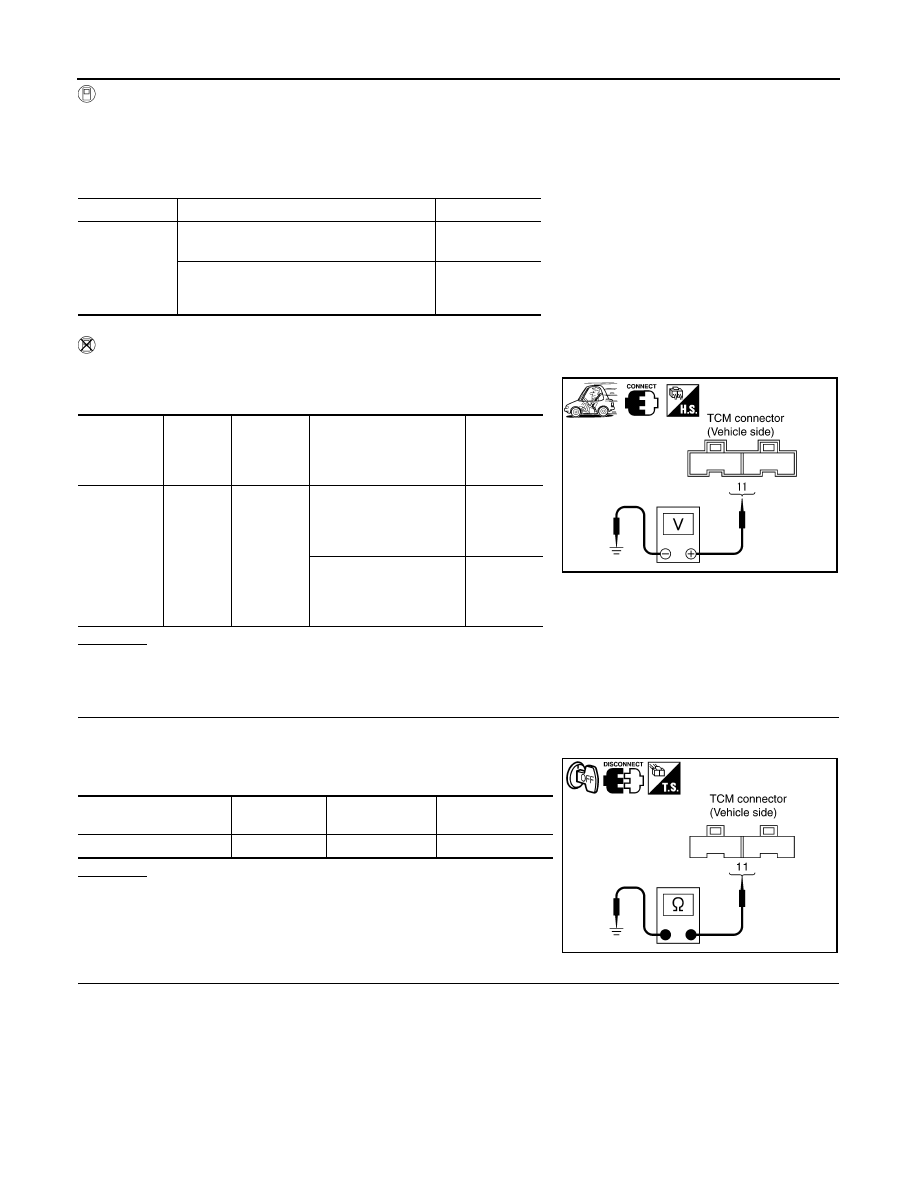

TM-86

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

DTC P0750 SHIFT SOLENOID VALVE A

With CONSULT-III

1.

Start engine.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.

3.

Read out the value of “SHIFT S/V A” while driving.
Check the value changes according to driving speed.

Without CONSULT-III

1.

Start engine.

2.

Check voltage between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK SHIFT SOLENOID VALVE A CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check resistance between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

 CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly harness connector and TCM connector.

Item name

Condition

Display value

SHIFT S/V A

When shift solenoid valve A operates.
(When driving in “D

1

” or “D

4

”.)

ON

When shift solenoid valve A does not oper-
ate.
(When driving in “D

2

” or “D

3

”.)

OFF

Item

Connec-

tor

Terminal

Condition

Judge-

ment stan-

dard

(Approx.)

Shift sole-
noid valve A

E31

11 - Ground

When shift solenoid valve
A operates.
(When driving in “D

1

” or

“D

4

”.)

Battery
voltage

When shift solenoid valve
A does not operate.
(When driving in “D

2

” or

“D

3

”.)

0V

SCIA3248E

Solenoid Valve

Connector

Terminal

Resistance (Ap-

prox.)

Shift solenoid valve A

E31

11 - Ground

20 - 30

Ω

SCIA3249E
