SRC-84

< SYMPTOM DIAGNOSIS >

SRS AIR BAG SYSTEM

3.

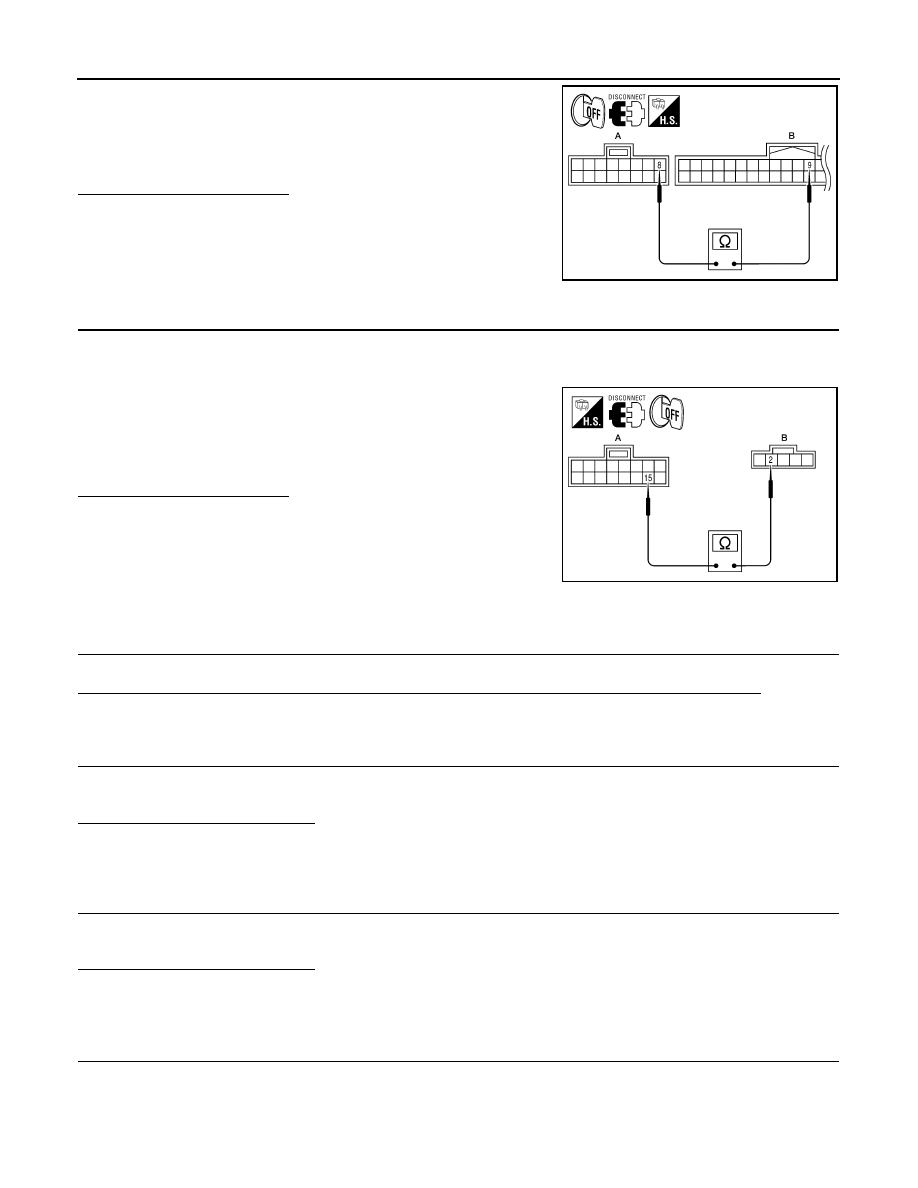

Check continuity between seat belt warning lamp control unit
harness connector B50 (A) terminal 8 and combination meter
connector M24 (B) terminal 9.

Are inspection results normal?

YES

>> Replace the seat belt warning lamp control unit.  Refer

to XXX.

NO

>> Repair circuit as necessary.

5.

CHECK HARNESS BETWEEN SEAT BELT WARNING LAMP CONTROL UNIT AND INSTRUMENT PAN-

EL WARNING LAMP ASSEMBLY

1.

Turn ignition switch OFF.

2.

Disconnect the seat belt warning lamp control unit harness connector and the instrument panel warning
lamp assembly harness connector.

3.

Check continuity between seat belt warning lamp control unit
harness connector B50 (A) terminal 15 and instrument panel
warning lamp assembly M37 (B) terminal 2.

Are inspection results normal?

YES

>> Replace the seat belt warning lamp control unit.

NO

>> Repair circuit as necessary.

Seat Belt  Warning Lamp Does Not Turn Off

INFOID:0000000001726691

1.

DETERMINE WHICH LAMP IS MALFUNCTIONING

Determine if at least one of the seat belt warning lamps function.
Does either the driver or passenger seat belt warning lamps turn off when the seat belt is buckled?

Yes

>> GO TO 3

No

>> GO TO 2.

2.

CHECK VEHICLE SPEED SIGNAL

Check the vehicle speed signal at the seat belt warning lamp control unit.  Refer to XXX REFERENCE VAL-
UES.
Are the inspection results normal?

Yes

>> Replace the seat belt warning lamp control unit.  Refer to XXX SEAT BELT WARNING LAMP

CONTROL UNIT R&I.

No

>> Repair vehicle speed signal circuit.

3.

PERFORM SEAT BELT BUCKLE SWITCH CIRCUIT CHECK

Test the seat belt buckle switch circuit on the affected side.  Refer to XXX SEAT BELT BUCKLE SWITCH CIR-
CUIT CHECK.

Are the inspection results normal?

Yes

>> GO TO 4 (Driver side) or GO TO 5 (Passenger side)

No

>> Repair as necessary.

4.

CHECK HARNESS BETWEEN SEAT BELT WARNING LAMP CONTROL UNIT AND COMBINATION

METER FOR SHORT TO GROUND

1.

Turn ignition switch OFF.

2.

Disconnect the seat belt warning lamp control unit harness connector and the combination meter connec-
tor.

Continuity should exist.

ALHIA0091ZZ

Continuity should exist.

ALHIA0092ZZ

SRS AIR BAG SYSTEM

SRC-85

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

3.

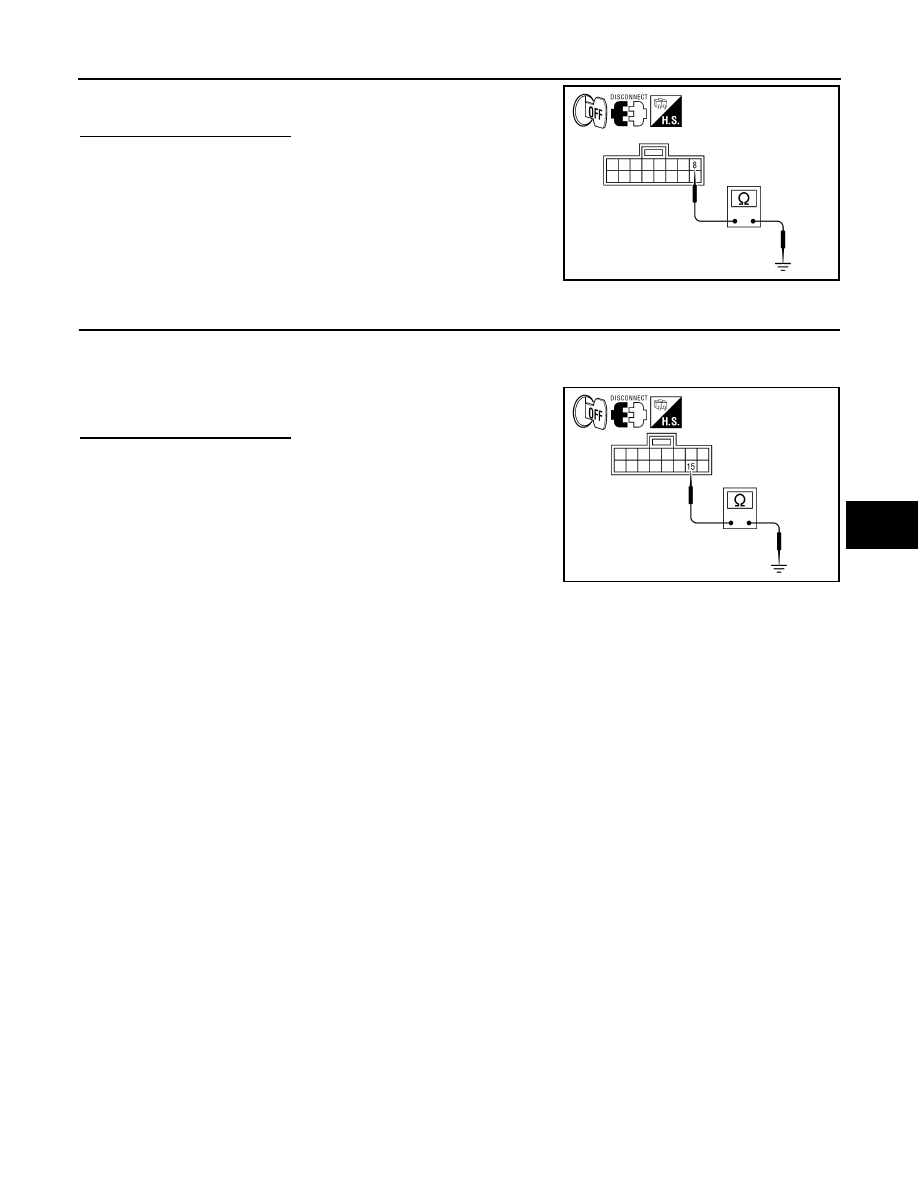

Check for a short to ground on seat belt warning lamp control
unit  harness connector B50 terminal 8.

Are inspection results normal?

YES

>> Replace the seat belt warning lamp control unit.  Refer

to XXX.

NO

>> Repair circuit as necessary.

5.

CHECK HARNESS BETWEEN SEAT BELT WARNING LAMP CONTROL UNIT AND INSTRUMENT PAN-

EL WARNING LAMP ASSEMBLY FOR SHORT TO GROUND

1.

Turn ignition switch OFF.

2.

Disconnect the seat belt warning lamp control unit harness connector and the instrument panel warning
lamp assembly harness connector.

3.

Check for a short to ground on seat belt warning lamp control
unit  harness connector B50 terminal 15.

Are inspection results normal?

YES

>> Replace the seat belt warning lamp control unit.

NO

>> Repair circuit as necessary.

ALHIA0093ZZ

ALHIA0094ZZ

SRC-86

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001396424

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for SRS "AIR BAG" and "SEAT BELT PRE-TENSIONER" Service

INFOID:0000000001396425

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-

utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have
passed.

• The air bag diagnosis sensor unit must always be installed with the arrow mark “

” pointing toward the front

of the vehicle for proper operation. Also check air bag diagnosis sensor unit for cracks, deformities or rust
before installation and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to

turn steering wheel or column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.
