SEC-24

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2013 ID DISCORD I-KEY-STRG

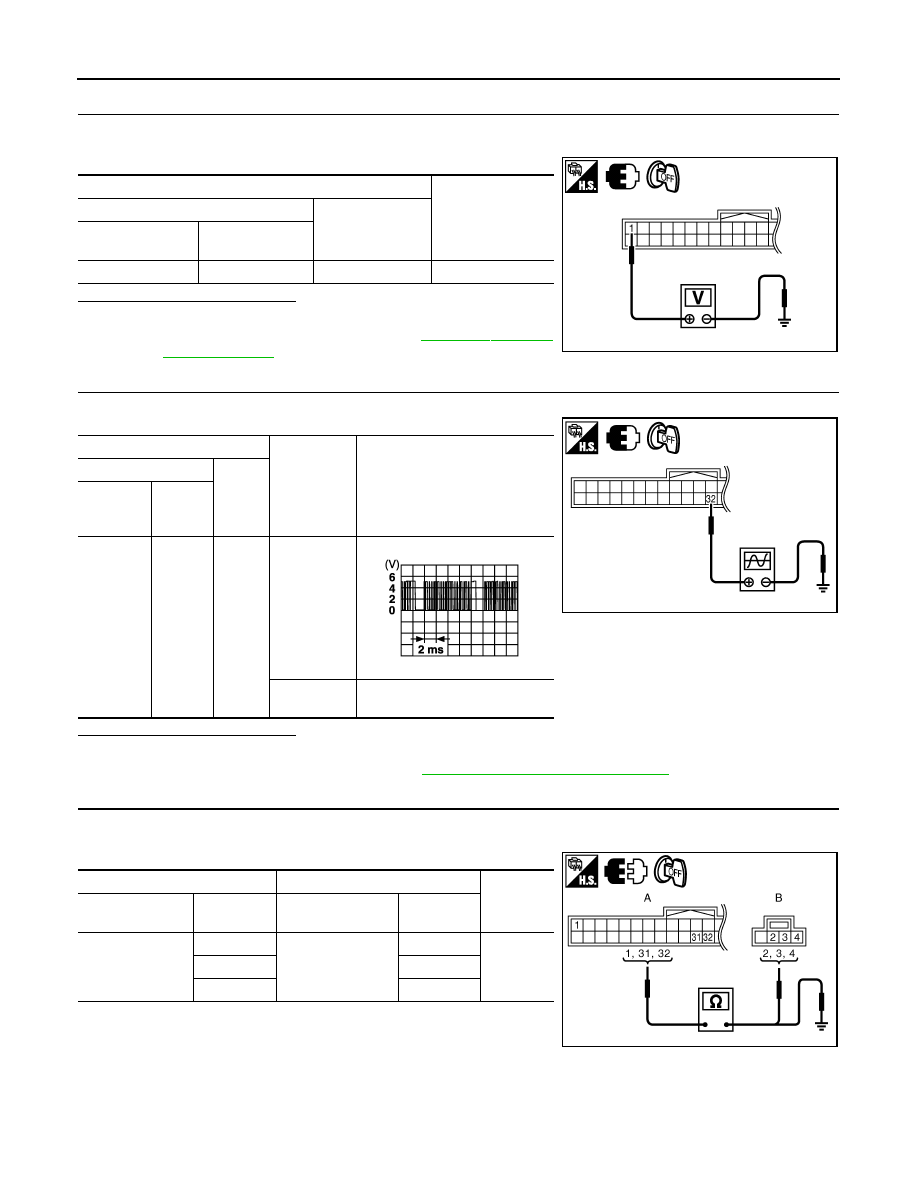

3.

CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL

1.

Connect steering lock solenoid connector.

2.

Check voltage between Intelligent Key unit and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace Intelligent Key unit. Refer to

SEC-79, "Removal

and Installation"

.

4.

CHECK STEERING LOCK COMMUNICATION SIGNAL

Check signal between Intelligent Key unit and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace Intelligent Key unit. Refer to

SEC-79, "Removal and Installation"

.

5.

CHECK STEERING LOCK SOLENOID COMMUNICATION CIRCUIT

1.

Disconnect Intelligent Key unit and steering lock solenoid connectors.

2.

Check continuity between Intelligent Key unit and steering lock solenoid.

3.

Check continuity between steering lock solenoid and ground.

Terminals

Voltage (V)

(Approx.)

(+)

(–)

Intelligent Key unit

connector

Terminal

M52

1

Ground

5

PIIB6634E

Terminals

Condition of

key switch

Voltage (V)

(Approx.)

(+)

(–)

Intelligent

Key unit

connector

Terminal

M52

32

Ground

Ignition

switch is
pressed,

when Intelli-

gent Key is

into the vehi-

cle.

Other than

above

5

PIIB6635E

SIIA1911J

A

B

Continuity

Intelligent Key unit

connector

Terminal

Steering lock sole-

noid connector

Terminal

M52

1

M6

2

Yes

31

4

32

3

PIIB6636E

B2013 ID DISCORD I-KEY-STRG

SEC-25

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> Replace steering lock solenoid.

NO

>> Repair or replace harness between steering lock solenoid and Intelligent Key unit.

6.

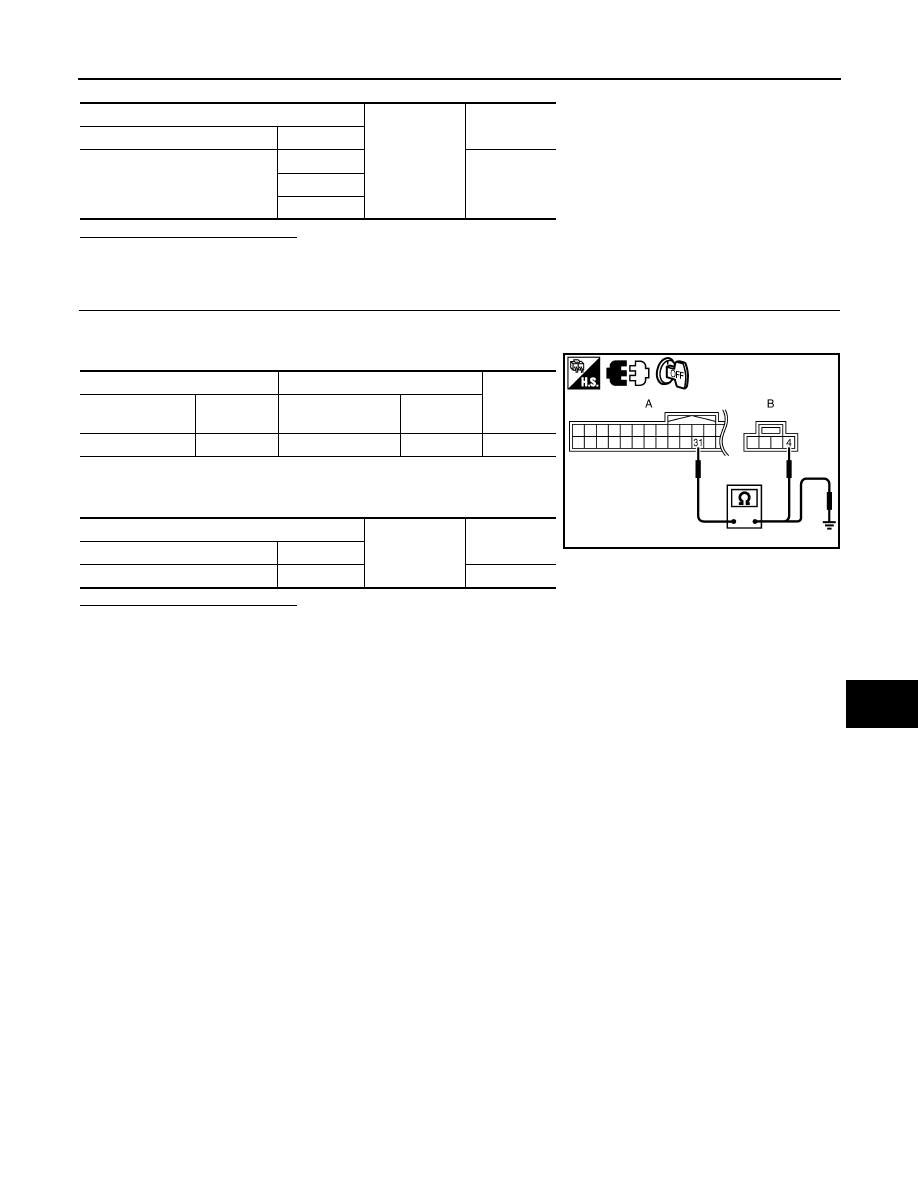

CHECK STEERING LOCK SOLENOID GROUND CIRCUIT

1.

Disconnect Intelligent Key unit connector.

2.

Check continuity between Intelligent Key unit and steering lock solenoid.

3.

Check continuity between steering lock solenoid connector and
ground.

Is the inspection result normal?

YES

>>

Check the following.

• Intelligent Key unit ground circuit.
• Intelligent Key unit.

NO

>> Repair or replace harness between steering lock solenoid and Intelligent Key unit.

A

Ground

Continuity

Intelligent Key unit connector

Terminal

M52

1

No

31

32

A

B

Continuity

Intelligent Key unit

connector

Terminal

Steering lock sole-

noid connector

Terminal

M52

31

M6

4

Yes

A

Ground

Continuity

Intelligent Key unit connector

Terminal

M52

31

No

PIIB6637E

SEC-26

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2190, P1614 NATS ANTENNA AMP.

B2190, P1614 NATS ANTENNA AMP.

Description

INFOID:0000000001404060

Performs ID verification through BCM and NATS antenna amplifier when ignition knob switch is pressed.
Prohibits the release of steering lock or start of engine when an unregistered ID of mechanical key is used.

DTC Logic

INFOID:0000000001404061

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Insert mechanical key into the key cylinder.

2.

Press the ignition knob switch.

3.

Check “Self diagnostic result” with CONSULT-III.

Is DTC detected?

YES

>> Refer to

XX-XX, "*****"

.

NO

>> INSPECTION END.

Diagnosis Procedure

INFOID:0000000001532029

1.

CHECK NATS ANTENNA AMP. INSTALLATION

Check NATS antenna amp. installation. Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Reinstall NATS antenna amp. correctly.

2.

CHECK NVIS (NATS) IGNITION KEY ID CHIP

Start engine with another registered NATS ignition key.

Does the engine start?

YES

>> • Ignition key ID chip is malfunctioning.

• Replace the ignition key.
• Perform initialization with CONSULT-III.

For initialization, refer to “CONSULT-III Operation Manual”.

NO

>> GO TO 3.

3.

CHECK POWER SUPPLY FOR NATS ANTENNA AMP.

1.

Turn ignition switch OFF.

2.

Check voltage between NATS antenna amp. connector M21 terminal 1 and ground.

DTC No.

Trouble diagnosis

name

DTC detecting condition

Possible cause

B2190

NATS ANTENNA
AMP

• Inactive communication between NATS antenna

amp. and BCM.

• Mechanical key is malfunctioning.

• Harness or connectors

(The NATS antenna amp. circuit is
open or shorted)

• Mechanical key
• NATS antenna amp.
• BCM

P1614

B2190, P1614 NATS ANTENNA AMP.

SEC-27

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace fuse or harness.

4.

CHECK NATS ANTENNA AMP. GROUND LINE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect NATS antenna amp. connector.

3.

Check continuity between NATS antenna amp. connector M21 terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK NATS ANTENNA AMP. SIGNAL LINE- 1

1.

Connect NATS antenna amp. connector.

2.

Turn ignition switch ON.

3.

Check voltage between NATS antenna amp. connector M21 ter-
minal 2 and ground with analog tester.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> • Repair or replace harness.

NOTE:
If harness is OK, replace BCM, perform initialization with CONSULT-III. For initialization, refer to
“CONSULT-III Operation Manual”.

1 - Ground

: Battery voltage

LIIA1280E

4 - Ground

: Continuity should exist.

ALKIA0854ZZ

LIIA1281E

Terminals

Position of ignition key cylinder

Voltage (V)

(Approx.)

( + )

( - )

2

Ground

Before inserting ignition key

Battery voltage

After inserting ignition key

Pointer of tester should move for approx. 30 seconds,

then return to battery voltage

Just after turning ignition switch

ON

Pointer of tester should move for approx. 1 second, then

return to battery voltage
