B TERMINAL CIRCUIT

B TERMINAL CIRCUIT

Description

INFOID:0000000001724475

The terminal “1” (B) circuit supplies power to charge the battery and operate the vehicles electrical system.

Diagnosis Procedure

INFOID:0000000001724476

1.

CHECK TERMINAL “1” CONNECTION

1.

Turn ignition switch OFF.

2.

Verify terminal “1” is clean and tight.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair terminal “1” connection. Confirm repair by performing complete Starting/Charging system

test. Refer to Technical Service Bulletin.

2.

CHECK TERMINAL “1” CIRCUIT

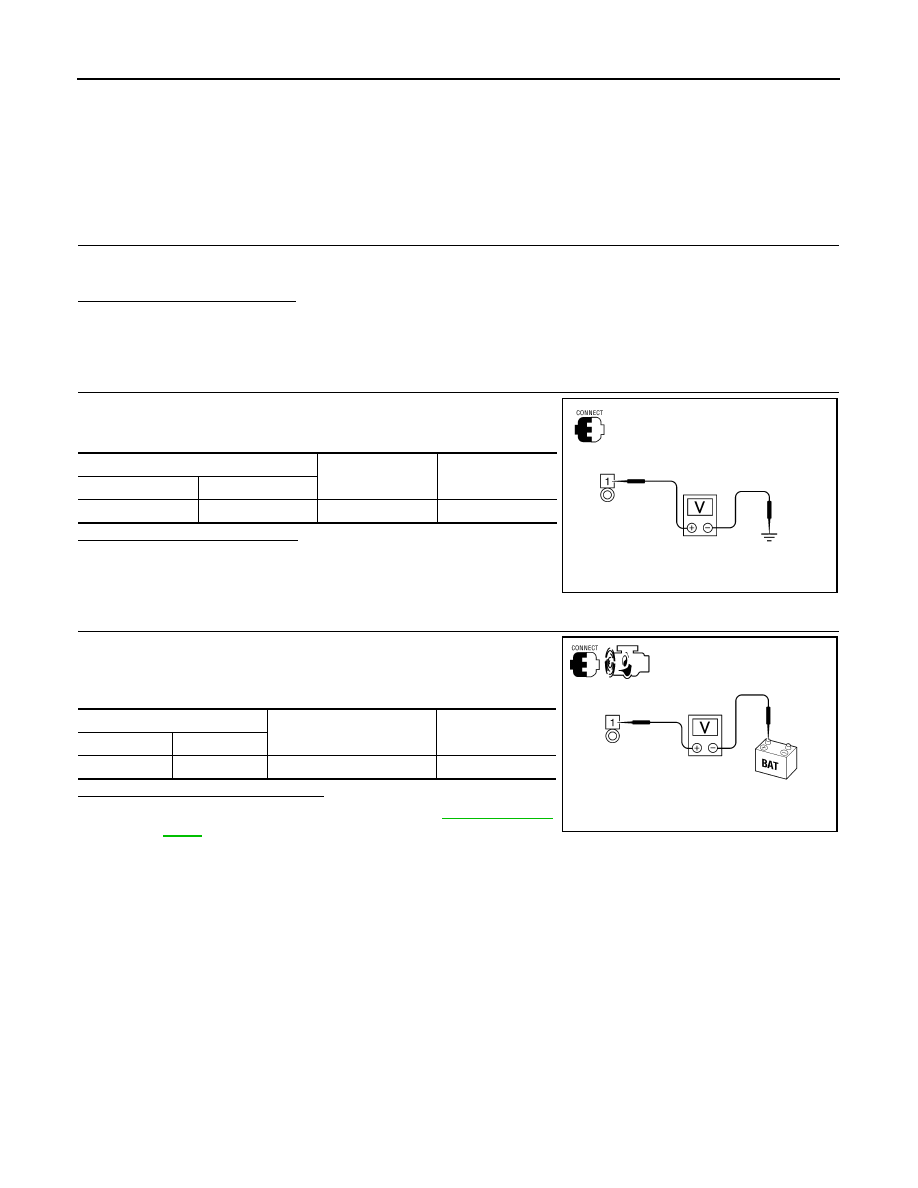

Check voltage between generator connector F2 terminal 1 and
ground.

Is voltage reading as specified?

YES

>> GO TO 3.

NO

>> Check harness for open between generator and fusible

link.

3.

CHECK TERMINAL “1” CONNECTION (VOLTAGE DROP TEST)

1.

Start engine, then engine running at idle and warm.

2.

Check voltage between battery positive terminal and generator
connector F2 terminal 1.

Is the voltage reading as specified?

YES

>> Terminal “1” circuit is normal. Refer to

CHG-33, "Work

Flow"

.

NO

>> Check harness between battery and generator for high resistance.

(+)

(-)

Voltage

Connector

Terminal

F2

1

Ground

Battery voltage

ALMIA0197ZZ

(+)

(-)

Voltage

Connector

Terminal

F2

1

Battery positive terminal

Less than 0.2V

ALMIA0198ZZ

CHG

L TERMINAL CIRCUIT

CHG-11

< COMPONENT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

L TERMINAL CIRCUIT

Description

INFOID:0000000001724477

The terminal “2” (L) circuit controls the charge warning lamp. The charge warning lamp illuminates when the
ignition switch is set to ON or START. When the generator is providing sufficient voltage with the engine run-
ning, the charge warning lamp will go off. If the charge warning lamp illuminates with the engine running, a
malfunction is indicated.

Diagnosis Procedure

INFOID:0000000001724478

1.

CHECK CHARGE WARNING LAMP CIRCUIT CONNECTION

Verify generator connector F2 terminal 2 is clean and tight.

Is the connection secure?

YES

>> GO TO 2

NO

>> Repair the connection. Confirm repair by performing complete Starting/Charging system test.

Refer to Technical Service Bulletin.

2.

CHECK CHARGE WARNING LAMP CIRCUIT

1.

Disconnect generator connector F2.

2.

Apply ground to generator harness connector F2 terminal 2 with
the ignition switch in the ON position.

Does the charge lamp illuminate?

YES

>> Check generator function. Refer to

CHG-33, "Work

Flow"

.

NO

>> GO TO 3

3.

CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect the generator connector F2 and combination meter
connector M24.

3.

Check continuity between generator harness connector F2 (A)
terminal 2 and combination meter harness connector M24 (B)
terminal 38.

4.

Check continuity between generator harness connector F2 ter-
minal 2 and ground.

Are the continuity results as specified?

YES

>> Replace the combination meter. Refer to

XX-XX, "*****"

.

NO

>> Repair the harness or connector.

Charge lamp should illuminate

ALMIA0200ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

F2

2

M24

38

Yes

A

—

Continuity

Connector

Terminal

F2

2

Ground

No

ALMIA0326GB

CHG-12

< COMPONENT DIAGNOSIS >

[HR16DE]

S TERMINAL CIRCUIT

S TERMINAL CIRCUIT

Description

INFOID:0000000001724479

The output voltage of the generator is controlled by the IC regulator at terminal “3” (S) detecting the input volt-
age. Terminal “3” circuit detects the battery voltage to adjust the generator output voltage with the IC regulator.

Diagnosis Procedure

INFOID:0000000001724480

1.

CHECK VOLTAGE REGULATOR CIRCUIT CONNECTION

Check to see if connector F2 terminal 3 is clean and tight.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair terminal connection. Confirm repair by performing complete Starting/Charging system test.

Refer to Technical Service Bulletin.

2.

CHECK VOLTAGE REGULATOR CIRCUIT

Check voltage between generator harness connector F2 terminal 3
and ground.

Does battery voltage exist?

YES

>> Refer to

CHG-33, "Work Flow"

.

NO

>> Check harness for open between generator and fuse.

3 - ground

Battery voltage

ALMIA0201ZZ

CHG

CHARGING SYSTEM

CHG-13

< COMPONENT DIAGNOSIS >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CHARGING SYSTEM

Wiring Diagram

INFOID:0000000001724481

AWMWA0022GB
