1.

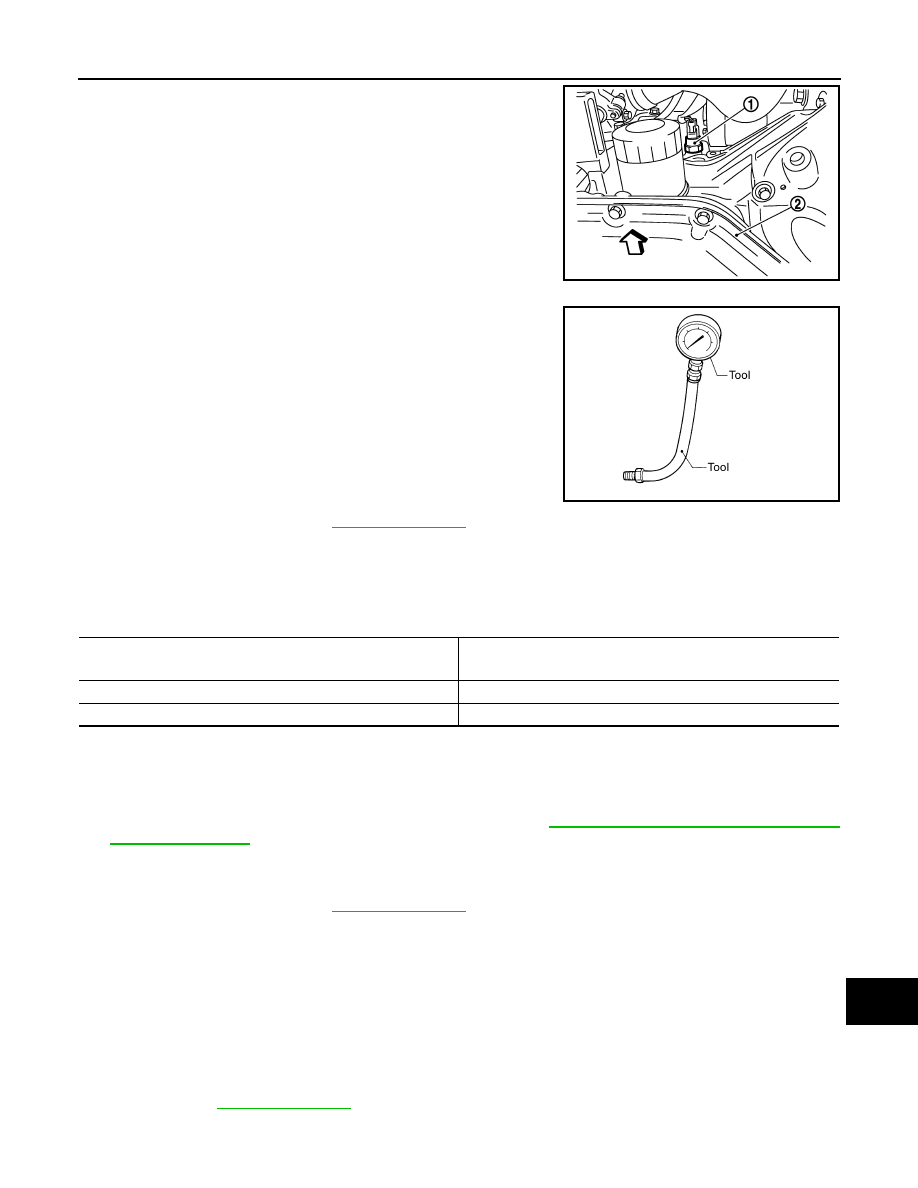

Disconnect harness connector at oil pressure switch (1), and
remove oil pressure switch using a suitable tool.
• Oil pan (lower) (2)
•

⇐

 Front

2.

Install oil pressure gauge and hose.

3.

Check engine oil level. Refer to

LU-15, "Inspection"

.

4.

Start engine and warm it up to normal operating temperature.

5.

Check oil pressure with engine running under no-load.
NOTE:
When engine oil temperature is low, engine oil pressure becomes high.

Engine oil pressure [Engine oil temperature at 80

°

C (176

°

F)]

If difference is extreme, check oil passage and oil pump for oil leaks.

6.

After the inspections, install oil pressure switch as follows:

a.

Remove old liquid gasket adhering to oil pressure switch and engine.

b.

Apply liquid gasket and tighten oil pressure switch to specification.
Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-27, "Recommended Chemical Prod-

ucts and Sealants"

.

c.

Check engine oil level. Refer to

LU-15, "Inspection"

.

d.

After warming up engine, make sure there are no engine leaks of oil with running engine.

ENGINE OIL : Changing Engine Oil

INFOID:0000000001730866

WARNING:

• Be careful not to burn yourself, as engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

1.

Warm up engine, park vehicle on a level surface and check for engine oil leakage from engine compo-
nents. Refer to

LU-15, "Inspection"

.

2.

Stop engine and wait for 10 minutes.

PBIC3310E

Tool number

: ST25051001 (J-25695-1)

: ST25052000 (J-25695-2)

WBIA0571E

Engine speed

rpm

Approximate discharge pressure

kPa (bar, kg/cm

2

, psi)

Idle speed

More than 71.5 (0.70, 0.70, 10)

2,000

More than 200 (2.0, 2.0, 29)

Oil pressure switch

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

MA-38

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (MR18DE)

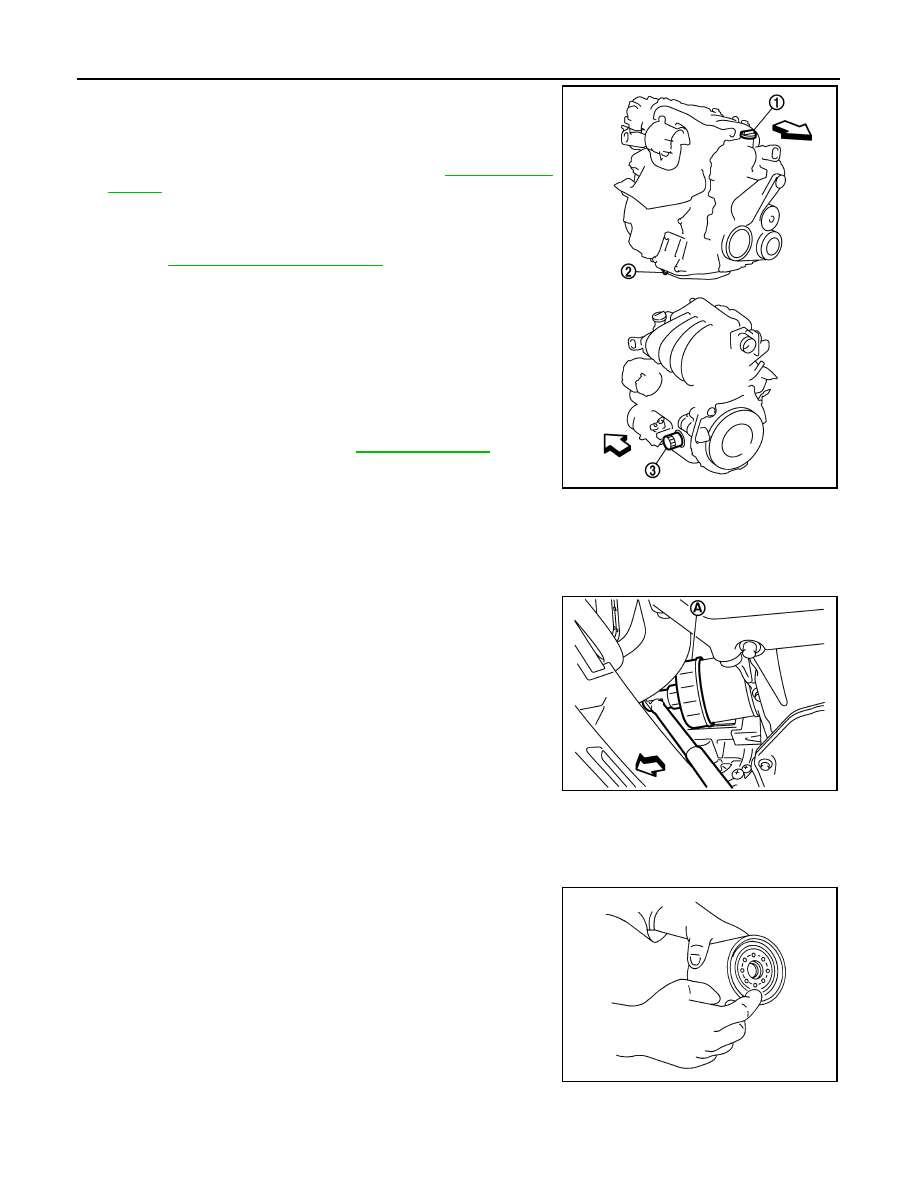

3.

Loosen oil filler cap (1) and then remove drain plug (2).
• Oil filter (3)
•

⇐

 Engine front

4.

Drain engine oil.

5.

Install drain plug (2) with new washer. Refer to

EM-211, "Com-

ponent"

.

CAUTION:

Be sure to clean drain plug (2) and install with new washer.

6.

Refill with new engine oil.
Refer to

MA-19, "Fluids and Lubricants"

.

CAUTION:

• The refill capacity depends on the engine oil temperature

and drain time. Use these specifications for reference
only.

• Always use oil level gauge to determine the proper

amount of engine oil in the engine.

7.

Warm up engine and check area around drain plug (2) and oil fil-
ter (3) for engine oil leakage.

8.

Stop engine and wait for 10 minutes.

9.

Check the engine oil level. Refer to

LU-15, "Inspection"

.

OIL FILTER

OIL FILTER : Removal and Installation

INFOID:0000000001730868

REMOVAL

1.

Remove oil filter using Tool (A).

•

⇐

 Front

CAUTION:

• Oil filter is provided with relief valve. Use Genuine NIS-

SAN Oil Filter or equivalent.

• Be careful not to get burned when engine and engine oil

may be hot.

• When removing, prepare a shop cloth to absorb any

engine oil leakage or spillage.

• Do not allow engine oil to adhere to drive belt.
• Completely wipe off any engine oil that adheres to engine and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply new engine oil to the oil seal contact surface of new oil fil-
ter.

PBIC3915E

Tool number

: KV10115801 (J-38956)

PBIC3818E

SMA010

ENGINE MAINTENANCE (MR18DE)

MA-39

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

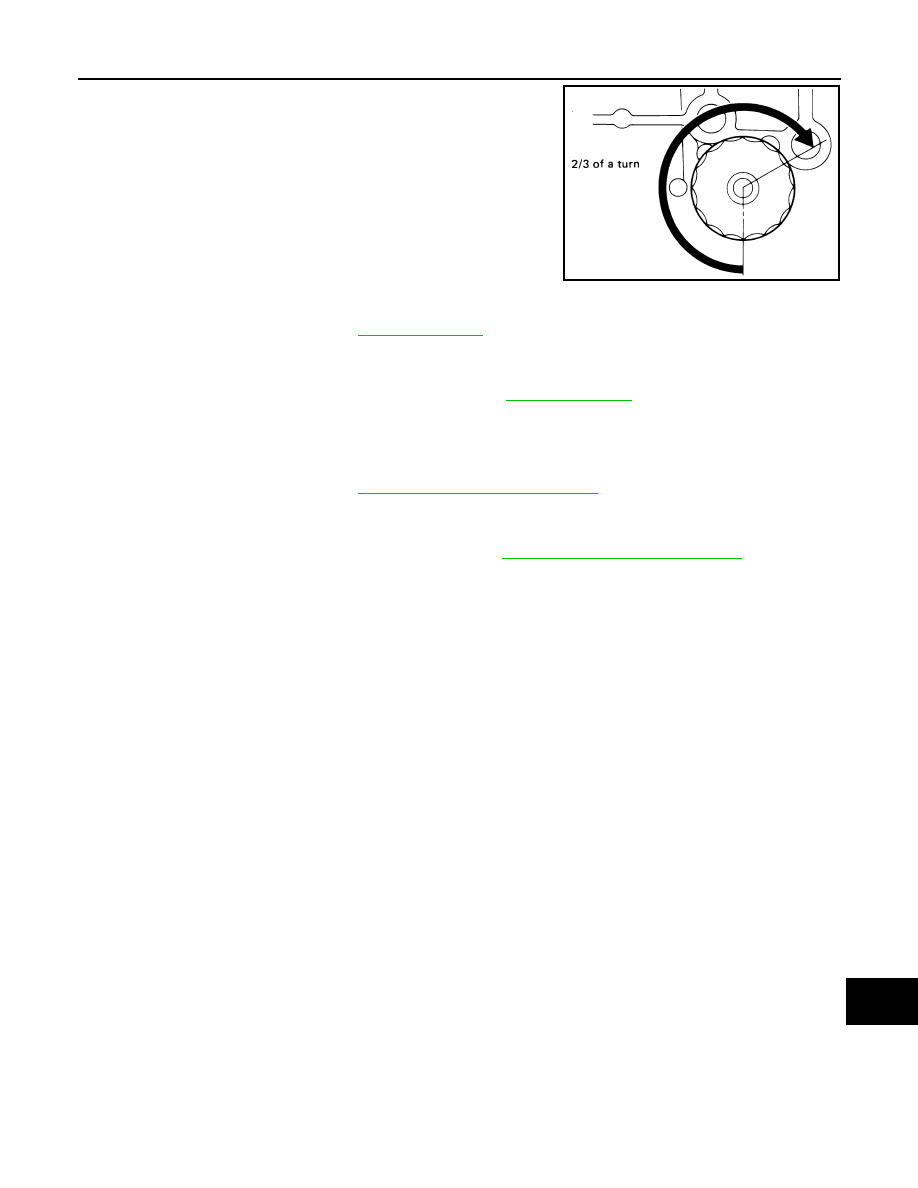

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-6, "Inspection"

.

2.

Start engine, and make sure there is no leaks of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level and adjust engine oil. Refer to

LU-6, "Inspection"

.

OIL FILTER : Inspection

INFOID:0000000001277633

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

MA-36, "ENGINE OIL : Inspection"

.

2.

Start the engine, and check there is no leak of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

MA-36, "ENGINE OIL : Inspection"

.

SPARK PLUG

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA229B

MA-40

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (MR18DE)

SPARK PLUG : Component

INFOID:0000000001730863

SPARK PLUG : Removal and Installation

INFOID:0000000001730864

REMOVAL

1.

Remove intake manifold. Refer to

EM-156, "Removal and Installation"

.

2.

Remove ignition coil.

CAUTION:

• Handle it carefully and avoid impacts.
• Never disassemble.

3.

Remove spark plug using suitable tool.

CAUTION:

Never drop or shock it.

1.

PCV hose

2.

Rocker cover

3.

Spark plug

4.

Ignition coil

5.

PCV hose

6.

PCV valve

7.

O-ring

8.

Gasket

A.

To air duct

B.

Refer to

MA-40

.

C.

To intake manifold

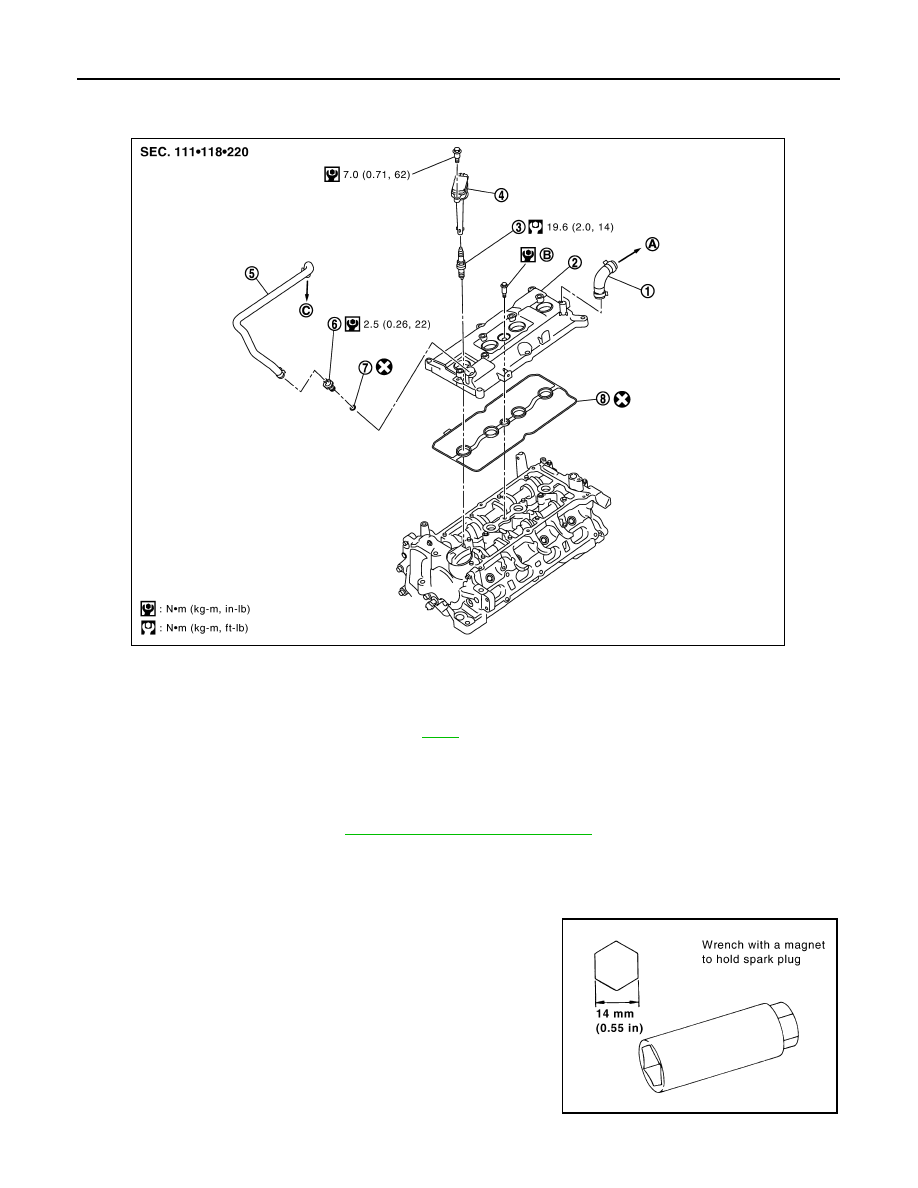

PBIC3536J

PBIC3871E
