STEERING SWITCH

STEERING SWITCH

Removal and Installation

INFOID:0000000001724705

For removal and installation, refer to

AV-27, "Removal and Installation"

.

AV

GPS ANTENNA

AV-127

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Removal and Installation

INFOID:0000000001724706

AUDIO UNIT

Removal

1.

Remove cluster lid C. Refer to

IP-11, "Removal and Installation"

.

2.

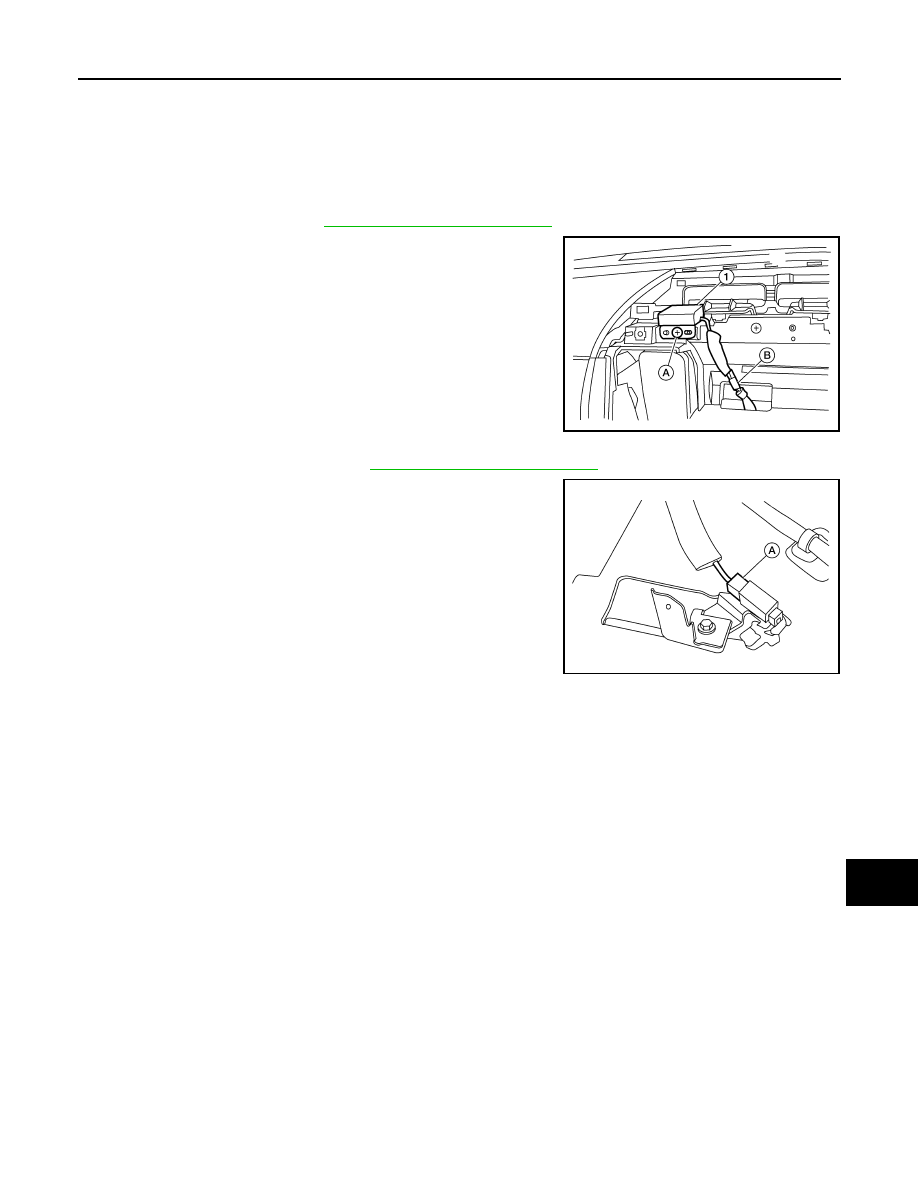

Remove the GPS antenna screw (A), detach the GPS antenna
harness clip.

3.

Remove the center console. Refer to

IP-11, "Removal and Installation"

.

4.

Disconnect the GPS antenna connector (A) and remove the
GPS antenna.

Installation

Installation is in the reverse order of removal.

ALNIA0864ZZ

ALNIA0865ZZ

AV-128

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

DISPLAY UNIT

DISPLAY UNIT

Removal and Installation

INFOID:0000000001724707

AUDIO UNIT

Removal

1.

Remove the AV (NAVI) control unit. Refer to

AV-23, "Removal

and Installation"

.

2.

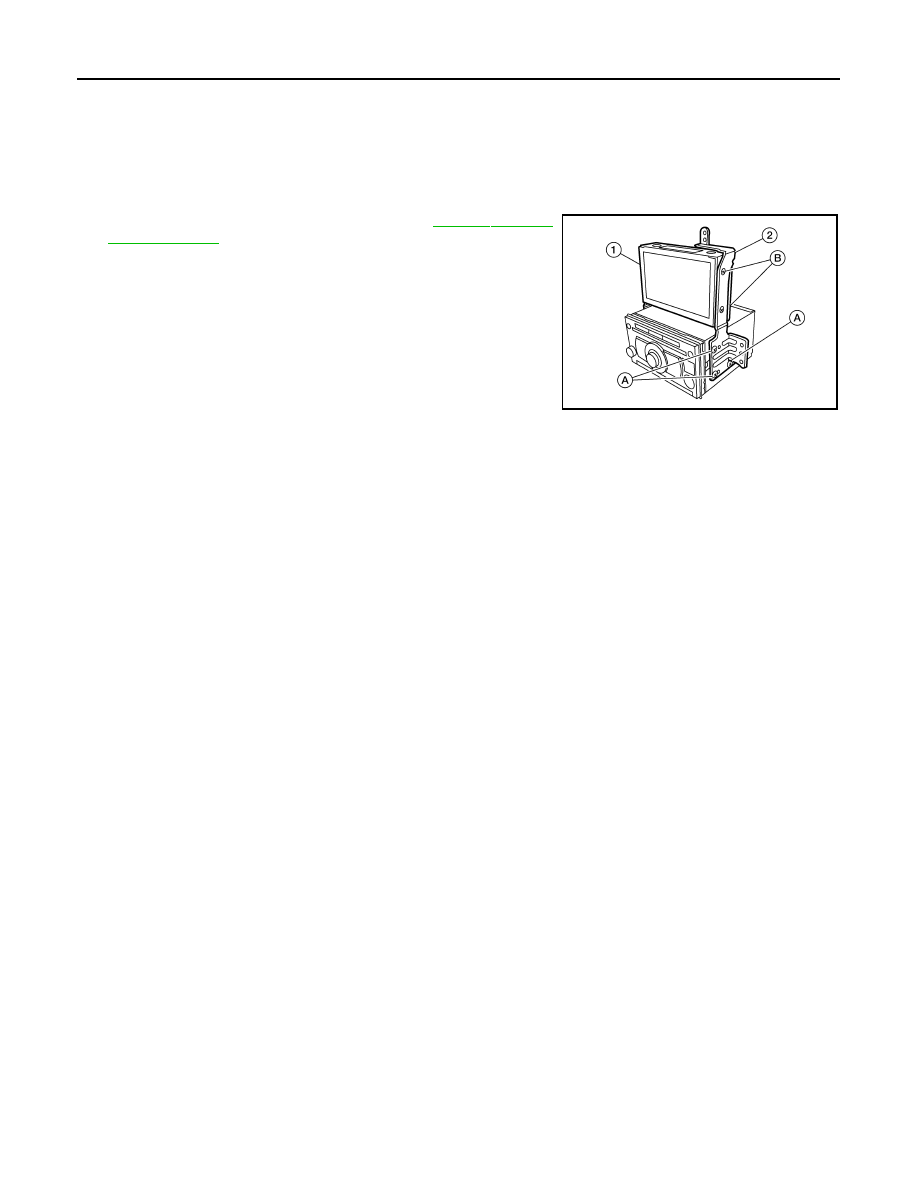

Remove the AV (NAVI) control unit bracket screws (A), remove
the display unit screws (B), then remove the display unit brack-
ets (2) and remove the display unit (1).

Installation

Installation is in the reverse order of removal.

ALNIA0866ZZ

AV

MICROPHONE

AV-129

< ON-VEHICLE REPAIR >

[AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

MICROPHONE

Removal and Installation

INFOID:0000000001724710

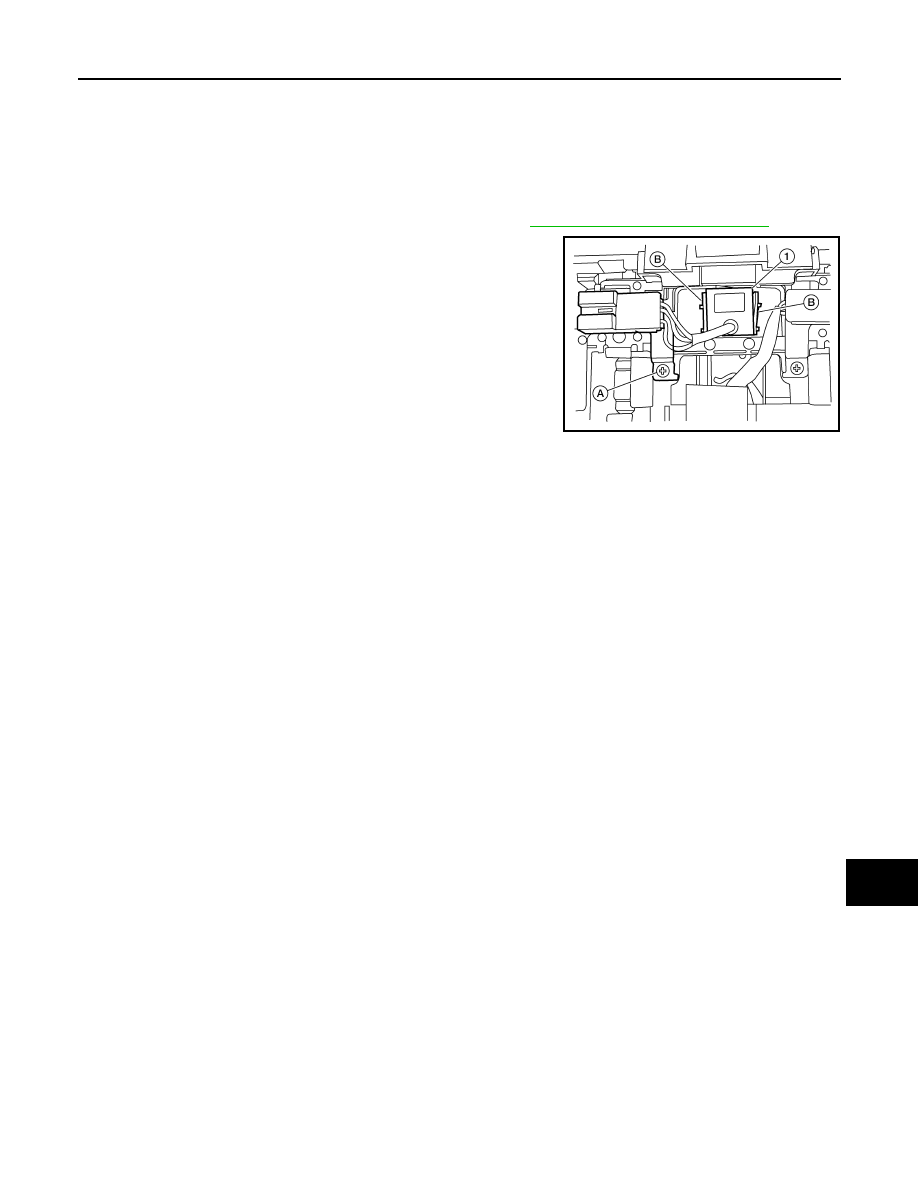

BLUETOOTH MICROPHONE

Removal

1.

Remove over-head console assembly, roof finisher. Refer to

INL-25, "Removal and Installation"

.

2.

Remove the Bluetooth microphone Screw (A), then release the
Bluetooth microphone tabs and remove the Bluetooth micro-
phone (1).

Installation

Installation is in the reverse order of removal.

ALNIA0867ZZ
