Nissan Tiida C11. Manual - part 1





ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001724596

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

ACCELERATOR CONTROL SYSTEM

ACC-3

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

ON-VEHICLE REPAIR

ACCELERATOR CONTROL SYSTEM

Component

INFOID:0000000001724597

Removal and Installation

INFOID:0000000001724598

CAUTION:

• Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sensor

from accelerator pedal assembly.

• Avoid impact from dropping etc. during handling.
• Be careful to keep accelerator pedal assembly away from water.

REMOVAL

1.

Disconnect the negative battery terminal.

2.

Disconnect accelerator pedal position sensor harness connector.

3.

Loosen mounting bolts, and remove accelerator pedal assembly.

INSTALLATION

Installation is in the reverse order of removal.
• Insert locating pin into vehicle side to position accelerator pedal assembly. Install mounting bolt to accelera-

tor pedal assembly.

• Align the stud bolt on the floor with the thread hole to insert accelerator pedal stopper until it contacts the

face.

INSPECTION AFTER INSTALLATION

• Make sure that the accelerator pedal moves smoothly within the whole operation range.
• Make sure that the accelerator pedal securely returns to the original position.

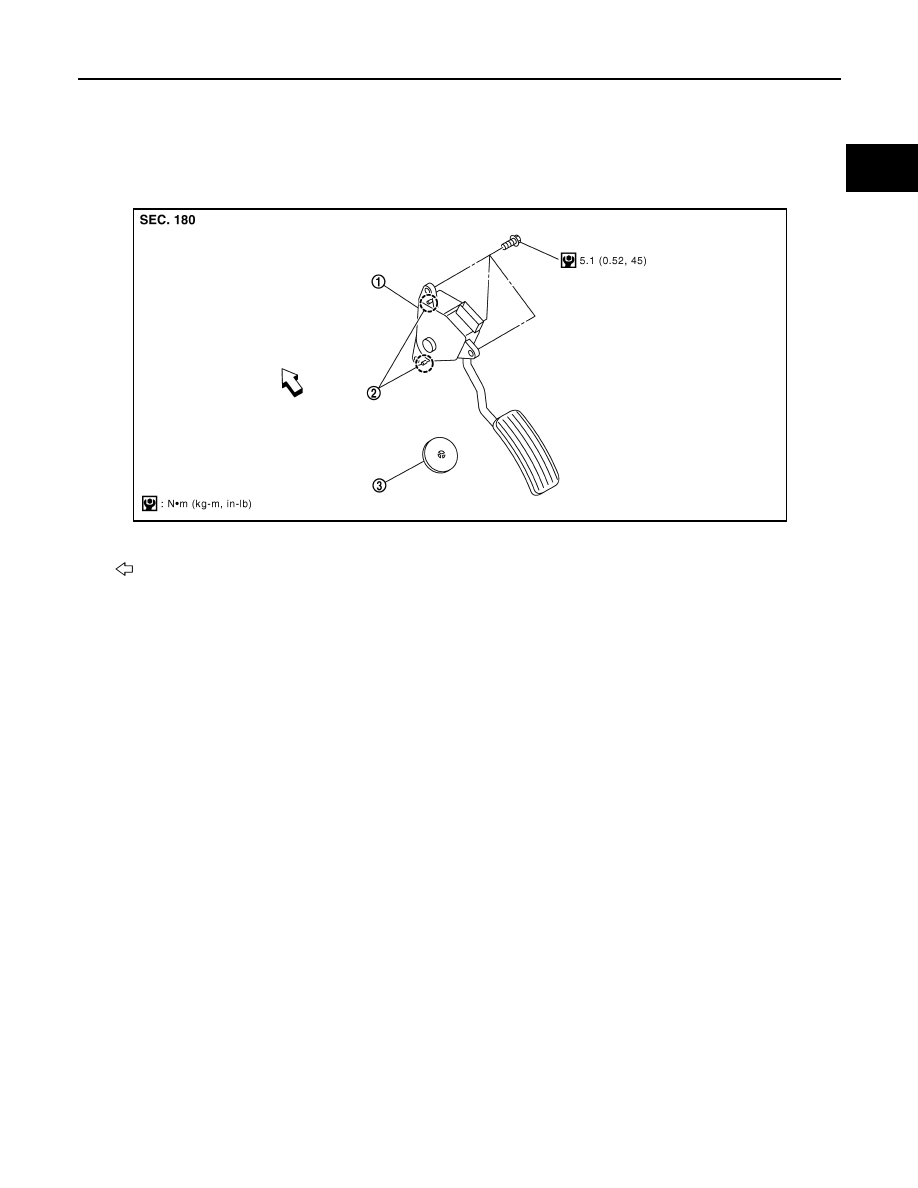

1.

Accelerator pedal assembly

2.

Locating pin

3.

Accelerator pedal stopper

: Front

PBIC3813E

AV

AV-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

AV

A

O

P

CONTENTS

AUDIO, VISUAL & NAVIGATION SYSTEM

AUDIO WITHOUT NAVIGATION
