handle left to the rear tilt position and the control handle is locked. During drawing the

bucket, the control handle returns to the neutral position and place it in the lowering position

when in the set level automatically position. Then the equipment is placed on the ground and

the bucket is in the bucketing position in order to realize the set level automatically function

and increase the efficient of the whole vehicle.

—  Lock automatically function: When leveling the ground, place the control handle in the

floating position, and the control handle is locked by the electromagnetic force to realize the

lock automatically; Take the control handle from the floating position, it returns to the

neutral position automatically to increase the efficient of the whole vehicle.

z  Brake Pedal

The Brake Pedal controls the brake of the vehicle. Refer to

1.1 General View of Controls and

Gauges Figure3-1

,

Figure3-2, Figure 3-3

in this chapter.

Do not use the left brake pedal to avoid the drive from being cut off on ramp, if double brake pedal

are provided.

z  Accelerator Pedal

This pedal controls the acceleration of the engine. Refer to

1.1 General View of Controls and

Gauges Figure3-1

,

 Figure3-2, Figure 3-3

in this chapter.

The engine speed can be freely regulated between idle and full speed.



z  Parking Brake Switch

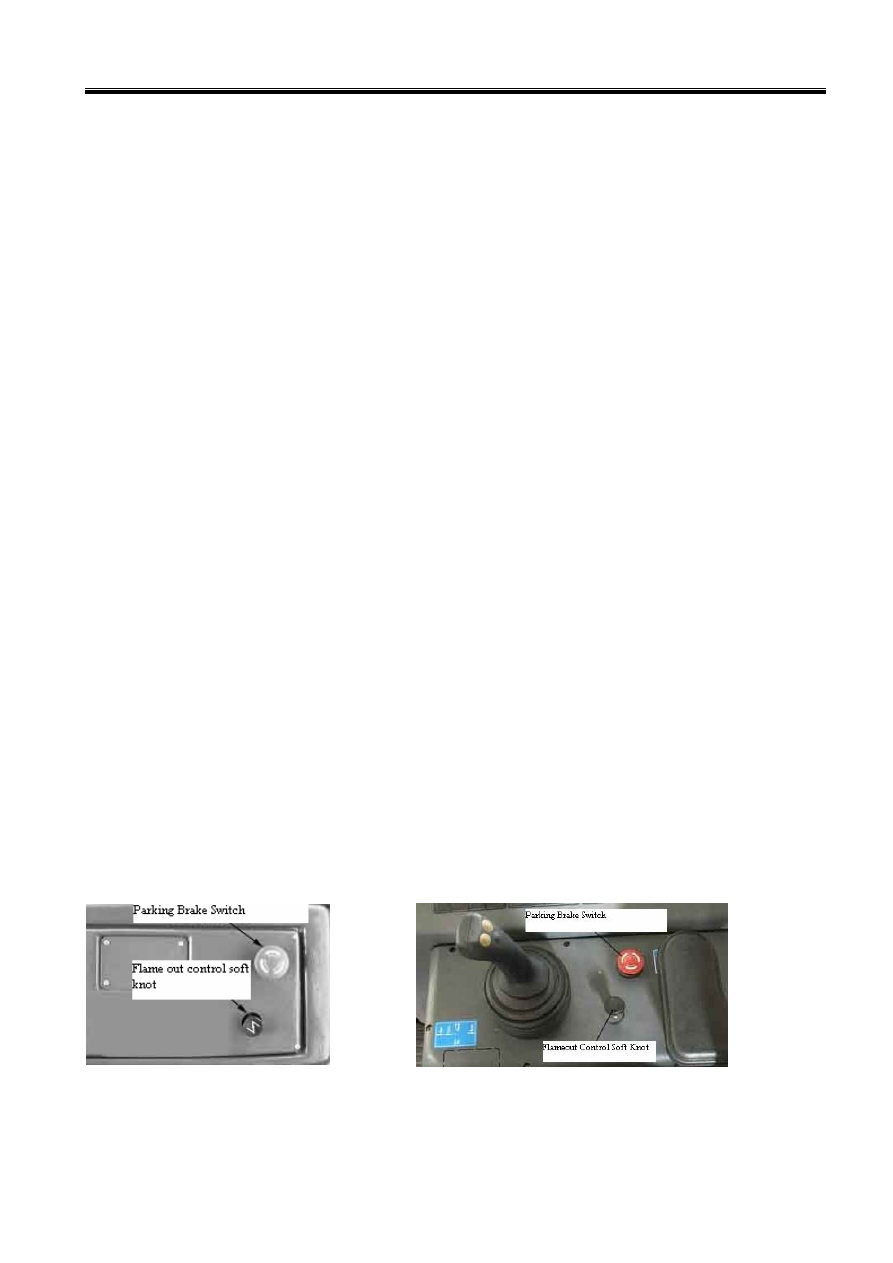

This switch is on the right operator box and it is used for the parking brake. Pull this switch to engage

the parking brake. Rotate the switch clockwise and the button springs back to release the parking

brake.

z  Flameout Control Soft Knot

This soft knot is on the cover of the heater which on the right side of the seat. Pull this knot, will put

out an engine flame.



















Operation & Maintenance Manual──LG936L Wheel Loader

 65

1.2.5 Cab Door Locking Bar

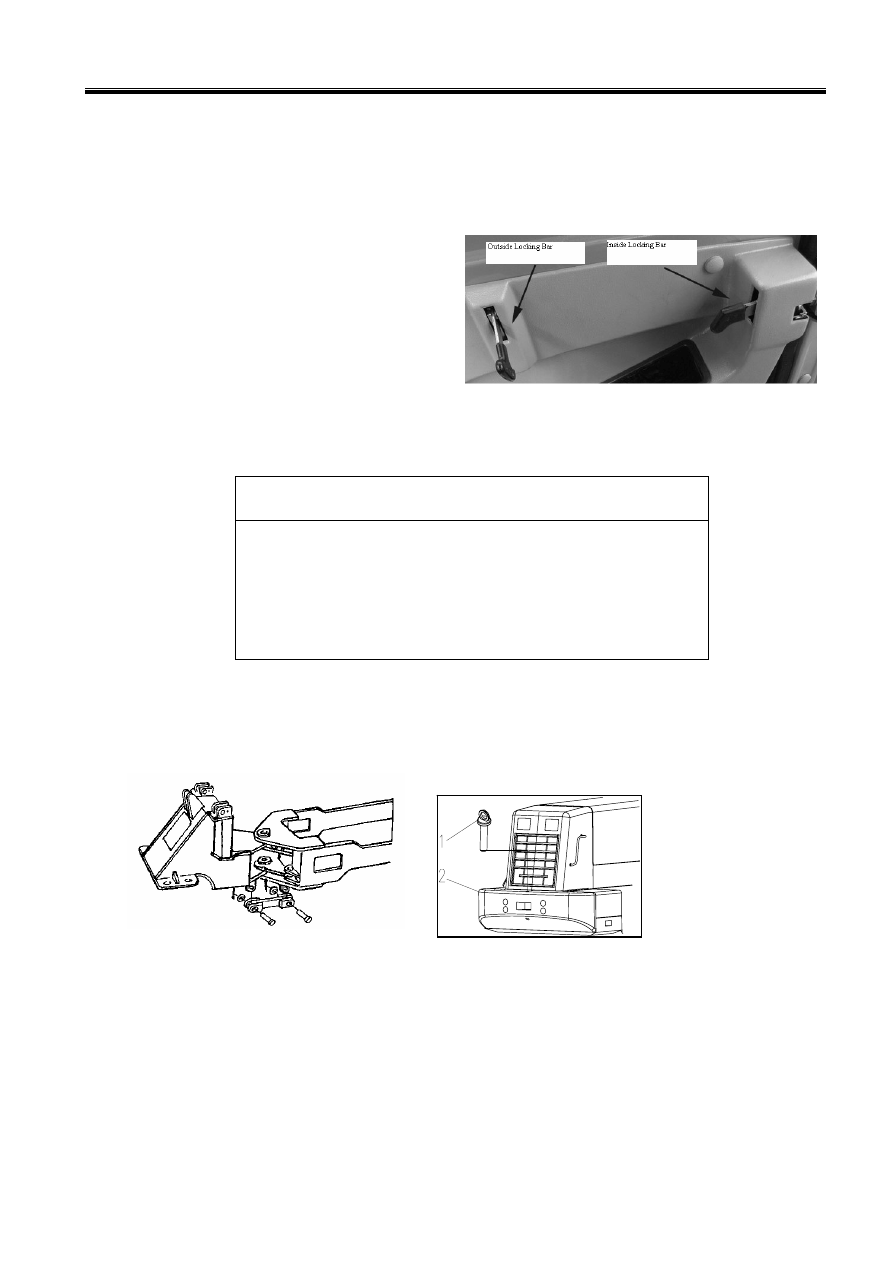

Outside Cab Locking Bar: Open the left and right door to 180° and the orientation lock on the door

will touch the outside lock of the cab and the door will be locked outside the cab. Turn the control bar

downward and it will unlock.

Inside Cab Locking Bar: When the lock of the

cab is in the locked positions, the door will be

locked automatically after closing the door. Insert

key outside the cab. Turn 180°clockwise and pull

out key. Pull the handle outside the cab and the

cab door will open. Turn the lock bar upward and it will open.

1.2.6 Frame Locking Bar



△

!   WARNING

z  Be sure to use the front and rear frame locking bar during

maintenance or transporting the machine.

z  Be sure to release the frame locking bar during routine

travel.



z  The frame locking bar is used to lock the front and rear frames during maintenance or

transporting vehicles, in order to prevent the frames from moving.













1.2.7 Towing Pin

z  During towing, insert the towing pin  into the

①

counterweight .

②



1.2.8 Fuse



Operation & Maintenance Manual──LG936L Wheel Loader

 66

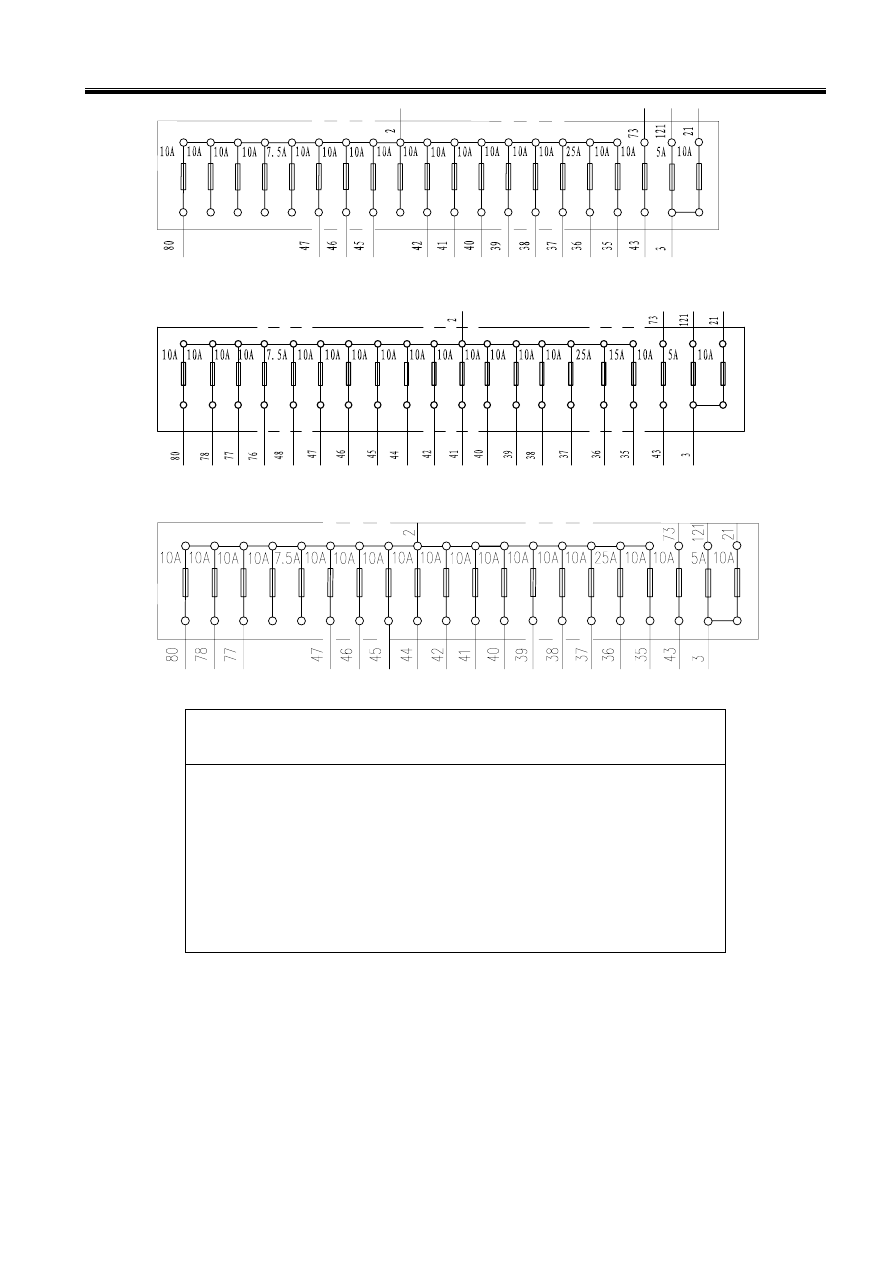

Fuse Box (Domestic Type, Pilot Control)



Fuse Box (Mechanical Control)



Fuse Box (Export Type, Pilot Control)



△

!

 NOTICE



z  Always be sure to close the startup switch before replacing the

fuse .The fuse is used to protect the wiring and cable from burning

out. If the fuse has become corroded by oxidation, or the fuse is

loose in the fuse holder, please replace the fuse.





z  When replacing the fuse, please replace with a fuse of the same

specification.



1.2.9 Air Conditioning

1.2.9.1

Ⅰ

control panel and is operation (if assembled)

z  The Appearance of Panel

The panel of air conditioning is on the right operator box.





z  Operating methods

a) Refrigeration

Operation & Maintenance Manual──LG936L Wheel Loader

 67

—  Start the engine.

—  Open the air volume and power

switch 2 which have three gears (fan

low gear, fan middle gear and fan

high gear) and four positions (O, L,

M and H). The speed of evaporating

fan increases from left to right to

adjust the air volume.

—  Open the temperature control switch

3 to the max (the indicator lamp1 will

light), then the compressor starts working for the refrigeration of air conditioning.

—  Turn the air volume and power switch 2 to select different gear to obtain three different

volume of air.

—  Turn the temperature control switch anticlockwise slowly to obtain the desired temperature

until the indicator lamp 1 turns off and the compressor stops working. Now the setting

temperature is the temperature in the cab. When the inside temperature is higher than the

setting temperature, the indicator lamp 1 lightens and the compressor will begin to refrigerate;

when the inside temperature is lower than the setting temperature, the indicator lamp 1 turns

off and the compressor stops working.

b) Heating

—  Before using, turn the temperature control switch to the ‘O’ position (the state of off).

—  Open the hot water valve and start engine.

—  Open the air volume and power switch 2 to choose the position of gear and adjust to the

desired air volume.

1.2.9.2

Ⅱ

control panel and is operation (if assembled)



z  The Appearance of Panel















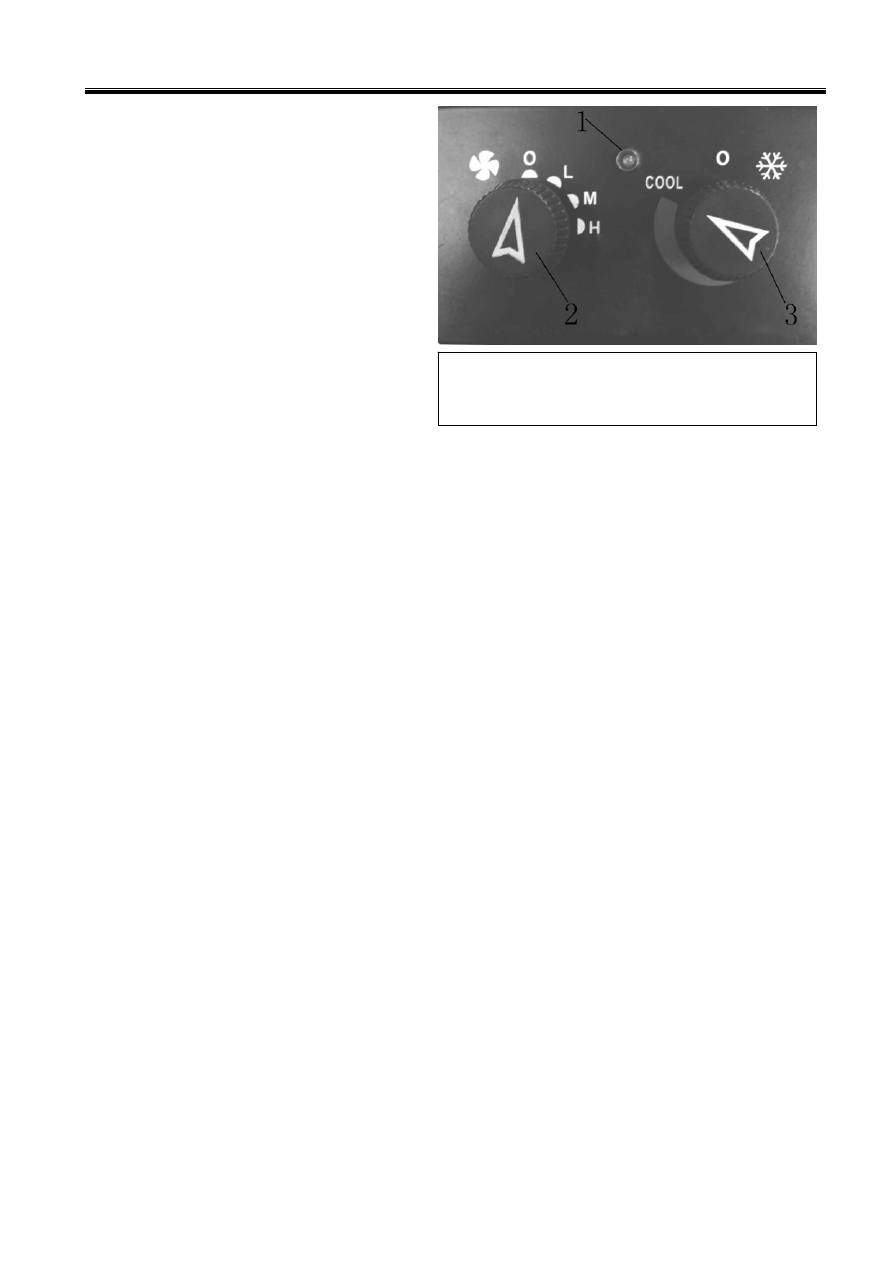

1. Working Indicator Lamp
2. Air Volume and Power Switch

    3. The Switch to Control the Temperature
