the speed of the vehicle ahead. Depress the
set speed.
accelerator to properly accelerate your vehicle
4. MAIN switch:
when acceleration is required for a lane change.
Master switch to activate the system.
Depress the brake pedal when deceleration is
required to maintain a safe distance to the
5. DISTANCE switch:
vehicle ahead due to its sudden braking or if a
Changes the vehicle’s following distance:
vehicle cuts in. Always stay alert when using
. Long
the ACC system.
. Middle
. Short
WAF0602X
Vehicle-to-vehicle distance control
mode switches

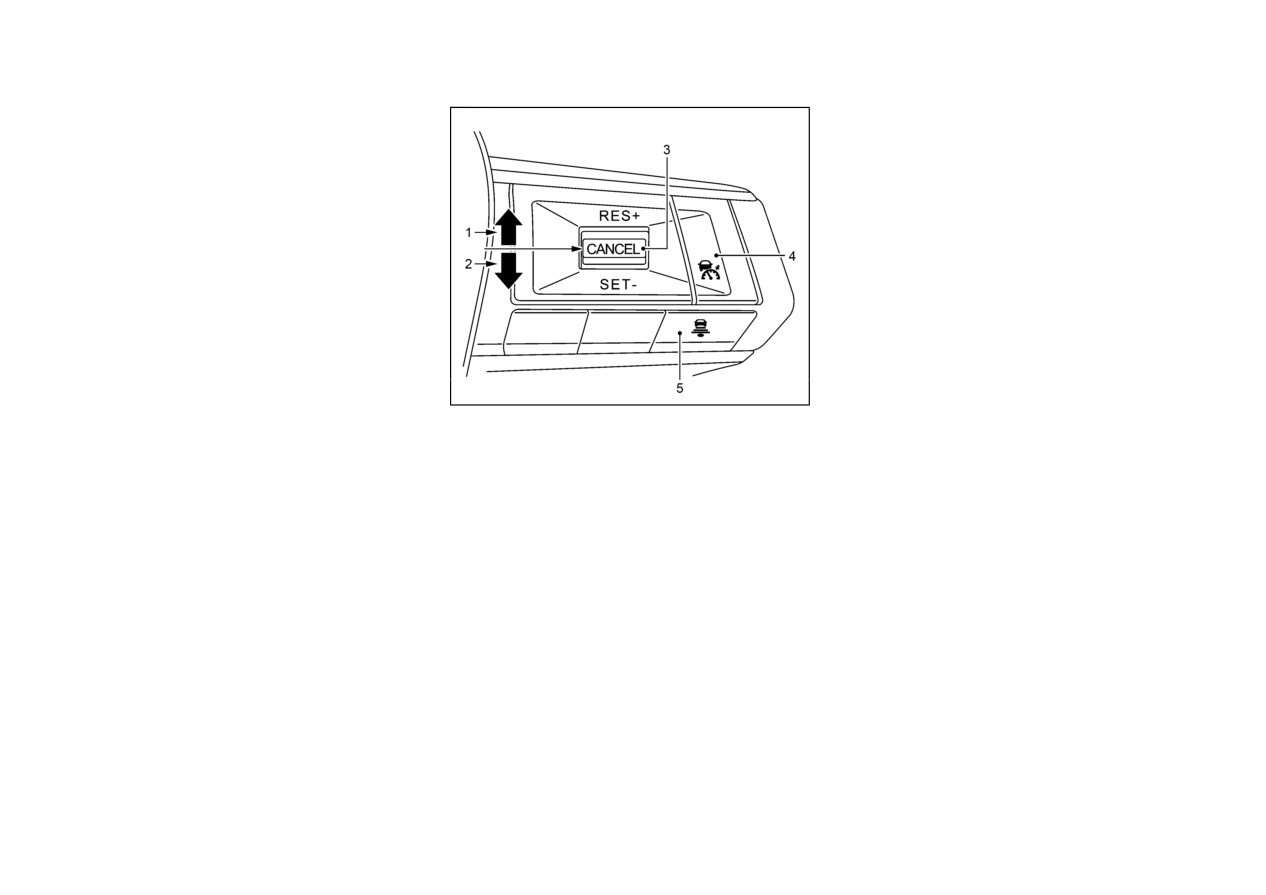

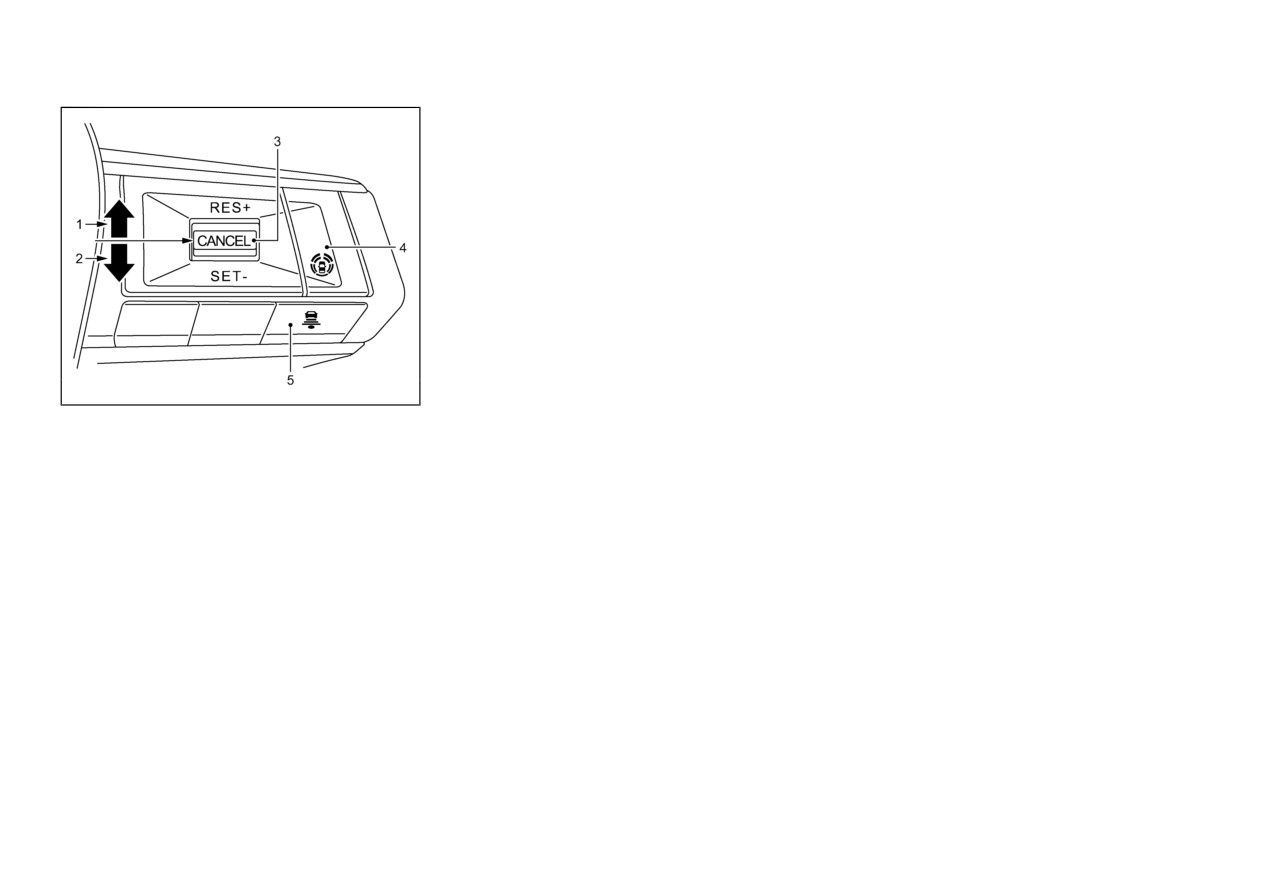

The system is operated by a MAIN switch and
four control switches, all mounted on the
steering wheel.
1. RES+ switch:
Resumes set speed or increases speed
incrementally.
2. SET- switch:
Sets desired cruise speed, reduces speed
incrementally.
3. CANCEL switch:
Deactivates the system without erasing the
Starting and driving
5-75
WAF0657X
WAF0603X
WAF0604X
Example
To set cruising speed, accelerate your vehicle
Operating vehicle-to-vehicle distance
Vehicle-to-vehicle distance control
to the desired speed, push the SET- switch and
control mode
release it. (The vehicle ahead detection indica-

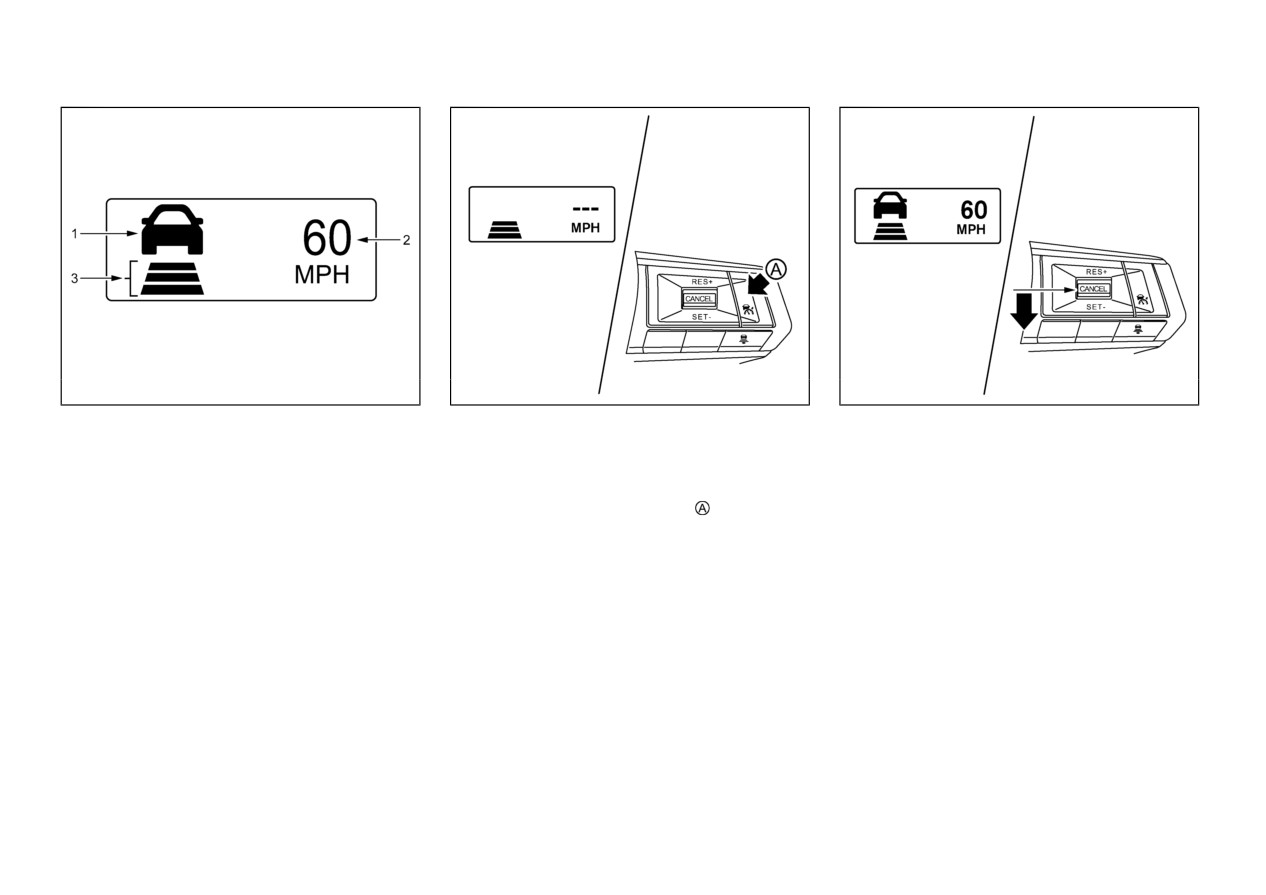

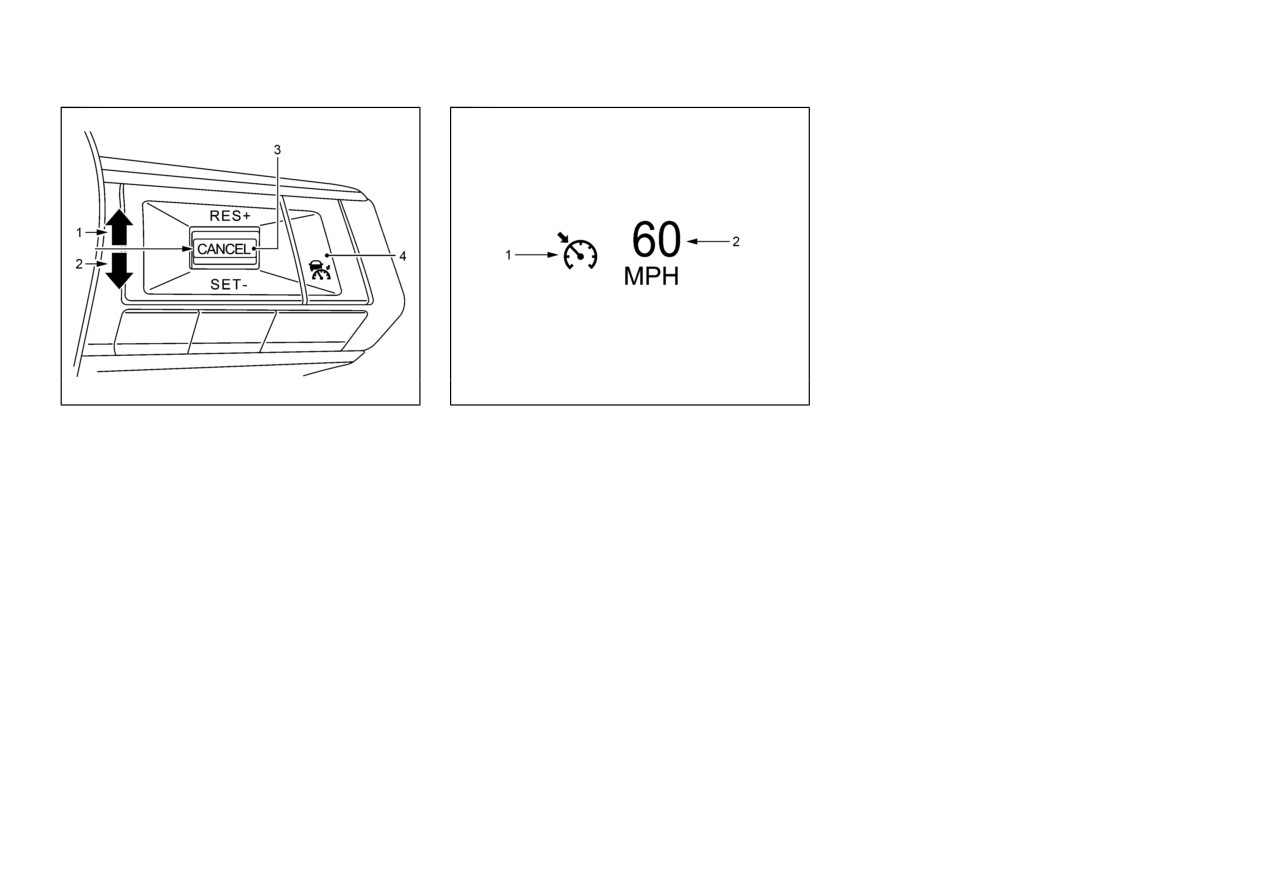

mode display and indicators
To turn on the cruise control, quickly push
tor, set distance indicator and set vehicle speed
1. Vehicle ahead detection indicator:
and release the MAIN switch
on. The set
indicator come on.) Take your foot off the
Indicates whether it detects a vehicle in
distance indicator and set vehicle speed indi-
accelerator pedal. Your vehicle will maintain
front of you.
cator come on and in a standby state for setting.
the set speed.
2. Set vehicle speed indicator:
Indicates the set vehicle speed.
The unit of the speed may vary depending
on the country.
3. Set distance indicator:
Displays the selected distance between
vehicles set with the DISTANCE switch.
5-76
Starting and driving
. When the SNOW mode, MUD mode (AWC
models) or GRAVEL mode is selected.
. When a wheel is slipping.
WAF0732X

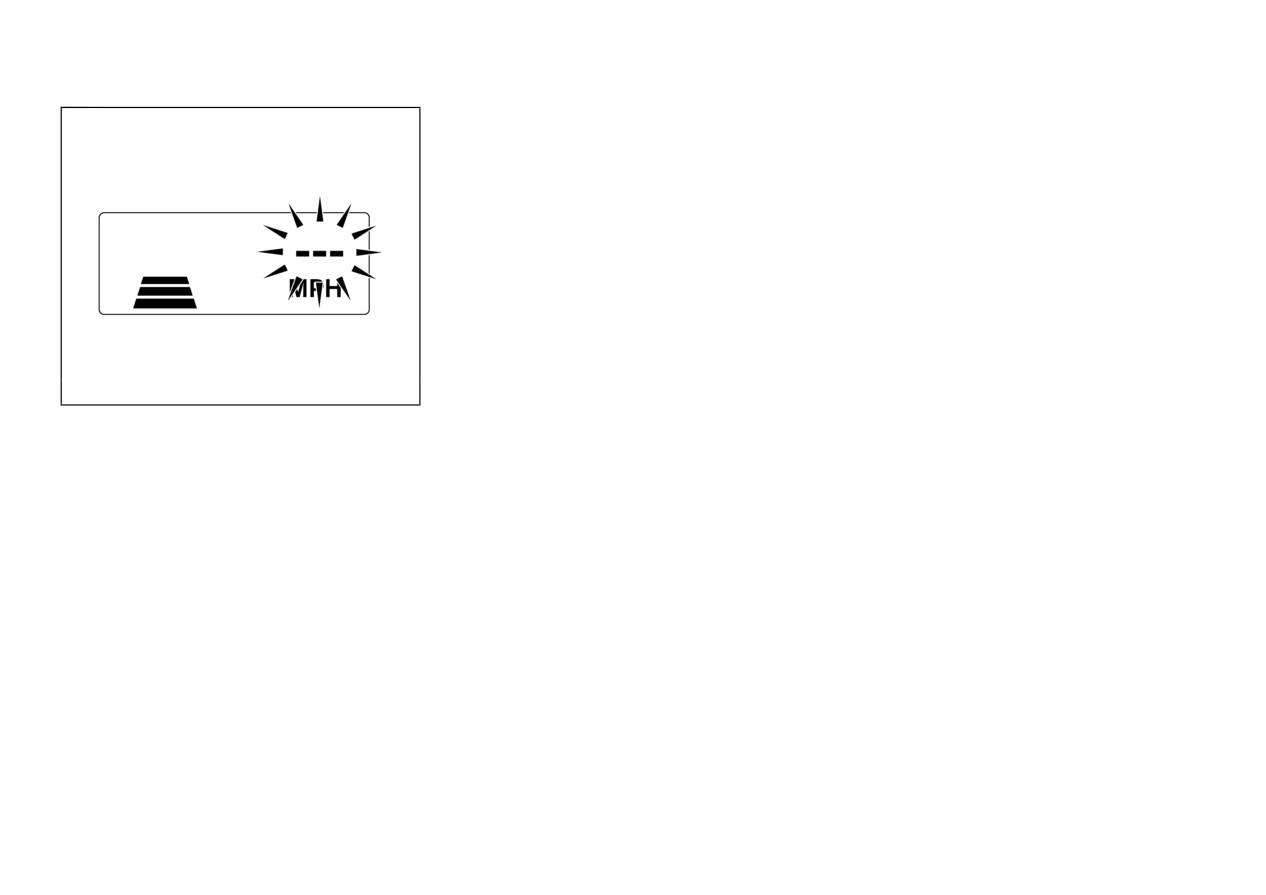

When the SET- switch is pushed down under
the following conditions, the ACC Assist
system cannot be set and the set vehicle speed
indicator blinks for approximately 2 seconds.
. When traveling below 20 MPH (30 km/h)
and the vehicle ahead is not detected.
. When the shift lever is not in the D (Drive)
position or the manual shift mode.
. When the parking brake is applied.
. When the brakes are operated by the driver.
. When the ASC system is off. For additional
information, see
“Active stability control
(ASC)” (P.5-159).
. When the ASC system
(including the
traction control system) is operating.
Starting and driving
5-77
Vehicle ahead not detected:
When a vehicle is no longer detected ahead, the
ACC system gradually accelerates your vehicle
to resume the previously vehicle set speed. The
ACC system then maintains the vehicle set
speed.
When a vehicle is no longer detected, the
vehicle ahead detection indicator and speed
control status indicator (maintain speed control
mode) turn off.
The ACC system gradually accelerates to the
vehicle set speed, but you can depress the
accelerator pedal to quickly accelerate. When a
WAF0658X
vehicle is no longer detected and your vehicle is
1.

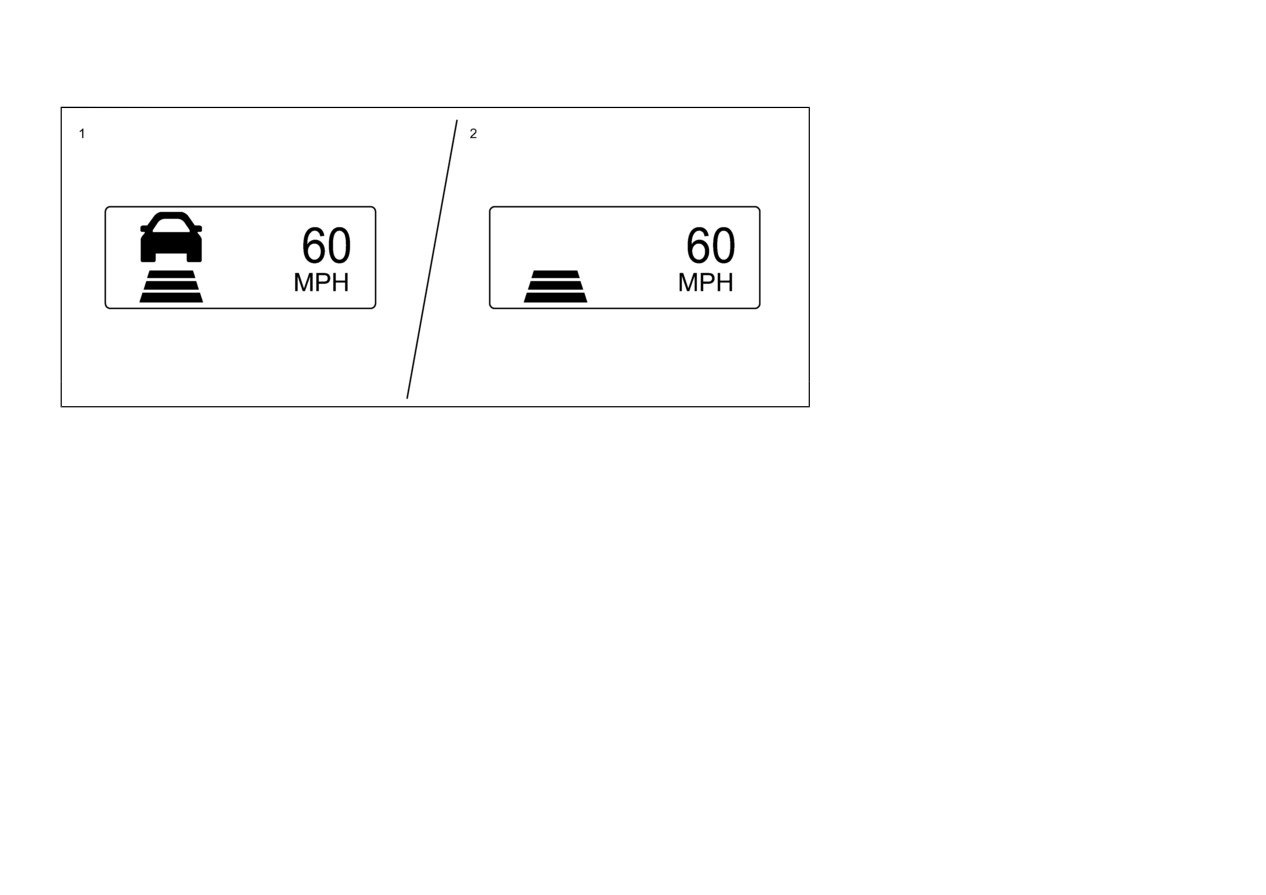

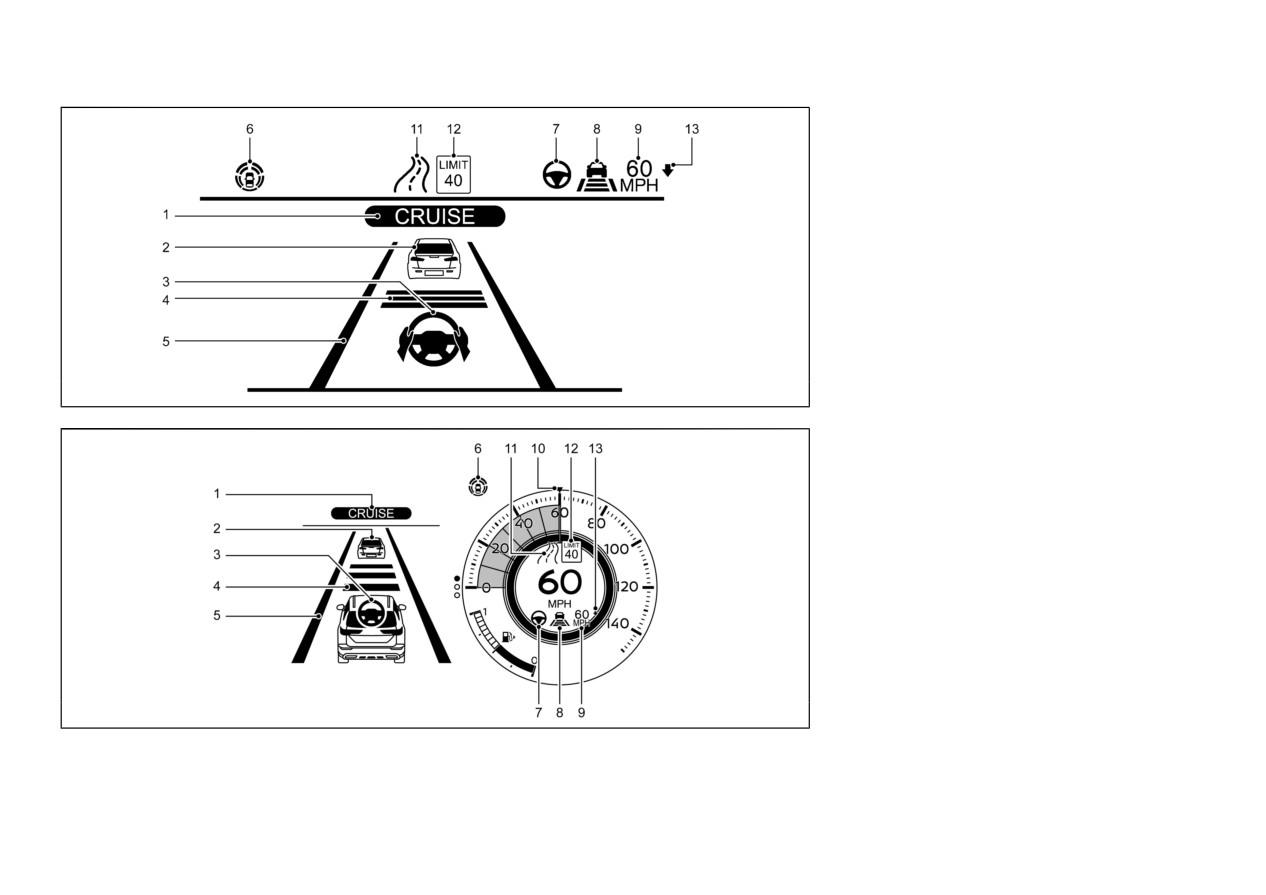

System set display with vehicle ahead*
driver selected distance.
traveling under approximately
15
MPH (25
2.
System set display without vehicle ahead*
km/h), the ACC system automatically cancels.
NOTE:
The driver sets the desired vehicle speed based
. The stop lights of
the
vehicle
come on
on the road conditions. The ACC system
when braking is performed by the ACC
maintains the set vehicle speed, similar to
system.
standard cruise control, as long as no vehicle
. When the brake operates, a noise may be
is detected in the lane ahead.
heard and/or vibration may be felt. This
The ACC system displays the set speed.
is not a malfunction.
Vehicle detected ahead:
When a vehicle ahead is detected, the vehicle
ahead detection indicator comes on. The ACC
When a vehicle is detected in the lane ahead, the
system will also display the set speed and
ACC system decelerates the vehicle by control-
selected distance.
ling the throttle and applying the brakes to
match the speed of a slower vehicle ahead. The
*: The design of the set display may differ
system then controls the vehicle speed based on
depending on the model
the speed of the vehicle ahead to maintain the
5-78
Starting and driving
How to change set vehicle speed
The set vehicle speed can be adjusted.
To change to a faster cruising speed:
Push up and hold the RES+ switch . The set
vehicle speed increases in increments of 5
MPH (5 km/h).
Push up, then quickly release the RES+
switch. Each time you do this, the set
vehicle speed increases by 1 MPH (1 km/h).
To change to a slower cruising speed:
Push down and hold the SET- switch. The
set vehicle speed decreases in increments of
WAF0733X
5 MPH (5 km/h).
WAF0393X
Push down, then quickly release the SET-
When passing another vehicle, the set speed
How to change set distance to vehicle
switch. Each time you do this, the set
indicator will flash when the vehicle speed
vehicle speed decreases by
1
MPH (1
ahead
exceeds the set speed. The vehicle detect
indicator will turn off when the area ahead of
km/h).

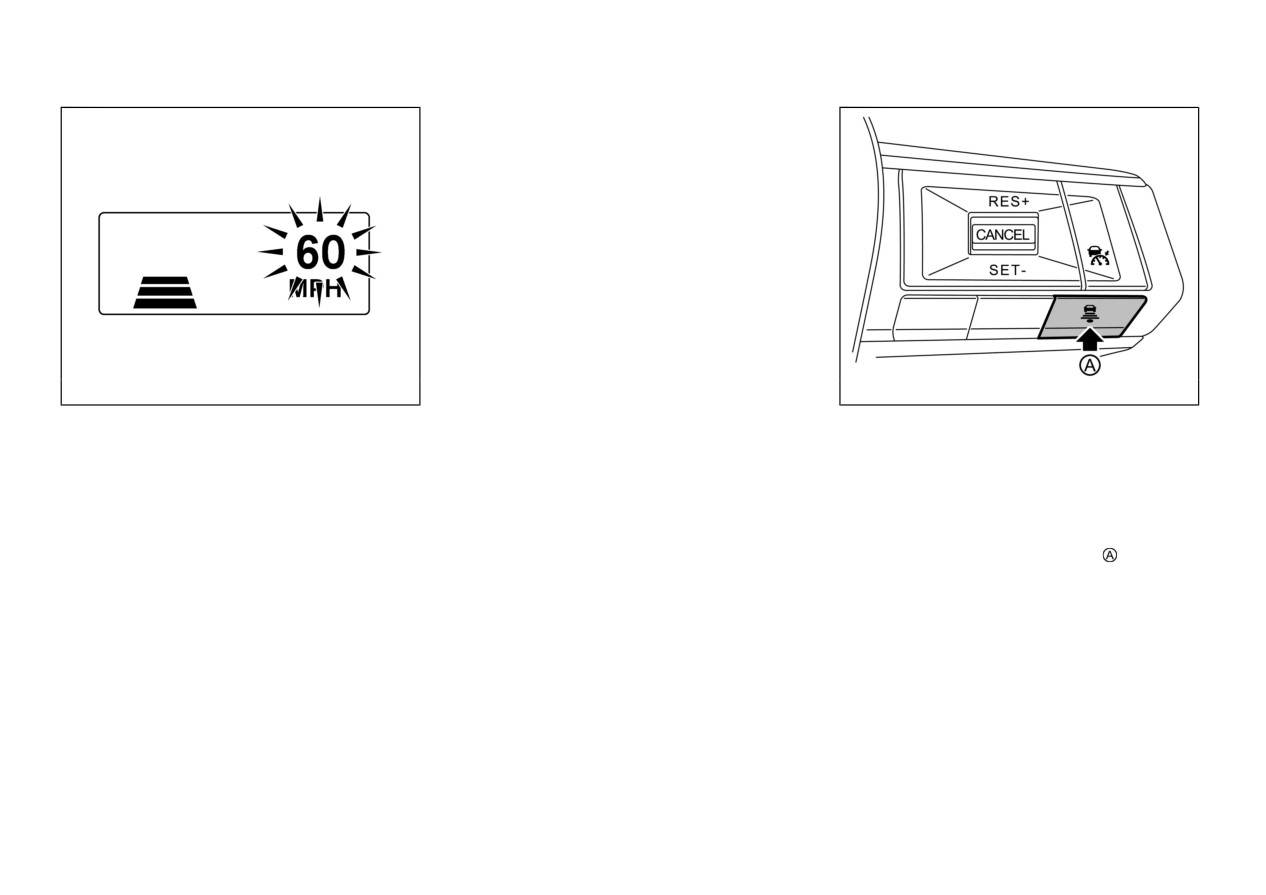

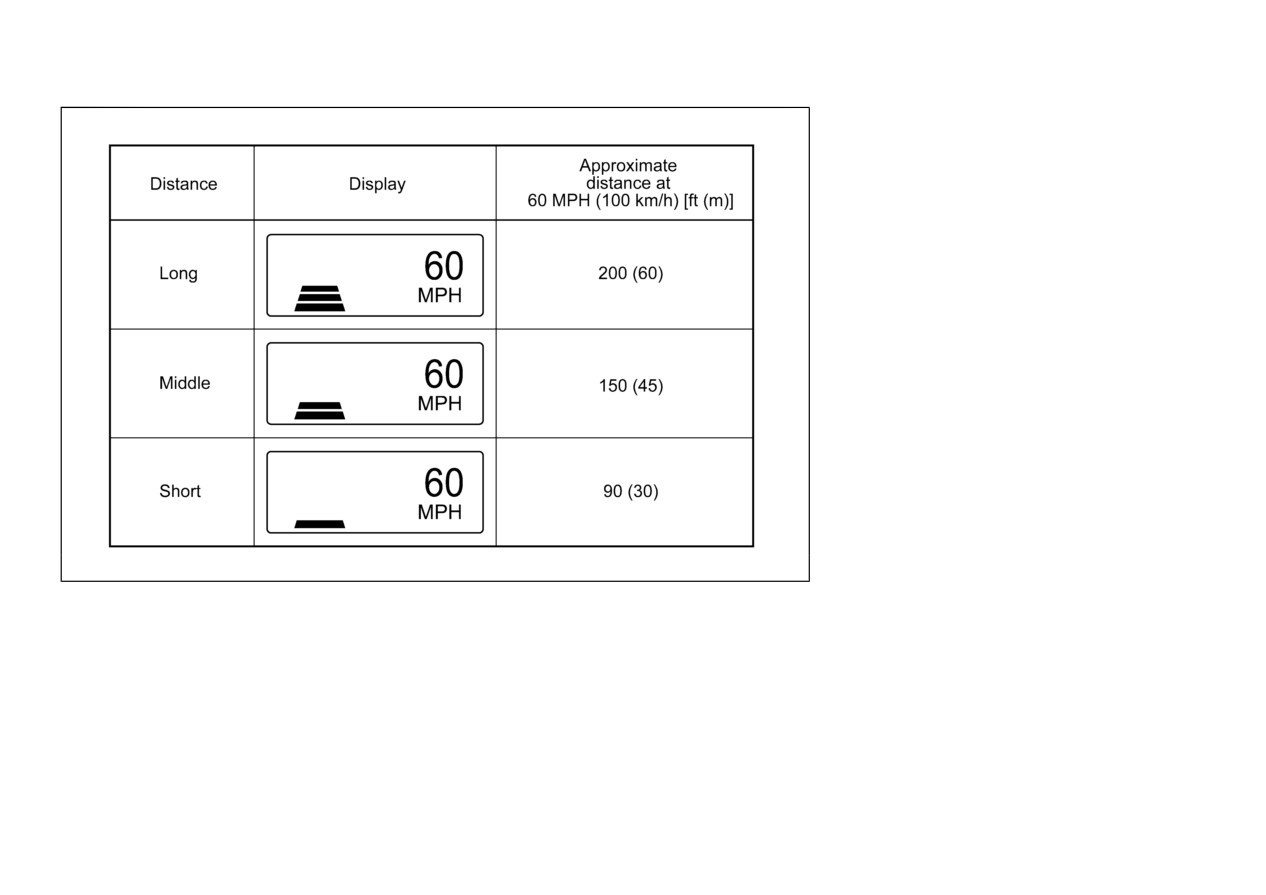

The distance to the vehicle ahead can be
the vehicle is open. When the pedal is released,
selected at any time depending on the traffic
the vehicle will return to the previously set
conditions.
speed.
Each time the DISTANCE switch is pushed,
Even though your vehicle speed is set in the
the set distance will change to long, middle,
ACC system, you can depress the accelerator
short and back to long again in that sequence.
pedal when it is necessary to accelerate your
vehicle rapidly.
Starting and driving
5-79
Approach warning
If your vehicle comes closer to the vehicle
ahead due to rapid deceleration of that vehicle
or if another vehicle cuts in, the system warns
the driver with the chime and ACC system
display. Decelerate by depressing the brake
pedal to maintain a safe vehicle distance if:
. The chime sounds.
. The vehicle ahead detection indicator and
set distance indicator blink.
. You judge it necessary to maintain a safe
distance.
The warning chime may not sound in some
cases when there is a short distance between
vehicles. Some examples are:
. When the vehicles are traveling at the same
speed and the distance between vehicles is
not changing
. When the vehicle ahead is traveling faster
and the distance between vehicles is
increasing
WAF0659X
. When a vehicle cuts in near your vehicle
The
distance
to
the
vehicle
ahead
will
Cut-in detection
The warning chime will not sound when:
change according to
the vehicle speed.
If a vehicle moves into your traveling lane near
. Your vehicle approaches other vehicles that
The higher the vehicle speed, the longer
your vehicle, the ACC system may inform the
are parked or moving slowly.
the distance.
driver by flashing the vehicle ahead detection
. The accelerator pedal is depressed, over-
The distance setting will remain at the
indicator.
riding the system.
current setting even if the engine is
restarted.
5-80
Starting and driving
NOTE:
vehicle is detected ahead, then the vehicle will
Vehicle-to-vehicle distance control
The approach warning chime may sound and
accelerate up to the following speed of that
mode limitations
the system display may blink when the radar
vehicle. If the vehicle is not steered into the left
sensor detects objects on the side of the
lane to pass, the acceleration will stop after a
vehicle or on the side of the road. This may
short time and regain the set following distance.
WARNING
cause the ACC system to decelerate or
Acceleration can be stopped at any point by
accelerate the vehicle. The radar sensor
depressing the brake pedal or the CANCEL
Listed below are the system limitations for the
may detect these objects when the vehicle is
switch on the steering wheel.
ACC system. Failure to operate the vehicle in

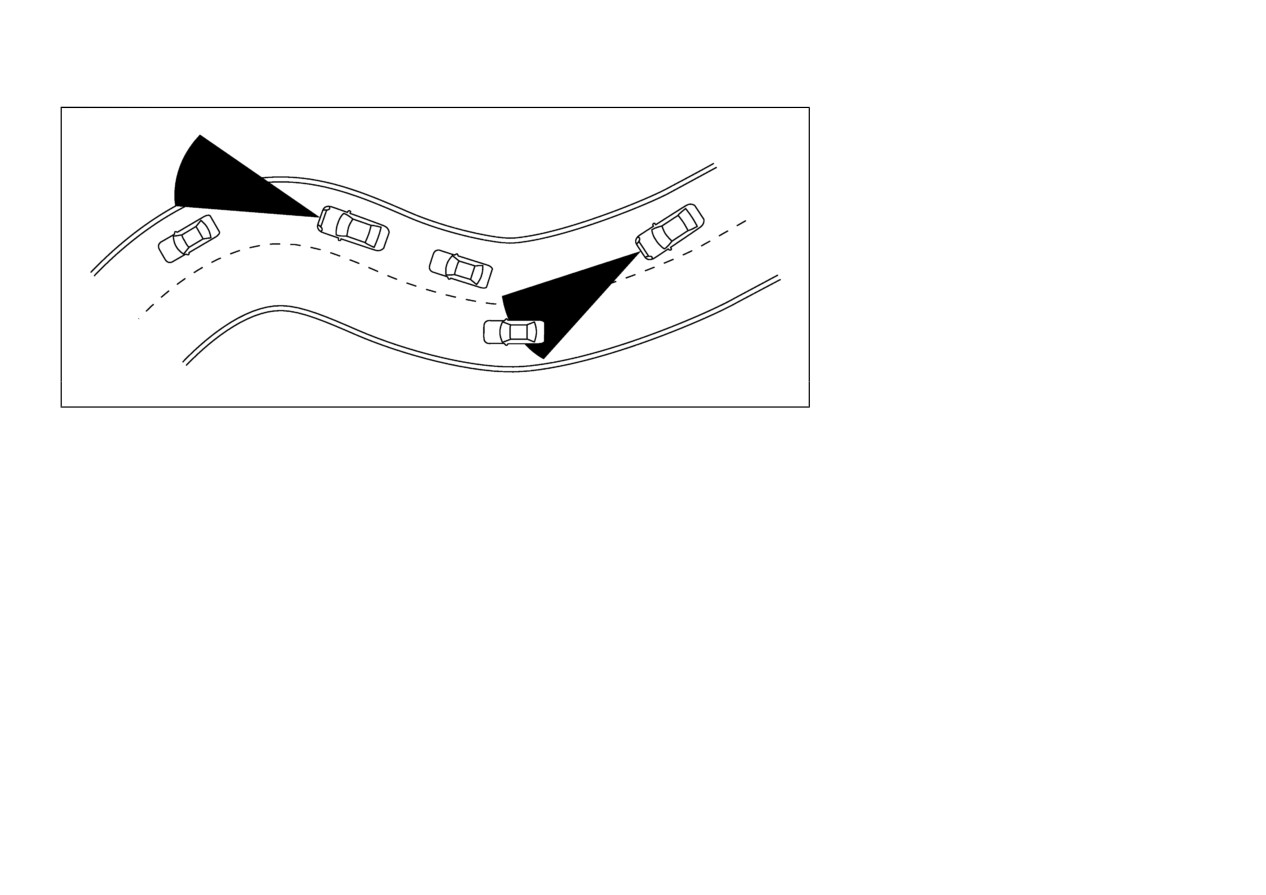

driven on winding roads, narrow roads, hilly
accordance with these system limitations could
roads or when entering or exiting a curve. In
result in serious injury or death.
WARNING
these cases you will have to manually control
The system is primarily intended for use
the proper distance ahead of your vehicle.
on straight, dry, open roads with light
In order to reduce the risk of a collision that
traffic. It is not advisable to use the system
Also, the sensor sensitivity can be affected by
may result in serious injury or death, please be
in city traffic or congested areas.
vehicle operation (steering maneuver or driving
aware of the following:
position in the lane) or traffic or vehicle
This system will not adapt automatically to
. This function is only activated with the left
road conditions. This system should be
condition (for example, if a vehicle is being
turn signal and will briefly accelerate the
used in evenly flowing traffic. Do not use
driven with some damage).
vehicle even if a lane change is not
the system on roads with sharp curves, or
initiated. This can include non-passing
on icy roads, in heavy rain or in fog.
Acceleration when passing
situations such as left side exits.
As there is a performance limit to the
When the ACC system is engaged above 44
. Ensure that when passing another vehicle,
distance control function, never rely solely
MPH (70 km/h) and following a slower vehicle
the adjacent lane is clear before initiating
on the ACC system. This system does not
(below the set vehicle speed), and the turn
the pass. Sudden changes in traffic may
correct careless, inattentive or absent-
signal is activated to the left, the ACC system
occur while passing. Always manually
minded driving, or overcome poor visibi-
will automatically start to accelerate the vehicle
steer or brake as needed. Never solely rely
lity in rain, fog, or other bad weather.
to help initiate passing on the left and will begin
on the system.
Decelerate the vehicle speed by depressing
to reduce the distance to vehicle directly ahead.
the brake pedal, depending on the distance
to the vehicle ahead and the surrounding
Only the left side turn signal operates this
circumstances in order to maintain a safe
feature. As the driver steers the vehicle and
distance between vehicles.
moves into the passing lane, if no vehicle is
If the vehicle ahead comes to a stop, the
detected ahead the ACC system will continue to
vehicle decelerates to a standstill within the
accelerate to the set vehicle speed. If another
Starting and driving
5-81
limitations of the system. The system will
— On roads with heavy, high-speed
— When a complicated-shaped ve-
cancel once it judges that the vehicle has
traffic or sharp curves
hicle such as a car carrier trailer
come to a standstill and sound a warning
or flatbed truck/trailer is near the
chime. To prevent the vehicle from moving,
— On slippery road surfaces such as
vehicle ahead
the driver must depress the brake pedal.
on ice or snow, etc.
Always pay attention to the operation of
— When there is interference by
— On a bumpy road surface, such as
the vehicle and be ready to manually
other radar sources
an uneven dirt road
control the proper following distance. The
— When excessively heavy baggage
vehicle-to-vehicle distance control mode of
— On steep downhill roads
(the
is loaded in the rear seat or cargo
the ACC system may not be able to
vehicle may go beyond the vehicle
area of your vehicle
maintain the selected distance between
set speed and frequent braking
vehicles
(following distance) or selected
may result in overheating the
— When towing a trailer or other
vehicle speed under some circumstances.
brakes)
vehicle
The ACC system does not detect the
— On repeated uphill and downhill
Do not use the ACC system if you are
following objects:
roads
towing a trailer. The system may not detect
— Stationary or slow moving vehi-
a vehicle ahead.
cles
(when your vehicle is ap-
— During bad weather (rain, fog,
Do not use the ACC system when driving
proaching them)
snow, etc.)
with a tire that is not within normal tire
— Pedestrians or objects in the
— When the sensor detection is
conditions (for example, tire wear, low tire
reduced (conditions such as rain,
pressure, installation of tire chains, non-
roadway
standard wheels).
snow, fog, dust storms, sand-
— Oncoming vehicles in the same
storms, and road spray from
In some road or traffic conditions, a
lane
other vehicles)
vehicle or object can unexpectedly come
into the sensor detection zone and cause
— Motorcycles traveling offset in the
— When dirt, ice, snow or other
automatic braking. You may need to
travel lane
material adhere to the radar
control the distance from other vehicles
The ACC system may not detect a vehicle
sensor area
using the accelerator pedal. Always stay
ahead in certain road, weather or driving
alert and avoid using the ACC system
— When traffic conditions make it
conditions. To avoid accidents, never use
when it is not recommended in this section.
the ACC system under the following
difficult to keep a proper distance
The ACC system also uses a multi-sensing
conditions:
between vehicles because of fre-
front camera. The following are some
quent acceleration or deceleration
conditions in which the camera may not
5-82
Starting and driving
properly detect a vehicle and detection of a
vehicle ahead may be delayed:
— Poor visibility (conditions such as
rain, snow, fog, dust storms, sand-
storms, and road spray from
other vehicles)
— The camera area of the wind-
shield is fogged up or covered
with dirt, water drops, ice, snow,
etc.
— Strong light (for example, sun-
light or high beams from oncom-
ing vehicles) enters the front
SSD0252
camera
The detection zone of the ACC sensor is
distance away from vehicle traveling ahead.
— A sudden change in brightness
limited. A vehicle ahead must be in the
occurs
(for example, when the
detection zone for the vehicle-to-vehicle dis-
vehicle enters or exits a tunnel or
tance detection mode to maintain the selected
shaded area or lightning flashes)
distance from the vehicle ahead.
A vehicle ahead may move outside of the
The ACC system is designed to automatically
detection zone due to its position within the
check the radar sensor’s operation within the
same lane of travel. Motorcycles may not be
limitations of the system.
detected in the same lane ahead if they are
traveling offset from the centerline of the lane.
A vehicle that is entering the lane ahead may
not be detected until the vehicle has completely
moved into the lane. If this occurs, the ACC
system may warn you by blinking the system
indicator and sounding the chime. The driver
may have to manually control the proper
Starting and driving
5-83
. The ASC turned off.
. The AEB applies harder braking.
. ASC (including the traction control system)
operates.
. The SNOW mode, MUD mode (AWC
models) or GRAVEL mode is selected.
. A wheel slips.
. When distance measurement becomes im-
paired due to adhesion of dirt or obstruction
to the sensor.
. When the radar signal is temporarily
interrupted.
Action to take:
SSD0253
When the conditions listed above are no longer
When driving on some roads, such as winding,
System temporarily unavailable
present, turn the system off using the MAIN
hilly, curved, narrow roads, or roads which are
switch. Turn the ACC system back on to use the
under construction, the ACC sensor may detect
Condition A:
system.
vehicles in a different lane, or may temporarily
Under the following conditions, the ACC
Condition B:
not detect a vehicle traveling ahead. This may
system is automatically canceled. A chime will
cause the ACC system to decelerate or accel-
sound and the system will not be able to be set.
When there is inclement weather (rain, fog,
erate the vehicle.
snow, etc.) blocking the front radar sensor, the
. The vehicle ahead is not detected and your
ACC system will automatically be canceled, the
The detection of vehicles may also be affected
vehicle is traveling below the speed of 15
chime will sound and the “Forward Driving
by vehicle operation
(steering maneuver or
MPH (24 km/h).
Aids Temporarily Disabled Front Sensor
traveling position in the lane, etc.) or vehicle
. When the system judges the vehicle is at
Blocked” warning message will appear in the
condition. If this occurs, the ACC system may
standstill.
multi-information display.
warn you by blinking the system indicator
. The shift lever is not in the D
(Drive)
and sounding the chime unexpectedly. You
position or manual shift mode.
will have to manually control the proper
. The electronic parking brake is applied.
distance away from the vehicle traveling
ahead.
5-84
Starting and driving
Action to take:
warning message is still displayed, have the
that you visit an authorized Mitsubishi Motors
system checked. It is recommended that you
dealer for this service.
When the above condition is no longer present,
visit an authorized Mitsubishi Motors dealer for
the warning message will no longer be available
NOTE:
this service.
in the multi-information display and the system
If the ACC system is temporarily unavail-
will operate normally. If the “Forward Driving
Condition D:
able, the conventional cruise control mode
Aids Temporarily Disabled Front Sensor
may still be used. For additional information,
When driving on roads with limited road
Blocked” warning message continues to be
see “Conventional (fixed speed) cruise
con-
structures or buildings
(for example, long
displayed, have the system checked. It is
trol mode” (P.5-87).
bridges, deserts, snow fields, driving next to
recommended that you visit an authorized
long walls), the system may illuminate the
Mitsubishi Motors dealer for this service.
system warning light and display the “Forward
Condition C:
Driving Aids Temporarily Disabled Front
Sensor Blocked” message.
When the radar sensor on the vehicle front area
is covered with dirt or is obstructed, the ACC
Action to take:
system will automatically be canceled.
When the above driving conditions no longer
The chime will sound and the “Forward Driving
exist, turn the system back on.
Aids Temporarily Disabled Front Sensor
Blocked” warning message will appear in the
ACC system malfunction
multi-information display.
If the ACC system malfunctions, it will be
turned off automatically, a chime will sound,
Action to take:
and the speed control status warning (orange)
If the warning message appears, stop the vehicle
will illuminate.
in a safe place, push the park button to shift to
the P (Park) position, and turn the engine off.
Action to take:
When the radar signal is temporarily inter-
If the warning illuminates, stop the vehicle in a
rupted, clean the sensor area on the vehicle front
safe place. Turn the engine off, restart the
area and restart the engine. If the
“Forward
engine and set the ACC system again. If it is not
Driving Aids Temporarily Disabled Front
possible to set the ACC system or the warning
Sensor Blocked” warning message continues
stays on, it may be a malfunction. Although the
to be displayed, check that the cover of the
normal driving can be continued, the ACC
sensor is not covered by dirt, snow or ice. If the
system should be inspected. It is recommended
Starting and driving
5-85
cause failure or malfunction.
Radio frequency statement:
. Do not alter, remove, or paint the exterior of
For USA
the vehicle front area.
Type approval number:
Before customizing or restoring the exterior of
the vehicle front area, it is recommended that
FCC ID: NF3-FR5CPEC
you visit an authorized Mitsubishi Motors
User Manual statement according to §15.19:
dealer.
This device complies with Part 15 of the FCC

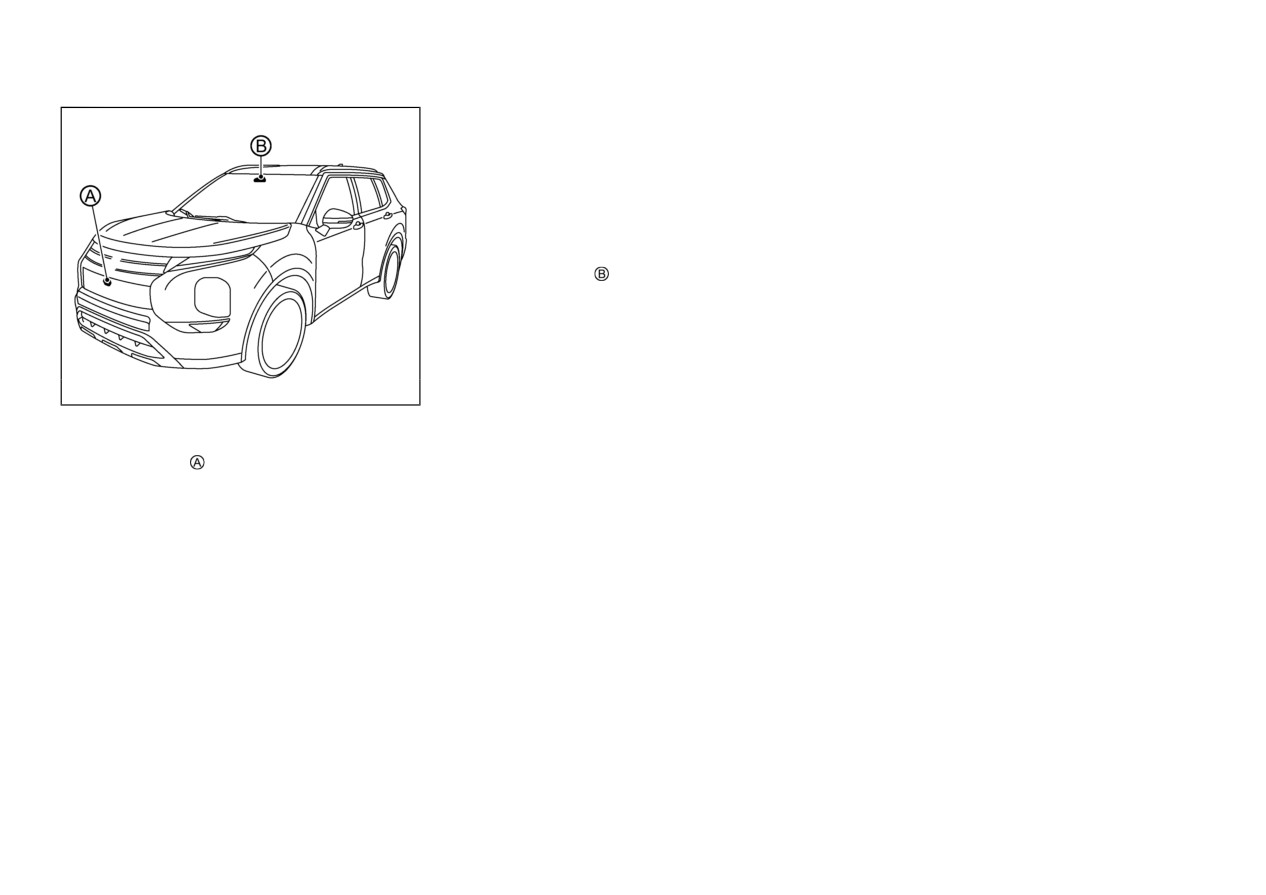

The camera sensor is located above the inside
Rules.
mirror.
Operation is subject to the following two
To keep the proper operation of the systems and
conditions:
prevent a system malfunction, be sure to
1. this device may not cause harmful inter-
observe the following:
ference, and
. Always keep the windshield clean.
WAF0392X
2. this device must accept any interference
. Do not attach a sticker (including transpar-
received, including interference that may
ACC sensor maintenance
ent material) or install an accessory near the
cause undesired operation.
camera unit.
The radar sensor is located on the front of the
User Manual statement according to §15.21:
. Do not place reflective materials, such as
vehicle.
Changes or modifications made to this equip-
white paper or a mirror, on the instrument
To keep the ACC system operating properly, be
ment not expressly approved by Robert BOSCH
panel. The reflection of sunlight may
sure to observe the following:
GmbH may void the FCC authorization to
adversely affect the camera unit’s capability
operate this equipment.
. Always keep the sensor area clean.
of detecting the lane markers.
. Do not strike or damage the areas around
. Do not strike or damage the areas around
User Manual statement according to §15.105:
the sensor.
the camera unit. Do not touch the camera
This equipment has been tested and found to
. Do not attach a sticker (including transpar-
lens or remove the screw located on the
comply with the limits for a Class A digital
ent material) or install an accessory near the
camera unit.
device, pursuant to Part 15 of the FCC Rules.
sensor. This could cause failure or malfunc-
If the camera unit is damaged due to an
These limits are designed to provide reasonable
tion.
accident, it is recommended that you visit an
protection against harmful interference when
. Do not attach metallic objects near the
authorized Mitsubishi Motors dealer.
the equipment is operated in a commercial
sensor area (brush guard, etc.). This could
environment. This equipment generates, uses,
5-86
Starting and driving
and can radiate radio frequency energy and, if
of the device.
of the vehicle ahead nor the vehicle-to-
not installed and used in accordance with the
Le présent appareil est conforme aux CNR
vehicle distance is detected.
instruction manual, may cause harmful inter-
d’Industrie Canada applicables aux appareils
Pay special attention to the distance
ference to radio communications. Operation of
radio exempts de licence. L’exploitation est
between your vehicle and the vehicle a
this equipment in a residential area is likely to
autorisée aux deux conditions suivantes:
(1)
head of you or a collision could occur.
cause harmful interference in which case the
l’appareil ne doit pas produire de brouillage, et
Always confirm the setting in the ACC
user will be required to correct the interference
(2) l’utilisateur de l’appareil doit accepter tout
system display.
at his own expense.
brouillage radioélectrique subi, même si le
Do not use the conventional (fixed speed)
RF Exposure Information according
brouillage est susceptible d’en compromettre
cruise control mode when driving under
2.1091/2.1093/OET bulletin 65:
le fonctionnement.
the following conditions:
Radiofrequency radiation exposure information:
CONVENTIONAL (fixed speed)
— When it is not possible to keep the
vehicle at a set speed
This equipment complies with FCC radiation
CRUISE CONTROL MODE
exposure limits set forth for an uncontrolled
— In heavy traffic or in traffic that
environment. This equipment should be in-
varies in speed
stalled and operated with minimum distance of
WARNING
— On winding or hilly roads
20 cm between the radiator and your body.
ACC provides no approach warnings or
— On slippery roads (rain, snow, ice,
The transmitter must not be co-located or
automatic braking in the conventional (fixed
etc.)
operating in conjunction with any other antenna
speed) cruise control mode.
or transmitter.
— In very windy areas
For Canada
This mode allows driving at a speed between 20
Doing so could cause a loss of vehicle
Type approval number:
to 90 MPH (30 to 144 km/h) without keeping
control and result in an accident.
IC: 3387A-FR5CPEC
your foot on the accelerator pedal.
Legal warning for RF equipment:
This device complies with Industry Canada
WARNING
licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this
. In the conventional (fixed speed) cruise
device may not cause interference, and (2) this
control mode, a warning chime does not
device must accept any interference, including
sound to warn you if you are too close to
the vehicle ahead, as neither the presence
interference that may cause undesired operation
Starting and driving
5-87
2. Set vehicle speed indicator:
This indicator indicates the set vehicle
speed.
For Canadian models, the speed is displayed
in km/h.
WAF0605X
WAF0660X
Conventional (fixed speed) cruise
Conventional (fixed speed) cruise
control switch
control mode display and indicators
1. RES+ switch:
The display is located in the multi-information
display.
Resumes set speed or increases speed
incrementally.
1. Cruise indicator:
2. SET- switch:
This indicator indicates the condition of the
ACC system depending on a color.
Sets the desired cruise speed, reduces speed
incrementally.
. Cruise control ON indicator
(gray):
Indicates that the ACC switch is on
3. CANCEL switch:
. Cruise control SET indicator
(green):
Deactivates the system without erasing the
Indicates that the cruising speed is set
set speed.
. Cruise control warning
(orange): Indi-
4. MAIN switch:
cates that there is a malfunction in the
Master switch to activate the system.
ACC system
5-88
Starting and driving
OFF position, the system is also automatically
turned off.
To use the ACC system again, quickly push and
release the MAIN switch
(vehicle-to-vehicle
distance control mode) or push and hold it
(conventional cruise control mode) again to turn
it on.
WARNING
To avoid accidentally engaging cruise control,
make sure to turn the MAIN switch off when
not using the ACC system.
WAF0606X
WAF0607X
To set cruising speed, accelerate your vehicle to
Operating conventional (fixed speed)
the desired speed, push down the SET— switch
cruise control mode
and release it. (The color of the cruise indicator
To turn on the conventional (fixed speed) cruise
changes to green and set vehicle speed indicator
control mode, push and hold the MAIN switch
comes on.) Take your foot off the accelerator
for longer than about 1.5 seconds.
pedal. Your vehicle will maintain the set speed.
When pushing the MAIN switch on, the
. To pass another vehicle, depress the accel-
conventional (fixed speed) cruise control mode
erator pedal. When you release the pedal,
display and indicators are displayed in the
the vehicle will return to the previously set
multi-information display. After you hold the
speed.
MAIN switch on for longer than about 1.5
. The vehicle may not maintain the set speed
seconds, the ACC system display turns off. The
when going up or down steep hills. If this
cruise indicator appears. You can now set your
happens, manually maintain vehicle speed.
desired cruising speed. Pushing the MAIN
To cancel the preset vehicle speed, use any of
switch again will turn the system completely
the following methods:
off. When the ignition switch is placed in the
Starting and driving
5-89
MI-PILOT ASSIST (if so equipped)
1. Push the CANCEL switch. The set vehicle
3. Push down, then quickly release the SET—
This section contains the information about the
speed indicator will turn off.
switch. Each time you do this, the set
following system features:
2. Tap the brake pedal. The set vehicle speed
vehicle speed will decrease by about 1 MPH
. MI-PILOT Assist (general system opera-
indicator will turn off.
(1 km/h).
tion)
To resume the preset vehicle speed, push up and
. MI-PILOT Assist with Navi-link (additional
3. Turn the MAIN switch off. Both the cruise
indicator and set vehicle speed indicator
release
the RES+ switch. The vehicle will
functionality, if so equipped)
will turn off.
resume
the last
set cruising speed when
the
vehicle speed is over
20
MPH (30
km/h).
To reset at a faster cruising speed, use one of the
WARNING
following three methods:
1. Depress the accelerator pedal. When the
Failure to follow the warnings and instructions
for proper use of the MI-PILOT Assist system
vehicle attains the desired speed, push down
could result in serious injury or death.
and release the SET- switch.
MI-PILOT Assist is not a self-driving
2. Push up and hold the RES+ switch. When
system. Within the limits of its capabilities,
the vehicle attains the desired speed, release
as described in this manual, it helps the
the switch.
driver with certain driving activities.
3. Push up, then quickly release the RES+
The MI-PILOT Assist system is not a
switch. Each time you do this, the set
replacement for proper driving procedures
vehicle speed will increase by about 1 MPH
and is not designed to correct careless,
(1 km/h).
inattentive or absent-minded driving. MI-
PILOT Assist will not always steer the
To reset at a slower cruising speed, use one of
vehicle to keep it in the lane. The MI-
the following three methods:
PILOT Assist system is not designed to
1. Lightly tap the brake pedal. When the
prevent loss of control. It is the driver’s
vehicle attains the desired speed, push down
responsibility to stay alert, drive safely,
the SET— switch and release it.
keep the vehicle in the traveling lane, and
be in control of the vehicle at all times.
2. Push down and hold the SET- switch.
There are limitations to the MI-PILOT
Release the switch when the vehicle slows
Assist system capability. The MI-PILOT
down to the desired speed.
Assist system does not function in all
driving, traffic, weather, and road condi-
5-90
Starting and driving
tions. It is the driver’s responsibility to
MI-PILOT Assist system except in appro-
stay alert, drive safely, keep the vehicle in
priate road and traffic conditions.
the traveling lane, and be in control of the
vehicle at all times.
The MI-PILOT Assist system is only an aid
to assist the driver and is not a collision
warning or avoidance device.
The MI-PILOT Assist system is for high-
way use only and is not intended for city
driving. Failure to apply the brakes or
steer the vehicle when necessary may
result in a serious accident.
Always observe posted speed limits and do
not set the speed over them.
WAF0392X
Never take your hands off the steering
wheel when driving. Always keep your
The MI-PILOT Assist system is intended to
hands on the steering wheel and drive your
enhance the operation of the vehicle when
vehicle safely.
following a vehicle traveling in the same lane
Never unfasten your safety belt when using
and direction.
MI-PILOT Assist. Doing so automatically
The MI-PILOT Assist system uses a multi-
cancels the MI-PILOT Assist system.
sensing front camera
installed behind the
The MI-PILOT Assist system does not
windshield to monitor the lane markers and a
react when approaching stationary and
radar sensor
located on the front of the
slow moving vehicles.
vehicle to measure the distance to the vehicle
Always drive carefully and attentively
ahead in the same lane. If the system detects a
when using the MI-PILOT Assist system.
slower moving vehicle ahead, the system will
reduce the vehicle speed so that your vehicle
thoroughly before using the MI-PILOT
follows the vehicle in front at the selected
Assist system. To avoid serious injury or
distance. The system will also help keep the
death, do not rely on the system to prevent
accidents or to control the vehicle’s speed
vehicle centered in the traveling lane when clear
in emergency situations. Do not use the
lane markings are detected.
Starting and driving
5-91
NOTE:
It is important to ensure the front camera
and radar sensors are clear at all times. (See
“ACC sensor maintenance” (P.5-116) and
“Lane Keep Assist (LKA) maintenance” (P.5-
122) for more details.)

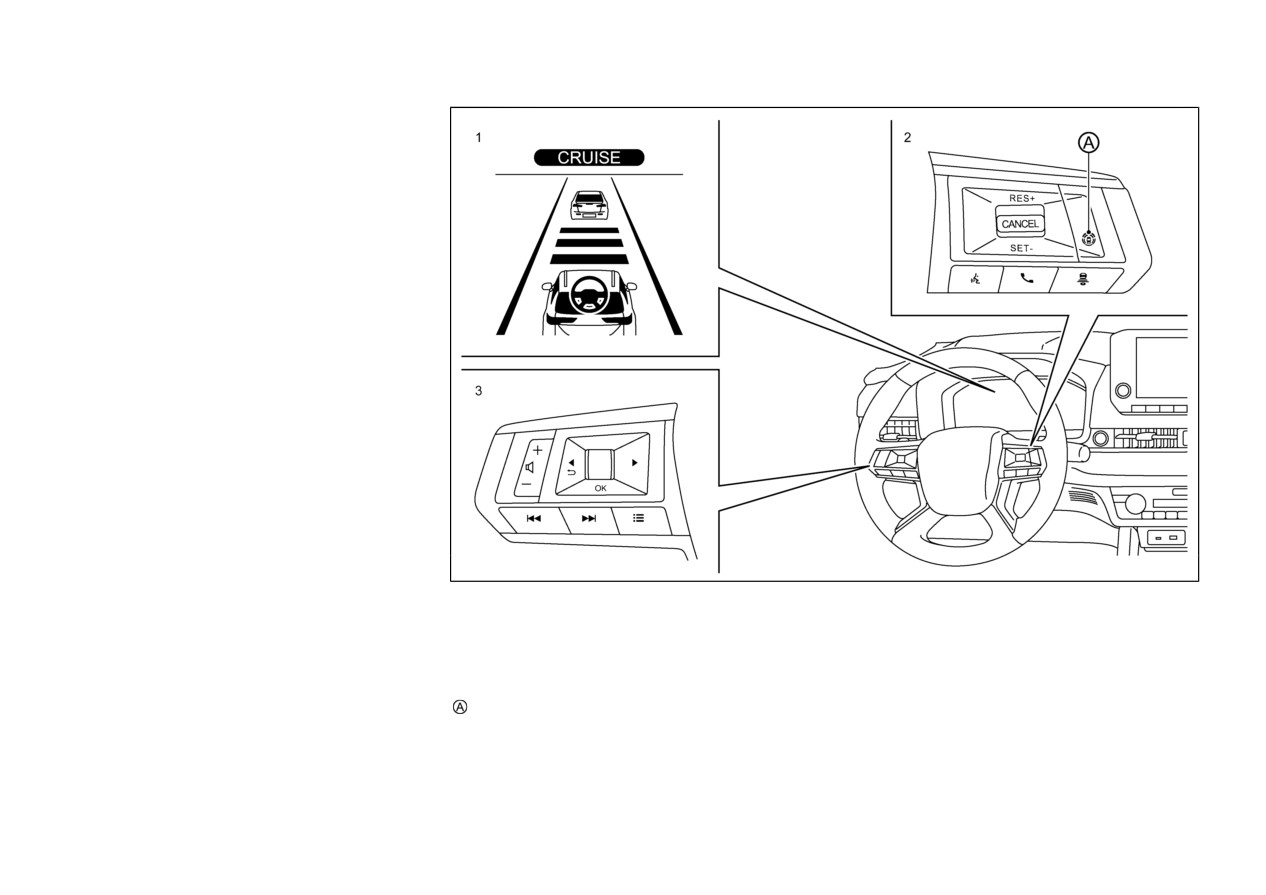

WAF0608X
1.
Multi-information display
MI-PILOT ASSIST SYSTEM
2.
Steering wheel remote control switches (right
side)
OPERATION
3.
Steering wheel remote control switches
(left
The MI-PILOT Assist system has the following
side)
two functions:
MI-PILOT Assist switch
5-92
Starting and driving
When your vehicle is at a standstill for more
NOTE:
1. Adaptive Cruise Control (ACC)
than approximately
3
seconds and the
Even if the Automatic Emergency Braking
The ACC system can be set to one of two cruise
vehicle ahead begins to accelerate, push
(AEB) setting is turned off by the driver
control modes:
up the RES+ switch or lightly depress the
using the
“Settings” menu in the multi-
. Conventional (fixed speed) cruise control
accelerator pedal. The ACC system starts to
information display, AEB will be automati-
mode:
follow the vehicle ahead.
cally turned on when ACC is used.
For cruising at a preset vehicle speed
Always check surroundings before restart-
2. Lane Keep Assist (LKA)
For additional information, see
“Turning the
ing the vehicle.
The Lane Keep Assist (LKA) function controls
conventional (fixed speed) cruise control mode
For vehicles equipped with MI-PILOT
the steering system to help keep your vehicle
ON” (P.5-97).
Assist with Navi-link and only when on a
within the traveling lane.
NOTE:
limited access freeway (as identified in the
When there is no
vehicle ahead, Lane Keep
navigation map data):
Lane Keep Assist (LKA) is not available in
Assist (LKA) is not available at speeds under 37
the conventional (fixed speed) cruise control
— The time the vehicle can remain stopped
MPH (60
km/h).
mode.
and automatically restart is extended
from 3 seconds to 30 seconds.
Vehicle-to-vehicle distance control mode:
— If a vehicle ahead cuts in or out of the
The ACC system maintains a selected
lane ahead, the vehicle may not auto-
distance from the vehicle in front of you
matically start when the traffic ahead
within the speed range of 0 to 90 MPH (0 to
begins to move. You need to push up the
144 km/h) up to the vehicle set speed. The
RES+ switch or lightly depress the
vehicle set speed can be selected by the
accelerator pedal to follow the vehicle
driver between 20 to 90 MPH (30 to 144
directly ahead when it is safe to do so.
km/h). When the vehicle ahead slows to a
When no vehicle is detected ahead within
stop, your vehicle gradually decelerates to a
the driver selected distance, the vehicle
standstill. When the vehicle is stopped, the
travels at the speed set by the driver. The
ACC system maintains braking force to
speed must be above 20 MPH (30 km/h) to
keep your vehicle stopped.
use this function.
When your vehicle is stopped for less than
approximately 3 seconds and the vehicle
ahead begins to move, your vehicle will
start moving again automatically.
Starting and driving
5-93
. Long
. Middle
. Short
NOTE:
For MI-PILOT Assist with Navi-link
equipped vehicles: When the Manual mode
is selected in the “Spd. Limit Assist” menu on
the multi-information display, operating the
RES+ or SET- switch can apply the indicated
speed limit sign to the set vehicle speed. (See
“Speed Limit Assist - a feature of MI-PILOT
Assist with Navi-link” (P.5-108).)
WAF0716X
MI-PILOT ASSIST SWITCHES
1. RES+ switch:
Resumes set vehicle speed or increases
speed incrementally
2. SET- switch:
Sets desired cruise speed or reduces speed
incrementally
3. CANCEL switch:
Deactivates the MI-PILOT Assist system
4. MI-PILOT Assist switch:
Turns the MI-PILOT Assist system on or off
5. DISTANCE switch:
5-94
Starting and driving
MI-PILOT ASSIST SYSTEM
DISPLAY AND INDICATORS
1.
MI-PILOT Assist activation
Displays once the MI-PILOT Assist system
is activated
2.
Vehicle ahead detection indicator
Indicates whether the system detects a
vehicle in front of you
3.
Lane Keep Assist (LKA) indicator
Indicates the status of the Lane Keep Assist
(LKA) function by the color of the indicator
WAF0699X
. Lane Keep Assist
(LKA) indicator
Models with type 1
display
(gray): Lane Keep Assist (LKA) standby
. Lane Keep Assist
(LKA) indicator
(green): Lane Keep Assist (LKA) active
4.
Set distance indicator
Displays the selected distance
5.
Lane marker indicator
Indicates whether the system detects lane
markers
. No lane markers displayed: Lane Keep
Assist (LKA) is turned off
. Lane marker indicator (gray): No lane
markers detected
. Lane marker indicator
(green): Lane
WAF0698X
markers detected, Lane Keep Assist
(LKA) is active
Models with type 2
display
Starting and driving
5-95















Content      ..     14      15      16      17     ..
