How to use Troubleshooting/inspection Service Points P.
00-15).

DTC U0195: Satellite Radio Tuner CAN Timeout

M15204001008USA0000010000

｠

If the DTC U0195 is set, be sure to diagnose the
CAN main bus line.

｠

When replacing the ECU, always check that the
communication circuit is normal.

TROUBLE JUDGEMENT
If  the  signal  from  satellite  radio  tuner  cannot  be
received, the SRS-ECU sets the DTC U0195.

JUDGEMENT CRITERIA
Because of the CAN-B bus circuit malfunction, if SRS-
ECU  becomes  unable  to  perform  the  normal  data

transmission,  SRS-ECU  determines  that  an
abnormality is present.

TROUBLESHOOTING HINTS

｠

The CAN bus may be defective.

｠

The satellite radio tuner may be defective.

｠

The SRS-ECU may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

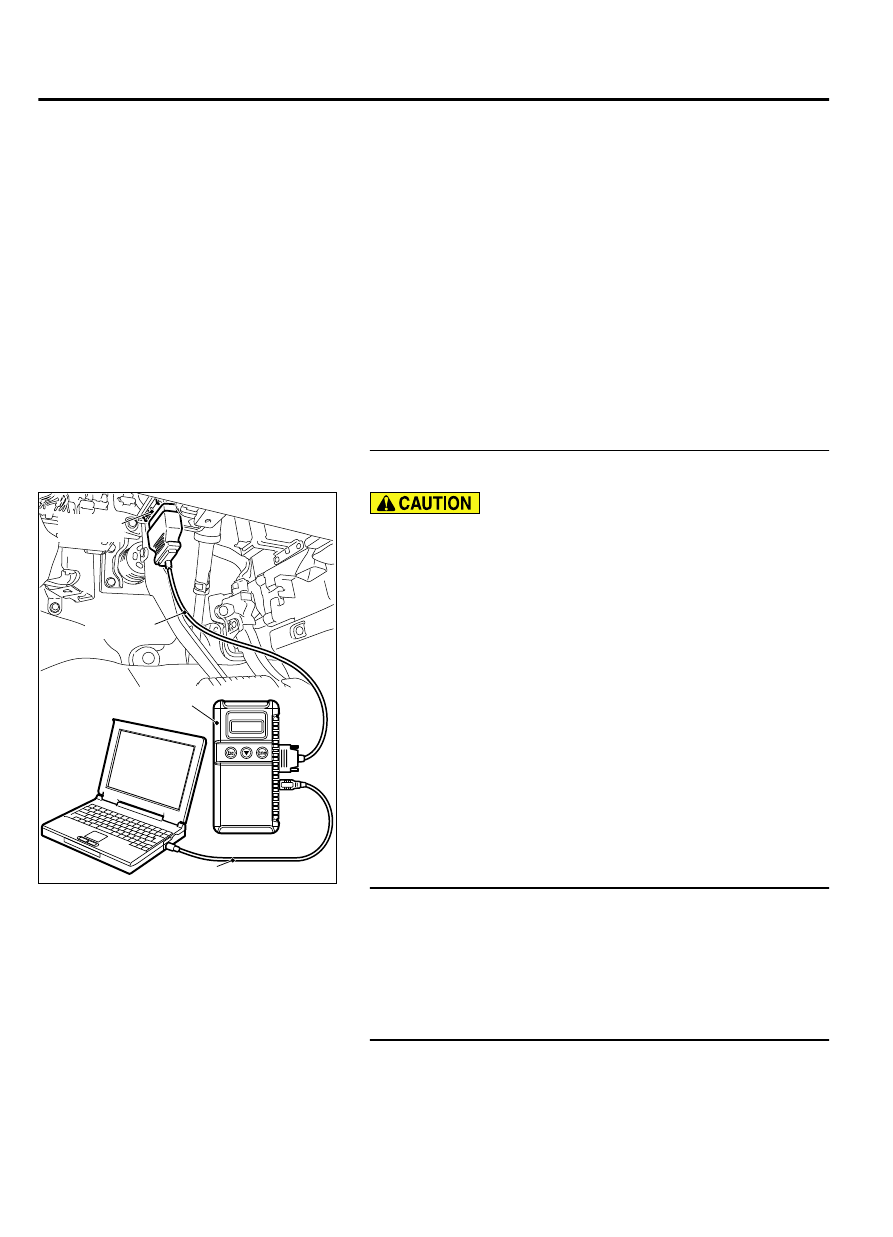

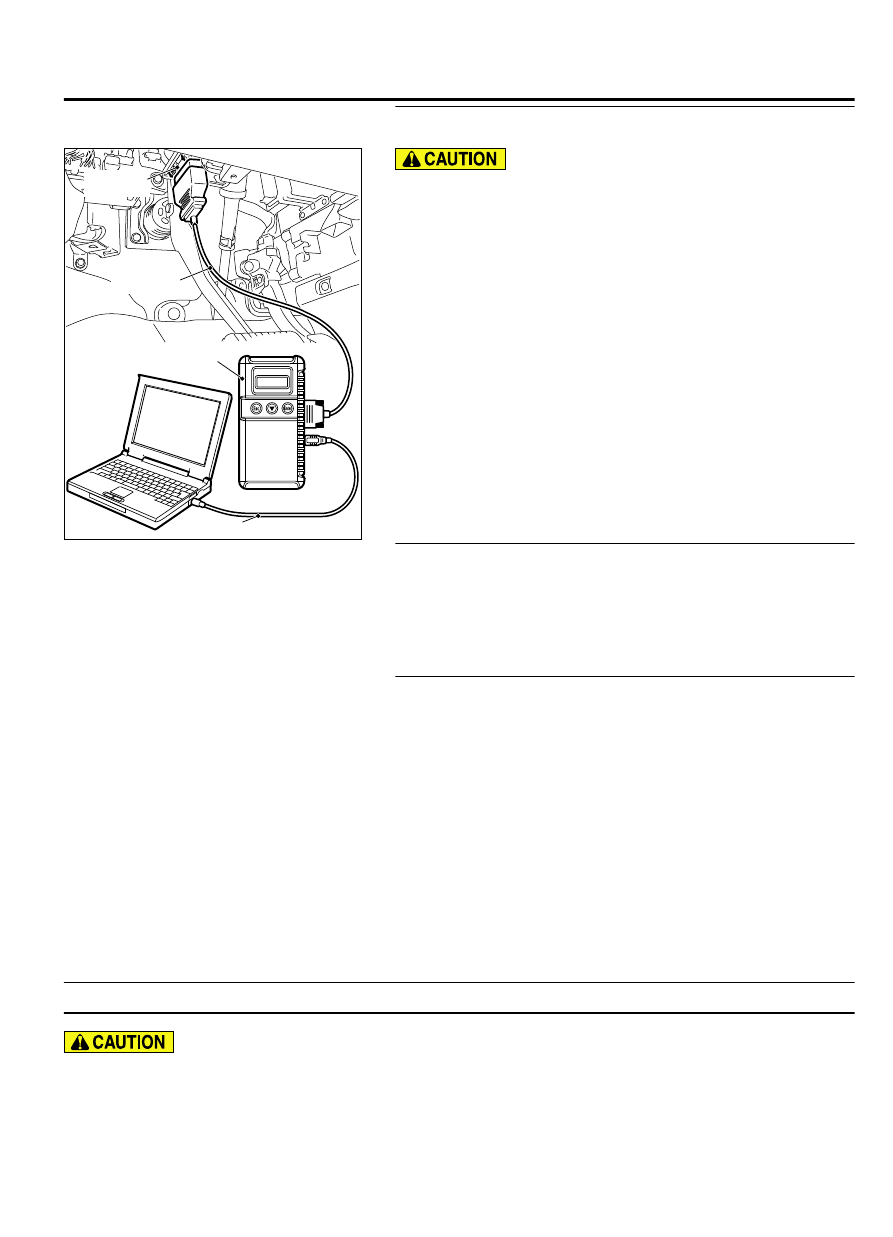

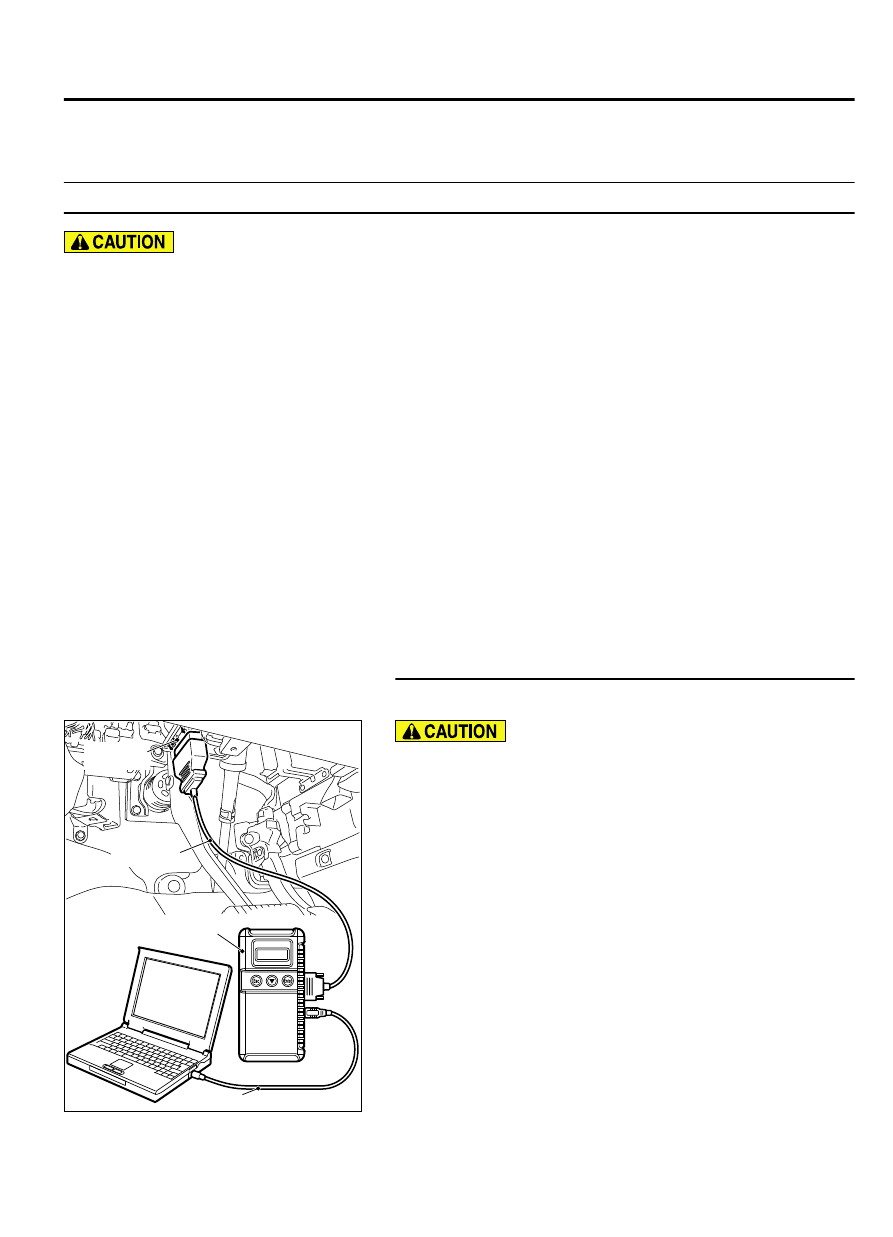

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-299

SRS AIR BAG DIAGNOSIS

STEP 2. Using scan tool MB991958, read the satellite radio
tuner diagnostic trouble code.
Check if DTC is set to the satellite radio tuner.

Q:Is the DTC set?

YES:

 Troubleshoot the satellite radio.

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the SRS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the satellite radio tuner and the ETACS-ECU.
(Refer to GROUP 00, How to Cope with Intermittent
Malfunction P.00-15)

DTC U0197: Hands Free Module CAN Timeout

M15204001009USA0000010000

｠

If the DTC U0197 is set, be sure to diagnose the
CAN main bus line.

｠

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
When the signals from hands free module cannot be
received, the SRS-ECU sets the DTC U0197.

JUDGEMENT CRITERIA
Because of the CAN-B bus circuit malfunction, if SRS-
ECU  becomes  unable  to  perform  the  normal  data

transmission,  SRS-ECU  determines  that  an
abnormality is present.

TROUBLESHOOTING HINTS

｠

The CAN bus line may be defective.

｠

The hands free module may be defective.

｠

The SRS-ECU may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

52B-300

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the hands free
module diagnostic trouble code
Check if the DTC is set to the hands free module.

Q:Is the DTC set?

YES:

 Troubleshoot the hands-free cellular phone system.

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the SRS-ECU.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to use Troubleshooting/inspection Service Points P.
00-15).

DTC U0212: Steering Wheel Sensor CAN Timeout

M15204001010USA0000010000

｠

If the DTC U0212 is set, be sure to diagnose the
CAN main bus line.

｠

When replacing the ECU, always check that the
communication circuit is normal.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-301

SRS AIR BAG DIAGNOSIS

DIAGNOSTIC FUNCTION
If  the  signal  from  steering  wheel  sensor  cannot  be
received, the SRS-ECU sets the DTC U0212.

JUDGEMENT CRITERIA
Because of the CAN-B bus circuit malfunction, if SRS-
ECU  becomes  unable  to  perform  the  normal  data

transmission,  SRS-ECU  determines  that  an
abnormality is present.

TROUBLESHOOTING HINTS

｠

The CAN bus line may be defective

｠

The ETACS-ECU may be defective

｠

The SRS-ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the steering wheel
sensor diagnostic trouble code
Check if the DTC is set to the steering wheel sensor.

Q:Is the DTC set?

YES:

 Diagnose the steering wheel sensor (Refer to GROUP

35C, Diagnosis P.35C-198).

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.

(1)

Erase the DTC.

52B-302

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS
