STEP 2. Check the ETACS configuration function.
Use the ETACS configuration function to confirm that "FRONT
WIPER  OPERATION"  is  set  to  "VEHICLE  SPEED
DEPENDENT".

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Use the ETACS configuration function to set "FRONT

WIPER OPERATION" to "VEHICLE SPEED DEPENDENT" (Refer
to P.51B-48).

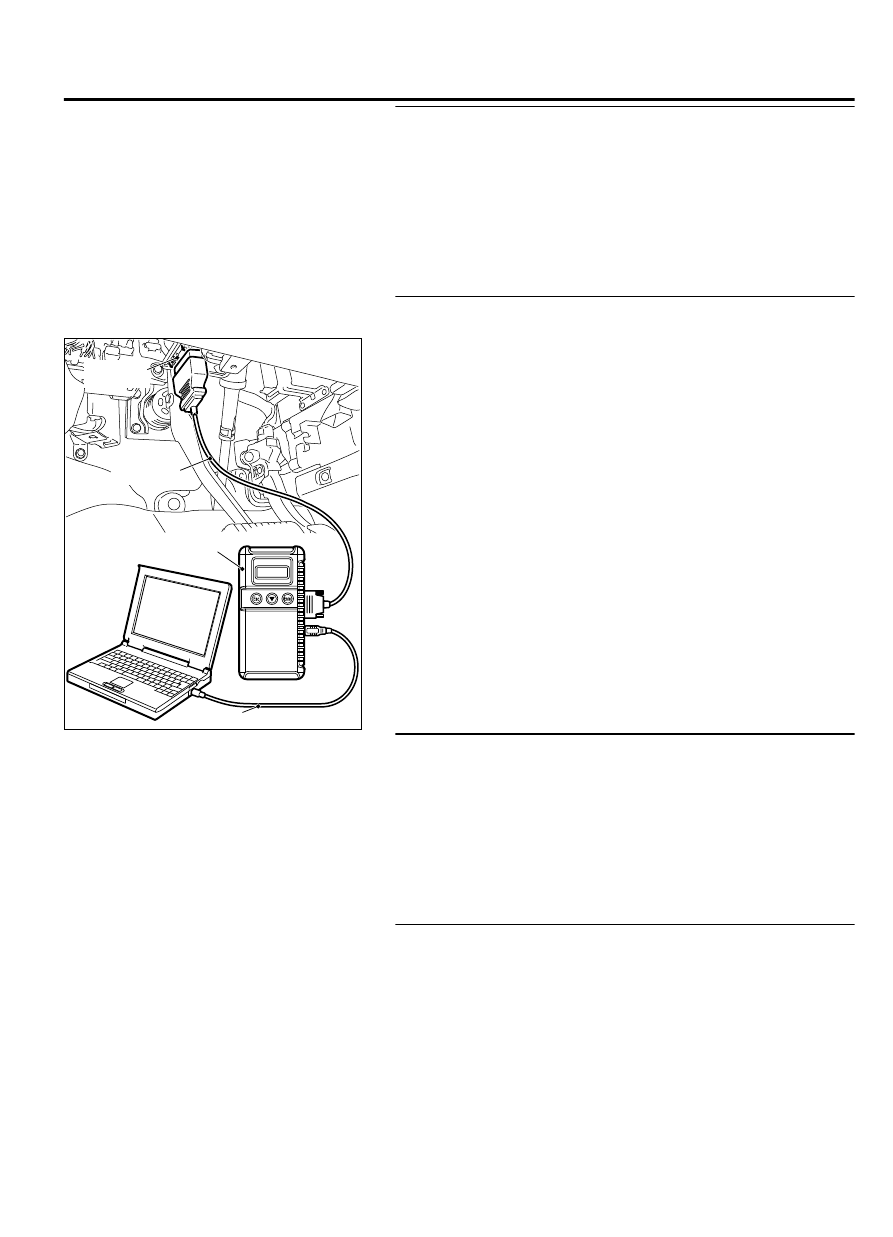

STEP 3. Use the scan tool MB991958 to diagnose the CAN
bus lines.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Repair the CAN bus line (Refer to GROUP 54D - CAN bus

diagnosis chart P.54D-17).

STEP 4. Use the scan tool MB991958 to diagnose other
system diagnostic trouble code
Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."
Check that the TCM sets a diagnostic trouble code.

Q:Is the diagnostic trouble code set?

YES:

 Diagnose the TCM (Refer to GROUP 23 - Diagnostic

trouble code chart P.23A-22).

NO:

 Go to Step 5.

STEP 5. Retest the system.
Check that the intermittent wiper interval depends on the vehicle
speed.

Q:Is the check result normal?

YES:

 Intermittent malfunction. Refer to GROUP 00, How to

cope with intermittent malfunction P.00-15.

NO:

 Replace the ETACS-ECU.

WIPER AND WASHER

51B-29

DIAGNOSIS

INSPECTION PROCEDURE 7: The windshield washer does not work.

M15102100014USA0000010001

WINDSHIELD
WASHER
RELAY

REAR
WINDOW
WASHER
RELAY

WASHER
MOTOR

ACC
RELAY3

A-54

ZC603310

WHITE

RED

BLUE-RED

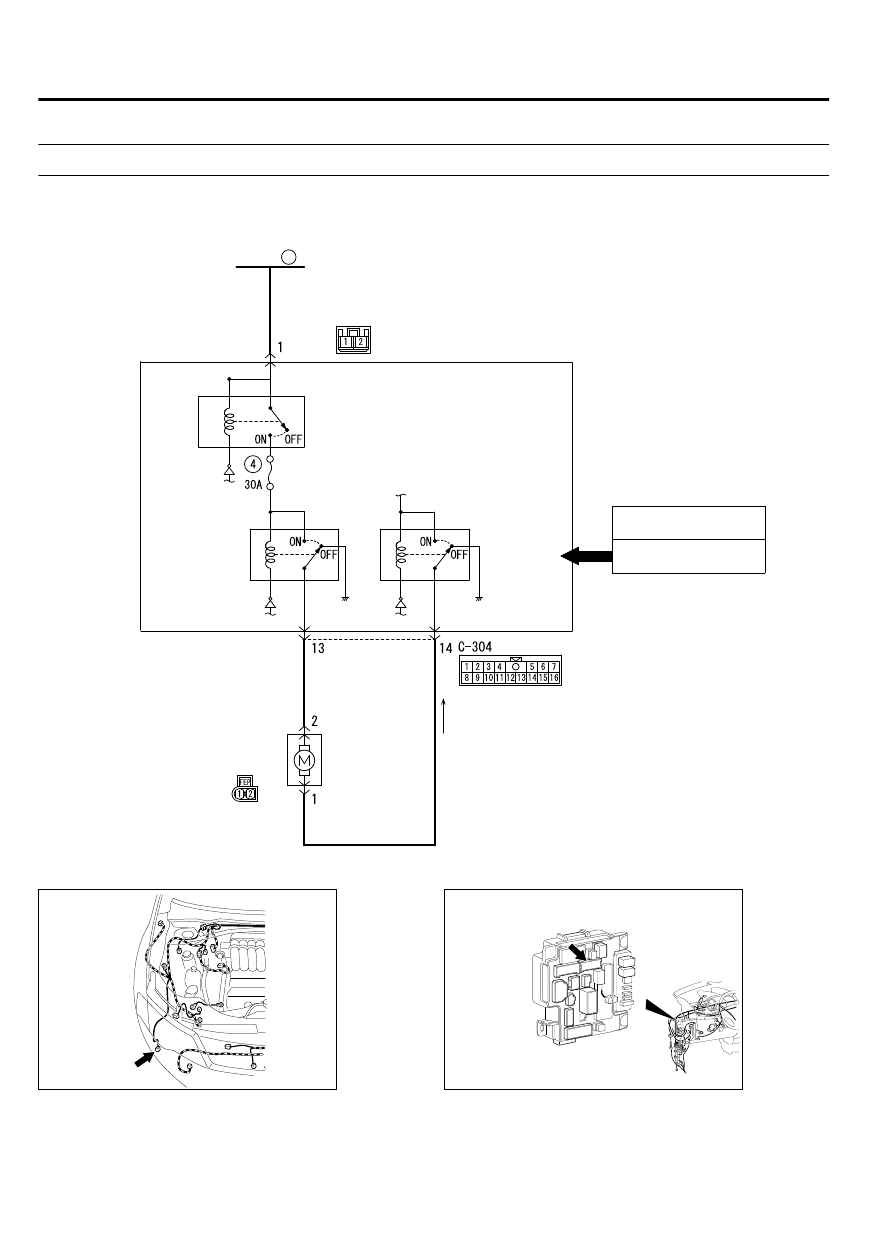

Windshield Washer Motor Circuit

INPUT SIGNAL
(COLUMN-ECU)

WINDSHIELD
WASHER

FUSIBLE
LINK

34

C-309

ETACS-ECU

0000

ZC6008710005

Connector: A-54

ZC6008780022

Connector: C-304

51B-30

WIPER AND WASHER

DIAGNOSIS



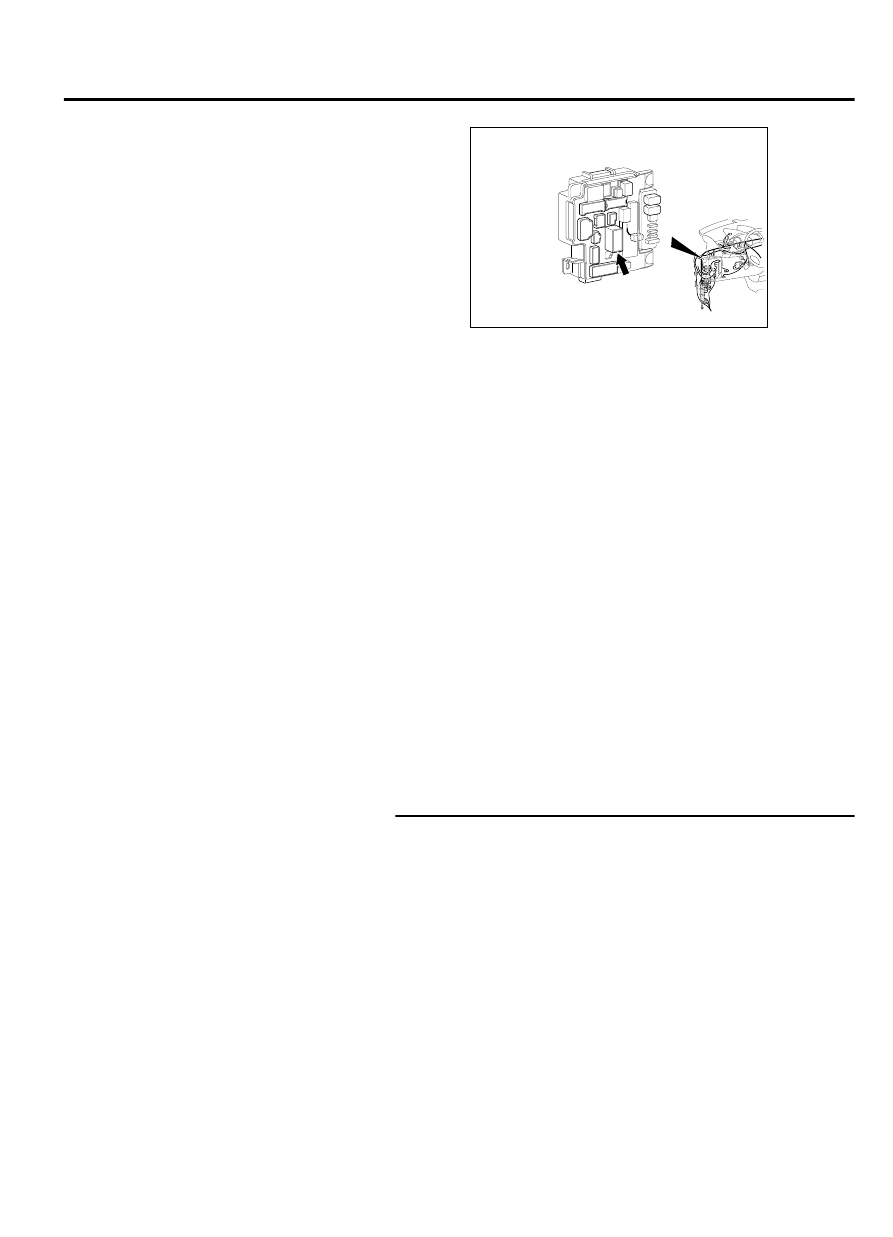

ZC600878

Connector: C-309

C-309 (B)

0009



CIRCUIT OPERATION
The windshield washer switch sends a signal through
the column-ECU (incorporated in the column switch)
to  the  ETACS-ECU.  If  the  column-ECU  sends  a
windshield washer switch "ON" signal to the ETACS-
ECU,  the  ETACS-ECU  turns  on  the  relay
(incorporated in the ETACS-ECU), thus causing the
washer motor to be turned on.

TECHNICAL DESCRIPTION (COMMENT)
If the windshield washer does not work normally, the
washer  motor,  the  column  switch  (windshield  wiper

and  washer  switch)  or  the  ETACS-ECU  may  be
defective.

TROUBLESHOOTING HINTS

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

｠

The washer motor may be defective

｠

The column switch may be defective

｠

The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Verify the windshield wiper operation.

Q:Does the windshield wiper operate normally?

YES:

 Go to Step 2.

NO:

 Refer to Inspection Procedure 1 "The windshield

wipers do not work at all P.51B-13."

WIPER AND WASHER

51B-31

DIAGNOSIS

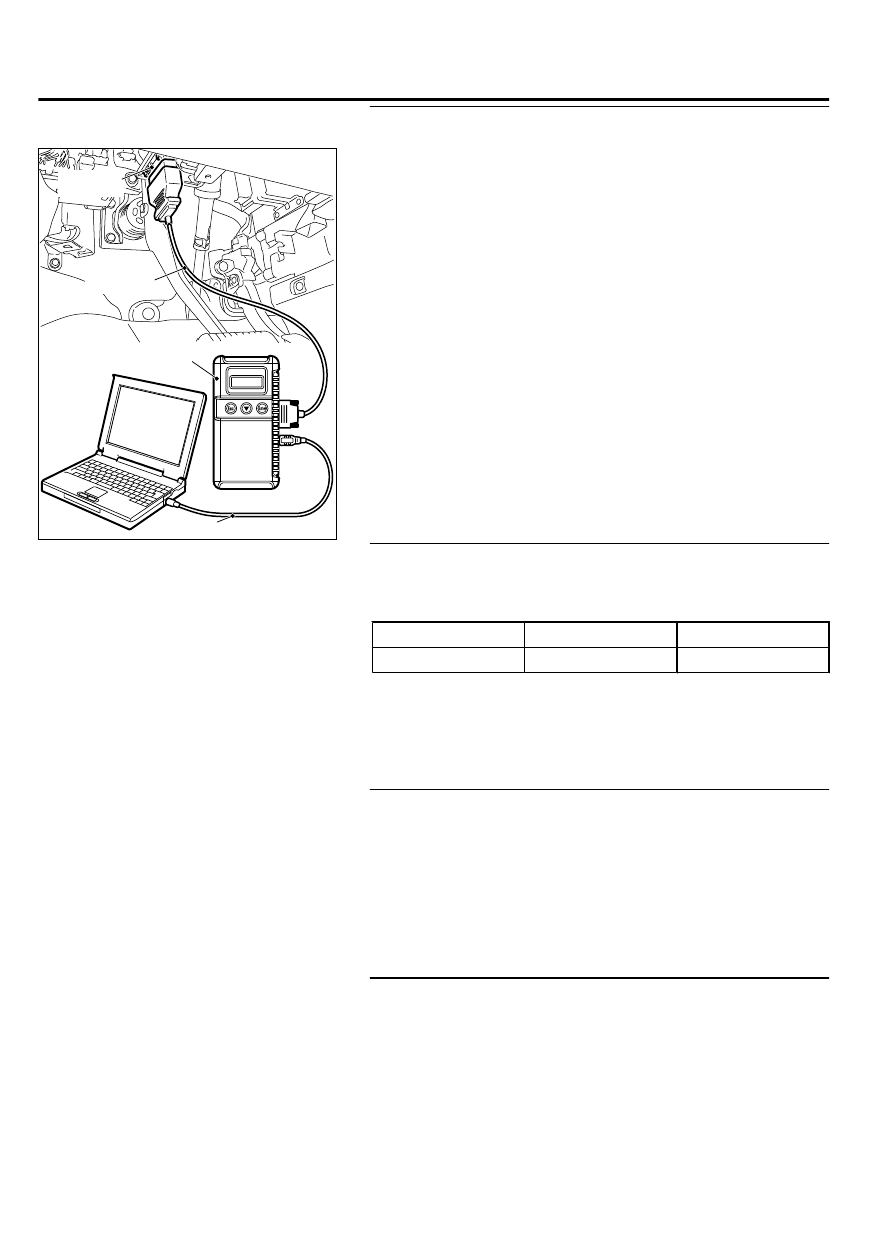

STEP 2. Use the scan tool MB991958 to check if an ETACS-
related diagnostic trouble code is set.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Connect  the  scan  tool.  Refer  to  GROUP  54Ad  ETACS,
"Diagnostic function P.54Ad-5."

Q:Is the diagnostic trouble code set?

YES:

 Diagnose the ETACS-ECU. Refer to GROUP 54Ad ETACS,

"Diagnostic trouble code chart P.54Ad-8."

NO:

 Go to Step 3.

STEP 3. Check the input signal related to the windshield
washer operation.

｠

Ignition switch: ACC

｠

Windshield washer switch: ON

Item No.

Item name

Normal condition

Item 237

Front washer

ON

OK: Normal condition is displayed.

Q:Is the check result normal?

NO:

 Go to Step 4.

YES:

 Refer to GROUP 54Ad - ETACS, Input signal

procedures P.54Ad-61.

STEP 4. Check windshield washer motor connector A-54 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  windshield  washer  motor  connector  A-54  in  good

condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that the windshield wiper works normally.

STEP 5. Check the operation of windshield washer motor.

(1)

Disconnect  windshield  washer  motor  connector  A-54  and
check at windshield washer motor connector side.

(2)

Fill the windshield washer tank with washer fluid.

51B-32

WIPER AND WASHER

DIAGNOSIS
