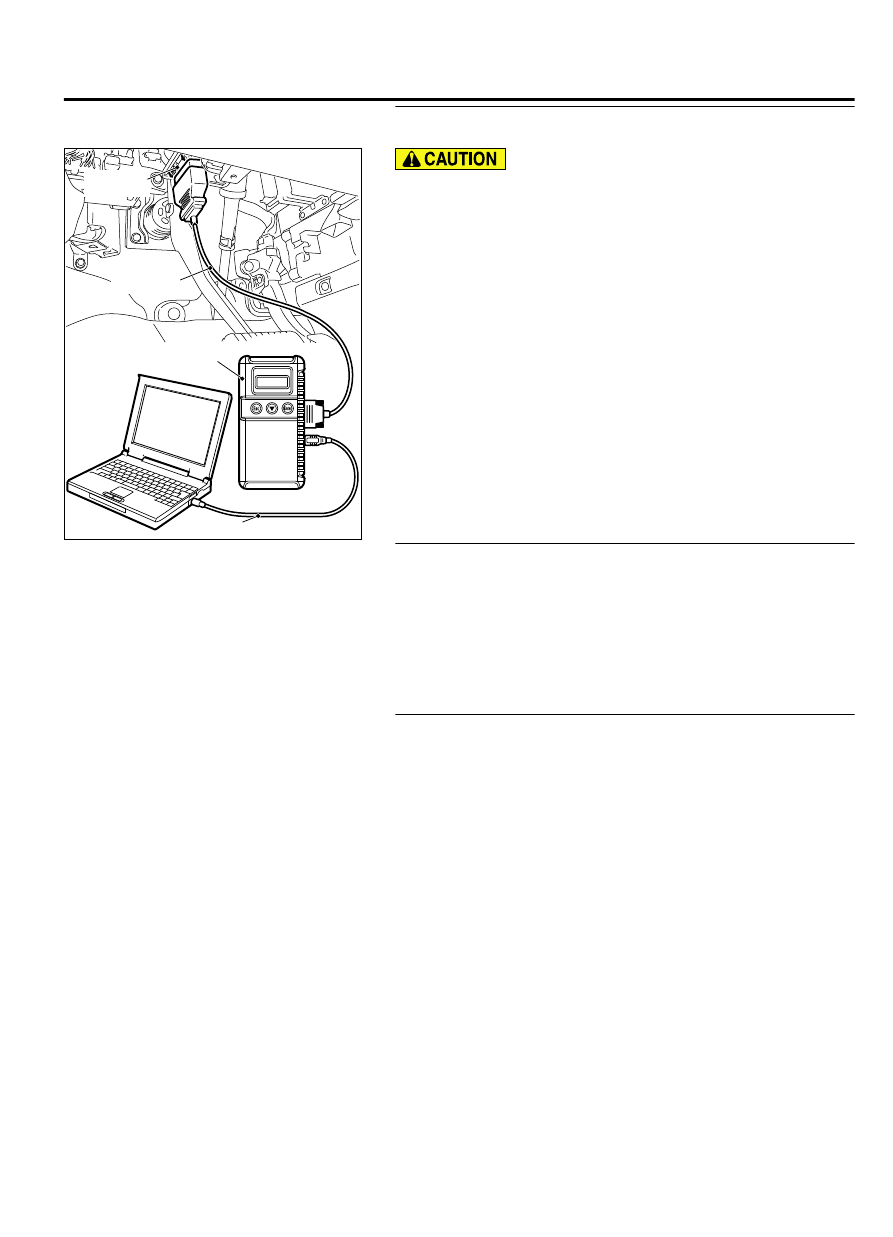

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.42C-7."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the hands free
module diagnostic trouble code.
Check again if the DTC is set to the hands free module.

Q:Is the DTC set?

YES:

 Troubleshoot the hands-free cellular phone system.

Refer to GROUP 54Ae, Diagnosis <hands-free cellular phone
system>.

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

WIRELESS CONTROL MODULE (WCM)

42C-59

DIAGNOSIS

DTC U0245: Audio visual navigation unit CAN timeout

M14209200076USA0000010000

｠

If DTC U0245 is set, be sure to diagnose the CAN
bus line.

｠

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
When  the  signals  from  audio  visual  navigation  unit
cannot be received, the WCM sets DTC U0245.

TROUBLESHOOTING HINTS

｠

The CAN bus line may be defective.

｠

The WCM may be defective.

｠

The audio visual navigation unit may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

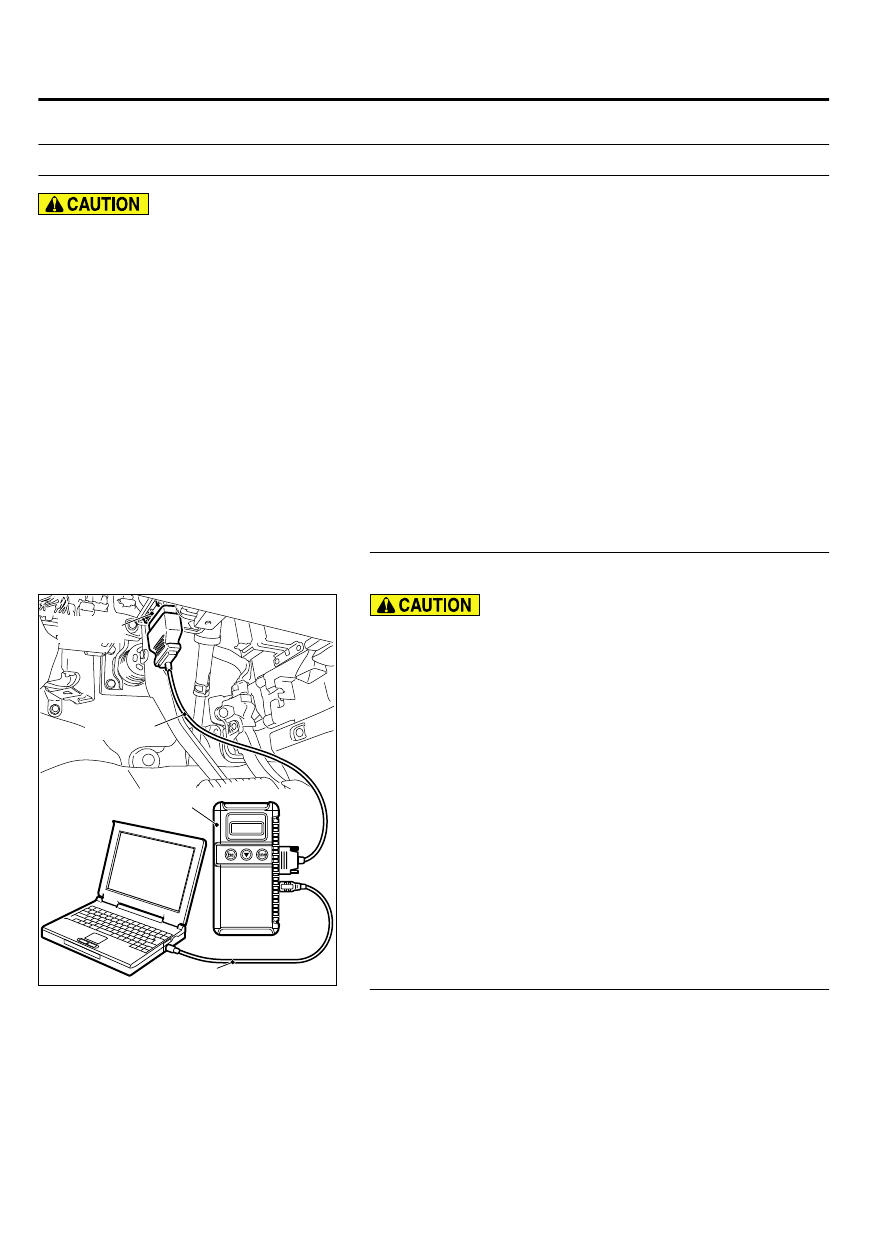

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ab-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the audio visual
navigation unit diagnostic trouble code.
Check if DTC is set to the audio visual navigation unit.

Q:Is the DTC set?

YES:

 Troubleshoot the MMCS. (Refer to GROUP 54B,

Diagnosis <MMCS> P.54B-63.)

42C-60

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-3).

DTC U1412: Implausible Vehicle Speed Signal Received

M14209200067USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17).

TPMS DTC SET CONDITION
WCM receives the wheel speed information from ABS-ECU or
ASC-ECU via the CAN-bus line. When WCM cannot receive the
information about wheel speed sensor from ABS-ECU or ASC-
ECU, this code is set.

TROUBLESHOOTING HINTS
The most likely causes for this DTC to set are:

｠

Damaged wiring harness and connector

｠

Malfunction of ABS-ECU or ASC-ECU

｠

Malfunction of WCM

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. M.U.T.-III CAN bus diagnostics
Use scan tool MB991958, diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

WIRELESS CONTROL MODULE (WCM)

42C-61

DIAGNOSIS

NO:

 Repair the CAN bus lines. (Refer to GROUP 54D - CAN

Bus Diagnostics table P.54D-17.) On completion, go to
Step 2.

STEP 2. Diagnostic trouble code recheck after resetting
CAN bus lines.

(1)

Turn the ignition switch to the "LOCK" (OFF) position.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the diagnostic trouble code U1412 set?

YES:

 Go to Step 3.

NO:

 The procedure is complete.

STEP 3. Check for other diagnostic trouble code.
Check  if  the  diagnostic  trouble  code  is  set  from  ABS-ECU  or
ASC-ECU.<Refer  to  GROUP  35B,  diagnostic  trouble  code
chart P.35B-9(vehicles without ASC) or Refer to GROUP 35C,
diagnostic trouble code chart P.35C-11(vehicles with ASC)>

Q:Is the check result normal?

YES:

 Replace the WCM. Then go to Step 4.

NO:

 Carry out the troubleshooting for ABS-ECU or ASC-

ECU.<Refer to GROUP 35B, diagnostic trouble code chart P.
35B-9(vehicles without ASC) or Refer to GROUP 35C,
diagnostic trouble code chart P.35C-11(vehicles with ASC)
>. Then go to Step 4.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set.

(1)

Turn the ignition switch to the "LOCK" (OFF) position.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the diagnostic trouble code U1412 reset?

YES:

 Start over at Step 1.

NO:

 The procedure is complete.

DTC U1415: Coding not completed/Data fail

M14209200030USA0000010000

｠

If DTC U1415 is set, diagnose the CAN bus lines.

｠

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
If the vehicle information data is not registered to the
combination meter, the WCM sets DTC U1415.

JUDGMENT CRITERIA
With  the  global  coding  counter  value  "0,"  if  all  the
global  coding  data  (vehicle  information)  are  not
stored,  the  WCM  determines  that  a  problem  has
occurred.

TROUBLESHOOTING HINTS

｠

The CAN bus line may be defective.

｠

The WCM may be defective.

｠

The ETACS-ECU may be defective.

42C-62

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS
