Mitsubishi Outlander XL. Manual - part 818





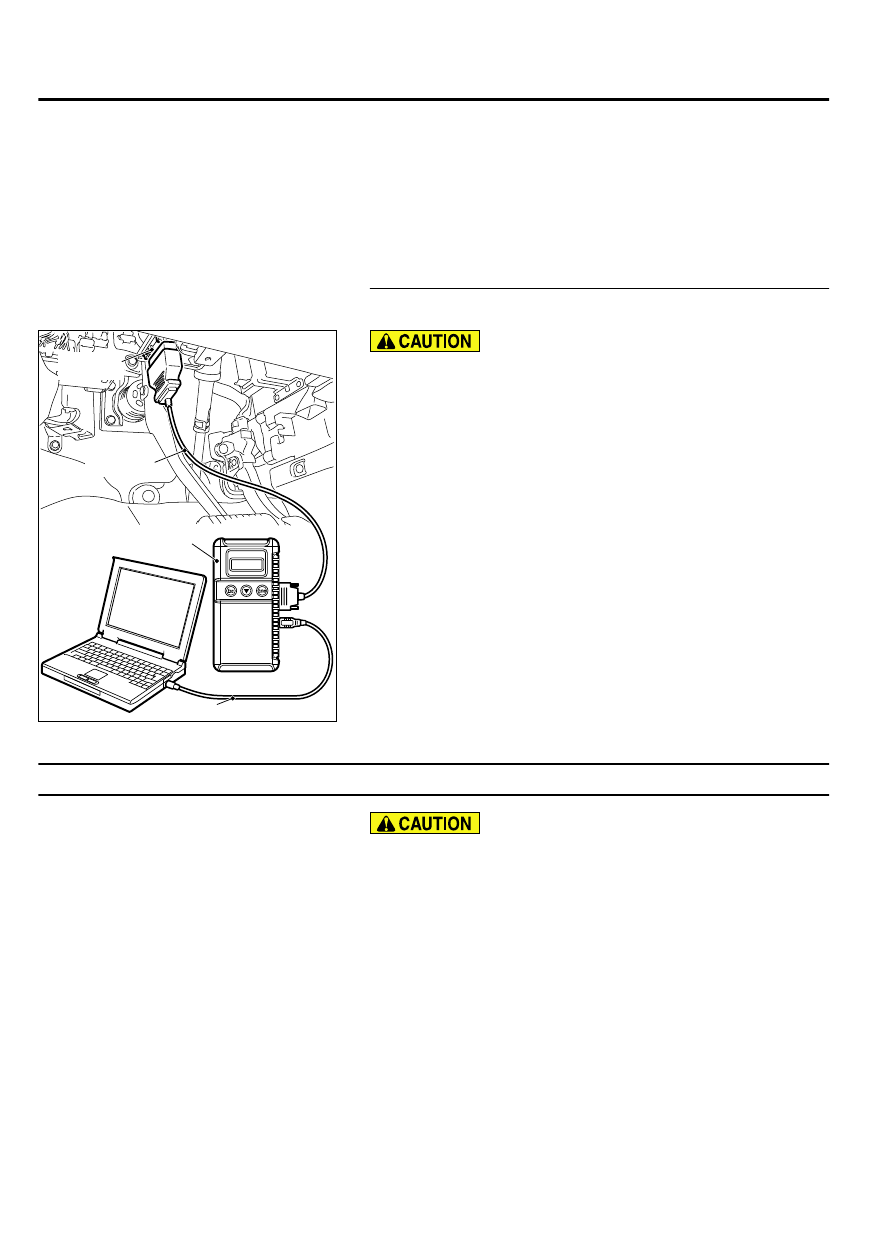

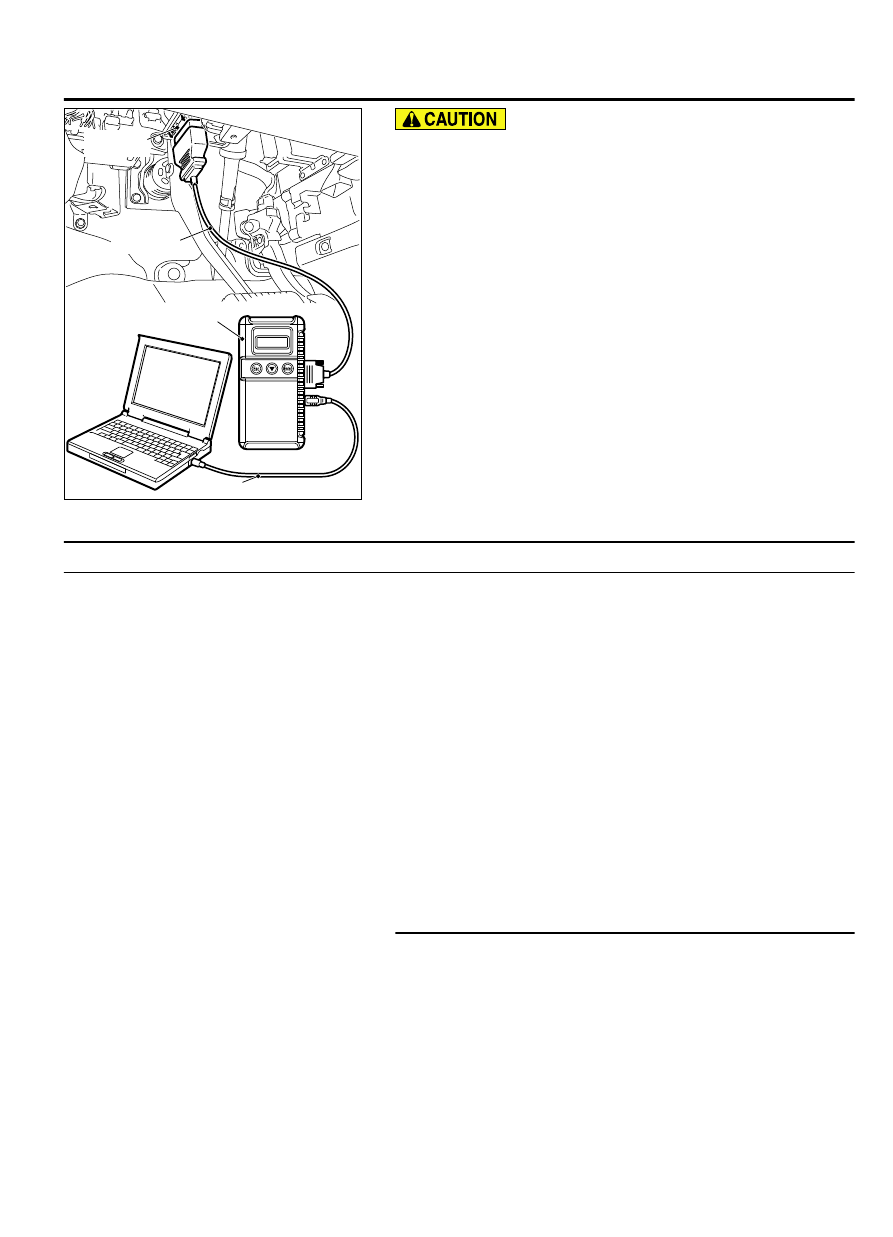

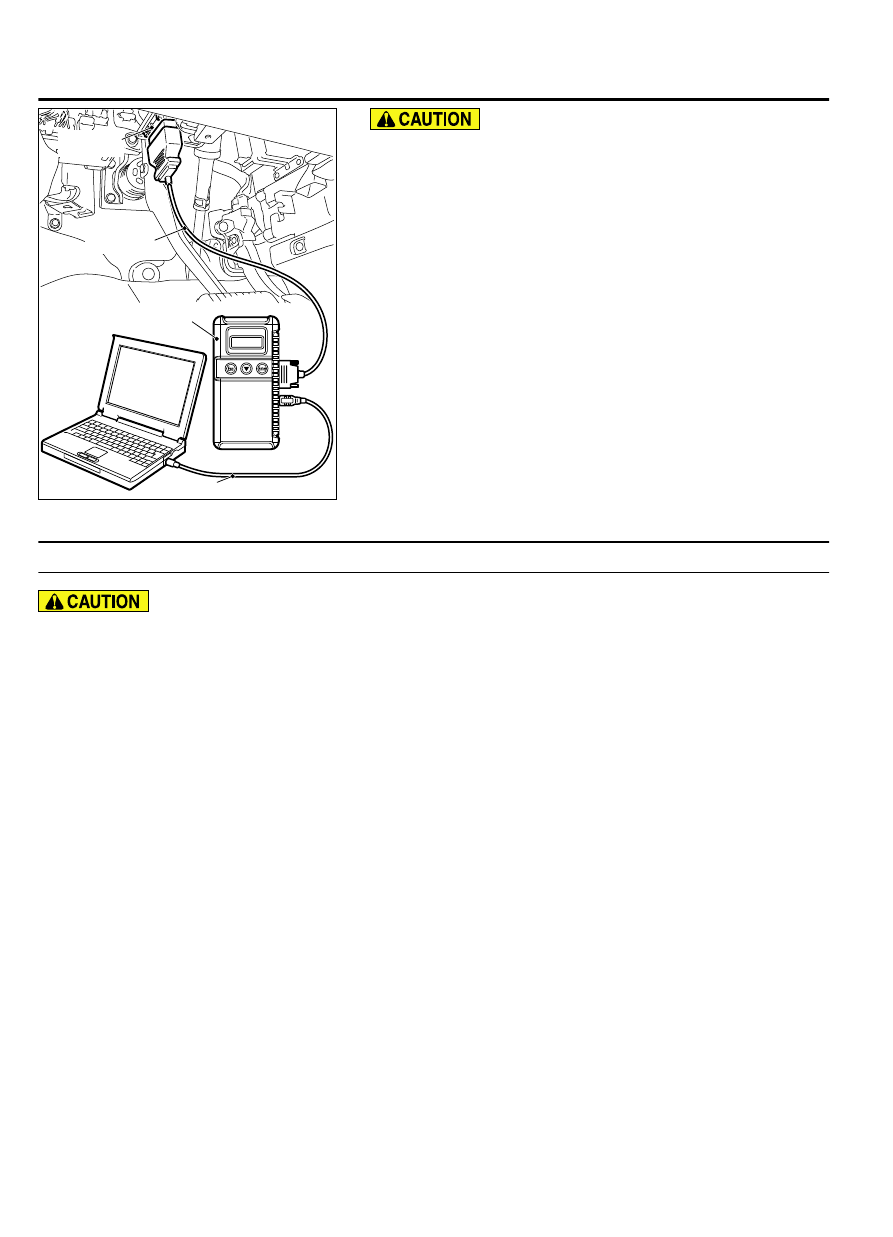

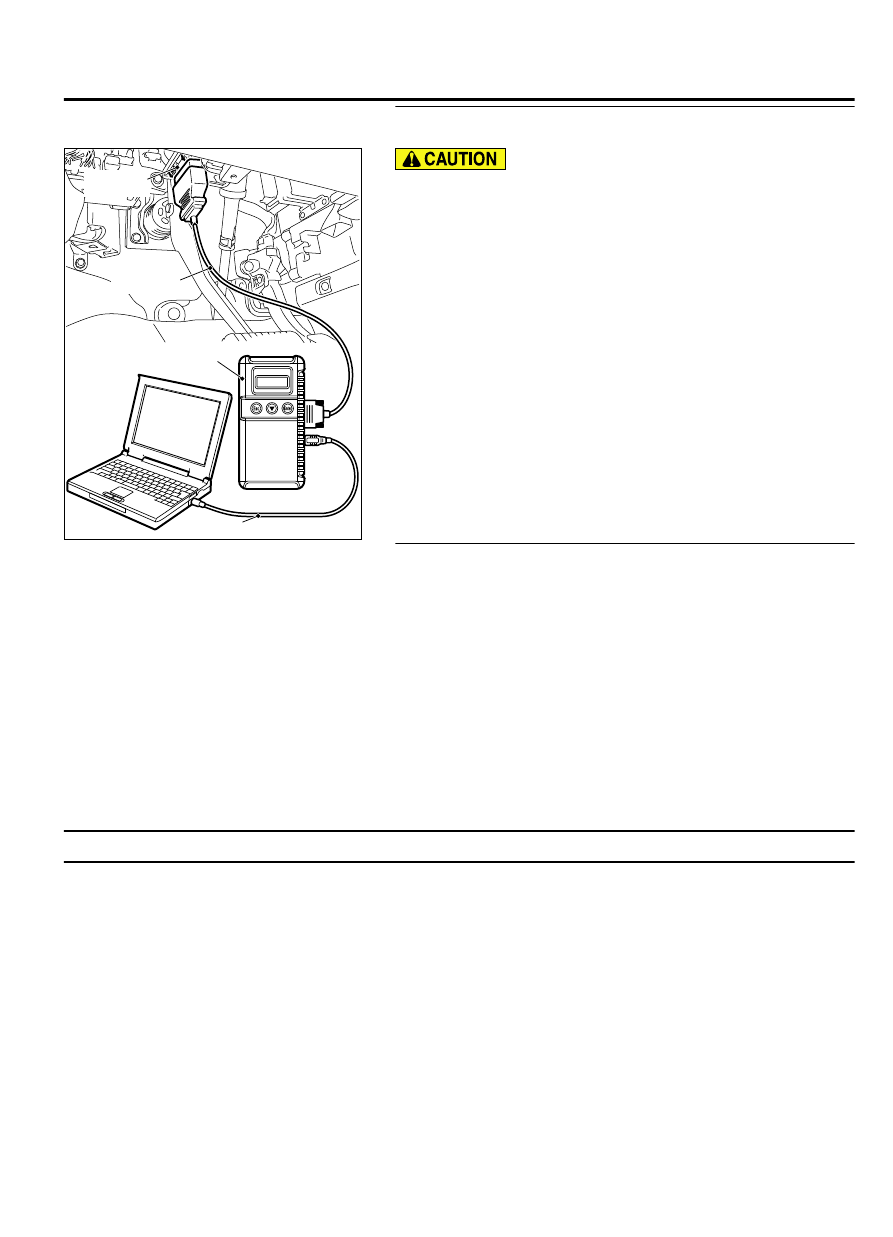

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The procedure is complete.

DTC B2352: Antenna fail

M14209200021USA0000010000

DTC SET CONDITION
WCM sets the DTC B2352 when open or short circuit
to the ground in the antenna is detected.

TECHNICAL DESCRIPTION (COMMENT)
When the ignition switch is turned ON, WCM transmits
signal  to  the  antenna.  When  the  antenna  is  found

faulty,  WCM  determines  that  the  abnormality  is
present.

TROUBLESHOOTING HINT
Malfunction of WCM (Open circuit in antenna)

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

WIRELESS CONTROL MODULE (WCM)

42C-31

DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.
Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The procedure is complete.

DTC B2401: Keyless/KOS key ID not register

M14209200022USA0000010000

If the DTC B2401 is set, be sure to diagnose the
CAN bus line.

When replacing the ECU, always check that the
communication circuit is normal.

DTC SET CONDITION
WCM  sets  the  DTC  B2401  when  no  transmitter  is
registered in it.

TECHNICAL DESCRIPTION (COMMENT)
WCM  determines  that  the  abnormality  is  present
when the number of the transmitters registered in it is
0.

TROUBLESHOOTING HINTS

Failure of transmitter registration process

Malfunction of WCM

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

42C-32

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Register the transmitter and recheck the diagnostic
trouble code.
Register  the  keyless  entry  secret  code  (Refer  to  P.42C-85.),
and recheck if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the "LOCK" (OFF) position to
the "ON" position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The procedure is complete.

DTC B2416: ECU internal error

M14209200023USA0000010000

DTC SET CONDITION
WCM  sets  DTC  B2416  when  it  determines  an
abnormal status within itself.

TECHNICAL DESCRIPTION (COMMENT)
WCM determines that the abnormality is present, if the
data abnormality is found when the ignition switch is
turned ON and then EEPROM is written.

TROUBLESHOOTING HINTS
Malfunction of WCM

WIRELESS CONTROL MODULE (WCM)

42C-33

DIAGNOSIS

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Erase the DTC.

(3)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(4)

Check if DTC is set.

(5)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace WCM and register the ID codes. (Refer to P.

42C-8.)

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

DTC C1608: EEPROM Error

M14209200058USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17
).

TPMS DTC SET CONDITION
WCM  incorporates  the  EEPROM  (nonvolatile  memory).  The
EEPROM stores the TPMS information. If the data in EEPROM
fails, this code is set.

TROUBLESHOOTING HINTS
The most likely causes for this DTC to set are:

Damaged wiring harness and connector

42C-34

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS
