DIAGNOSTIC FUNCTION

M14209200006USA0000010000

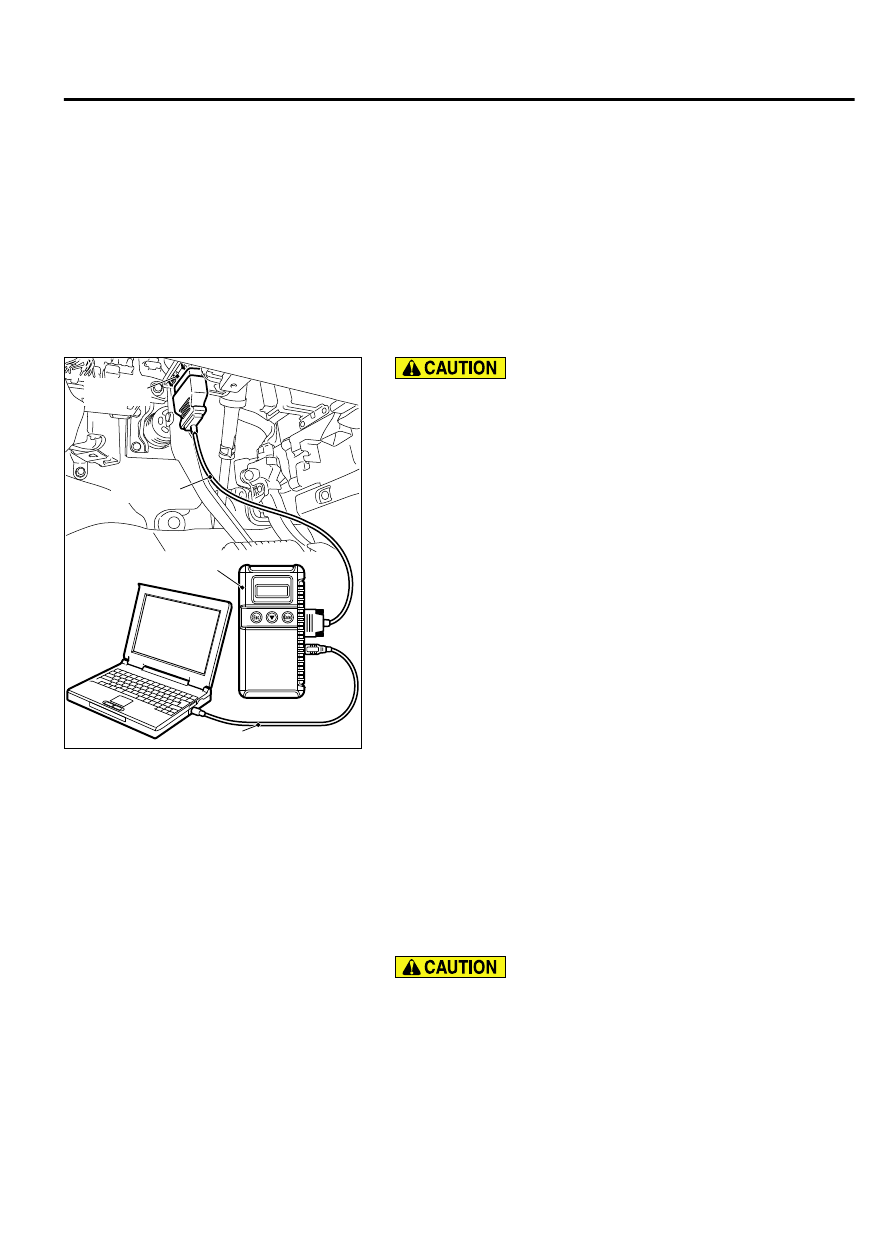

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A (Vehicles with
CAN communication system)

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

Start up the personal computer.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

Connect special tool MB991910 to special tool MB991824.

Connect special tool MB991910 to the data link connector.

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When special tool MB991824 is energized, special

tool MB991824 indicator light will be illuminated in a
green color.

Start the M.U.T.-III system on the personal computer.

NOTE:

Disconnecting scan tool MB991958 is the reverse of

the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC

TROUBLE CODES

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A (Vehicles with
CAN communication system)

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

NOTE:

If the battery voltage is low, diagnostic trouble

codes will not be set. Check the battery if scan tool
MB991958 does not display.

Connect scan tool MB991958 to the data link connector.

WIRELESS CONTROL MODULE (WCM)

42C-7

DIAGNOSIS

Turn the ignition switch to the "ON" position.

Select "System select" from the start-up screen.

Select "From 2006 MY" of "Model Year." When the "Vehicle
Information" is displayed, check the contents.

Select "WCM" from "System List", and press the "OK" button.

NOTE:

When the "Loading Option Setup" list is displayed,

check the applicable item.

Select "Diagnostic Trouble Code."

If a DTC is set, it is shown.

Choose "Erase DTCs" to erase the DTC.

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the
scan tool (GROUP 00, How to Cope with Intermittent
Malfunction P.00-15).

When detecting fault and storing the DTC, the ECU
connected to CAN bus line obtains the data before the

determination of the DTC and the data when the DTC
is determined, and then stores the ECU status of that
time. By analyzing each data from scan tool, the
troubleshooting can be performed more efficiently.
The displayed items are as the table below.

Display item list

Item No.

Item name

Data item

Unit

Odometer

Total driving distance after the diagnosis code is

generated

km*

Ignition cycle Number of times the ignition switch is turned "ON" or

"LOCK (OFF)" after the past failure transition

Number of

counts is

displayed.

Current trouble

accumulative time

Cumulative time for current malfunction of diagnosis

code

min

NOTE:

*: If a failure occurs to both the ABS-ECU and

ETACS-ECU, 0000 km or FFFF km is displayed to the scan tool
MB991958.

ID CODES REGISTRATION JUDGMENT TABLE

M14209200007USA0000010000

Do not replace the engine control module (ECM)
and WCM at the same time. When replacing
several ECUs, always replace one ECU at a time,
register the necessary IDs in it, and then replace
the next ECU.
The transponder (a small transmitter) in the ignition
key, WCM, and the ECM have their own ID codes

stored in them. When the cases listed in the table
below occur, the ID codes must be registered in the
WCM or ECM again.

NOTE:

Up to eight ignition keys (key ID and

keyless entry secret code) can be stored in the
memory of WCM.

Item

Operation

contents

and

procedure

Reference page for registration
contents

When the ECM is replaced

Registration of Key codes

Key  code  registration  (Refer  to
GROUP  00  -  Precautions  before
Service  -  How  to  Perform  VIN
Writing P.00-26.)

42C-8

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS

Item

Operation

contents

and

procedure

Reference page for registration
contents

When WCM is replaced

VIN programmed

｠

Write the VIN (Refer to GROUP
00 - Precautions before Service -
How to Perform VIN Writing P.
00-26).

｠

Registering keys and keyless
IDs. (Refer to P.42C-85.)

｠

Registering tire pressure sensor
ID. (Refer to P.42C-92.)

When the ignition key is added as
a single unit

Key Registration and Keyless ID
Registration (Refer to P.42C-85)

When the ignition key is lost as a
single unit

When the ignition key is replaced
by the full service key set or the
handle lock service key set is
replaced by the piece.

Key Registration (Barcode No.) and
Keyless ID Registration (Refer to P.
42C-85)

When the blank key*is replaced
by the door service key set or
glove box service key set is added
by the piece.

Operation is not needed

When TPMS transmitter is
replaced

Registering tire pressure sensor ID.
(Refer to P.42C-92.)

NOTE:

*: Blank key (the key that can be used to

lock/unlock the door, back door or glove box only)

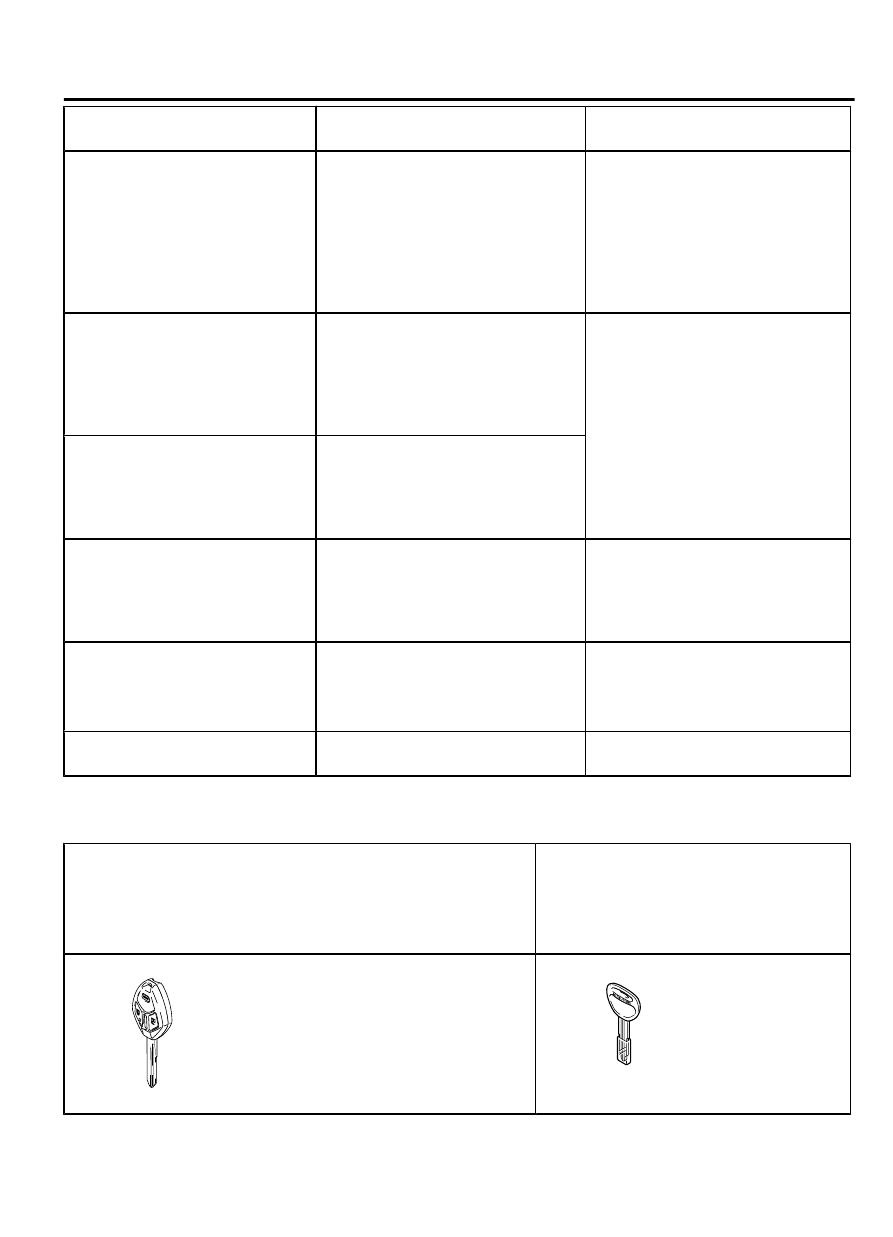

SUPPLY UNIT LIST FOR INDIVIDUAL KEY

Ignition key (with transmitter)

NOTE:

Blank key (It is the key that

comes with the door service key set and
the glove box service key set. It can
only be used for locking and unlocking,
and it cannot start the engine.)

ZC6037530000

ZC6044010001

Blank key

WIRELESS CONTROL MODULE (WCM)

42C-9

DIAGNOSIS

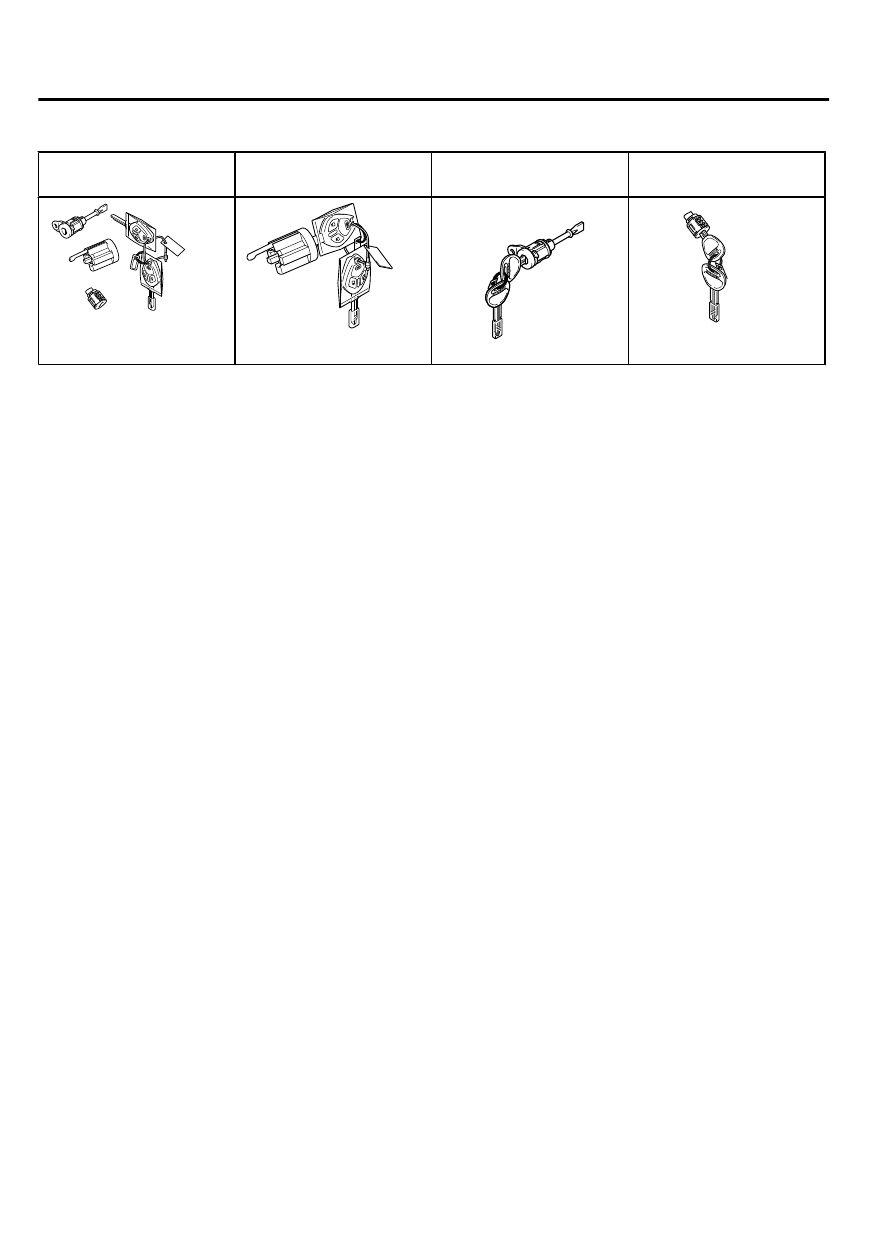

KEY SUPPLY UNIT LIST FOR OTHER THAN INDIVIDUAL KEY

Full service key set

Handle lock service key
set

Door service key set

Glove box service key
set

ZC6045380000

ZC6045400000

ZC6045500000

ZC6045390000

42C-10

WIRELESS CONTROL MODULE (WCM)

DIAGNOSIS
