Mitsubishi Outlander XL. Manual - part 769

Diagnostic  trouble  code
number

Diagnostic item

Reference
page

B1A11

Keyless/KOS key 2 low battery

B1A12

Keyless/KOS key 3 low battery

B1A13

Keyless/KOS key 4 low battery

B1A24

Key ID not registered

 P.42B-26

B1A25

Key ID unmatched

 P.42B-27

B1A28

Engine control module authenticate error

 P.42B-29

B1A35

Transponder read error

 P.42B-30

B2101

IG SW start POS.circuit low

 P.42B-32

B2102

IG SW start POS.circuit high

B2204

Coding data mismatch

 P.42B-36

B2206

VIN mismatch

 P.42B-38

B2352

Antenna fail

 P.42B-39

B2400

KOS key registration fail

 P.42B-42

B2401

Keyless/KOS key ID not registered

 P.42B-43

B2402

STL unit comm.(system ID)

 P.42B-45

B2403

STL unit comm.(CRC)

B2404

STL unit comm.(function code)

B2405

STL unit comm.(rolling code)

B2406

STL unit comm.(PTC operate)

B2407

STL unit comm.(EEPROM)

B2408

STL unit comm.(solenoid)

B2409

STL unit comm.(No response)

 P.42B-47

B240A

FR antenna(outdoor) open

 P.42B-50

B240B

FL antenna(outdoor) open

 P.42B-52

B240C

Liftgate antenna(outdoor) open

 P.42B-55

B240D

Front antenna(indoor) open

 P.42B-57

B240E

RR antenna(indoor) open

 P.42B-59

B240F

RL antenna(indoor) open

 P.42B-62

B2412

LF antenna power voltage

 P.42B-64

B2413

STL unit power voltage

 P.42B-68

B2414

Unlock sensor fail

 P.42B-72

B2415

RA module power voltage

 P.42B-75

B2416

ECU internal error

 P.42B-77

C1608

EEPROM error

 P.42B-78

C1900

No registration

 P.42B-79

C1901

Vehicle speed information abnormality

 P.42B-81

C1910

Transmitter low battery voltage abnormality 1

 P.42B-82

C1920

Transmitter low battery voltage abnormality 2

KEYLESS OPERATION SYSTEM (KOS)

42B-19

DIAGNOSIS

Diagnostic  trouble  code
number

Diagnostic item

Reference
page

C1930

Transmitter low battery voltage abnormality 3

C1940

Transmitter low battery voltage abnormality 4

C1911

Reception abnormality 1

 P.42B-84

C1921

Reception abnormality 2

C1931

Reception abnormality 3

C1941

Reception abnormality 4

C1912

Tire inflation pressure warning 1

 P.42B-85

C1922

Tire inflation pressure warning 2

C1932

Tire inflation pressure warning 3

C1942

Tire inflation pressure warning 4

C1913

Acceleration sensor abnormality 1

 P.42B-87

C1923

Acceleration sensor abnormality 2

C1933

Acceleration sensor abnormality 3

C1943

Acceleration sensor abnormality 4

C1914

Pressure sensor abnormality 1

 P.42B-88

C1924

Pressure sensor abnormality 2

C1934

Pressure sensor abnormality 3

C1944

Pressure sensor abnormality 4

U0019

Bus off (CAN-B)

 P.42B-90

U0141

ETACS-ECU CAN timeout

 P.42B-91

U0151

SRS-ECU CAN timeout

 P.42B-93

U0154

Occupant classification-ECU CAN timeout

 P.42B-94

U0155

Combination meter CAN timeout

 P.42B-96

U0164

A/C-ECU CAN timeout

 P.42B-97

U0184

Audio CAN timeout

 P.42B-99

U0197

Hands free module CAN timeout

 P.42B-100

U0245

Audio visual navigation unit CAN timeout

 P.42B-102

U1412

Implausible Vehicle Speed Signal Received

 P.42B-103

U1415

Coding not completed/Data fail

 P.42B-104

U1417

Implausible coding data

 P.42B-106

NOTE:

｠

*1: STL unit = steering lock unit

｠

*2: RA module = receiver antenna module

42B-20

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC B1731: Engine Control Module communication timeout

M14209100004USA0000010000

｠

When the DTC B1731 is set, be sure to diagnose
the CAN bus line.

｠

When replacing the ECU, always check that the
communication circuit is normal.

DTC SET CONDITION
KOS-ECU  checks  that  the  Engine  Control  Module
data has been received via the CAN bus lines, and if
not, sets the DTC No. B1731.

TECHNICAL DESCRIPTION (COMMENT)
If no data [ETACS transmits engine random number
data to KOS-ECU via the CAN bus lines] is received

from the Engine Control Module via the CAN bus lines
when the ignition switch is turned to ON position, it is
judged as abnormal.

TROUBLESHOOTING HINTS

｠

Malfunction of CAN bus line

｠

Malfunction of KOS-ECU

｠

Malfunction of engine control module

｠

Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

KEYLESS OPERATION SYSTEM (KOS)

42B-21

DIAGNOSIS

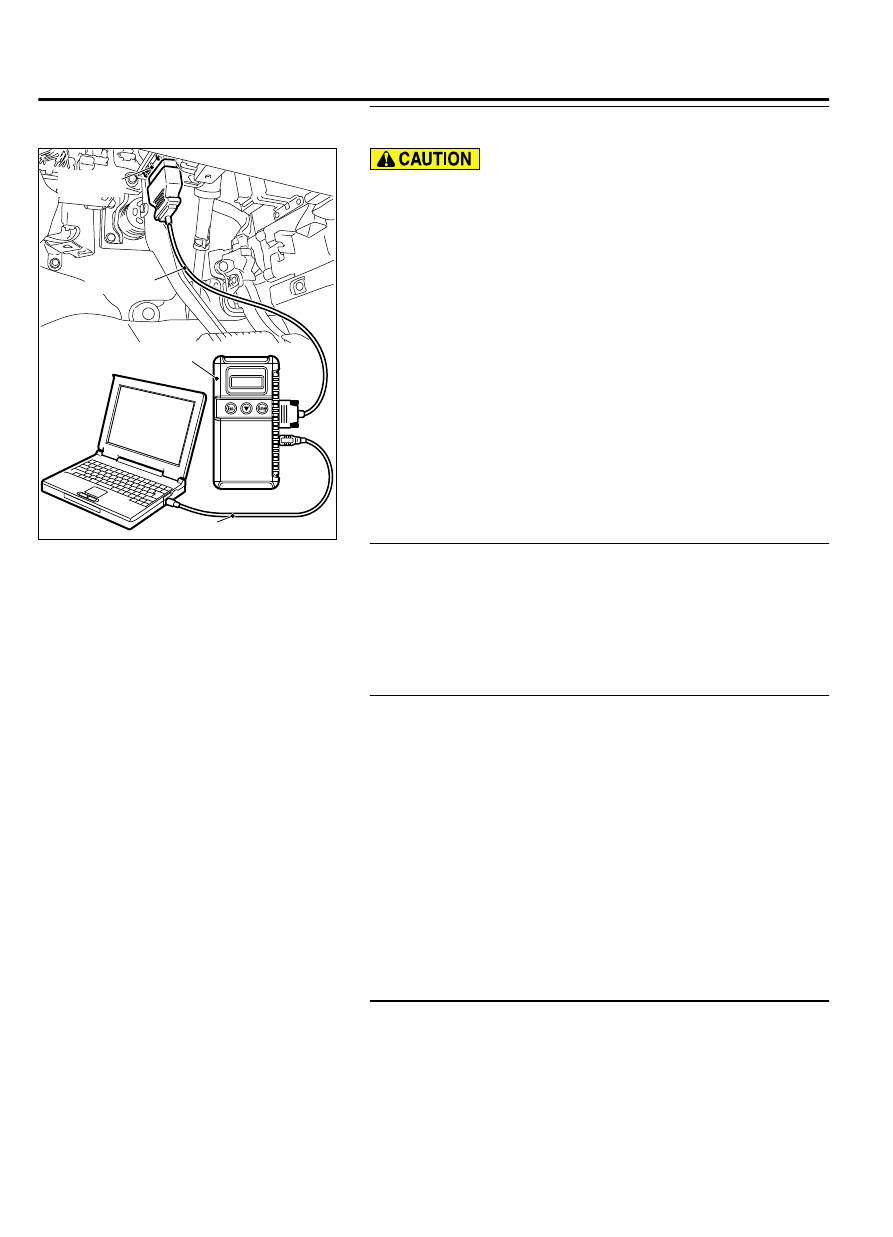

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the Engine Control
Module diagnostic trouble code
Check again if the DTC is set to the engine control module.

Q:Is the DTC set?

YES:

 Troubleshoot the MFI system (Refer to GROUP 13Ab,

Diagnostic trouble code chart P.13Ab-44).

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.) After registering the ID codes, go to Step
4.

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

42B-22

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS
