YES:

 Go to Step 4.

NO:

 Replace the front door lock actuator (LH). Verify

that all the doors and the liftgate can be locked and
unlocked normally.

STEP 4. Check ETACS-ECU connector C-315 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-315 in good condition?

YES:

 Go to Step 5.

NO:

 Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection P.00E-2. Verify that all the
doors and the liftgate can be locked and unlocked
normally.

STEP 5. Check the wiring harness between ETACS-ECU
connector C-315 (terminals No. 2 and 6) and front door lock
actuator (LH) connector E-21 (terminals No. 6 and 4).

NOTE:

Also check intermediate connector C-127 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-127 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is  the  wiring  harness  between  ETACS-ECU  connector

C-315 (terminals No. 2 and 6) and front door lock actuator

(LH)  connector  E-21  (terminals  No.  6  and  4)  in  good

condition?

YES:

 Go to Step 24.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair or replace
the damaged component(s). Verify that all the doors and
the liftgate can be locked and unlocked normally.

STEP 6. Check front door lock actuator (RH) connector E-09
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:Is front door lock actuator (RH) connector E-09 in good

condition?

YES:

 Go to Step 7.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that all the doors and the liftgate can be locked and
unlocked normally.

DOOR

42Ab-19

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

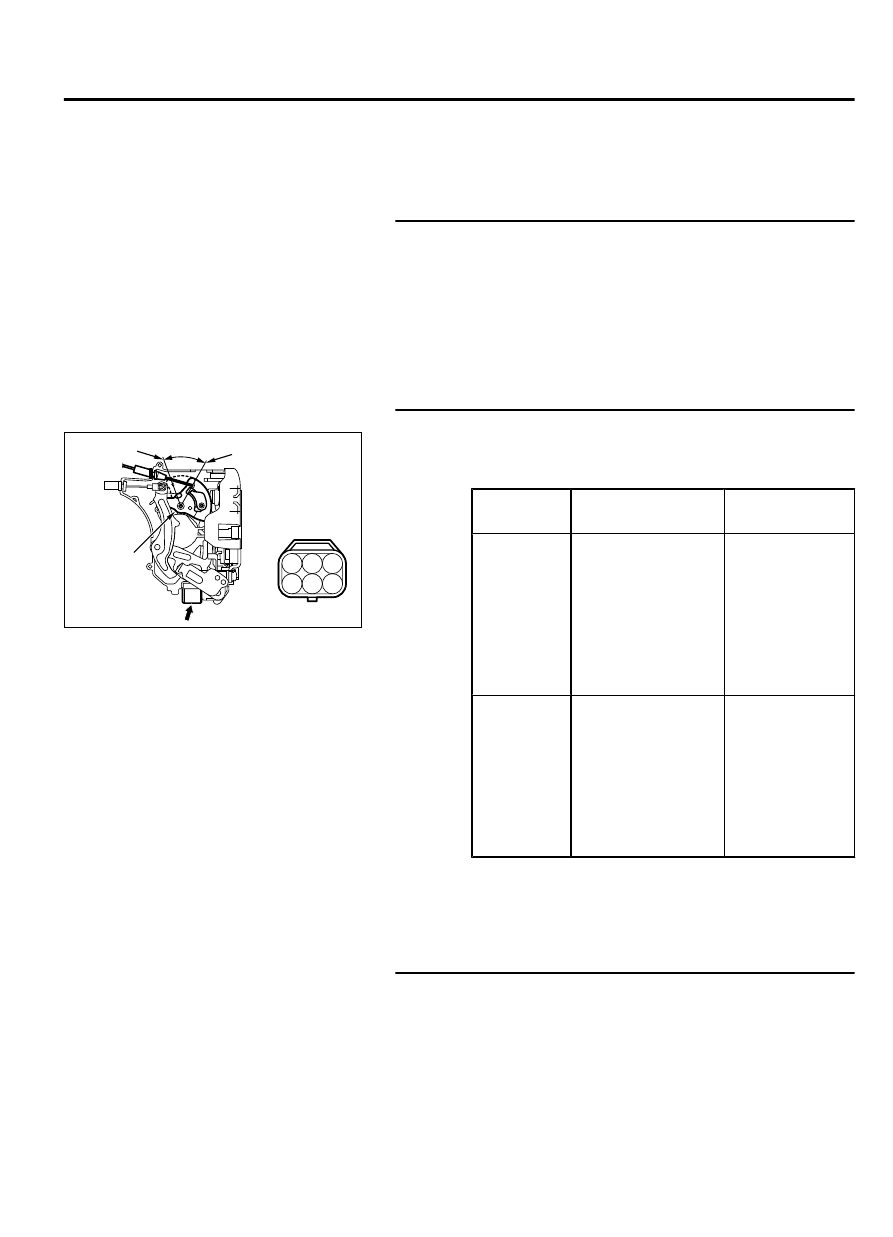

STEP 7. Check the front door lock actuator (RH).

4

2
5

3
6

1

ZC600436

A

0000

Lever

UNLOCK

LOCK

View A

Remove the front door lock actuator (RH). The illustration shows
when the door lock actuator is viewed from inside the door. Refer
to P.42Ab-102.

Lever
position

Battery
connection

Lever
operation

At

 the

"LOCK"
position

｠

Connect  terminal
No.4

 to

 the

negative  battery
terminal.

｠

Connect  terminal
No.6

 to

 the

positive  battery
terminal.

The lever moves
from the "LOCK"
position  to  the
"UNLOCK"
position.

At

 the

"UNLOCK"
position

｠

Connect  terminal
No.6

 to

 the

negative  battery
terminal.

｠

Connect  terminal
No.4

 to

 the

positive  battery
terminal.

The lever moves
from

 the

"UNLOCK"
position  to  the
"LOCK"
position.

Q:Is the front door lock actuator (RH) normal?

YES:

 Go to Step 8.

NO:

 Replace the front door lock actuator (RH). Verify

that all the doors and the liftgate can be locked and
unlocked normally.

STEP 8. Check ETACS-ECU connector C-315 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-315 in good condition?

YES:

 Go to Step 9.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that all the doors and the liftgate can be locked and
unlocked normally.

STEP 9. Check the wiring harness between ETACS-ECU
connector C-315 (terminals No. 5 and 6) and front door lock
actuator (RH) connector E-09 (terminals No. 6 and 4).

NOTE:

Also check intermediate connector C-113 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-113 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is  the  wiring  harness  between  ETACS-ECU  connector

C-315 (terminals No. 5 and 6) and front door lock actuator

(RH)  connector  E-09  (terminals  No.  6  and  4)  in  good

condition?

42Ab-20

DOOR

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

YES:

 Go to Step 24.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Verify that all the doors and the
liftgate can be locked and unlocked normally.

STEP 10. Check rear door lock actuator (RH) connector E-13
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:Is rear door lock actuator (RH) connector E-13 in good

condition?

YES:

 Go to Step 11.

NO:

 Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection P.00E-2. Verify that all the
doors can be locked and unlocked normally.

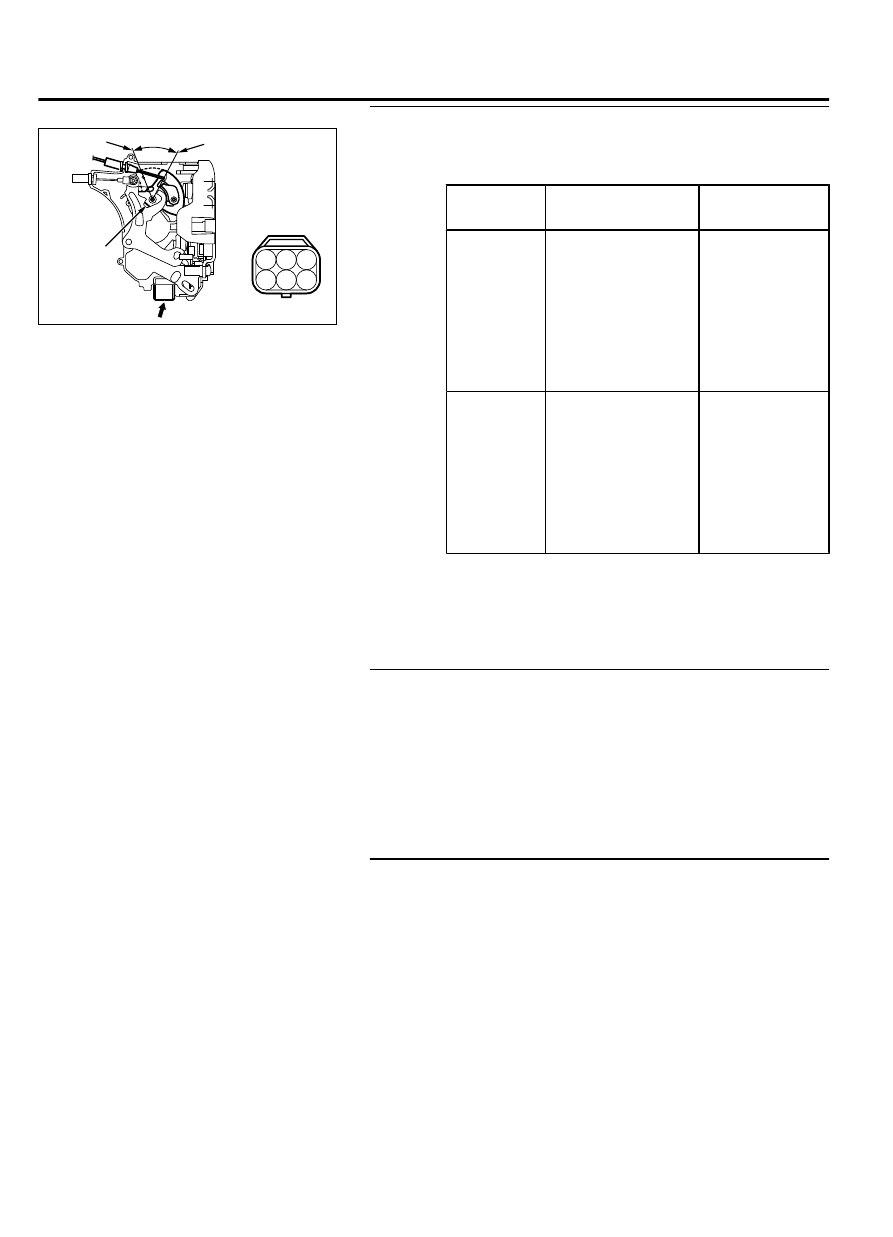

STEP 11. Check the rear door lock actuator (RH).

ZC600438

4

2
5

3
6

1

A

0000

Lever

UNLOCK

LOCK

View A

Remove the rear door lock actuator (RH). The illustration shows
when the door lock actuator is viewed from inside the door. Refer
to P.42Ab-102.

Lever
position

Battery
connection

Lever
operation

At

 the

"LOCK"
position

｠

Connect  terminal
No.4

 to

 the

negative  battery
terminal.

｠

Connect  terminal
No.6

 to

 the

positive  battery
terminal.

The lever moves
from the "LOCK"
position  to  the
"UNLOCK"
position.

At

 the

"UNLOCK"
position

｠

Connect  terminal
No.6

 to

 the

negative  battery
terminal.

｠

Connect  terminal
No.4

 to

 the

positive  battery
terminal.

The lever moves
from

 the

"UNLOCK"
position  to  the
"LOCK"
position.

Q:Is the rear door lock actuator (RH) normal?

YES:

 Go to Step 12.

NO:

 Replace the rear door lock actuator (RH). Verify that

all the doors and the liftgate can be locked and unlocked
normally.

STEP 12. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-311 in good condition?

YES:

 Go to Step 13.

DOOR

42Ab-21

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Verify
that all the doors and the liftgate can be locked and
unlocked normally.

STEP 13. Check the wiring harness between ETACS-ECU
connector C-311 (terminals No. 6 and 9) and rear door lock
actuator (RH) connector E-13 (terminals No. 6 and 4).

NOTE:

Also check intermediate connector D-36 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector D-36 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is  the  wiring  harness  between  ETACS-ECU  connector

C-311 (terminals No. 6 and 9) and rear door lock actuator

(RH)  connector  E-13  (terminals  No.  6  and  4)  in  good

condition?

YES:

 Go to Step 24.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Verify that all the doors and the
liftgate can be locked and unlocked normally.

STEP 14. Check rear door lock actuator (LH) connector E-27
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:Is  rear  door  lock  actuator  (LH)  connector  E-27  in  good

condition?

YES:

 Go to Step 15.

NO:

 Repair or check the connector. Refer to GROUP 00E,

Harness Connector Inspection P.00E-2. Verify that all the
doors and the liftgate can be locked and unlocked
normally.

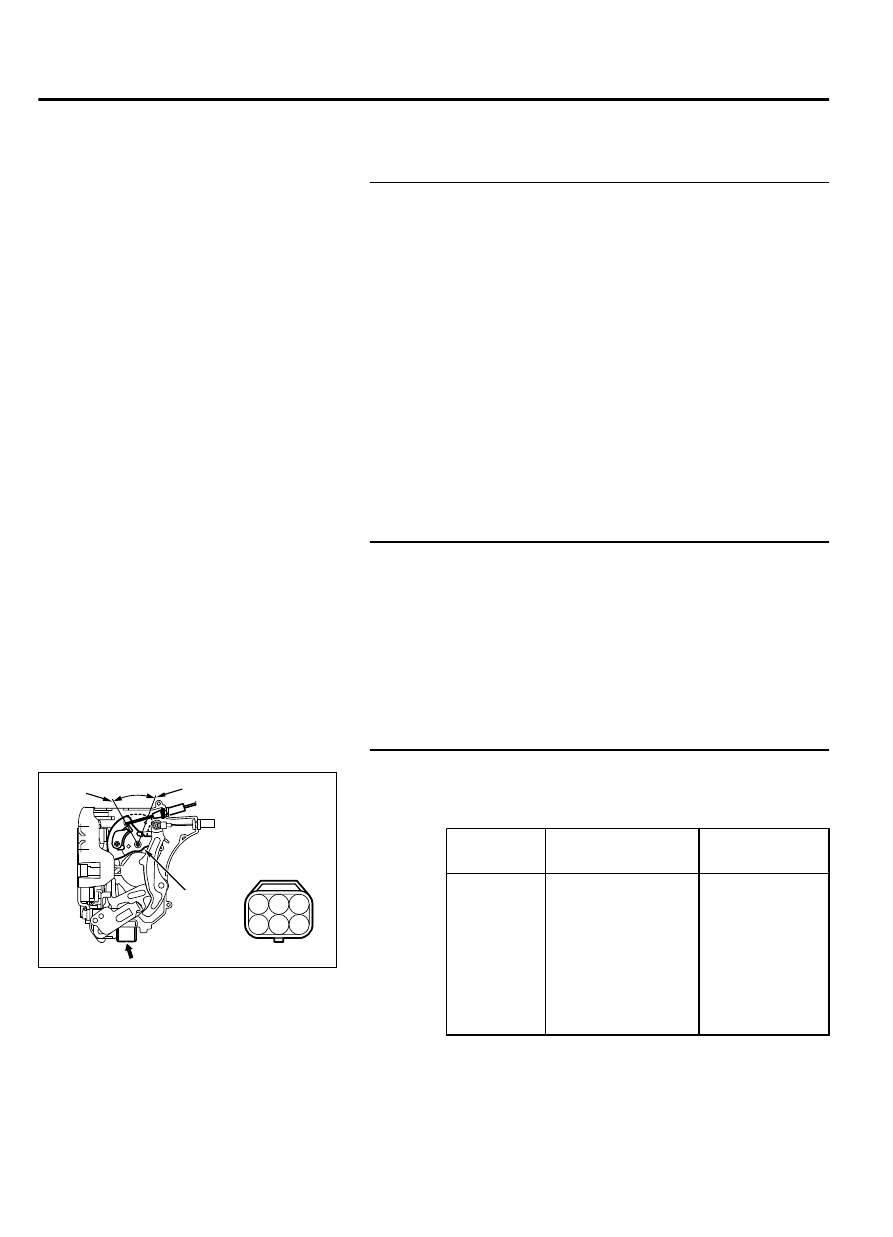

STEP 15. Check the rear door lock actuator (LH).

4

2
5

3
6

1

ZC600437

A

Lever

UNLOCK

LOCK

View A

0000

Remove the rear door lock actuator (LH). The illustration shows
when the door lock actuator is viewed from inside the door. Refer
to P.42Ab-102.

Lever
position

Battery
connection

Lever
operation

At

 the

"LOCK"
position

｠

Connect  terminal
No.4

 to

 the

negative  battery
terminal.

｠

Connect  terminal
No.6

 to

 the

positive  battery
terminal.

The lever moves
from the "LOCK"
position  to  the
"UNLOCK"
position.
