Mitsubishi Outlander XL. Manual - part 702





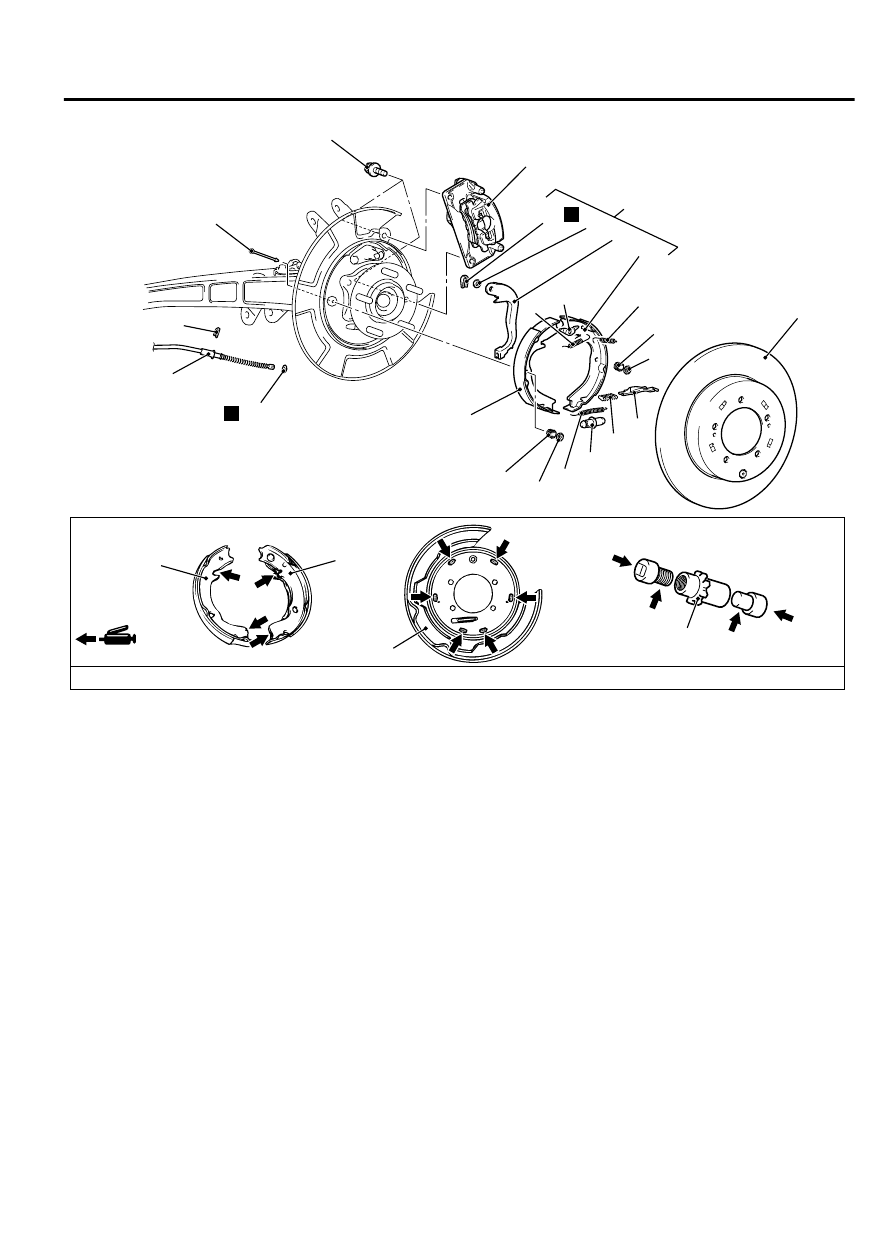

ZC601752AA00

Brake grease: Chuo Yuka AKB100

1

2

3

4

5

6

7

7

8

9

10

11

12

20

19

21

13

13

14

14

15

16

17

18

10

11

N

N

Backing plate

60 ± 5 N·m
45 ± 3 ft-lb

Removal steps

<<A>>

1.

Rear brake caliper assembly

2.

Rear brake disc

>>D<<

3.

Shoe-to-anchor spring

>>D<<

4.

Shoe-to-anchor spring

5.

Shoe guide plate

6.

Adjusting wheel spring

>>C<<

7.

Adjuster assembly

8.

Strut

9.

Strut shoe-to-spring

10. Shoe hold down cup
11. Shoe hold down spring

Removal steps

12. Shoe hold down pin
13. Shoe and lining assembly
14. Shoe and lever assembly

<<B>>

>>B<<

15. Retainer

>>A<<

16. Wave washer
17. Parking lever
18. Shoe and lining assembly
19. Pin
20. Parking brake rear cable
21. O-ring

REMOVAL SERVICE POINTS

<<A>> REAR BRAKE CALLIPER ASSEMBLY REMOVAL
Remove the rear brake calliper assembly and hold it with a wire.

PARKING BRAKES

36-15

PARKING BRAKE LINING AND DRUM

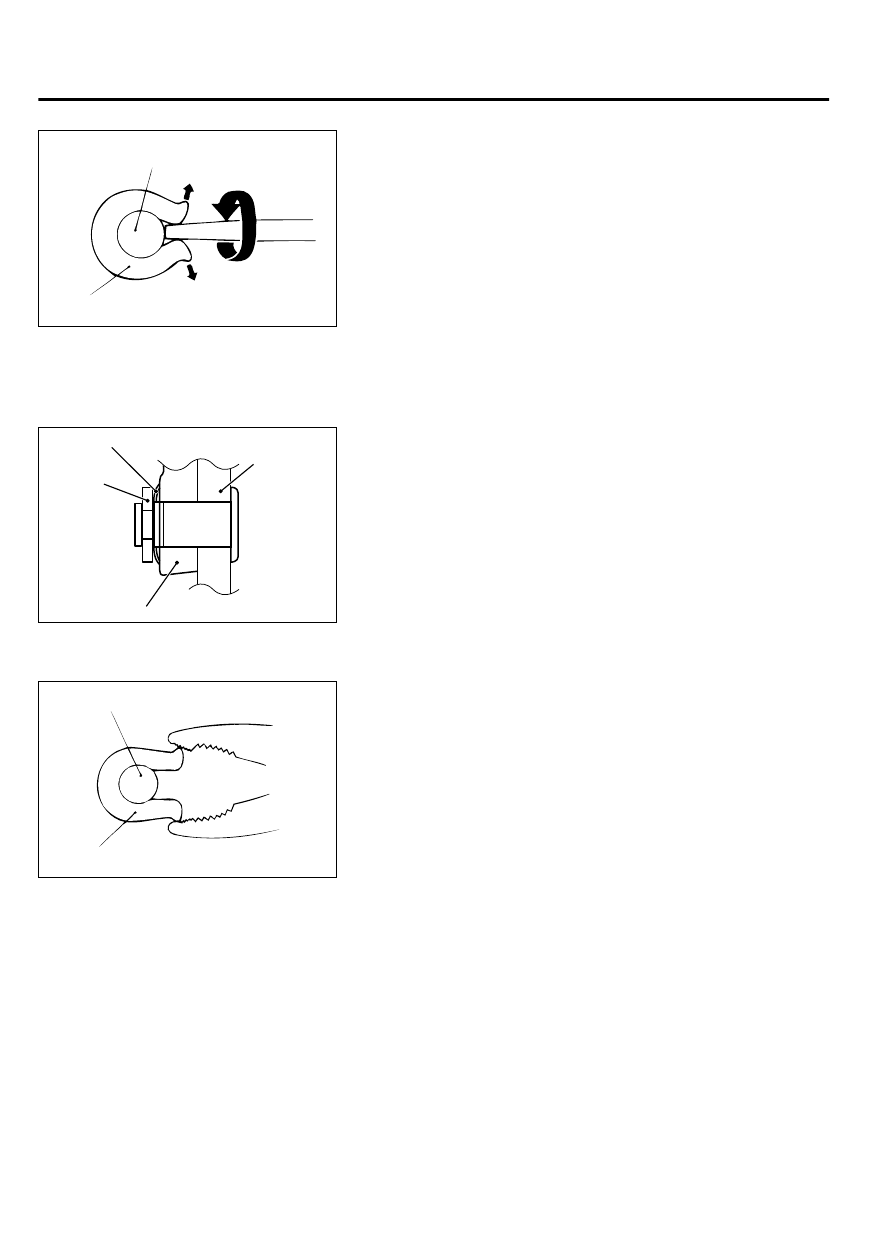

<<B>> RETAINER REMOVAL

4

ZC5012550000

Pin of shoe and lining assembly

Retainer

Use a flat-tipped screwdriver or the like to open up the retainer
joint, and remove retainer.

INSTALLATION SERVICE POINTS

>>A<< WAVE WASHER INSTALLATION

ZC6020170000

Shoe and lining
assembly

Parking lever

Wave washer

Retainer

Install the wave washer in the direction shown in the illustration.

>>B<< RETAINER INSTALLATION

AC000926

ZC5012560000

Pin of shoe and lining assembly

Retainer

Use pliers or the like to close the retainer end onto the pin.

36-16

PARKING BRAKES

PARKING BRAKE LINING AND DRUM

>>C<< ADJUSTER ASSEMBLY INSTALLATION

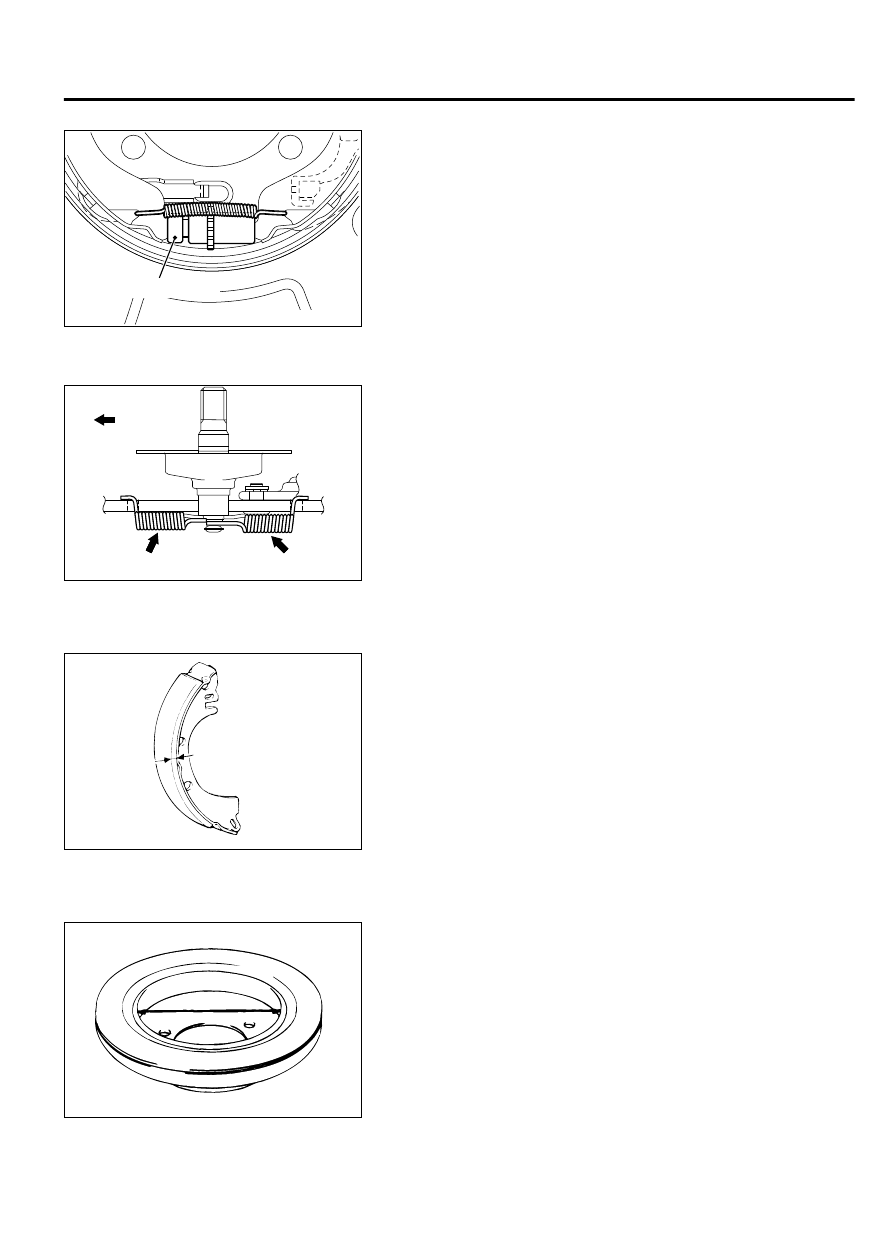

ZC6017620000

Shoe adjusting bolt

Install the adjuster assemblies. Install the adjuster assembly with
the  left  side  of  the  shoe  adjusting  bolt  facing  forward  of  the
vehicle, and the right side facing rearward.

>>D<< SHOE-TO-ANCHOR SPRING INSTALLATION

ZC6017610000

Front of the vehicle

Blue paint

Yellow paint

The  shoe-to-anchor  springs  are  not  interchangeable  because
their  spring  loads  are  different.  The  one  with  blue  paint  mark
should be installed to the front of the vehicle, and the other with
yellow paint to the rear of the vehicle, respectively.

NOTE:

The figure describes the left rear wheel. The right

rear wheel is symmetrical to that.

BRAKE LINING THICKNESS CHECK

M13601000901USA0000010000

ZC600958 0000

1.

Measure the lining thickness at the most worn area.

Standard value: 2.8 mm
Limit: 1.0 mm

2.

If the thickness is less than the limit value, replace the right
and left shoe and lining assemblies as a set.

BRAKE DRUM INSIDE DIAMETER CHECK

M13601000902USA0000010001

ZC6009590000

1.

Measure  the  inside  diameter  of  the  brake  drum  at  two
positions or more.

Standard value: 190.0 mm
Limit: 191.0 mm

2.

If  the  inside  diameter  is  more  than  limit  value  or  if  there  is
excessive wear, replace the brake disc.

PARKING BRAKES

36-17

PARKING BRAKE LINING AND DRUM

MEMO

36-18

PARKING BRAKES
