INSPECTION

M13502000084USA0000010000

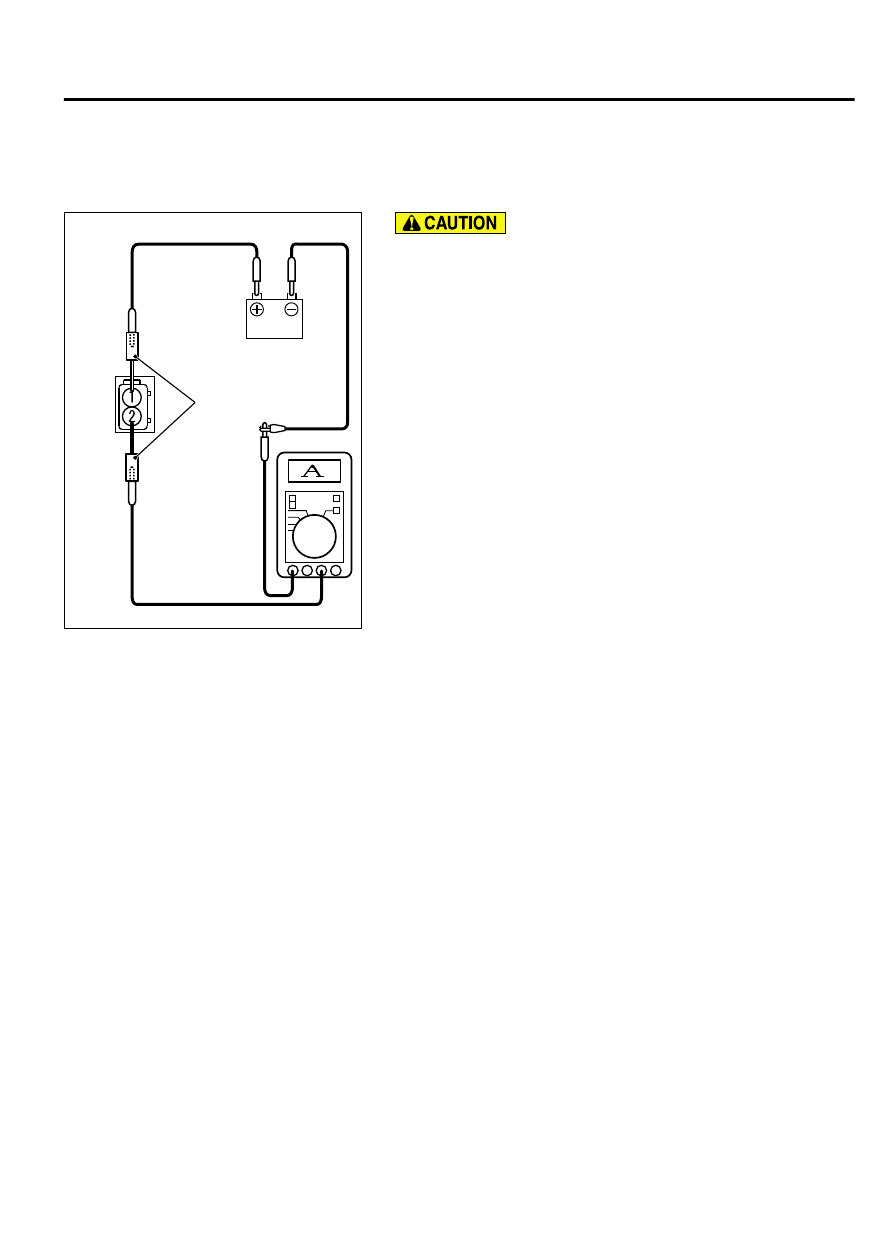

WHEEL SPEED SENSOR CURRENT CHECK

ZC601134

MB992006

0000

Do not connect the battery terminals in reverse as the wheel
speed sensor may be damaged.

1.

Connect the circuit tester to the wheel speed sensor using the
extra fine probe (Special tool: MB992006), and measure the
sensor current as a single unit.

Standard value: 5.9 to 8.4 mA or 11.8 to 16.8 mA

2.

If  the  measurement  value  is  not  within  the  standard  value
range, replace the wheel speed sensor with a new one.



ANTI-LOCK BRAKING SYSTEM (ABS)

35B-155

WHEEL SPEED SENSOR

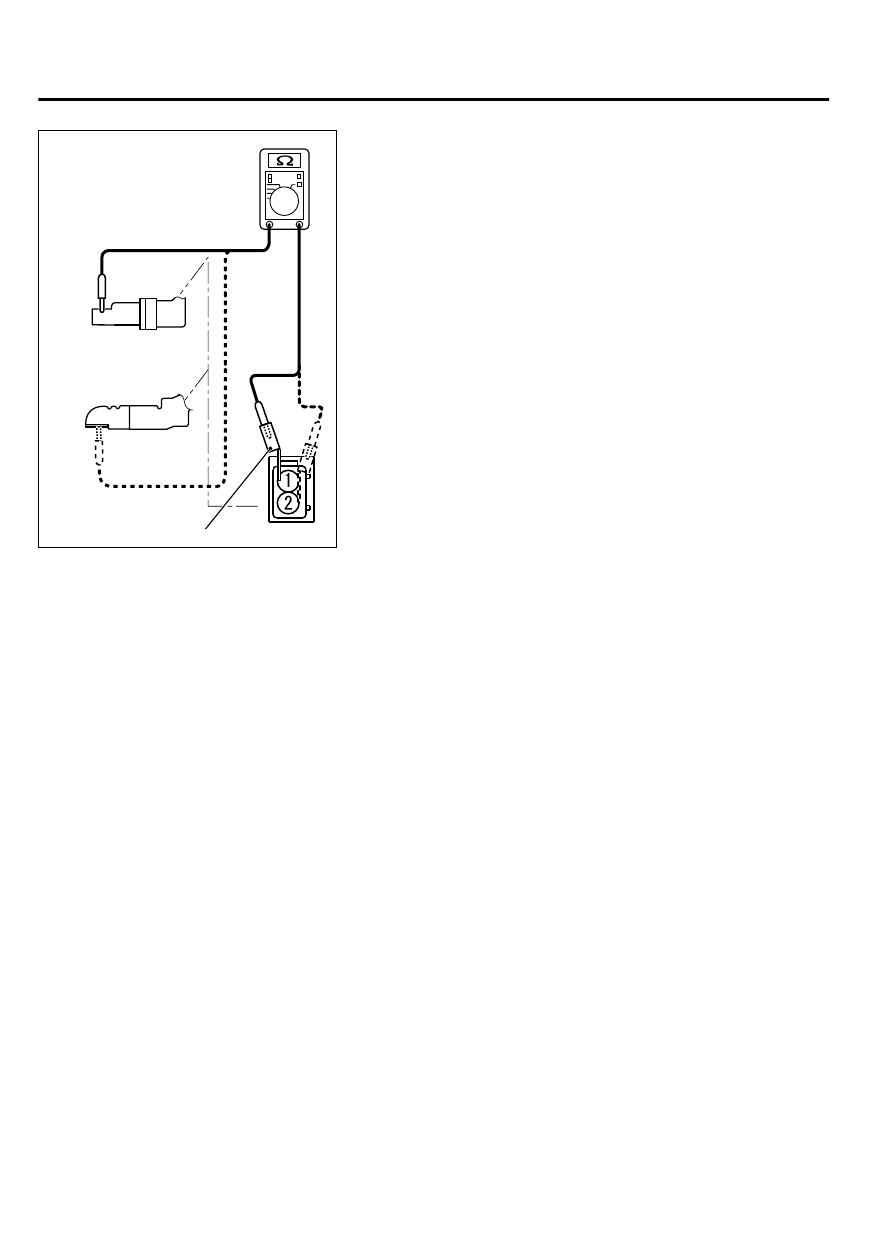

WHEEL SPEED SENSOR INSULATION CHECK

ZC601135

MB992006

0000

<Front>

<Rear>

1.

Connect the circuit tester to the wheel speed sensor using the
extra fine probe (Special tool: MB992006), and measure the
insulation  resistance  between  the  terminal  No.  1/2  and  the
wheel speed sensor body as a single unit.

Standard value: 5 MΩ or more

2.

If  the  insulation  resistance  is  not  within  the  standard  value
range, replace the wheel speed sensor with a new one.

35B-156

ANTI-LOCK BRAKING SYSTEM (ABS)

WHEEL SPEED SENSOR

GROUP 35C

ACTIVE SKID CONTROL SYSTEM

(ASC)

CONTENTS

GENERAL INFORMATION............

35C-4

SERVICE SPECIFICATIONS.........

35C-6

DIAGNOSIS......................

35C-7

INTRODUCTION TO ASC DIAGNOSIS
...............................

35C-7

ASC DIAGNOSTIC TROUBLESHOOTING
STRATEGY.......................

35C-7

DIAGNOSTIC FUNCTION............

35C-8

DIAGNOSTIC TROUBLE CODE CHART
..............................

35C-11

DIAGNOSTIC TROUBLE CODE PROCEDURES
..............................

35C-14

DTC C100A: Abnormality in FL wheel
speed sensor circuit............

35C-14

DTC C1015: Abnormality in FR wheel
speed sensor circuit............

35C-18

DTC C1020: Abnormality in RL wheel
speed sensor circuit............

35C-23

DTC C102B: Abnormality in RR wheel
speed sensor circuit............

35C-28

DTC C1011: Abnormality in FL wheel
speed sensor signal.............

35C-33

DTC C101C Abnormality in FR wheel speed
sensor signal...................

35C-38

DTC C1027: Abnormality in RL wheel
speed sensor signal.............

35C-43

DTC C1032: Abnormality in RR wheel
speed sensor signal.............

35C-49

DTC C1014: Mutual monitoring of FL
wheel speed sensor..............

35C-55

DTC C101F Mutual monitoring of FR wheel
speed sensor....................

35C-58

DTC No. C102A: Mutual monitoring of RL
wheel speed sensor..............

35C-61

DTC C1035: Mutual monitoring of RR
wheel speed sensor..............

35C-65

DTC C1041: Abnormality in periodical
signal for FL wheel speed sensor
................................

35C-69

DTC C1042: Abnormality in periodical
signal for FR wheel speed sensor
................................

35C-71

DTC C1043: Abnormality in periodical
signal for RL wheel speed sensor
................................

35C-74

DTC C1044: Abnormality in periodical
signal for RR wheel speed sensor
................................

35C-77

DTC C1046: FL wheel speed sensor
control phase time exceeded.....

35C-80

DTC C1047: FR wheel speed sensor
control phase time exceeded.....

35C-84

DTC C1048: RL wheel speed sensor
control phase time exceeded.....

35C-87

DTC C1049: RR wheel speed sensor
control phase time exceeded.....

35C-89

35C-1

Continued on next page

DTC C104B,C104F,C1053,C1057/
C105F,C1063,C1067,C105B: Abnormality
in inlet/outlet valve (FL,RL,RR,RL)DTC
C1200,C1204/C1208,C120C: Abnormality
in cut/suction valve(FL/RR,FR/RL)
................................

35C-91

DTC C2104: Faulty valve power supply
circuit.........................

35C-94

DTC C1073: Faulty motor drive circuit
................................

35C-98

DTC C2116: Abnormality in power supply
voltage in pump motor..........

35C-102

DTC C121D: Abnormality in brake fluid
pressure sensor circuit........

35C-106

DTC C121E: Abnormality in brake fluid
pressure sensor output signal
...............................

35C-107

DTC C1000: Abnormality in stop light
switch circuit.................

35C-110

DTC C1009: Low brake fluid level
...............................

35C-113

DTC C123B: Prolonged operation of ASC
...............................

35C-115

DTC C2200: Abnormality in ASC-ECU
...............................

35C-117

DTC C2100: Abnormality in battery
voltage (low voltage)..........

35C-118

DTC C2101: Abnormality in battery
voltage (high voltage).........

35C-122

DTC C1395: Brake fluid filling not
completed......................

35C-125

DTC C121C: Torque request signal
rejection......................

35C-126

DTC C1290: CAN time-out error
...............................

35C-128

DTC C2203: VIN not recorded....

35C-129

DTC C2206: Re-execution of variant
coding.........................

35C-131

DTC C1210: Abnormality in G and yaw
rate sensor (longitudinal G sensor)
...............................

35C-132

DTC C1242: Abnormality in G and yaw
rate sensor (longitudinal G sensor)
...............................

35C-134

DTC C123C: Abnormality in G and yaw
rate sensor (lateral G and yaw rate
sensor)........................

35C-135

DTC C2204: Internal abnormality in G
and yaw rate sensor (lateral G and yaw
rate sensor)...................

35C-137

DTC C2111: Sensor Power Supply
CircuitDTC C2112: Sensor Power Supply
Circuit (Brake Fluid Pressure Sensor)
...............................

35C-139

DTC C2114: Abnormality in G and yaw
rate sensor operation voltage DTC
C2115: Abnormality in G and yaw rate
sensor operation voltage.......

35C-140

DTC C123A: Abnormality in sensor
calibration....................

35C-143

DTC C1219: Abnormality in steering
wheel sensor signal............

35C-144

DTC C121A: Abnormality in steering
wheel sensor initialization....

35C-146

DTC C2205: Internal malfunction of
steering wheel sensor..........

35C-147

...............................

35C-149

DTC U0001: Bus-off.............

35C-149

DTC U0100: Engine time-out errorDTC
U0101: A/T time-out errorDTC U0114: AWD
time-out errorDTC U0126: Steering
wheel sensor time-out errorDTC U0141:
ETACS time-out error...........

35C-150

DTC U0125: G and yaw rate sensor
message time-out error/message error
...............................

35C-152

DTC U0401: Engine malfunction detected
...............................

35C-153

DTC U0428: Communication error in
steering wheel sensor..........

35C-154

DTC U1003: G and yaw rate sensor bus-
off............................

35C-155

DTC U1415: Variant coding not
completed......................

35C-157

DTC U1417: Variant coding value invalid
(includes faulty installation)
...............................

35C-158

SYMPTOM CHART................

35C-160

SYMPTOM PROCEDURES...........

35C-161

35C-2
