DTC No. C1041: Abnormality in periodical signal for FL wheel speed sensor

M13502000919USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17).

CIRCUIT OPERATION

｠

The  wheel  speed  sensor  is  a  kind  of  a  pulse  generator.  It
consists of encoders (a plate on which north and south pole
sides of the magnets are arranged alternately) for detecting
the  wheel  speed  which  rotates  at  the  same  speed  of  the
wheels  and  wheel  speed  sensors.  This  sensor  outputs
frequency pulse signals in proportion to the wheel speed.

｠

The pulse signals, which the wheel speed sensor creates, are
sent to ABS-ECU. ABS-ECU uses the frequency of the pulse
signals to determine the wheel speed.

DTC SET CONDITIONS
ABS-ECU monitors the signals from each wheel speed sensor
while the vehicle is being driven. If any periodical drop is found
in  these  sensor  signals,  ABS-ECU  will  set  the  relevant
diagnostic trouble code.

PROBABLE CAUSES

｠

Wheel bearing malfunction

｠

Deformation of the wheel speed detection encoder

｠

Missing teeth of the wheel speed detection encoder

｠

Adhesion of foreign materials on the wheel speed detection
encoder

｠

ABS-ECU malfunction

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

｠

MB991974: ABS check harness

STEP 1. M.U.T.-III CAN bus diagnostics
Use scan tool to diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-63

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

NO:

 Repair the CAN bus lines. (Refer to GROUP 54D - CAN

Bus Diagnostics table P.54D-17.) On completion, go to
Step 2.

STEP 2. Diagnostic trouble code recheck after resetting
CAN bus lines

Q:Is DTC C1041 set?

YES:

 Go to Step 3.

NO:

 The procedure is complete.

STEP 3. Check for wheel bearing looseness

NOTE:

Loose wheel bearing may increase the gap between the

wheel speed sensor and the wheel speed detection magnet
encoder. Check the wheel bearing <FL> for looseness. (Refer
to GROUP 26 - On-vehicle Service P.26-8.)

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Replace the wheel bearing.

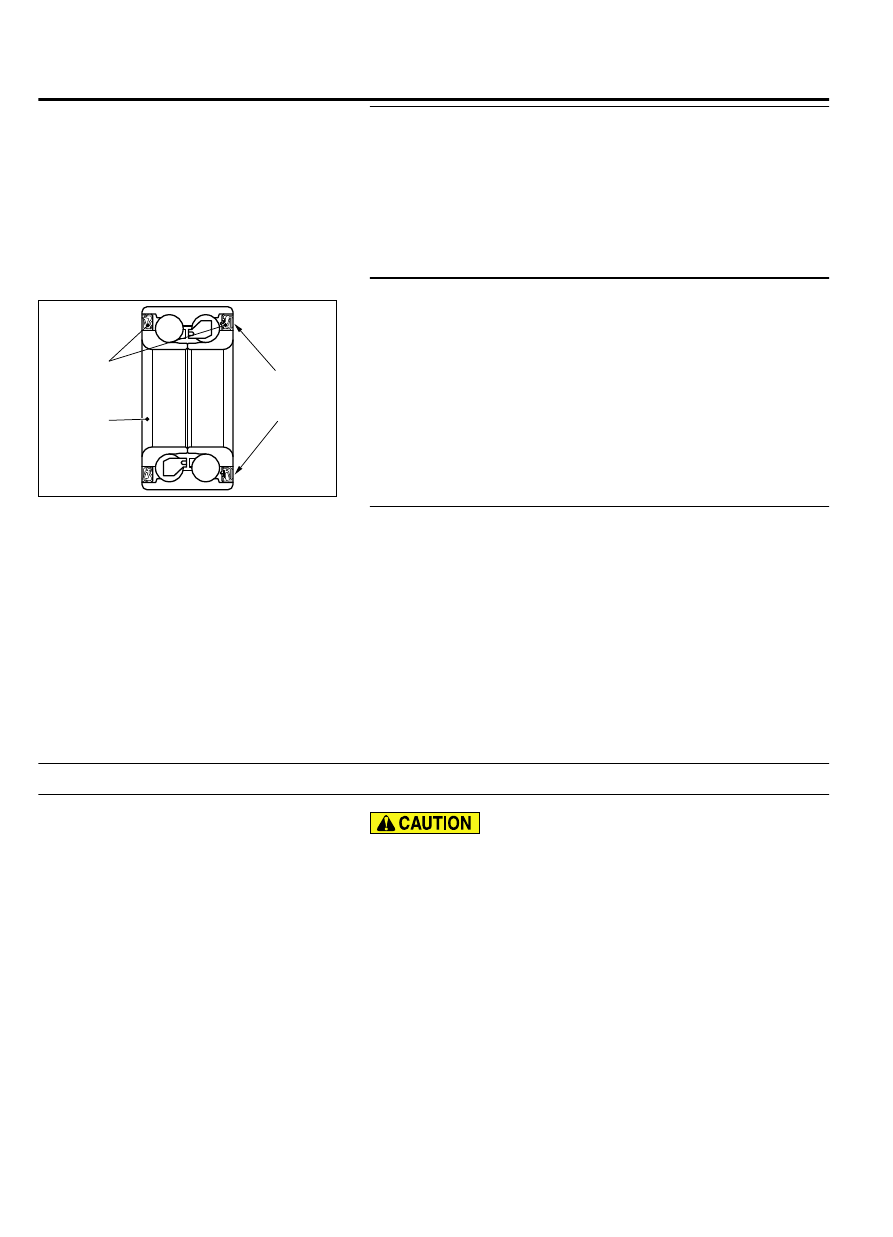

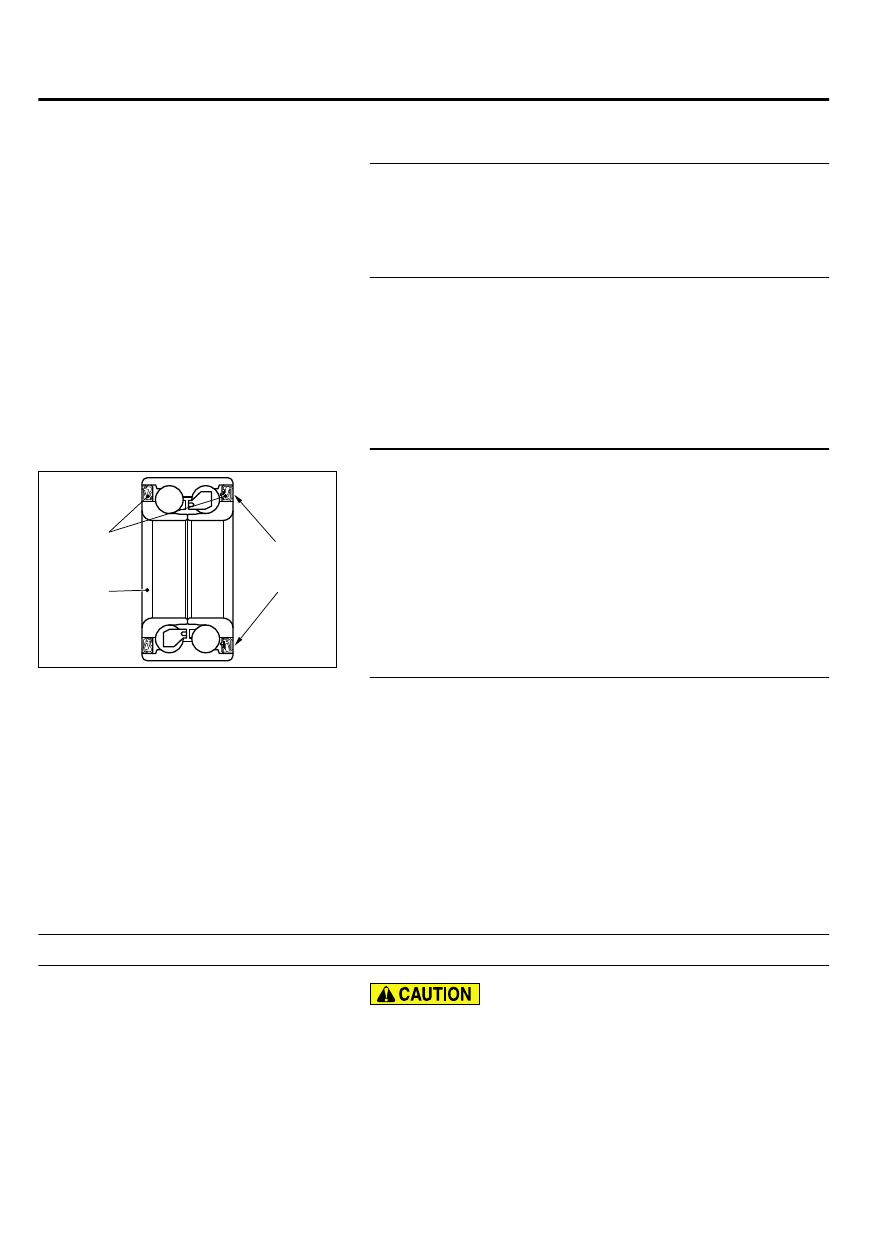

STEP 4. Check of wheel speed detection encoder

ZC601555

Oil seal

Magnetic
encoder

0000

Wheel
bearing

Check  the  encoder  for  adhesion  of  foreign  materials  or
deformation.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO (Adhesion of foreign materials):

 Remove the foreign

materials and clean the encoder so as not to disturb the
magnetization pattern on it while taking care of the
magnet, magnetic substance, and magnetic attraction. When
the encoder is deformed, replace the wheel bearing.

NO (Deformation):

 Replace the wheel bearing.

STEP 5. Check whether the diagnostic trouble code is reset.

(1)

Erase the diagnostic trouble code.

(2)

Drive the vehicle at 12mph (20 km/h) or more.

NOTE:

The ABS warning light does not turn OFF in some

cases unless the vehicle runs at 12mph (20 km/h) or
higher.

Q:Is DTC C1041 set?

YES:

 Replace the ABS-ECU.

NO:

 Intermittent malfunction. (Refer to GROUP 00 - How

to Cope with Intermittent Malfunction P.00-15.)

DTC C1042: Abnormality in periodical signal for FR wheel speed sensor

M13502000920USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17).

35B-64

ANTI-LOCK BRAKING SYSTEM (ABS)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

CIRCUIT OPERATION

｠

The  wheel  speed  sensor  is  a  kind  of  a  pulse  generator.  It
consists of encoders (a plate on which north and south pole
sides of the magnets are arranged alternately) for detecting
the  wheel  speed  which  rotates  at  the  same  speed  of  the
wheels  and  wheel  speed  sensors.  This  sensor  outputs
frequency pulse signals in proportion to the wheel speed.

｠

The pulse signals, which the wheel speed sensor creates, are
sent to ASC-ECU. ASC-ECU uses the frequency of the pulse
signals to determine the wheel speed.

DTC SET CONDITIONS
ASC-ECU monitors the signals from each wheel speed sensor
while the vehicle is being driven. If any periodical drop is found
in  these  sensor  signals,  ASC-ECU  will  set  the  relevant
diagnostic trouble code.

PROBABLE CAUSES

｠

Wheel bearing malfunction

｠

Deformation of the wheel speed detection encoder

｠

Missing teeth of the wheel speed detection encoder

｠

Adhesion of foreign materials on the wheel speed detection
encoder

｠

ASC-ECU malfunction

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

｠

MB991974: ABS check harness

STEP 1. M.U.T.-III CAN bus diagnostics
Use scan tool to diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus lines. (Refer to GROUP 54D - CAN

Bus Diagnostics table P.54D-17.) On completion, go to
Step 2.

STEP 2. Diagnostic trouble code recheck after resetting
CAN bus lines

Q:Is DTC C1042 set?

YES:

 Go to Step 3.

NO:

 The procedure is complete.

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-65

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

STEP 3. Check for wheel bearing looseness

NOTE:

Loose wheel bearing may increase the gap between the

wheel speed sensor and the wheel speed detection magnet
encoder. Check the wheel bearing <FR> for looseness. (Refer
to GROUP 26 - On-vehicle Service P.26-8.)

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Replace the wheel bearing.

STEP 4. Check of wheel speed detection encoder

ZC601555

Oil seal

Magnetic
encoder

0000

Wheel
bearing

Check  the  encoder  for  adhesion  of  foreign  materials  or
deformation.

Q:Is the check result normal?

YES:

 Go to Step 5.

NO (Adhesion of foreign materials):

 Remove the foreign

materials and clean the encoder so as not to disturb the
magnetization pattern on it while taking care of the
magnet, magnetic substance, and magnetic attraction. When
the encoder is deformed, replace the wheel bearing.

NO (Deformation):

 Replace the wheel bearing.

STEP 5. Check whether the diagnostic trouble code is reset.

(1)

Erase the diagnostic trouble code.

(2)

Drive the vehicle at 12mph (20 km/h) or more.

NOTE:

The ABS warning light does not turn OFF in some

cases unless the vehicle runs at 12mph (20 km/h) or
higher.

Q:Is DTC C1042 set?

YES:

 Replace the ASC-ECU.

NO:

 Intermittent malfunction. (Refer to GROUP 00 - How

to Cope with Intermittent Malfunction P.00-15.)

DTC C1043: Abnormality in periodical signal for RL wheel speed sensor

M13502000921USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17).

CIRCUIT OPERATION

｠

The  wheel  speed  sensor  is  a  kind  of  a  pulse  generator.  It
consists of encoders (a plate on which north and south pole
sides of the magnets are arranged alternately) for detecting
the  wheel  speed  which  rotates  at  the  same  speed  of  the
wheels  and  wheel  speed  sensors.  This  sensor  outputs
frequency pulse signals in proportion to the wheel speed.

35B-66

ANTI-LOCK BRAKING SYSTEM (ABS)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS
