Mitsubishi Outlander XL. Manual - part 489





STEP 6. Check the TCM and A/T control solenoid valve
assembly connector pin terminals and the connection
status.

Q:Is the check result normal?

YES:

 Replace the TCM.

NO:

 Repair or replace the failure section.

STEP 7. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Return to START.

DTC P0753: Low Clutch Linear Solenoid Valve System

M12301000411USA0000010000

SOLENOID VALVE SYSTEM CIRCUIT
Refer to P.23A-64.



DESCRIPTIONS OF MONITOR METHODS

During  1st  gear  driving  or  4th  gear  driving,  an
abnormal value equivalent to open or short circuit is
detected  in  the  solenoid  control  current  for  5
seconds.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

Not applicable

Sensor (The sensor below is determined to be
normal)

Not applicable

AUTOMATIC TRANSAXLE MECHANICAL

23A-71

AUTOMATIC TRANSAXLE DIAGNOSIS

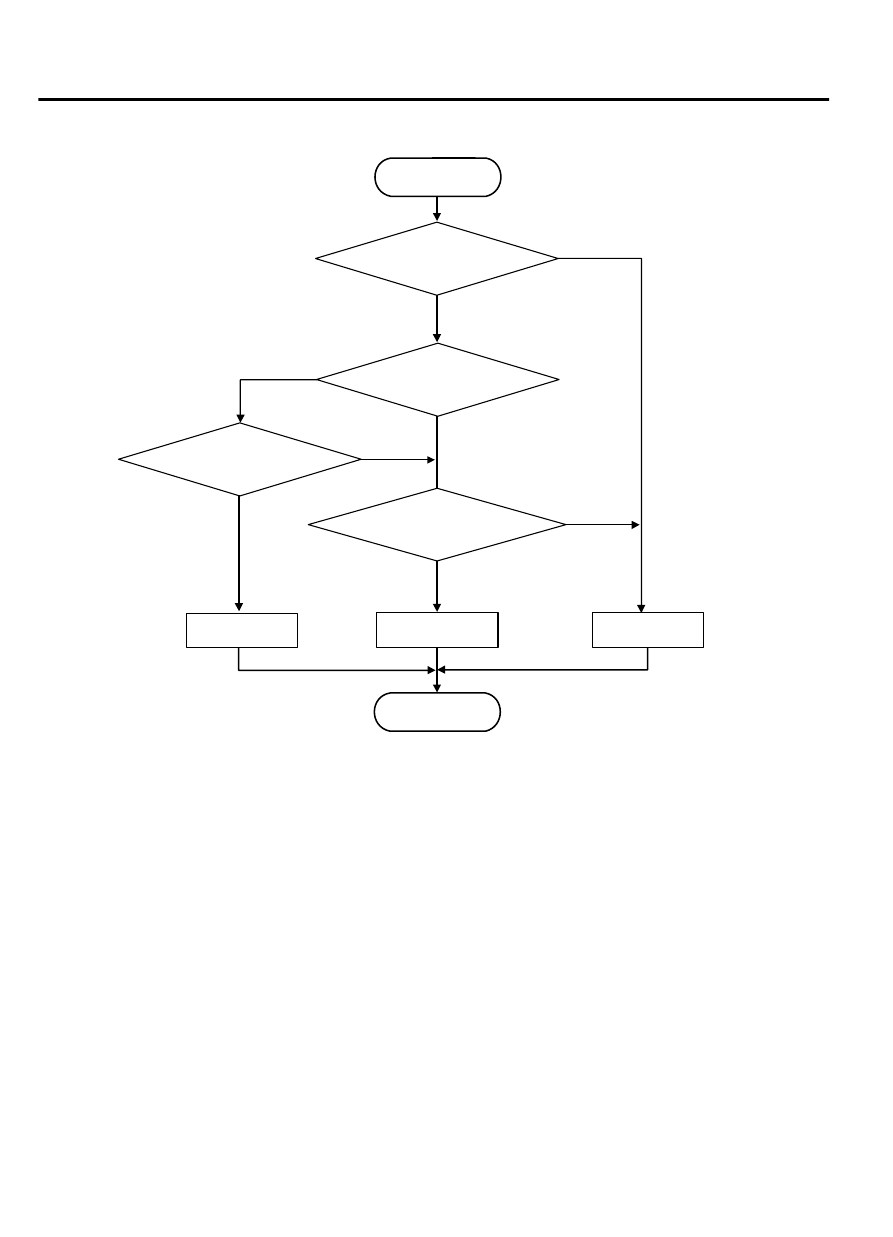

LOGIC FLOW CHARTS (Monitor Sequence)

ZC604077

Good

Malfunction

END

START

Continuous failure
       for 5 secs.

No

No

Good

No

Yes

Yes

Yes

No

Yes

Short to ground

Open judgement

Shift stage is
   1st to 4th

0000

DTC SET CONDITIONS

Check Conditions <Circuit continuity ground>

Shift stage: 1st to 4th.

Judgement Criteria <Circuit continuity ground>

Ground short judgement: abnormal. (5 seconds)

Check Conditions <Circuit continuity open>

Shift stage: 1st to 4th.

Ground short judgement: normal.

Judgement Criteria <Circuit continuity open>

Open short judgement: abnormal. (5 seconds)

OBD-II DRIVE CYCLE PATTERN
Start the engine, and keep the vehicle stopped in "P"
range for 5 seconds.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

Malfunction of the low clutch linear solenoid valve
system circuit

Damaged harness or connector

Malfunction of the TCM

Malfunction of the low clutch linear solenoid valve
(valve body assembly)



23A-72

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS

DIAGNOSIS

STEP 1. Check the TCM terminal voltage.
[C-37 TCM connector (vehicle side, connected)]
Measure  the  voltage  between  the  terminal  No.  41  and  body
ground.

Low clutch engaged: 300 Hz

Other than above: 0 V

Q:Is the check result normal?

YES:

 Go to Step 5.

NO:

 Go to Step 2.

STEP 2. Check between the TCM connector and A/T control
solenoid valve assembly connector.
Check for continuity between C-37 TCM connector and B-111
A/T control solenoid valve assembly connector.

Between  C-37  terminal  No.  41  and  B-111  terminal  No.  1:
Continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair or replace the failure section.

STEP 3. Check the low clutch linear solenoid.
Refer to P.23A-160.

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Go to Step 4.

STEP 4. Check between the A/T control solenoid valve
assembly connector and the low clutch linear solenoid
valve connector.
Check  for  continuity  between  the  A/T  control  solenoid  valve
assembly connector terminals and the low clutch linear solenoid
valve connector terminals.

Between C-111 terminal No. 1 and low clutch linear solenoid
valve: Continuity exists.

Q:Is the check result satisfactory?

YES:

 Replace the valve body assembly.

NO:

 Repair or replace the failure section.

STEP 5. Check the TCM and A/T control solenoid valve
assembly connector pin terminals and the connection
status.

Q:Is the check result normal?

YES:

 Go to Step 7.

NO:

 Repair or replace the failure section.

AUTOMATIC TRANSAXLE MECHANICAL

23A-73

AUTOMATIC TRANSAXLE DIAGNOSIS

STEP 6. Check the TCM and A/T control solenoid valve
assembly connector pin terminals and the connection
status.

Q:Is the check result normal?

YES:

 Replace the TCM.

NO:

 Repair or replace the failure section.

STEP 7. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Return to START.

DTC P0758 2-6: Brake Linear Solenoid Valve System

M12301000412USA0000010000

SOLENOID VALVE SYSTEM CIRCUIT
Refer to P.23A-64.



DESCRIPTIONS OF MONITOR METHODS

During 2nd or 6th gear driving, an abnormal value
equivalent to open or short circuit is detected in the
solenoid control current for 5 seconds.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

Not applicable

Sensor (The sensor below is determined to be
normal)

Not applicable

23A-74

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS
