Mitsubishi Outlander XL. Manual - part 485





STEP 5. Check the signals of input shaft speed sensor and
output shaft speed sensor.
Check the signals of C-37 TCM connector terminal No. 37 and
No. 38.
Refer to P.23A-145.

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Repair or replace the failure section.

STEP 6. Hydraulic pressure test
Refer to P.23A-145.

Q:Is the check result normal?

YES:

 Go to Step 7.

NO:

 Remove the A/T from the vehicle, then check and

repair the inside.

STEP 7. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Return to START.

DTC P0736: Reverse Gear Incorrect Ratio

M12301000406USA0000010000

DESCRIPTIONS OF MONITOR METHODS

Check Conditions, Judgement Criteria

⦆

During reverse driving, engine runup*1is detected
for 250 milliseconds or more.

*1: The actual gear ratio deviates from the target gear
ratio to the high engine (turbine) speed.

MONITOR EXECUTION

⦆

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

⦆

Not applicable

Sensor (The sensor below is determined to be
normal)

⦆

Not applicable

AUTOMATIC TRANSAXLE MECHANICAL

23A-55

AUTOMATIC TRANSAXLE DIAGNOSIS

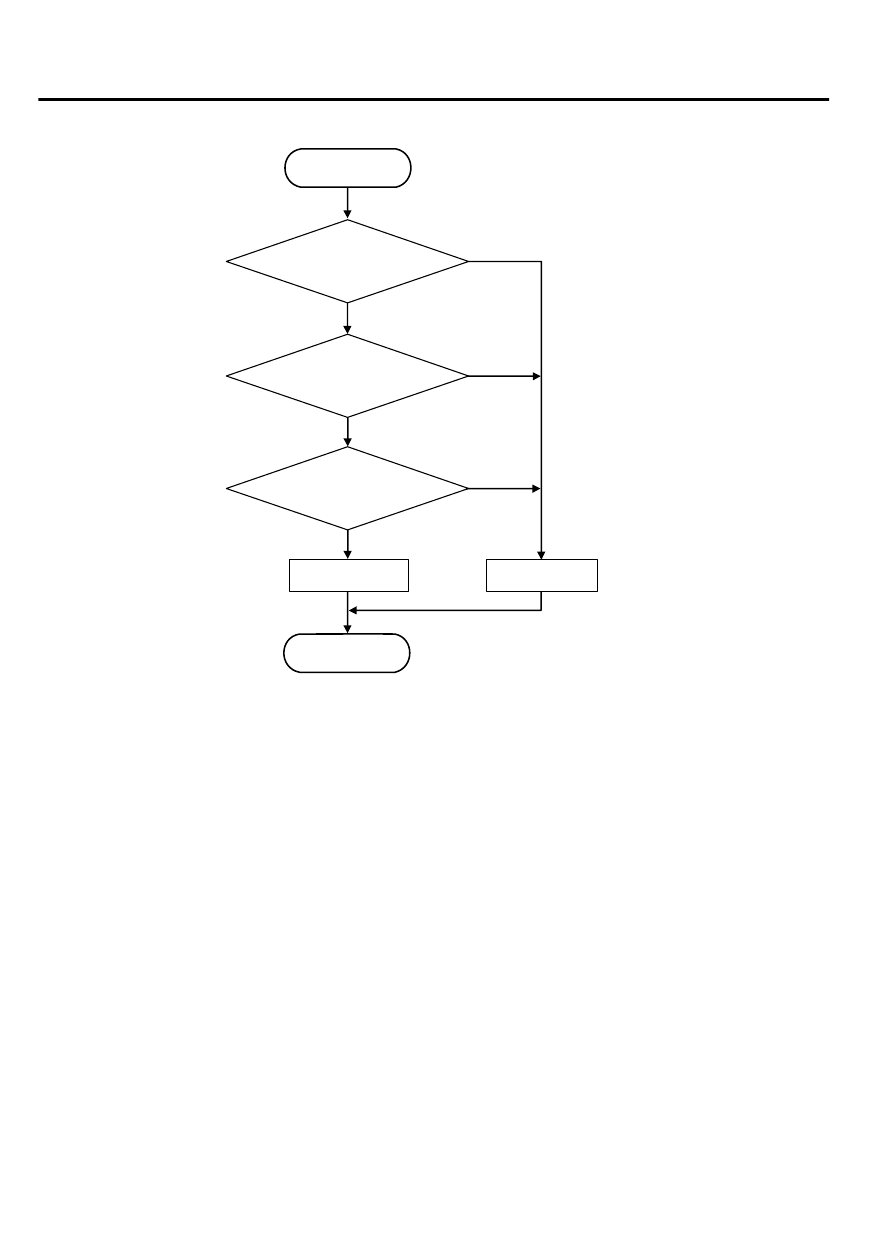

LOGIC FLOW CHARTS (Monitor Sequence)

ZC604072

Good

END

No

No

No





Continuous failure

for 250 msecs.





START

Actual gear ratio

>>

expected gear ratio

Malfunction

Yes

Yes

Yes

commanded by A/T

Shift stage

0000

DTC SET CONDITIONS

Check Conditions

⦆

Shift stage: reverse gear.

Judgement Criteria

⦆

Gear ratio: more than -3.457. (0.25 second)

OBD-II DRIVE CYCLE PATTERN
Start the engine, and drive in "R" range at 15 km/h (9
mph) or more for 10 seconds.

TROUBLESHOOTING HINTS (THE MOST LIKELY
CAUSES FOR THIS CODE TO BE SET ARE:)

⦆

Transaxle assembly powertrain parts failure

⦆

Malfunction of the P0715: input shaft speed sensor
system

⦆

Malfunction  of  the  P0720:  output  shaft  speed
sensor system

⦆

Malfunction  of  the  P0748:  line  pressure  linear
solenoid valve system circuit

⦆

Malfunction of the P0763: 3-5 reverse clutch linear
solenoid valve system circuit

⦆

Malfunction of the P0743: lock-up and low-reverse
brake linear solenoid valve system circuit

⦆

Malfunction  of  the  P1758:  low-reverse  brake  shift
solenoid valve system circuit

⦆

Malfunction of the 3-5 reverse clutch

⦆

Malfunction of the low-reverse brake

⦆

Malfunction of the valve body assembly



DIAGNOSIS

23A-56

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS

STEP 1. Check the DTC.
Check that P0715 (input shaft speed sensor) and P0720 (output
shaft speed sensor) are set.

Q:Is the DTC set?

YES:

 Check and repair the relevant DTC system.

NO:

 Go to Step 2.

STEP 2. Check the DTC.
Check if the DTC other than P0736 (Reverse gear ratio) is set.

Q:Is the DTC set?

YES:

 Check and repair the relevant DTC system.

NO:

 Go to Step 3.

STEP 3. Check the transmission fluid properties.
Check  the  status  of  the  transmission  fluid  properties  (smell,
color, fouling).

⦆

Black: A/T inside damage, seizure

⦆

Milky: Water intrusion

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 Remove the A/T from the vehicle, then check and

repair the inside.

STEP 4. Check the transmission fluid level.

Q:Is the check result normal?

YES:

 Adjust the transmission fluid level, and then go to

Step 5.

NO:

 Go to Step 5.

STEP 5. Check the signals of input shaft speed sensor and
output shaft speed sensor.
Check the signals of C-37 TCM connector terminal No. 37 and
No. 38.
Refer to P.23A-145.

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Repair or replace the failure section.

STEP 6. Hydraulic pressure test
Refer to P.23A-145.

Q:Is the check result normal?

YES:

 Go to Step 7.

NO:

 Remove the A/T from the vehicle, then check and

repair the inside.

STEP 7. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.

Q:Is the check result normal?

YES:

 The procedure is complete.

NO:

 Return to START.

AUTOMATIC TRANSAXLE MECHANICAL

23A-57

AUTOMATIC TRANSAXLE DIAGNOSIS

DTC P0741: Torque Converter Clutch System (Stuck Off), P0742 Torque Converter
Clutch System (Stuck ON)

M12301000456USA0000010000

DESCRIPTIONS OF MONITOR METHODS

⦆

When the input shaft speed sensor is normal, the
engine speed signal is normal, and within the lock-
up  operation  range,  the  slip  speed  of  the  torque
converter exceeds the specified value. (P0741)

MONITOR EXECUTION

⦆

Continuous

MONITOR EXECUTION CONDITIONS (OTHER
MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

⦆

Not applicable

Sensor (The sensor below is determined to be
normal)

⦆

Not applicable

23A-58

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS
