STEP 2. Check the symptoms.

Q:"CANCEL" switch is pressed, auto-cruise control system

is cancelled?

YES:

 It can be assumed that this malfunction is

intermittent (Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15).

NO:

 Replace the ECM. When the ECM is replaced, register

the encrypted code (Refer to GROUP 42C, Diagnosis - ID
Code Registration Necessity Judgment Table P.42C-8).
Then go to Step 3.

STEP 3. Check the symptoms.

Q:"CANCEL" switch is pressed, auto-cruise control system

is cancelled?

YES:

 The procedure is complete.

NO:

 Return to Step 1.

Inspection Procedure 4: Auto-cruise Control System cannot be Set.

M11702000042USA0000010000

COMMENT
The  fail-safe  function  is  probably  canceling  auto-
cruise control system. In this case, checking the auto-
cruise control system, MFI system, A/T system and
CAN bus line system for diagnostic trouble codes. The
scan tool MB991958 can also be used to check if the
circuits  of  each  input  switch  are  normal  or  not  by
checking the input switch codes.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

｠

Malfunction of the CAN bus line system.

｠

Malfunction of the MFI system.

｠

Malfunction of the A/T system.

｠

Malfunction of the auto-cruise control switch.

｠

Malfunction of the stoplight switch.

｠

Malfunction of the transmission range switch.

｠

Malfunction of the ECM.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

AUTO-CRUISE CONTROL SYSTEM

17b-37

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

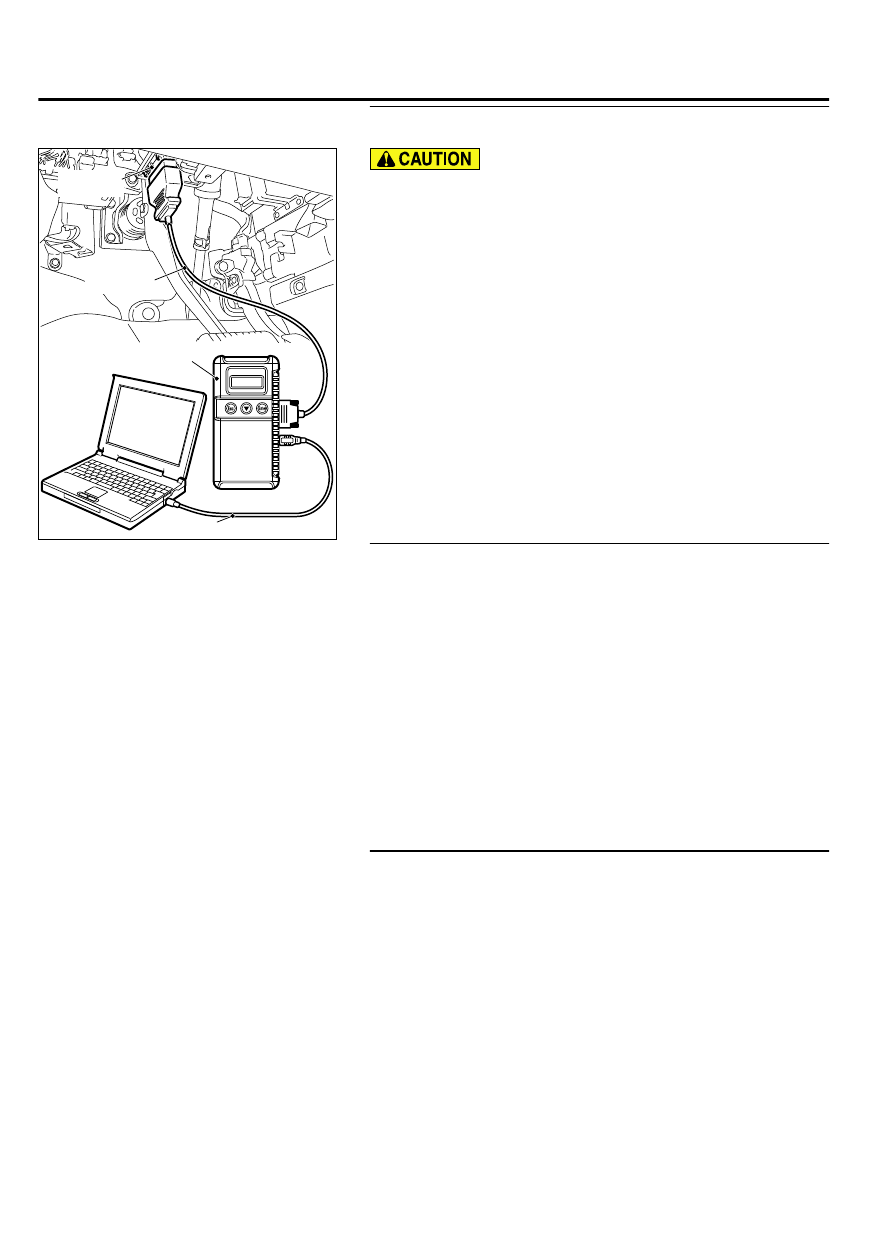

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect  scan  tool  MB991958  to  the  data  link  connector
(Refer to P.17b-5).

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line (Refer to P.17b-5).

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

(5)

Disconnect scan tool MB991958.

Q:Is the check result satisfactory?

YES:

 Go to Step 2

NO:

 Repair the CAN bus lines (Refer to GROUP 54D,

Diagnosis - CAN Bus Diagnostics Chart P.54D-17). Then
go to Step 9.

STEP 2. Using scan tool MB991958, read the MFI system
diagnostic trouble code.

(1)

Connect  scan  tool  MB991958  to  the  data  link  connector
(Refer to P.17b-5).

(2)

Turn the ignition switch to the "ON" position.

(3)

Check  for  MFI  system  diagnostic  trouble  code  (Refer  to
GROUP 13Ab, Diagnostic Function - How to Read and Erase
Diagnostic Trouble Codes P.13Ab-8).

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

(5)

Disconnect scan tool MB991958.

Q:Is any DTC set?

YES:

 Diagnose the MFI system (Refer to GROUP 13Ab,

Diagnostic Trouble Code Chart P.13Ab-44). Then go to Step
9.

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, read the A/T system
diagnostic trouble code.

(1)

Connect  scan  tool  MB991958  to  the  data  link  connector
(Refer to P.17b-5).

(2)

Turn the ignition switch to the "ON" position.

(3)

Check  for  A/T  system  diagnostic  trouble  code  (Refer  to
GROUP  23A,  Automatic  Transaxle  Diagnosis  -  Diagnostic
Function  -  How  to  Read  and  Erase  Diagnostic  Trouble
Code P.23A-15).

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

(5)

Disconnect scan tool MB991958.

Q:Is any DTC set?

17b-38

AUTO-CRUISE CONTROL SYSTEM

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

YES:

 Diagnose the A/T system (Refer to GROUP 23A,

Automatic Transaxle Diagnosis - Diagnostic Trouble Code
Chart P.23A-22). Then go to Step 9.

NO:

 Go to Step 4.

STEP 4. Read the diagnostic trouble code.
Read  the  auto-cruise  control  system  diagnostic  trouble  code
(Refer to P.17b-5).

Q:Is DTC set?

YES:

 Diagnose the auto-cruise control system (Refer

to P.17b-7, Diagnostic Trouble Code Chart). Then go to
Step 9.

NO:

 Go to Step 5.

STEP 5. Using scan tool MB991958, check the data list item
86: Main switch, item 92: Set switch, item 91: Resume
switch and item 75: Cancel switch.

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect  scan  tool  MB991958  to  the  data  link  connector
(Refer to P.17b-5).

(2)

Turn the ignition switch to the "ON" position.

(3)

Set scan tool MB991958 to data reading mode for auto-cruise
control system (Refer to P.17b-5).

｠

Item 86: Main switch.

｠

When  "ON/OFF"  switch  is  at  the  "ON"  position,  the
display on scan tool MB991958 should be "ON".

｠

When "ON/OFF" switch is at the "OFF" position, the
display on scan tool MB991958 should be "OFF".

｠

Item 92: Set switch.

｠

When "COAST/SET" switch is at the "ON" position, the
display on scan tool MB991958 should be "ON".

｠

When "COAST/SET" switch is at the "OFF" position,
the display on scan tool MB991958 should be "OFF".

｠

Item 91: Resume switch.

｠

When "ACC/RES" switch is at the "ON" position, the
display on scan tool MB991958 should be "ON".

｠

When "ACC/RES" switch is at the "OFF" position, the
display on scan tool MB991958 should be "OFF".

｠

Item 75: Cancel switch.

｠

When "CANCEL" switch is at the "ON" position, the
display on scan tool MB991958 should be "ON".

｠

When "CANCEL" switch is at the "OFF" position, the
display on scan tool MB991958 should be "OFF".

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

(5)

Disconnect scan tool MB991958.

Q:Is the switch operating properly?

YES:

 Go to Step 6.

AUTO-CRUISE CONTROL SYSTEM

17b-39

AUTO-CRUISE CONTROL SYSTEM DIAGNOSIS

NO:

 Refer to P.17b-8, Diagnostic Trouble Code Procedures

- DTC 15: Auto-cruise Control Switch System. Then go to
Step 9.

STEP 6. Using scan tool MB991958, check the data list item
74: Brake light switch, item 290: Brake light switch.

(1)

Connect  scan  tool  MB991958  to  the  data  link  connector
(Refer to P.17b-5).

(2)

Turn the ignition switch to the "ON" position.

(3)

Set scan tool MB991958 to data reading mode for auto-cruise
control system (Refer to P.17b-5).

｠

Item 74, Brake light switch.

｠

When  the  brake  pedal  is  depressed,  the  display  on
scan tool MB991958 should be "ON".

｠

When the brake pedal is released, the display on scan
tool MB991958 should be "OFF".

｠

Item 290, Brake light switch.

｠

When  the  brake  pedal  is  depressed,  the  display  on
scan tool MB991958 should be "ON".

｠

When the brake pedal is released, the display on scan
tool MB991958 should be "OFF".

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

(5)

Disconnect scan tool MB991958.

Q:Is the switch operating properly?

YES:

 Go to Step 7.

NO:

 Refer to P.17b-17, Diagnostic Trouble Code

Procedures - DTC 22: Stoplight Switch System. Then go to
Step 9.

STEP 7. Using scan tool MB991958, check data list item 88:
Neutral switch.

(1)

Connect  scan  tool  MB991958  to  the  data  link  connector
(Refer to P.17b-5).

(2)

Turn the ignition switch to the "ON" position.

(3)

Set scan tool MB991958 to data reading mode for auto-cruise
control system (Refer to P.17b-5).

｠

Item 88, Neutral switch.

｠

When selector lever is at the "N" position, the display
on scan tool MB991958 should be "ON".

｠

When  selector  lever  is  other  than  "N"  position,  the
display on scan tool MB991958 should be "OFF".

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

(5)

Disconnect scan tool MB991958.

Q:Is the switch operating properly?

YES:

 Go to Step 8.

NO:

 Refer to P.17b-17, Symptom Procedures - Inspection

Procedure 2. Then go to Step 9.

STEP 8. Check the symptoms.

Q:Can auto-cruise control be set?

YES:

 It can be assumed that this malfunction is

intermittent (Refer to GROUP 00, How to Use
