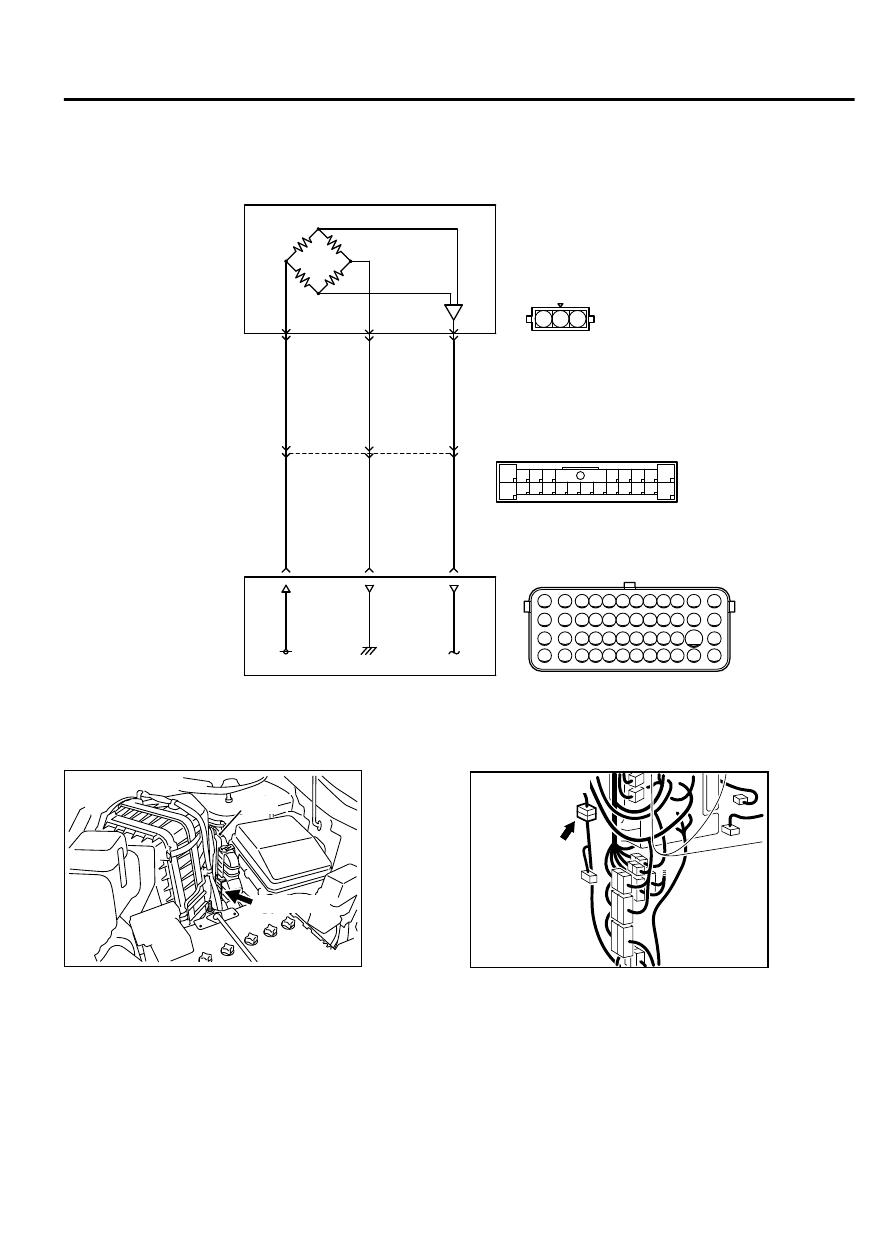

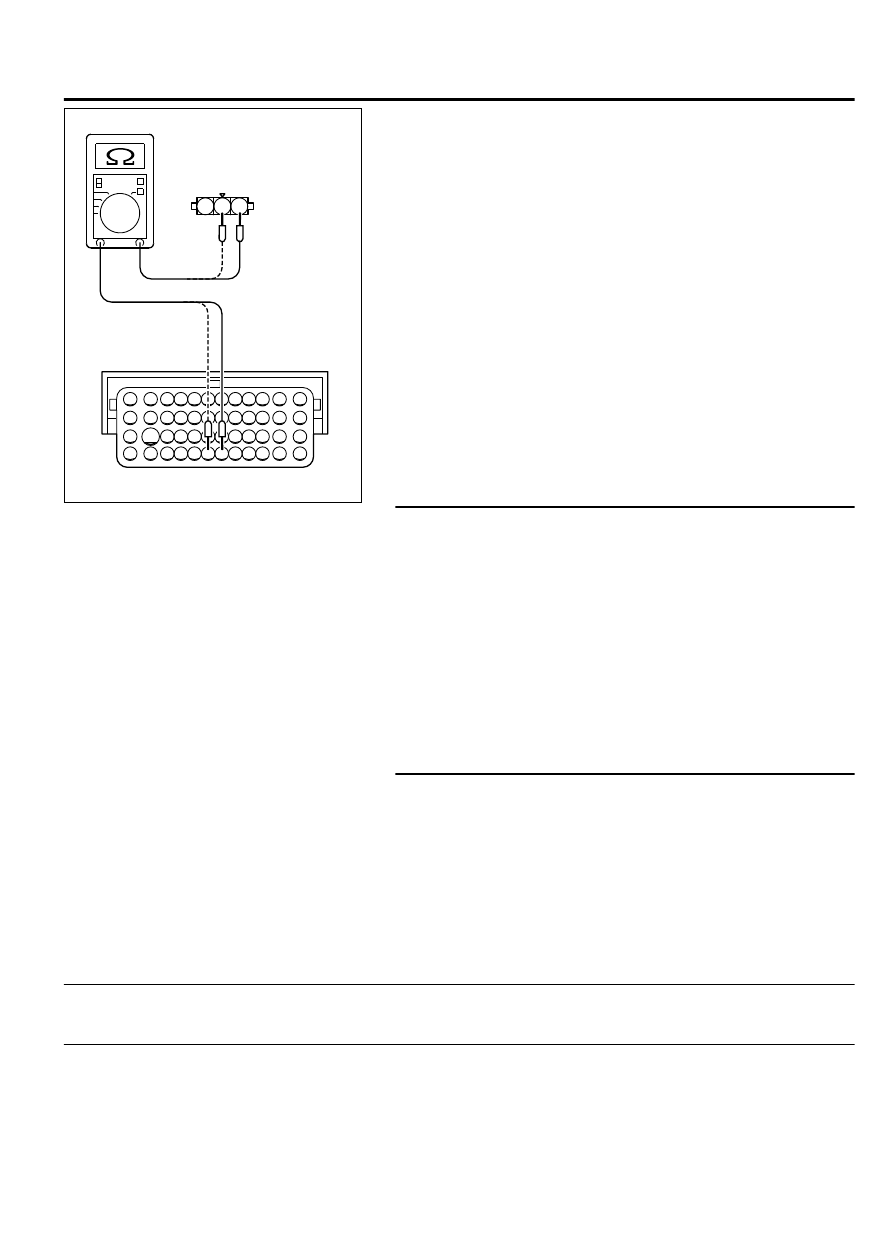

ZK603418 82 81 80 79 78 77 76 75 74 73 72 71 94 93 92 91 90 89 88 87 86 85 84 83 99 98 97 96 95 100 101 102 103 104 105 106 112 113 114 109 108 107 110 111 115 116 117 118 1 2 3 D-19 harness connector: B-11 harness connector: AA00 (2) Measure the resistance between connector B-11 and a Connector B-11 (terminal No. 112) and connector D-19 b Connector B-11 (terminal No. 113) and connector D-19 ⦆ Should be less than 2 ohms. Q:Is the measured resistance less than 2 ohms? YES: Go to Step 6. NO: Repair the damaged harness wires. Then go to Step 7. STEP 6. Replace the fuel tank differential pressure sensor. (1) Replace the fuel tank differential pressure sensor. (2) Carry out test drive with the drive cycle pattern. Refer to (3) Check the diagnostic trouble code (DTC). Q:Is DTC P0450 set? YES: Replace the ECM. When the ECM is replaced, register the ID code. Refer to GROUP 42B, ID Code Registration NO: The inspection is complete. STEP 7. Perform the OBD-II drive cycle. (1) Carry out a test drive with the drive cycle pattern. Refer to (2) Check the diagnostic trouble code (DTC). Q:Is DTC P0450 set? YES: Repeat the troubleshooting. NO: The procedure is complete. DTC P0451: Evaporative Emission Control System Pressure Sensor Range/ M11310100406USA0000010000 MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS> 13Ab-495 DIAGNOSTIC TROUBLE CODE PROCEDURES |
