Mitsubishi Outlander XL. Manual - part 256





DTC SET CONDITIONS

Logic Flow Chart

End

Malfunction

Yes

Yes

Yes

No

No

No

2secs have passed?

Output voltage

< 0.2V

Monitoring

conditions

Good

Start

ZK603708 AA00

Check Conditions

Heated oxygen sensor offset voltage is between 0.4
and 0.6 volt.

Battery  positive  voltage  is  between  11  and  16.5
volts.

3 minutes or more have passed since the engine
starting sequence was completed.

Judgement Criterion

Right bank heated oxygen sensor output voltage is
lower than 0.2 volt for 2 seconds.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 23 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

Right bank heated oxygen sensor (rear) failed.

Connector damage.

Harness damage

ECM failed.



MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-219

DIAGNOSTIC TROUBLE CODE PROCEDURES

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: V.C.I.

MB991827: USB Cable

MB991910: Main Harness A

MB998464: Test Harness

STEP 1. Check harness connector B-02 at the right bank
heated oxygen sensor (rear) and harness connector B-10 at
the ECM for damage.

Q:Is the harness connector in good condition?

YES:

 Go to Step 2.

NO:

 Repair it. Refer to GROUP 00E, Harness Connector

Inspection P.00E-2. Then go to Step 5.

STEP 2. Check the right bank heated oxygen sensor (rear).

(1)

Disconnect  the  right  bank  heated  oxygen  sensor  (rear)
connector  B-02  and  connect  test  harness  special  tool,
MB998464, to the connector on the right bank heated oxygen
sensor (rear) side.

(2)

Warm  up  the  engine  until  engine  coolant  temperature
reaches 80°C (176°F) or higher.

(3)

Drive at 50 km/h (31 mph) or more for 10 minutes.

ZK604080

Heated
oxygen
sensor
component
side
connector

MD998464

Black

White

AA00

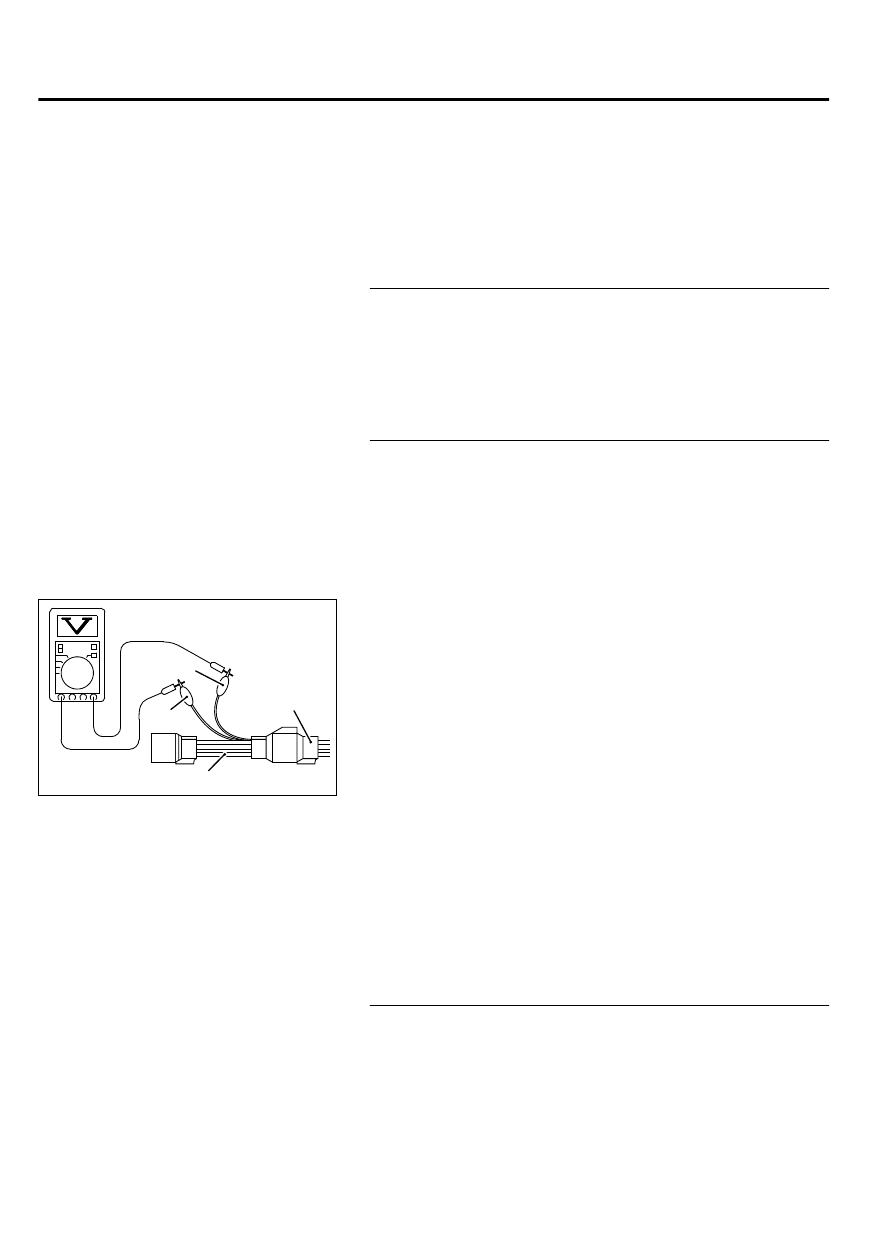

(4)

Connect a digital voltage meter between terminal No. 2 (black
clip) and terminal No. 4 (white clip).

(5)

Measure the output voltage of heated oxygen sensor under
the following driving.

a
.

Transaxle: 2nd speed

b
.

Drive with wide open throttle

c
.

Engine: 3,500 r/min or more

Standard value: 0.6 - 1.0 volts

NOTE:

If the sufficiently high temperature [of

approximate 400°C (752°F) or more] is not reached
although the heated oxygen sensor is normal, the output
voltage would be possibly low although the rich air/fuel
ratio.

Q:Is the voltage between 0.6 and 1.0 volts?

YES:

 Go to Step 3.

NO:

 Replace the right bank heated oxygen sensor (rear).

Then go to Step 5.

STEP 3. Check for harness between the right bank heated
oxygen sensor (rear) connector B-02 and the ECM
connector B-10.

(1)

Disconnect  the  right  bank  heated  oxygen  sensor  (front)
connector B-02 and the ECM connector B-10.

13Ab-220

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

ZK603254

1

2

3

4

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AA00

B-10 harness
connector:
component side

B-03 harness
connector:
component side

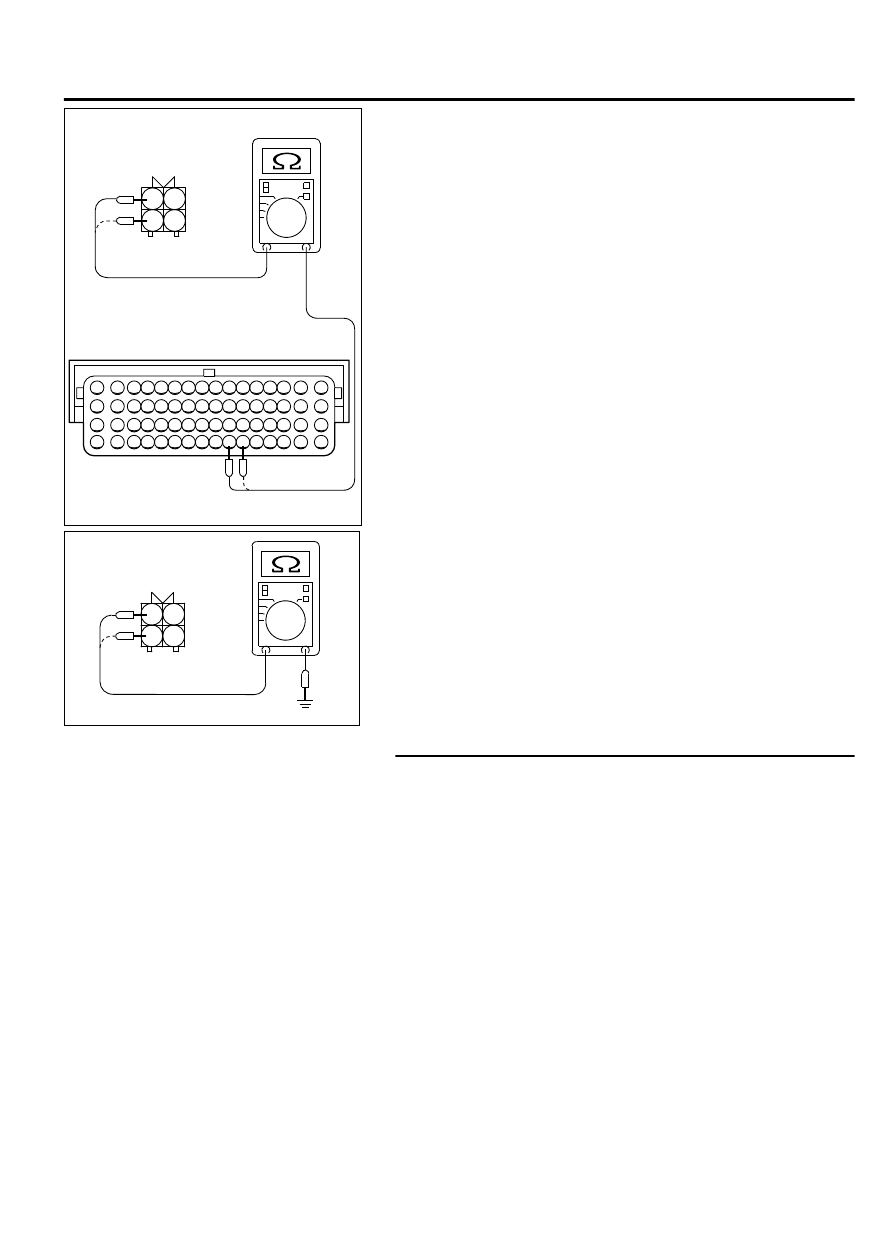

(2)

Measure the resistance between the heated oxygen sensor
connector B-02 and the ECM connector B-10.

a
.

Connector  B-02  (terminal  No.  2)  and  connector  B-10
(terminal No. 57).

b
.

Connector  B-02  (terminal  No.  4)  and  connector  B-10
(terminal No. 56).

Should be less than 2 ohms.

1

2

3

4

ZK604079

B-02 harness
connector:
component side

AA00

(3)

Check for the continuity oxygen sensor connector B-03 and
ground.

a
.

Connector B-02 (terminal No. 2) and ground.

b
.

Connector B-02 (terminal No. 4) and ground.

Not continuity.

Q:Is the harness wire in good condition?

YES:

 Go to Step 4.

NO:

 Repair it. Refer to GROUP 00E, Harness Connector

Inspection P.00E-2. Then go to Step 5.

STEP 4. Check the trouble symptoms.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  23  P.
13Ab-8

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0137 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8. Then go to Step 5.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-221

DIAGNOSTIC TROUBLE CODE PROCEDURES

STEP 5. Test the OBD-II drive cycle.

(1)

Carry out a test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  23  P.
13Ab-8.

(2)

Check the diagnostic trouble code (DTC).

Q:Is DTC P0137 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

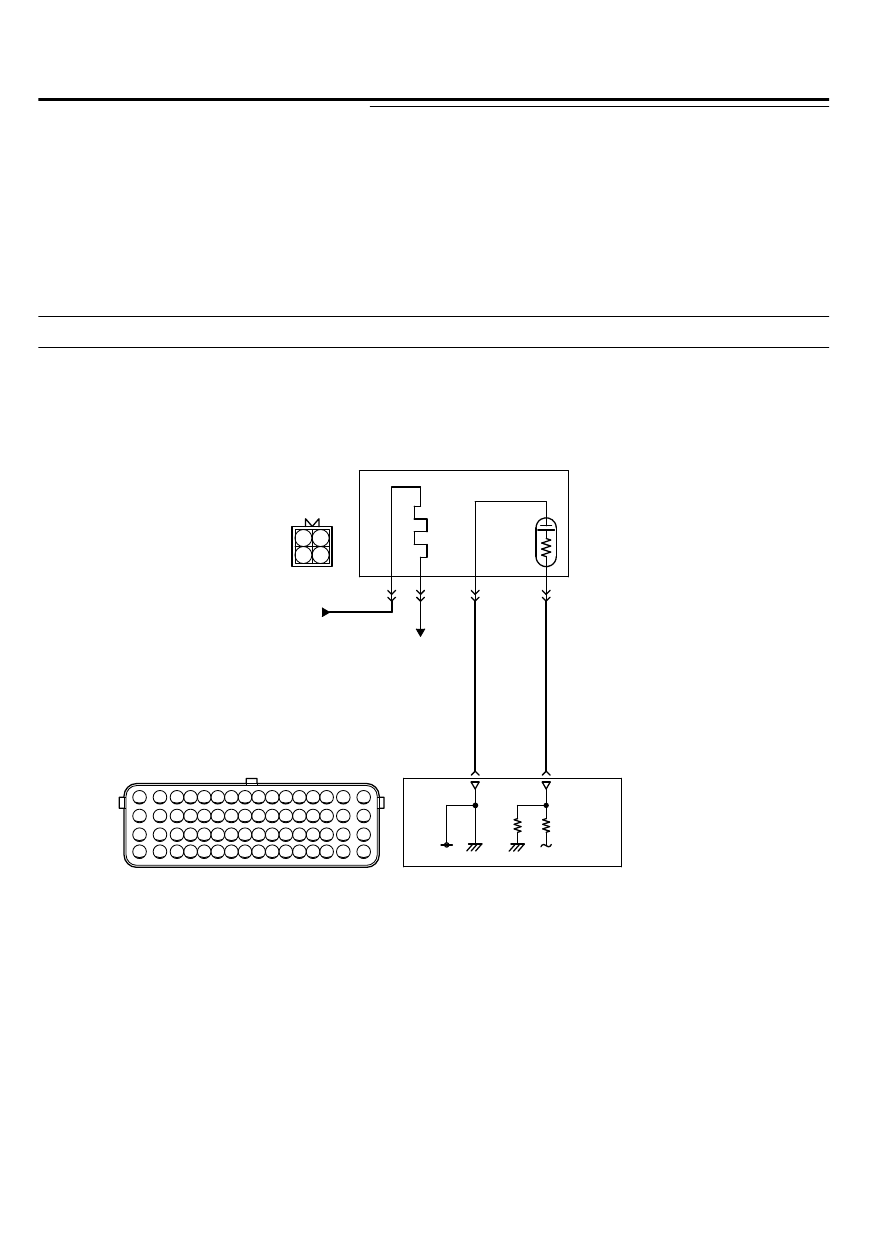

DTC P0138: Heated Oxygen Sensor Circuit High Voltage (bank 1, sensor 2)

M11310100191USA0000010000

ZK602839

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

0.5 V

2

1

4

3

AA00

ENGINE
CONTROL
MODULE

RIGHT BANK HEATED
OXYGEN SENSOR (REAR)

FROM MFI RELAY

TO ECM

1

2

3

4

57

PINK

LIGHT GREEN

56

RIGHT BANK HEATED OXYGEN SENSOR (REAR) CIRCUIT

B-10

B-02

MU802605

13Ab-222

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
