Mitsubishi Outlander XL. Manual - part 133
ANTI-LOCK BRAKING SYSTEM (ABS) AND ACTIVE SKID CONTROL SYSTEM (ASC)

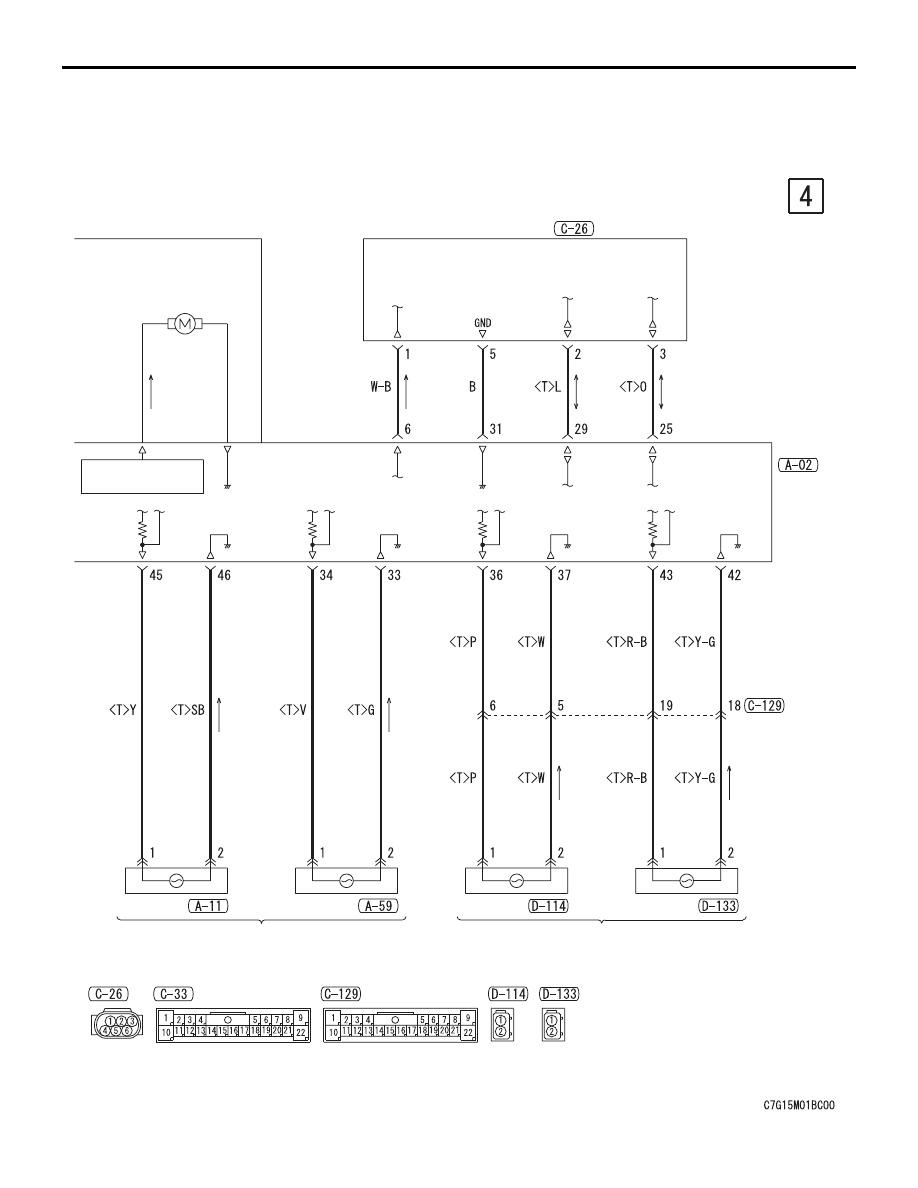

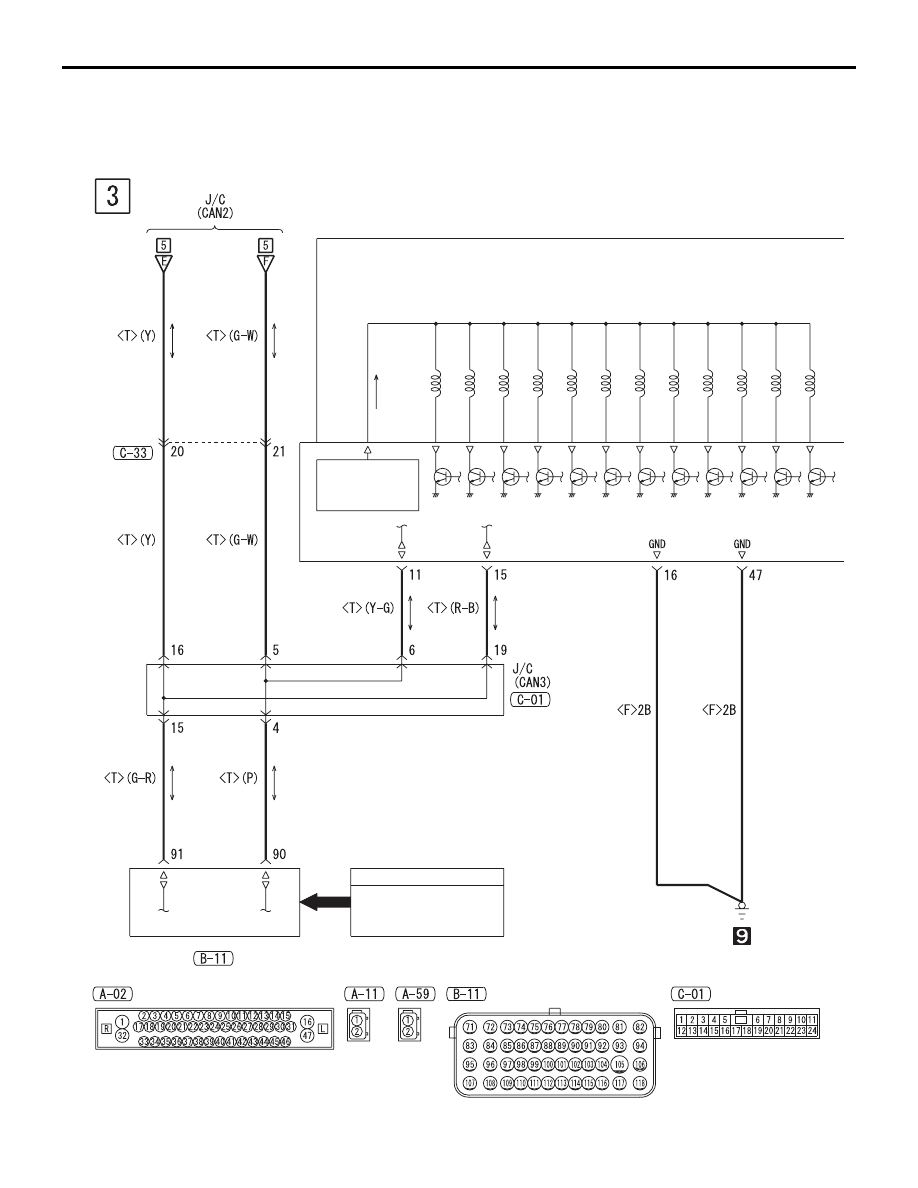

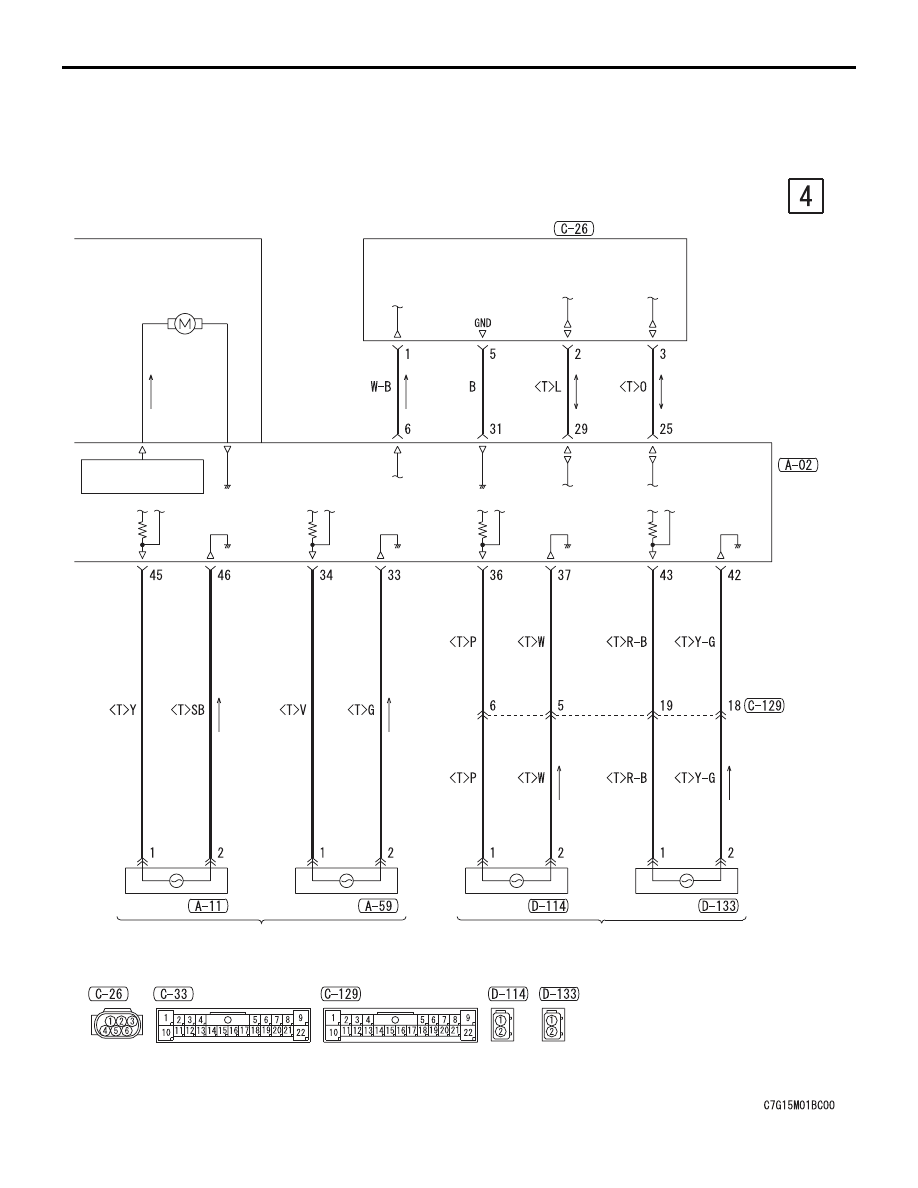

CIRCUIT DIAGRAMS
90-229

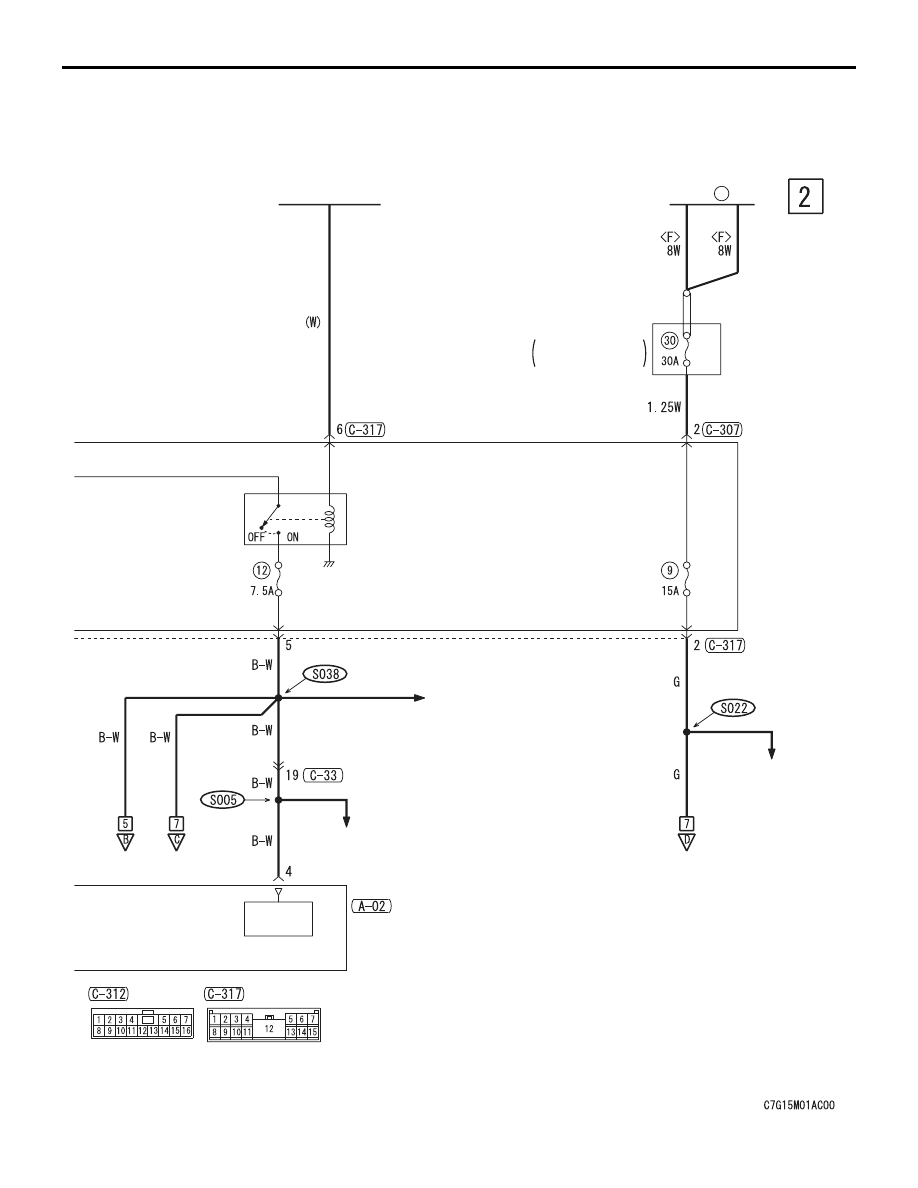

POWER
SUPPLY
ASC-ECU
IGNITION
SWITCH (IG1)
FUSIBLE
LINK
36
IG1
RELAY
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
RELAY BOX
ENGINE
COMPARTMENT
·AIR CONDITIONING SYSTEM
·CENTRAL DOOR LOCKING SYSTEM
·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·DOME LIGHT, LUGGAGE COMPARTMENT
LIGHT AND IGNITION KEY HOLE
ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEADLIGHT AUTOMATIC LEVELING SYSTEM
·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE ALARM
·IMMOBILIZER SYSTEM
·INVECS-II 6A/T
·KEYLESS OPERATING SYSTEM (KOS)
·POWER WINDOWS
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT, LICENSE PLATE
LIGHT AND LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
THEFT-ALARM
SYSTEM
·HEADLIGHT AUTOMATIC
LEVELING SYSTEM
·INVECS-II 6A/T
