GENERAL INFORMATION

M25100000001USA0000010000

Both high driving performance and great utilities are
achieved to establish the "On-road SUV style" that
provides the all round cruising performance.

｠

Harmonizing the tough functionality as an SUV with
sporty driving performance exceeding an SUV

｠

Front face design creates sharp shape that is robust
and handsome

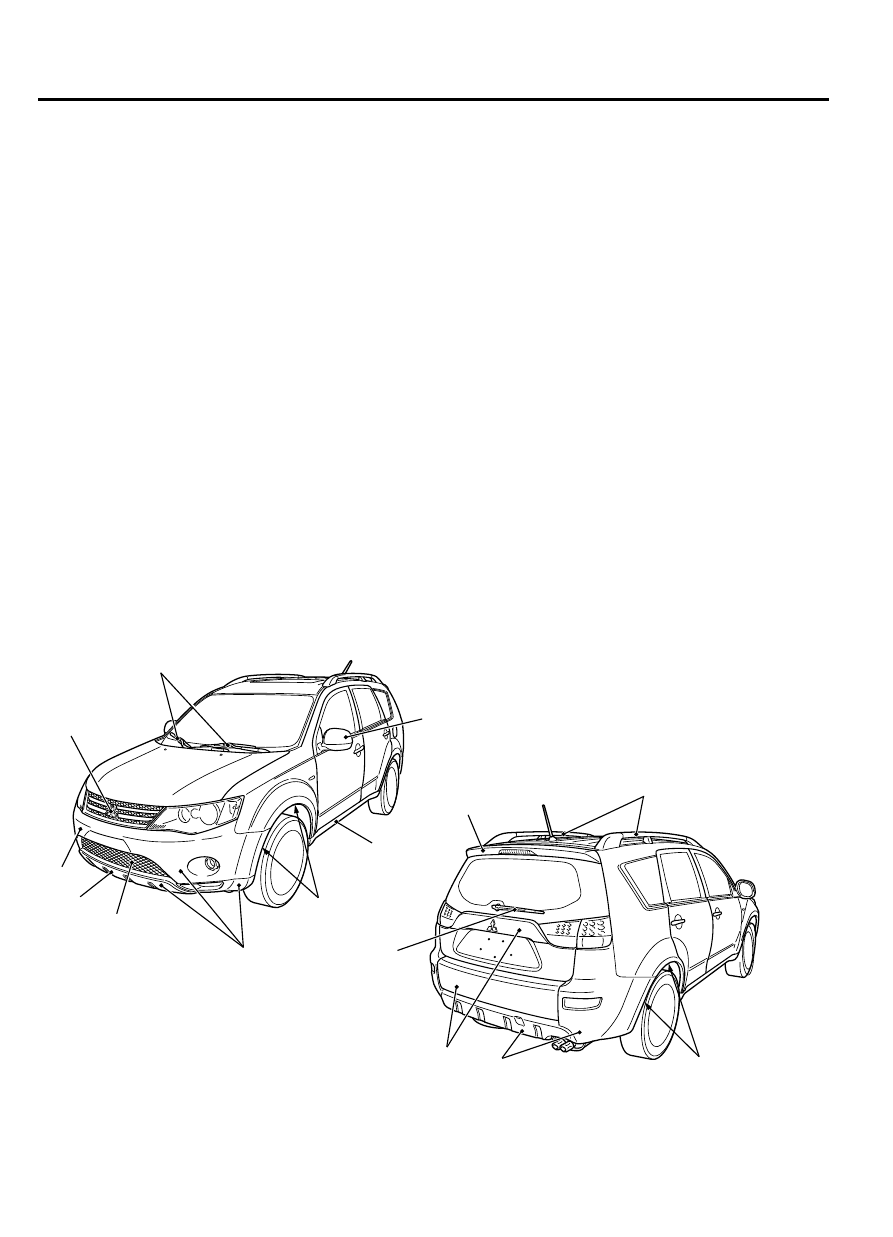

FEATURES

BETTER APPEARANCE

1. Newly designed front three-diamond mark
2. Front bumper extension appealing the robust
front mask
3. Overfender shape to keep the off-road image
4. Side air dam
5. Liftgate spoiler (with the integral high mounted
stop light)
6. Plastic arm for the rear wiper

BETTER AERODYNAMIC CHARACTERISTICS

7. Overfender shape to improve the aerodynamic
performance
8. Side air dam
9. Liftgate spoiler
10. Low air resistance large size door mirrors

IMPROVEMENT OF COOLING EFFICIENCY

11. Air guide duct to cool the radiator has been
installed behind the front bumper.

BETTER USER-FRIENDLINESS

12. Heated door mirrors
13. Roof rails

BETTER PRODUCT PACKAGE

14. Pad (front bumper core) has been installed in
the front bumper to reduce the severity of an injury
in an accident with pedestrians.
15.

Vehicle

speed-dependent

intermittent

windshield wiper system
16. Rear intermittent wiper with an initial continuous
operation and reverse gear-linked operation
functions
17. Liftgate garnishes
18. Divided structure for partial replacement for the
front/rear bumper damage

SUPPORT RECYCLING OF RESOURCES

Aggressively uses PP (polypropylene) materials that
are easy to recycle and easy to stamp material
symbols on the plastic (resin) parts.

ZC501829

6,16

10,12

5,9

4,8

3,7

0005

51-2

EXTERIOR

GENERAL INFORMATION

BUMPER

M25100000020USA0000010000

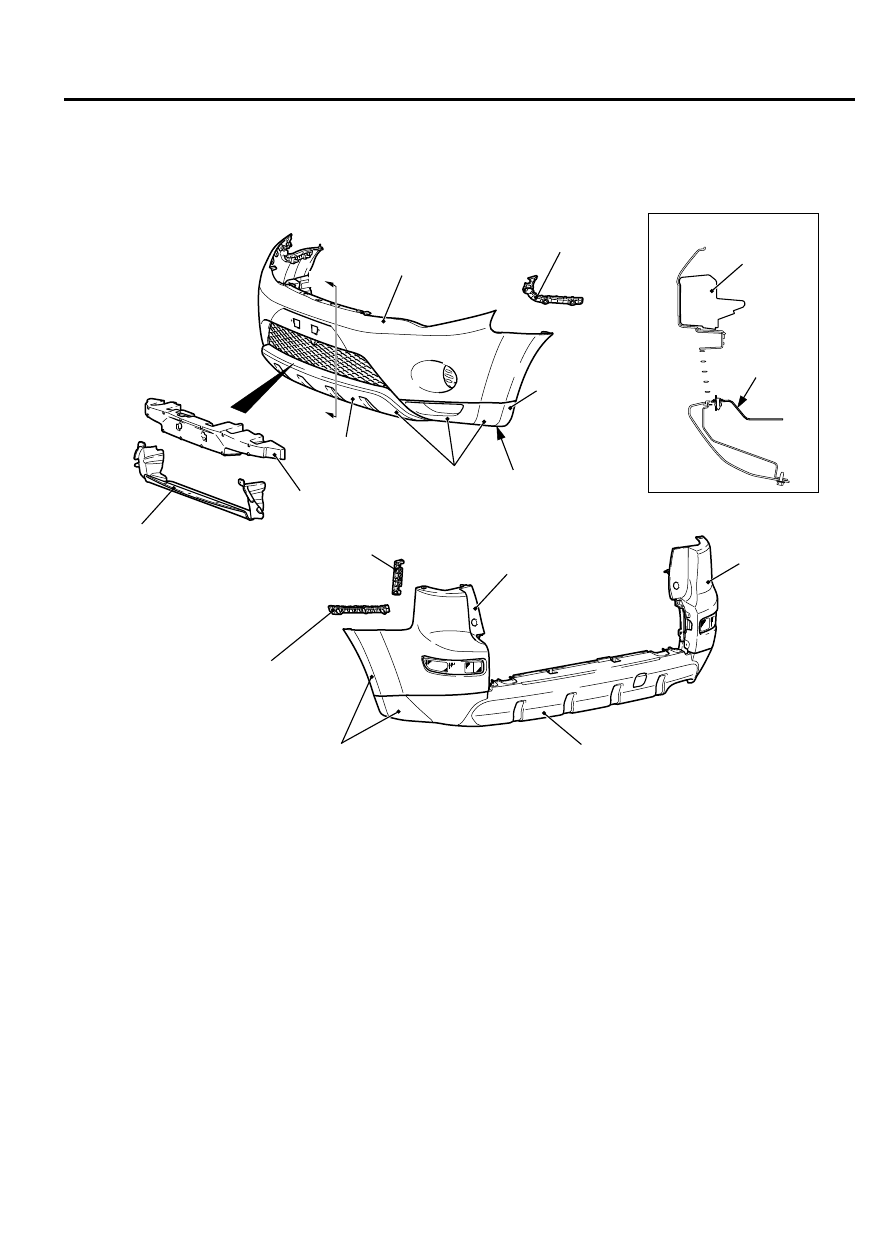

CONSTRUCTION DIAGRAM

ZC5018310000

Front bumper core

Air dam structure
(in front of tires)

Divided
structure

Divided structure

Front bumper
extension B

Front bumper
extension A (LH)

Front bumper
air guide duct

Front bumper
core

Front bumper face

Rear bumper face

Rear corner
bumper (LH)

Rear corner
bumper (RH)

Front bumper
side bracket

Rear bumper
side bracket

Rear bumper face
side bracket

<Front bumper>

<Rear bumper>

Section A-A

FRONT BUMPER

｠

Divided structure has been adopted for the front
bumper to improve the partial replacement, cost
reduction in damaged parts replacement, and the
recycle efficiency in scrapping.

｠

Resin front bumper side bracket has been adopted
to improve the alignment with the body.

｠

Air dam structure in front of tires with the overhung
front bumper at the right and left corners suppress
the airflow against the tires and smoothen the
airflow along the bumper sides.

｠

Pad (front bumper core) has been installed in the
upper part of the bumper to reduce the severity of
an injury in an accident with pedestrians.

｠

Air guide duct has been installed behind the front
bumper to improve the radiator cooling efficiency.

REAR BUMPER

｠

Divided structure has been adopted for the rear
bumper to improve the partial replacement, the cost
reduction in damaged parts replacement, and the
recycle efficiency in scrapping.

｠

Resin rear bumper side bracket and resin rear
bumper face side bracket have been adopted to
improve the alignment with the body.

EXTERIOR

51-3

BUMPER

RADIATOR GRILLE

M25100000010USA0000010000

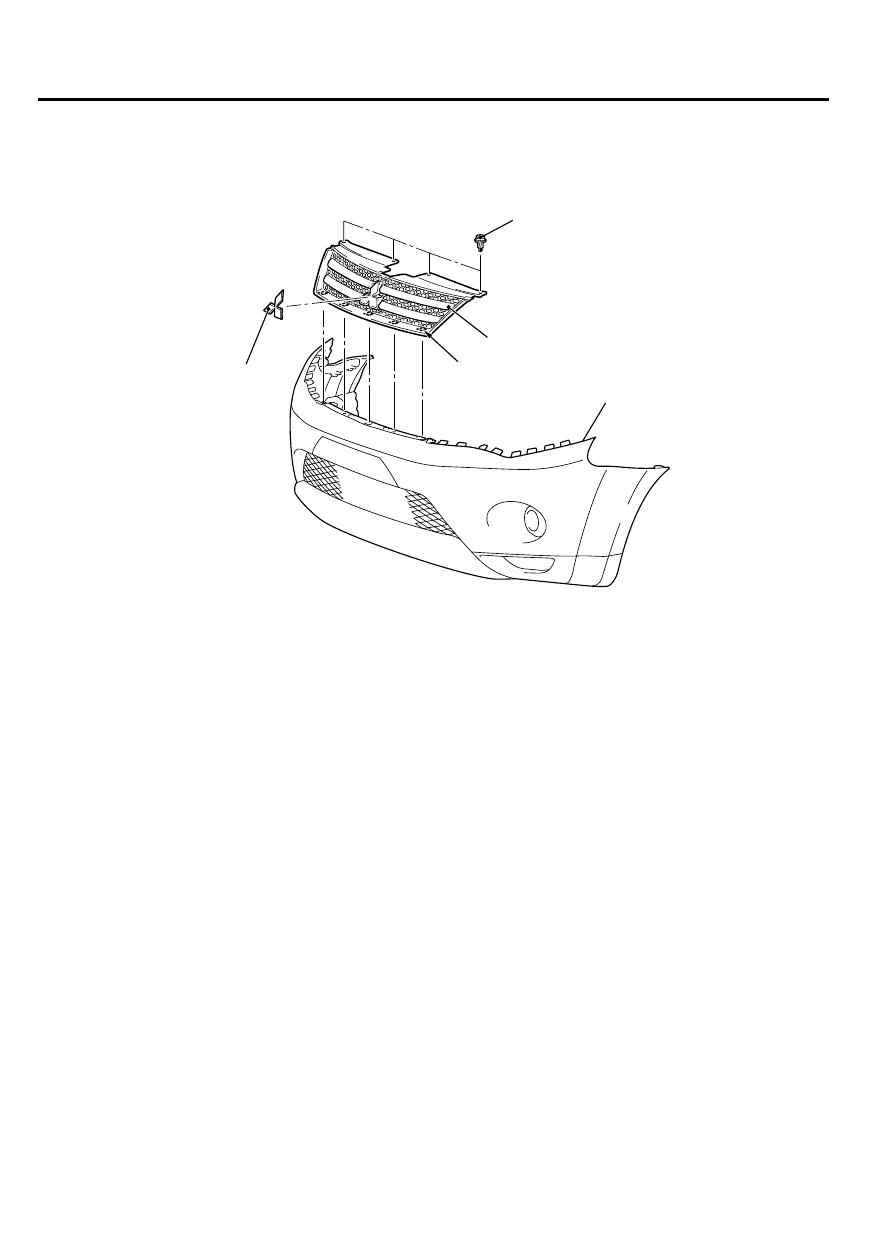

CONSTRUCTION DIAGRAM

ZC5018510000

Radiator grille

Front bumper

Front three-diamond
mark

Clip

｠

The structure that allows the radiator grille to be
removed and installed only by clips at the top and
bottom has been adopted.

｠

The newly designed front three-diamond mark is
protruded from the installation surface of the
radiator grille to improve the brand appeal.

51-4

EXTERIOR

AERO PARTS

AERO PARTS

M25100000030USA0000010000

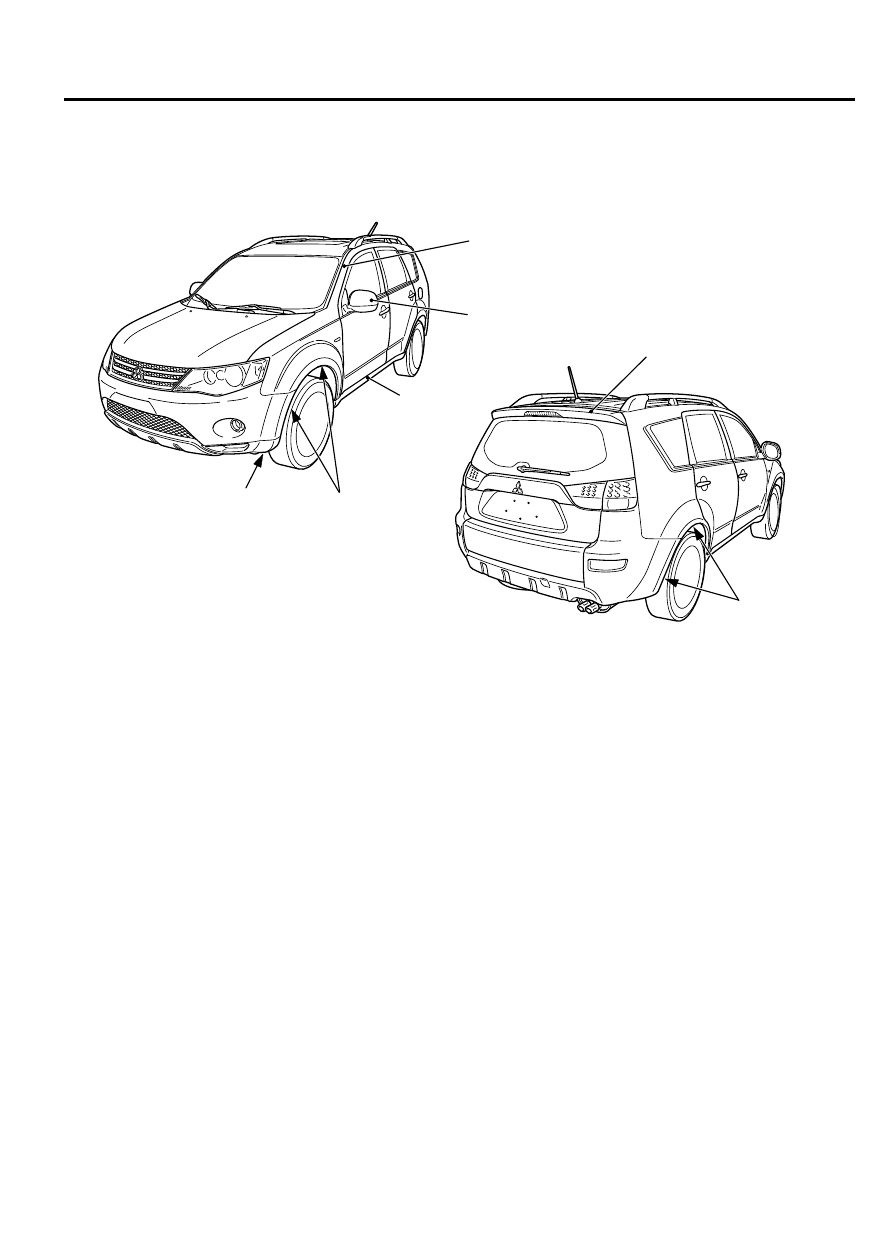

CONSTRUCTION DIAGRAM

ZC5018290006

Door mirror

Side air dam

Overfender
shape

Liftgate spoiler

Roof drip molding

Air dam structure
(in front of tires)

Aerodynamic performance has been improved by the
optimized shape of the following parts.

｠

Air dam structure in front of tires (Refer to P.51-3.)

｠

Overfender shape
Overfender shape from the front bumper to the
fender and from the quarter panel to the rear

bumper keeps the off-road vehicle image as an
SUV, at the same time the optimized shape of the
related parts improves aerodynamic performance.

｠

Door mirror

｠

Roof drip molding

｠

Side air dam

｠

Liftgate spoiler (with built-in high-mount stop light)

EXTERIOR

51-5

GARNISHES
