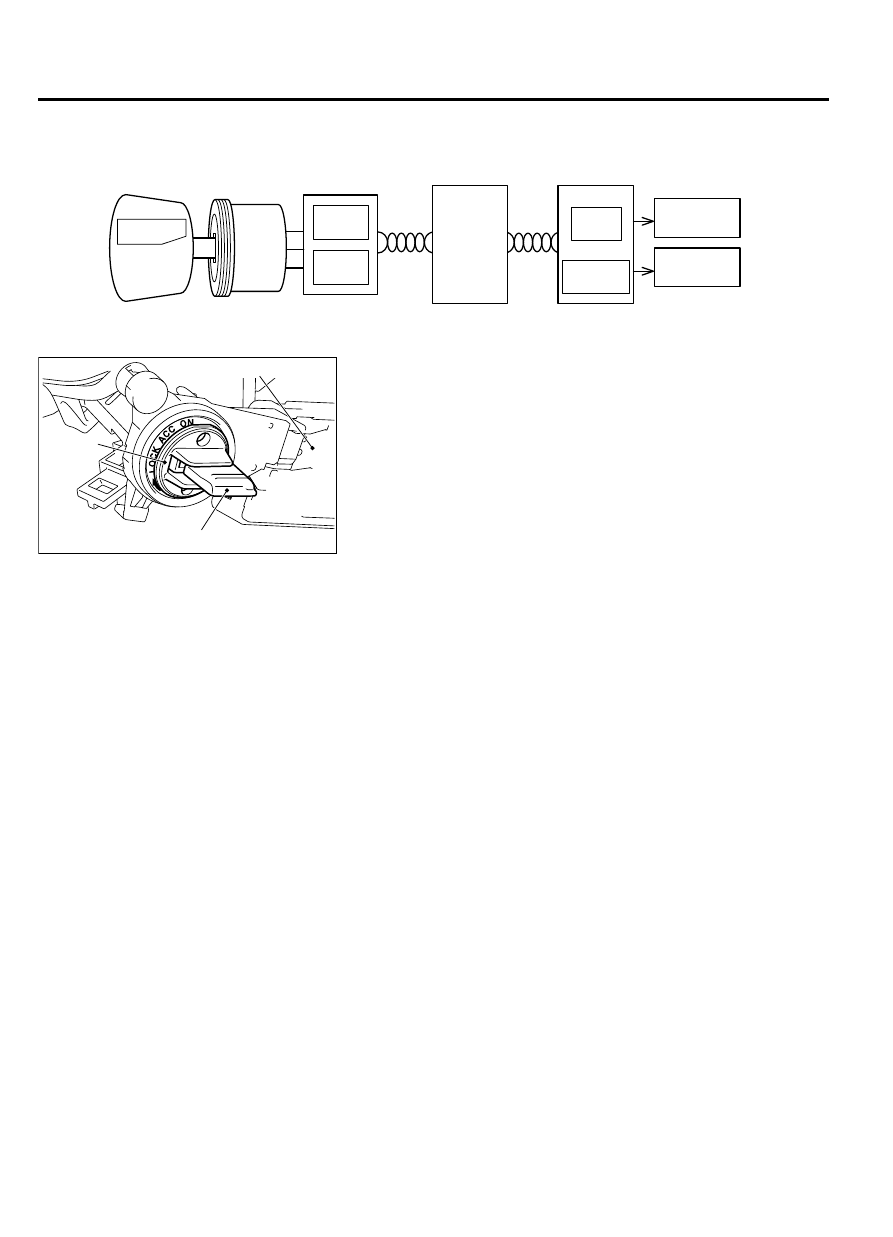

WHEN USING EMERGENCY KEY

AC507889

CPU

CAN

CAN-B

CAN-C

ETACS-ECU

KOS-ECU

CAN

CPU

Emergency key

ECM

Ignition

Injection

Receiver
antenna
module

Steering lock

Transponder

ID

CONSTRUCTION DIAGRAM

ZC3064040000

AC506646

Emergency key

IG knob

Receiver antenna module

ZC3054220000

The engine can be started by removing the IG knob
cap and inserting the emergency key (incorporating a
transponder ID) in KOS steering lock. In this case, the
system operates as follows:

1.

When the emergency key is turned to ON position,
the transponder (a small transmitter) incorporated
in the key transmits an ID code peculiar to each
key  (transponder  ID)  to  the  receiver  antenna
module by radio.

2.

KOS-ECU compares the transponder ID with the
ID code registered in it, and when they coincide,
KOS-ECU controls the engine ECU.

3.

The power to the transponder has been supplied
from the receiver antenna module, and therefore,
the transponder is maintenance-free. Each vehicle
is  provided  with  two  keys,  and  up  to  eight
emergency keys can be registered in the vehicle's
KOS-ECU.  More  than  one  trillion  ID  code
combinations can be registered, and parts of them
are irregularly changed whenever the ignition key

is turned ON. This feature prevents code copying,
resulting in higher security of the system.

NOTE:

When KOS-ECU is replaced or a key is lost

or added, the ID codes of all the keys must be re-
registered as follows using scan tool:

｠

When KOS-ECU is lost, all the emergency keys and
keyless operation keys must be re-registered.

｠

When  a  key  is  lost,  all  the  emergency  keys  and
keyless operation keys other than the lost one must
be re-registered to cancel the registration of the lost
key.

｠

To add a key, all the emergency keys and keyless
operation keys to be used for the vehicle and the
additional one must be re-registered.

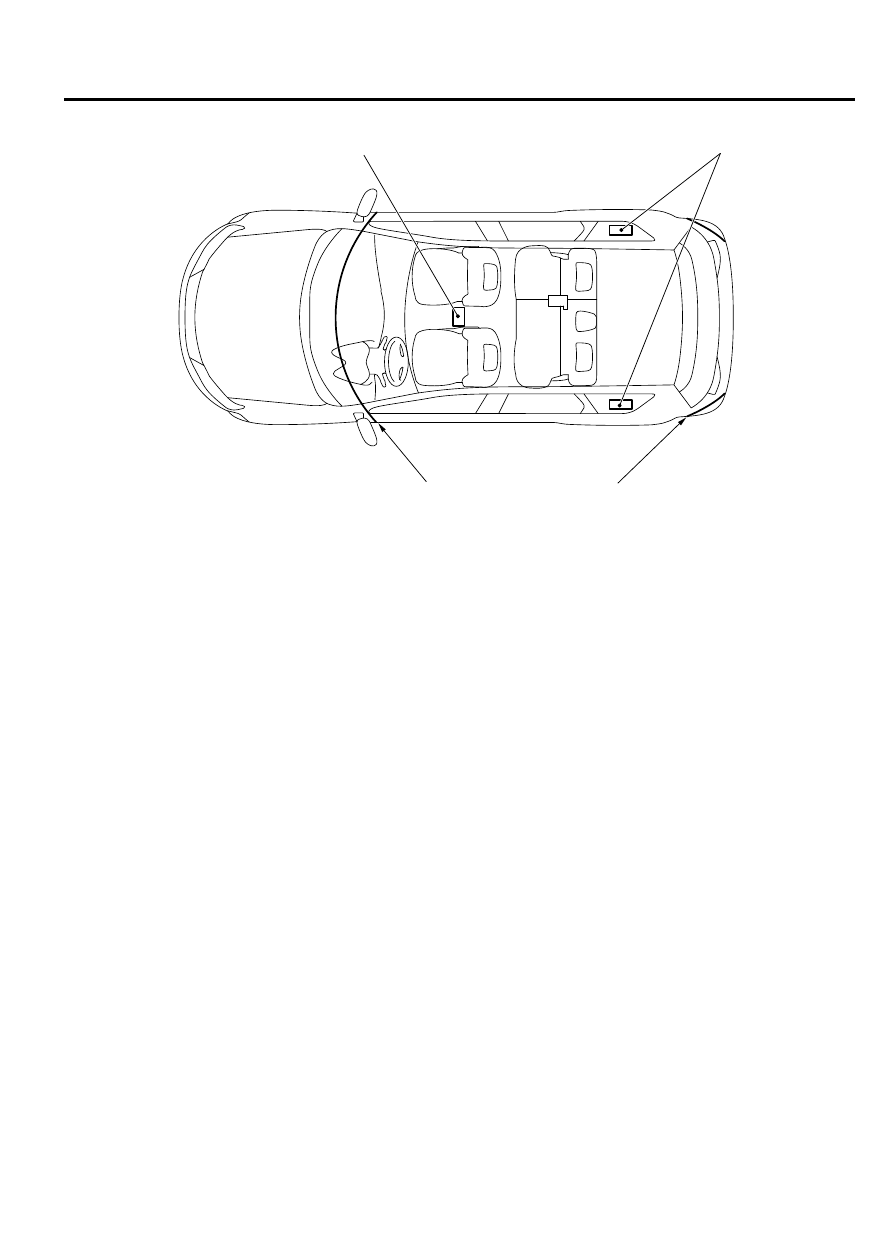

ENGINE STARTING FUNCTION VALID

AREA

The  engine  can  be  started  only  when  the  keyless
operation key is within the interior antenna receiving
area.

42B-22

KEYLESS OPERATION SYSTEM (KOS)

SYSTEM OPERATION

ZC600900 0000

Inside transmission antenna assembly (Front)

Antenna receiving area

Inside transmission antenna assembly (Rear)

Antenna receiving area

TIRE PRESSURE MONITORING SYSTEM (TPMS) FUNCTION

M24200100011USA0000010000

When the tire pressure becomes under the specified
value, the TPMS function warns the driver of that state
by illuminating the TPMS warning light.

OPERATION

｠

The signals from the TPMS receiver are received
by the KOS-ECU.

｠

KOS-ECU  processes  input  signals  from  each
TPMS transmitter as well as vehicle speed signals
from  the  ABS-ECU  or  ASC-ECU.  The  WCM  also
receives the atmospheric pressure signal from the
ECM. When the road tire pressure is low, it sends
a warning signal causing the TPMS warning light to
be  illuminated.  When  the  TPMS  has  problems,  it

sends a warning signal causing the TPMS warning
light to be flashed*.

NOTE:

 *: Change to continuous illumination

after flashing for about 1 minute.

｠

For 3 seconds after the ignition switch is turned to
the "ON" position, KOS-ECU illuminates the TPMS
warning  light  to  check  any  breaks  in  the  TPMS
warning light circuit.

｠

By  connecting  the  scan  tool  to  the  data  link
connector,  data  stored  in  KOS-ECU  (data  of  tire
pressure and TPMS transmitter ID, the alarm status
and  warning  history,  etc.)  can  be  displayed  and
TPMS transmitter ID can be registered.

NOTE:

If the TPMS transmitter is replaced,

register the ID codes of all the TPMS transmitters
again using the M.U.T.-III.

KEYLESS OPERATION SYSTEM (KOS)

42B-23

SYSTEM OPERATION

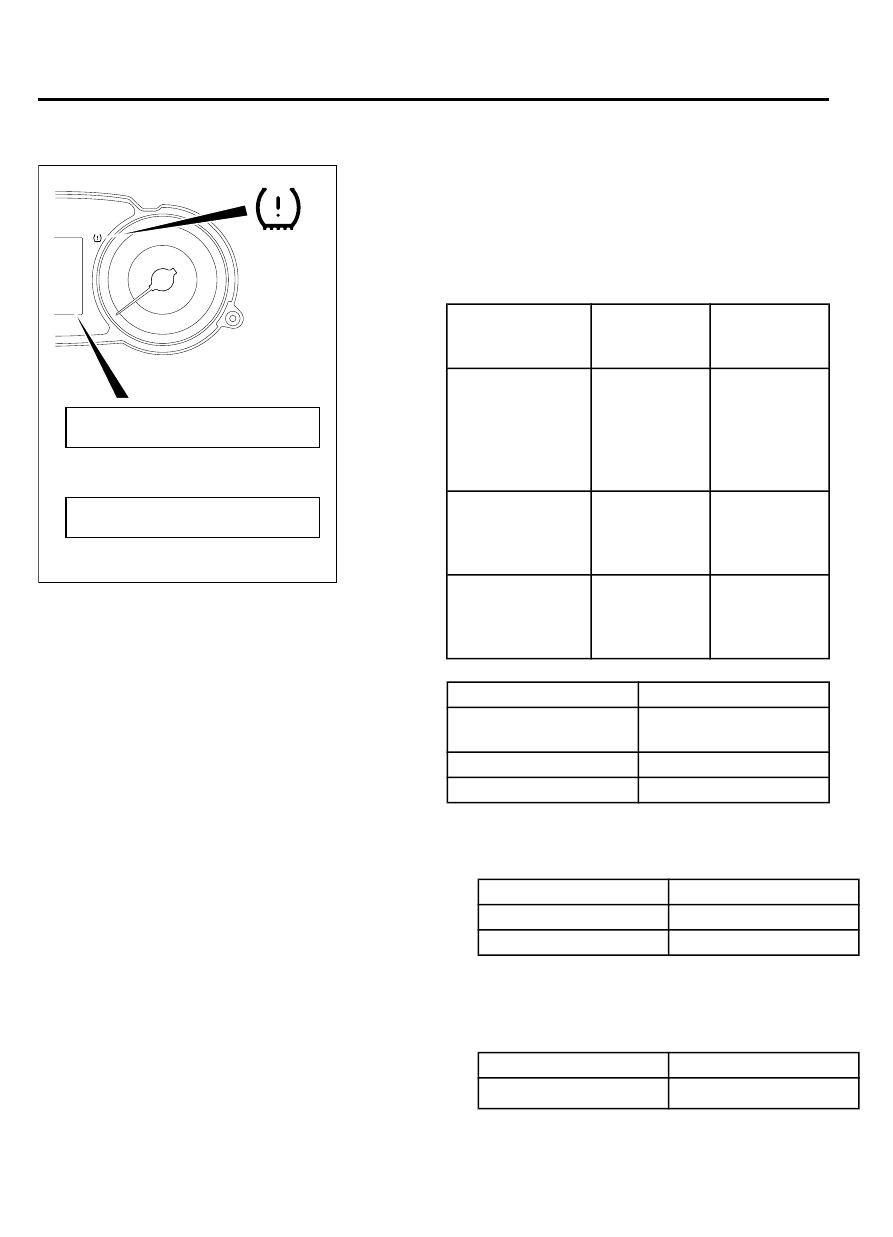

TPMS WARNING LIGHT

ZC6021650000

LOW
   TIRE PRESSURE

ZC604415

SERVICE
           REQUIRED

ZC604416

The TPMS warning light on the combination meter illuminates or
flashes*to alert the driver by request from KOS-ECU. When the
tire pressure warning or the fault warning is activated, a warning
symbol and a message are displayed on the multi information
display.

WARNING DISPLAY PATTERN OF TPMS WARNING LIGHT AND MULTI
INFORMATION DISPLAY

Circumstance

Warning light Multi

information
display

For  3  seconds
after  the  ignition
switch is turned to
the  "ON"  position
(warning

 light

circuit self-check)

Illuminates

No indication

TPMS problems

Flashes*

Symbol

 and

"SERVICE
REQUIRED" is
displayed

Low tire pressure Illuminates

Symbol

 and

"LOW

 TIRE

PRESSURE"
is displayed

TIRE PRESSURE THRESHOLD VALUES

Item

Tire pressure kPa (psi)

Standard  pressure  at
cold (reference)

220 (32)

Alarm ON pressure

174 (25) or less

Alarm OFF pressure

190 (28) or more

TPMS TRANSMITTER (TIRE PRESSURE

SENSOR)

The  TPMS  transmitter  combines  the  valve  and  tire
pressure  sensor  in  a  single  unit.  The  TPMS
transmitters are mounted inside the tires. The TPMS
transmitter measures tire pressure directly with its tire
pressure sensor and sends radio frequency signals to
KOS-ECU.

 The

 TPMS

 transmitter

 includes

acceleration  sensor  that  senses  tire  rotation.  The
KOS-ECU turns the warning light ON/OFF according
to  the  signal  from  the  acceleration  sensor  that  tells
whether the vehicle is running or stopped.

NOTE:

Use only genuine wheels. The use of non-

genuine wheels may cause the improper installation

of the TPMS transmitters, possibly resulting in
air leakage and damage to the TPMS transmitter.

TIRE PRESSURE SAMPLING TIMING

Vehicle status

Sampling timing

At vehicle moving

once every 5 seconds

At vehicle stationary

once every 1 minutes

NOTE:

Vehicle moving = vehicle speed:

approximately 25 km/h (15 mph) or more

DATA TRANSMISSION TIMING

Vehicle status

Transmission timing

At vehicle moving

once every 1 minute*

42B-24

KEYLESS OPERATION SYSTEM (KOS)

SYSTEM OPERATION

Vehicle status

Transmission timing

At vehicle stationary

once every 13 hours

If  a  sampled  pressure  varies  by  ±10  kPa
(1.5psi)  from  the  last  transmitted  pressure
value, an additional transmission will occur.

NOTE:

 *: Once every 15 seconds for first 30

transmission after vehicle starts moving.

WARNINGS/ALARMS

M24200100006USA0000010000

If the KOS failed, operated improperly, TPMS fails or
the tire pressure is low, KOS-ECU warns the driver of
this by setting off the outer tone alarm and the keyless

operation warning indicator, TPMS warning indicator,
or TPMS warning light on the multi information display
in the combination meter.

Item

State

Warning operations

Warning  cancellation
conditions

 (Cancels

warning

 operations

when  one  of  the
conditions met)

TPMS  warning
light

Multi
information
display

Low  keyless  operation
key  battery  voltage
warning

The

 keyless

operation  key  with
low battery voltage
is  detected  when
the  IG  knob  is
pressed.

-

｠

Warning
indicator
flashes  for  30
seconds.

｠

The outer tone
alarm  will  not
sound.

｠

IG

 knob

 in

"LOCK"

 (OFF)

position  and  push
switch

 OFF

 are

detected.

｠

30  seconds

 have

passed

 after

 the

warning

 output

started.

No  keyless  operation
key detected inside the
car

No

 keyless

operation  key  is
detected inside the
car  when  the  IG
knob is pressed.

-

｠

The

 warning

indicator
flashes  for  5
minutes.

｠

The outer tone
alarm  will  not
sound.

｠

IG

 knob

 in

"LOCK"

 (OFF)

position  and  push
switch

 OFF

 are

detected.

｠

5

 minutes

 have

passed

 after

 the

warning

 output

started.

IG knob is not returned
properly.

Opening  of  the
driver's  door  is
detected when the
IG knob is in ACC
or  LOCK  position
and

 the

 push

switch is ON.

-

｠

The

 warning

indicator
flashes  for  5
minutes.

｠

The outer tone
alarm  will  not
sound.

｠

Key  reminder
warning  tone
alarm  sounds
until  closing  of
the

 driver's

door

 is

detected.

｠

The  IG  knob  in  the
"RUN"  or  "START"
position,  or  the  IG
knob

 in

 the

"LOCK"

 (OFF)

position, and the push
switch

 OFF

 are

detected.

｠

The  driver's  door  is
detected  closed  from
the open position.

｠

5

 minutes

 have

passed

 after

 the

warning

 output

started.
