REAR SEAT ENTERTAINMENT SYSTEM

CIRCUIT DIAGRAMS

90-209

REAR DOOR SPEAKER

(LH)

(RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

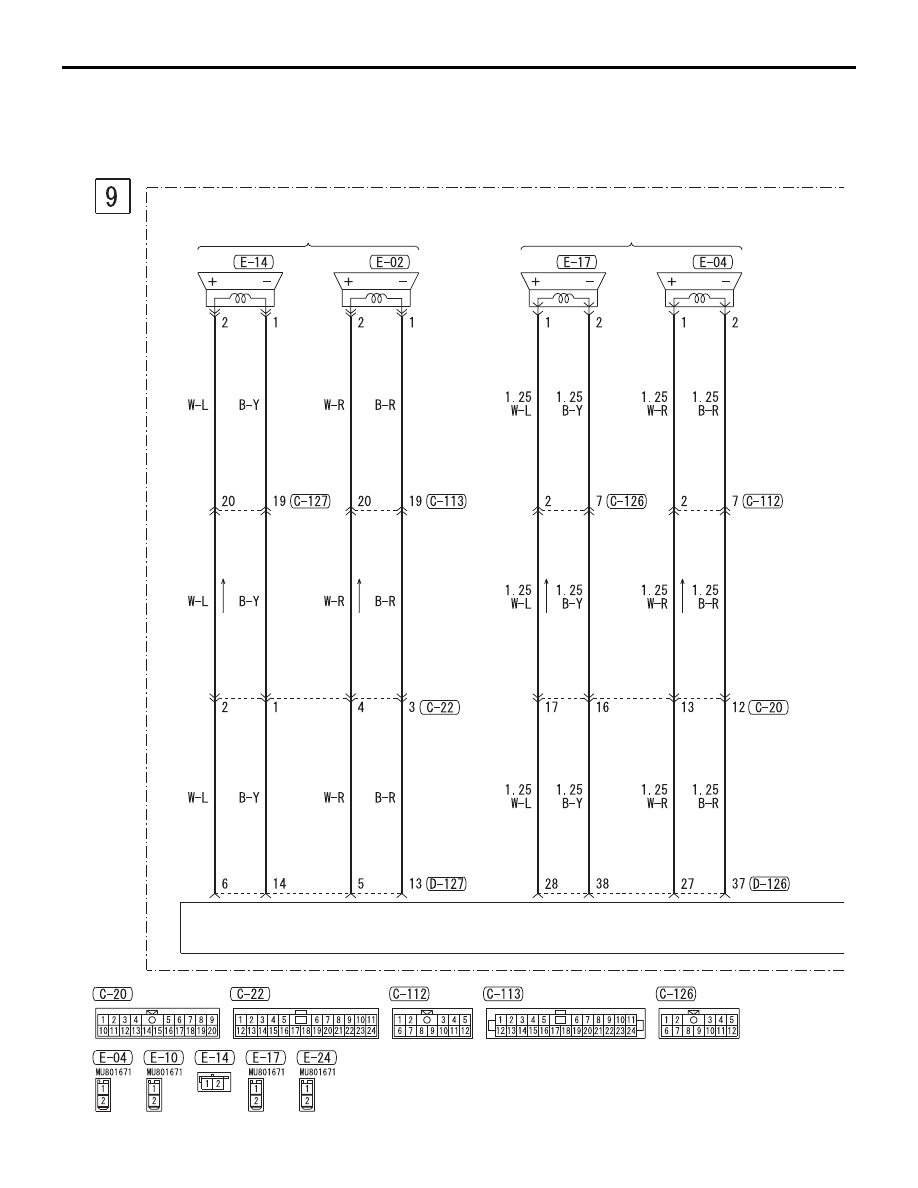

REAR SEAT ENTERTAINMENT SYSTEM

CIRCUIT DIAGRAMS

90-210

REAR SEAT ENTERTAINMENT SYSTEM (CONTINUED)

AUDIO AMPLIFIER

TWEETER

FRONT DOOR SPEAKER

(LH)

(LH)

(RH)

(RH)

<VEHICLES WITH AUDIO AMPLIFIER>

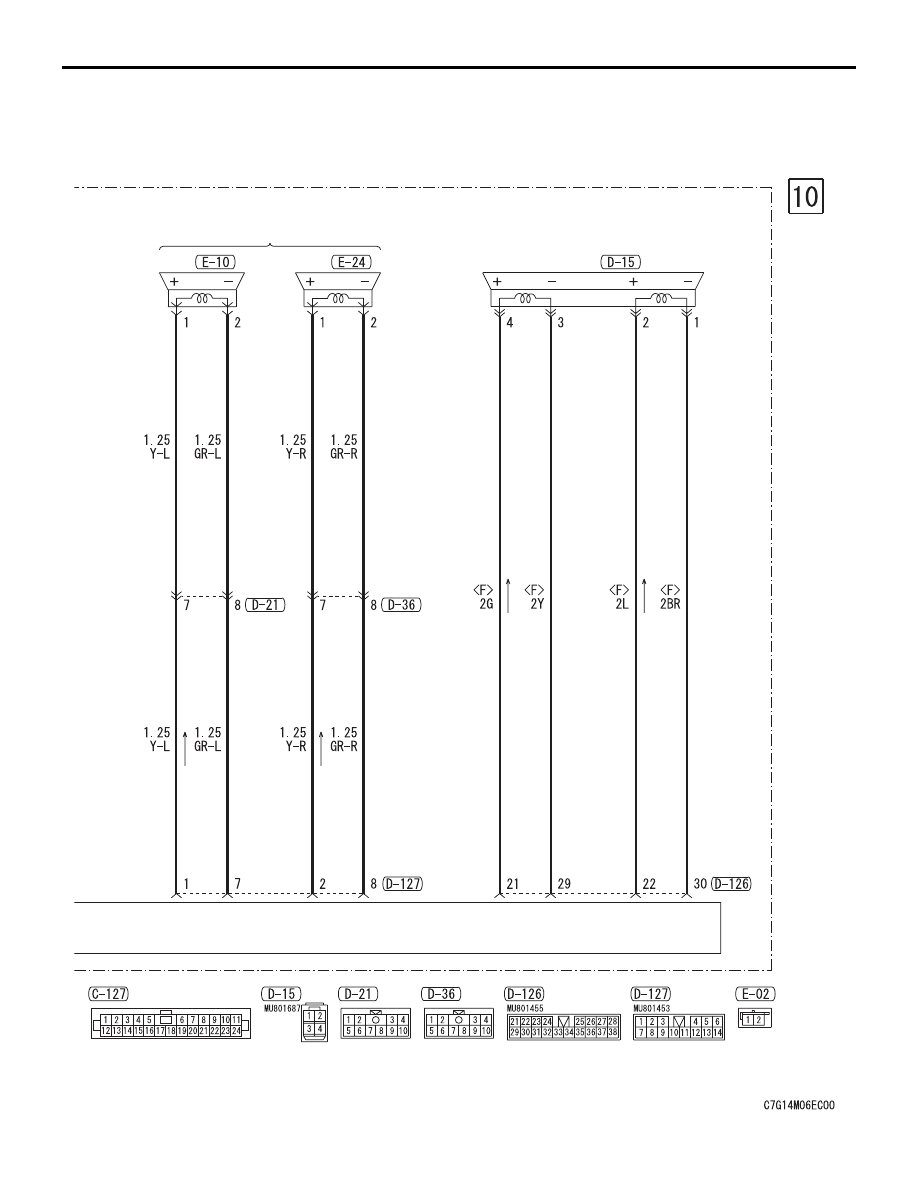

REAR SEAT ENTERTAINMENT SYSTEM

CIRCUIT DIAGRAMS

90-211

REAR DOOR SPEAKER

SUB WOOFER

(LH)

(RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE

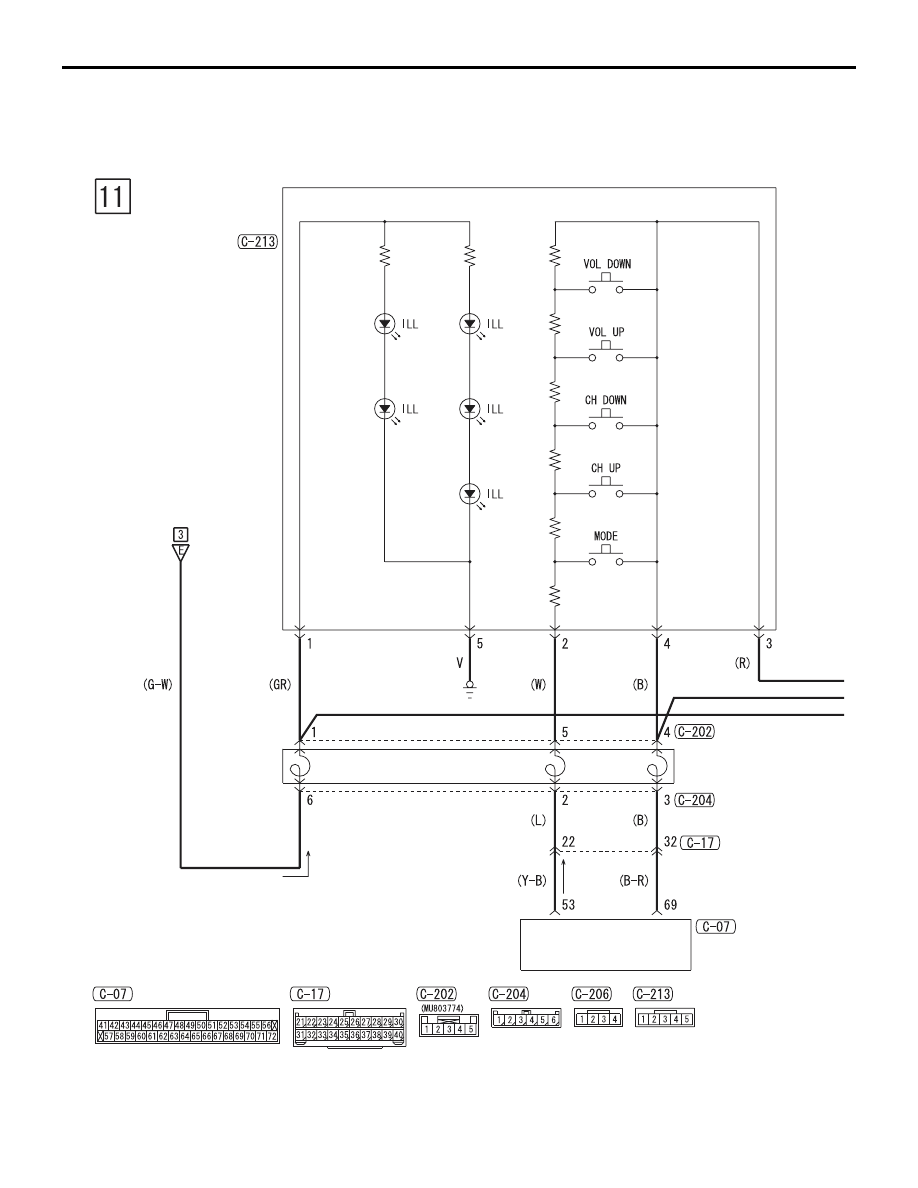

REAR SEAT ENTERTAINMENT SYSTEM

CIRCUIT DIAGRAMS

90-212

REAR SEAT ENTERTAINMENT SYSTEM (CONTINUED)

AUDIO VISUAL
NAVIGATION UNIT

CLOCK
SPRING

STEERING
AUDIO
SWITCH

COMBINATION
METER
