Mitsubishi Outlander XL. Manual - part 1128

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

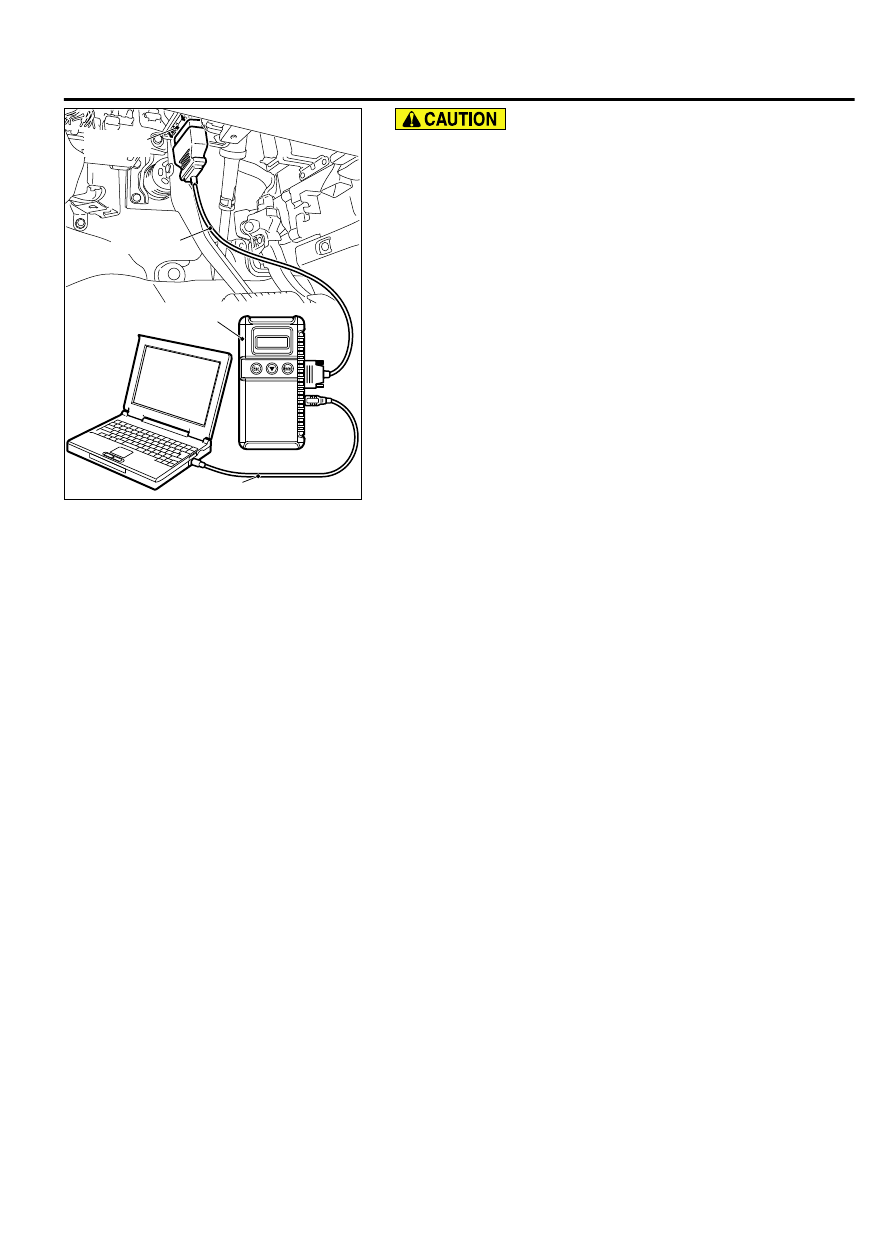

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Ensure  that  the  ignition  switch  is  at  the  "LOCK"  (OFF)
position.

(2)

Start up the personal computer.

(3)

Connect special tool MB991827 to special tool MB991824
and the personal computer.

(4)

Connect special tool MB991910 to special tool MB991824.

(5)

Connect special tool MB991910 to the data link connector.

(6)

Erase the DTC.

(7)

Turn the ignition switch to the "ON" position.

(8)

Check if the DTC is set.

(9)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES<A DTC other than U1514 is set.>:

 Replace the

appropriate ECU.

YES<The DTC U1514 is set.>:

 Replace the ETACS-ECU.

NO<The DTC is not set.>:

 The trouble can be an

intermittent malfunction (Refer to GROUP 00, How to Cope
with Intermittent Malfunction P.00-15).

LOCAL INTERCONNECT NETWORK (LIN)

54C-17

DIAGNOSIS

DTC U1515: Bus error (LIN)

M15408500094USA0000010000

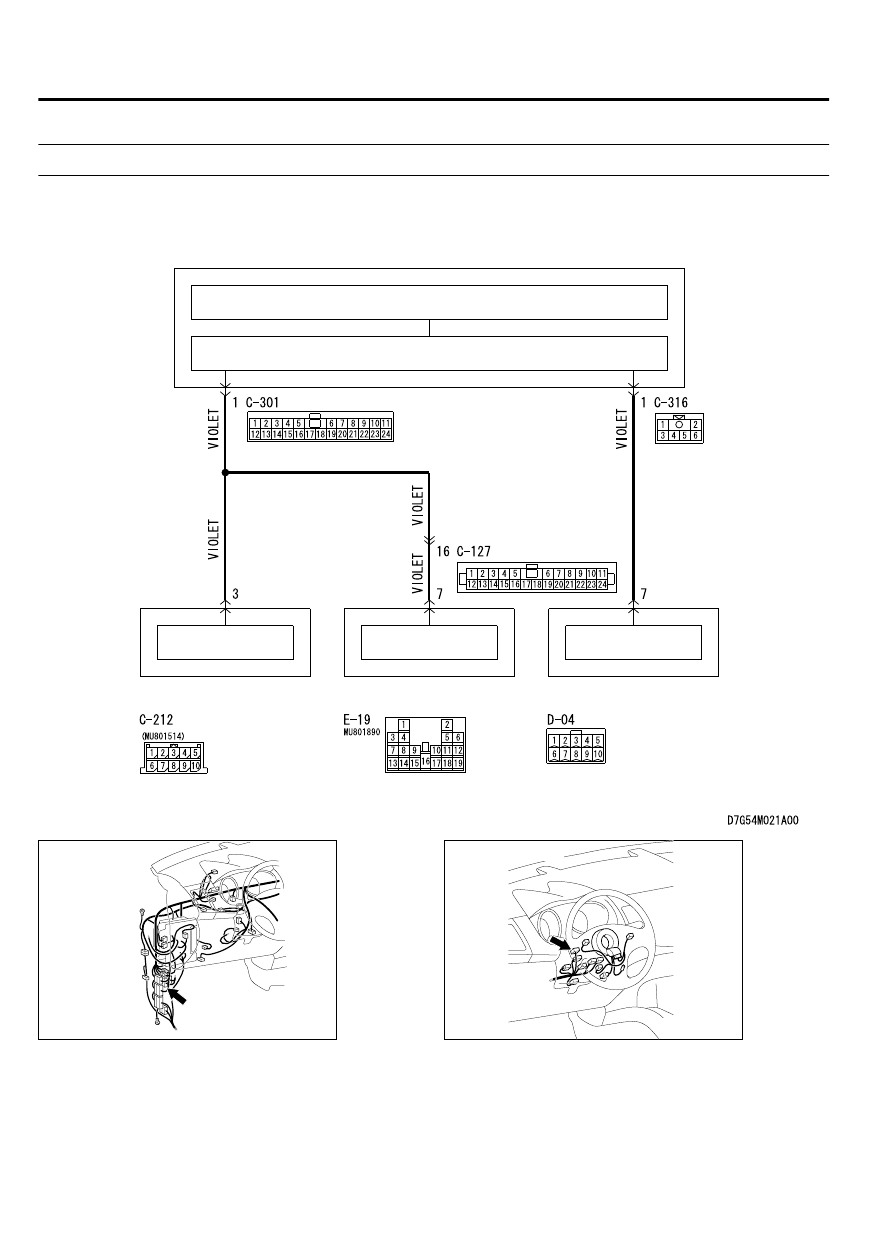

LIN Communication Circuit

INTERFACE CIRCUIT

INPUT CIRCUIT

CPU

COLUMN-ECU

COLUMN
SWITCH

POWER WINDOW
MAIN SWITCH

SUNROOF MOTOR
ASSEMBLY

LIN DRIVE CIRCUIT

ETACS-ECU

ZC6008750014

Connector: C-127

C-127 (BR)

ZC6008770001

Connector: C-212



54C-18

LOCAL INTERCONNECT NETWORK (LIN)

DIAGNOSIS

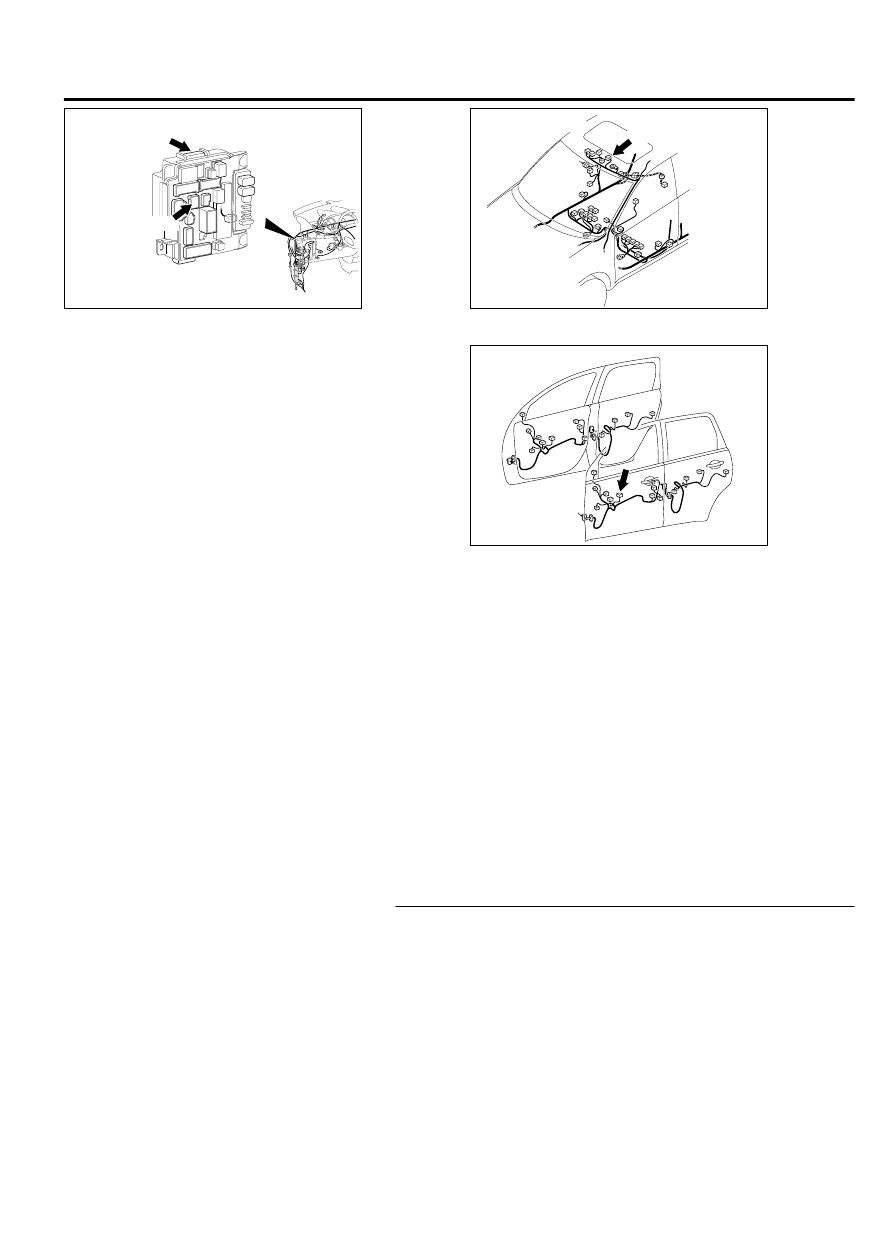

ZC6008780005

Connectors: C-301, C-316

C-301

C-316

ZC6008790002

Connector: D-04

D-04 (GR)



ZC6008810000

Connector: E-19



TROUBLE JUDGMENT
The  ETACS-ECU  will  set  DTC  U1515  when  no
communication has been carried out for more than a
certain period after the slave task received last valid
data.

TROUBLESHOOTING HINTS

｠

The ETACS-ECU may be defective.

｠

The slave ECU may be defective.

｠

LIN bus lines shorted to power supply

｠

LIN bus lines shorted to ground

DIAGNOSIS

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check the following connectors.
Check the following connectors:

｠

Column switch connector C-212

｠

ETACS-ECU connectors C-301 and C-316

｠

Sunroof motor assembly connector D-04

｠

Power window main switch connector E-19

Q:Are all the connectors in good condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

LOCAL INTERCONNECT NETWORK (LIN)

54C-19

DIAGNOSIS

STEP 2. Check the following wiring harness.
Check the wiring harness between the following connectors:

｠

Wiring harness from ETACS-ECU connector C-301 (terminal
1) to column switch connector C-212 (terminal 3)

｠

Wiring harness from ETACS-ECU connector C-301 (terminal
1) to power window main switch connector E-19 (terminal 7)

｠

Wiring harness from ETACS-ECU connector C-316 (terminal
1) to sunroof motor assembly connector D-04 (terminal 7)

NOTE:

Also check intermediate connector C-127 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-127 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Are all the wiring harness wires in good condition?

YES:

 Go to Step 3.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 3. Measure the voltage at the LIN bus lines.
Check the LIN bus lines for short to power supply.

(1)

Disconnect all the connectors which are connecter to the LIN
bus lines.

(2)

Turn the ignition switch from "LOCK" (OFF) to "ON" position .

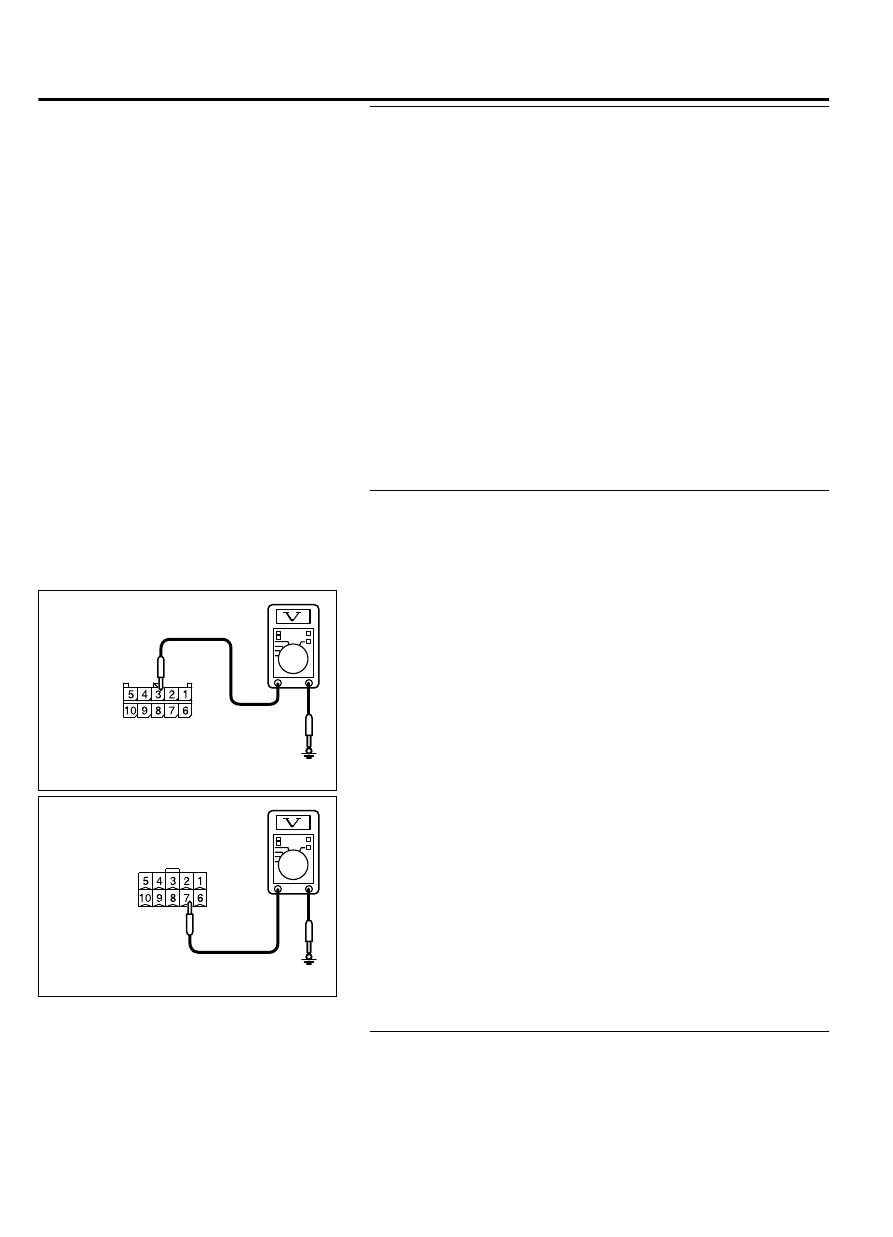

ZC5010400024

Connector C-212
(Harness side)

(3)

Measure  the  voltage  between  column  switch  connector
C-212 (terminal 3) and ground.

｠

The voltmeter needle does not swing.

NOTE:

If the LIN bus lines are short to power supply,

the voltmeter indicates a constant value.

ZC5010400025

Connector D-04
(Harness side)

(4)

Measure  the  voltage  between  sunroof  motor  assembly
connector D-04 (terminal 7) and ground.

｠

The voltmeter needle does not swing.

NOTE:

If the LIN bus lines are short to power supply,

the voltmeter indicates a constant value.

Q:Is the check result normal?

YES:

 Go to Step 4.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 4. Measure the resistance at the LIN bus lines.
Check the LIN bus lines for short to ground.

(1)

Disconnect all the connectors which are connecter to the LIN
bus lines.

54C-20

LOCAL INTERCONNECT NETWORK (LIN)

DIAGNOSIS
