Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-127  (terminal  2,  8)  and  rear  door  speaker  (RH)

connector E-24 (terminal 1, 2) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 19. Check rear door speaker (LH) connector E-10 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  rear  door  speaker  (LH)  connector  E-10  in  good

condition?

YES:

 Go to Step 20.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

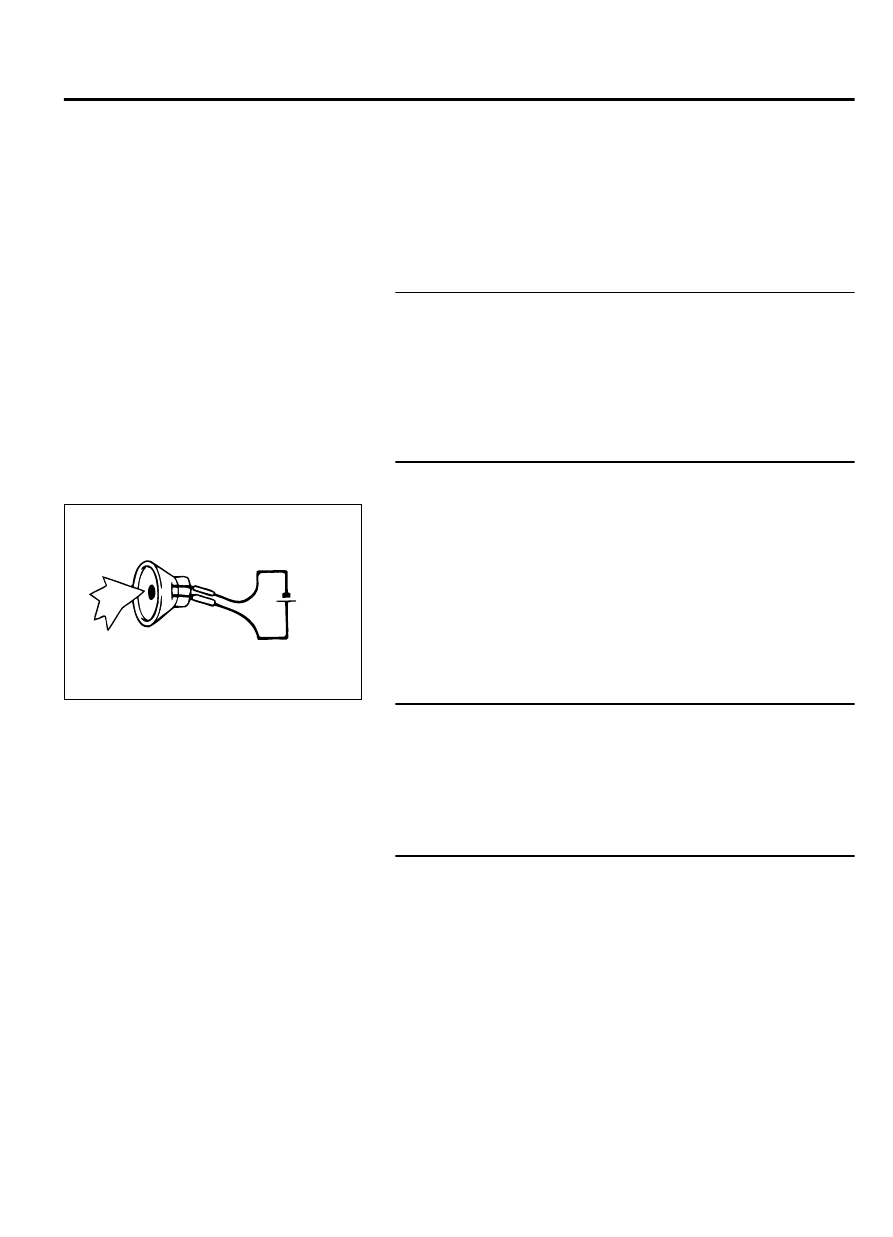

STEP 20. Check the rear door speaker (LH).

(1)

Remove the rear door speaker (LH). Refer to P.54B-170.

ZC3064660000

5 volts

(2)

Check  that  the  rear  door  speaker  (LH)  outputs  the  noise
when  five  volts  are  applied  to  the  rear  door  speaker  (LH)
connector terminal.

Q:Does the rear door speaker (LH) output the noise?

YES:

 Go to Step 21.

NO:

 Replace the rear door speaker (LH).

STEP 21. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-127 in good condition?

YES:

 Go to Step 22.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 22. Check the wiring harness between audio amplifier
connector D-127 (terminal 1, 7) and rear door speaker (LH)
connector E-10 (terminal 1, 2).

NOTE:

Also check intermediate connector D-21 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector D-21 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-127  (terminal  1,  7)  and  rear  door  speaker  (LH)

connector E-10 (terminal 1, 2) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

AUDIO AND NAVIGATION SYSTEM

54B-105

DIAGNOSIS

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 23. Check tweeter (RH) connector E-02 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is tweeter (RH) connector E-02 in good condition?

YES:

 Go to Step 24.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

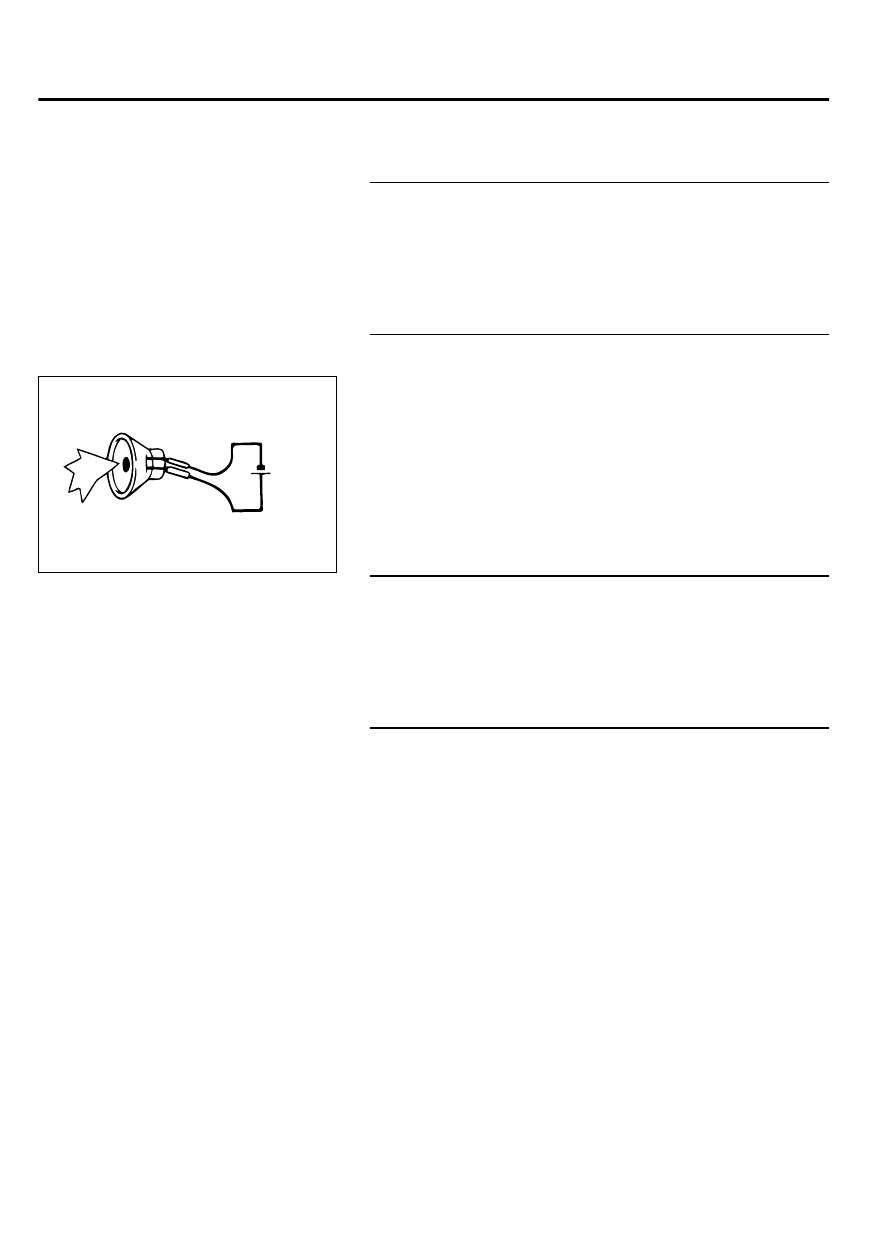

STEP 24. Check the tweeter (RH).

(1)

Remove the tweeter (RH). Refer to P.54B-170.

ZC3064660000

5 volts

(2)

Check that the tweeter (RH) outputs the noise when five volts
are applied to the tweeter (RH) connector terminal.

Q:Does the tweeter (RH) output the noise?

YES:

 Go to Step 25.

NO:

 Replace the tweeter (RH).

STEP 25. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-127 in good condition?

YES:

 Go to Step 26.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 26. Check the wiring harness between audio amplifier
connector D-127 (terminal 5, 13) and tweeter (RH) connector
E-02 (terminal 2, 1).

NOTE:

Also check intermediate connectors C-22 and C-113 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-22 or
C-113 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-127  (terminal  5,  13)  and  tweeter  (RH)  connector  E-02

(terminal 2, 1) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

54B-106

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS

STEP 27. Check tweeter (LH) connector E-14 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is tweeter (LH) connector E-14 in good condition?

YES:

 Go to Step 28.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

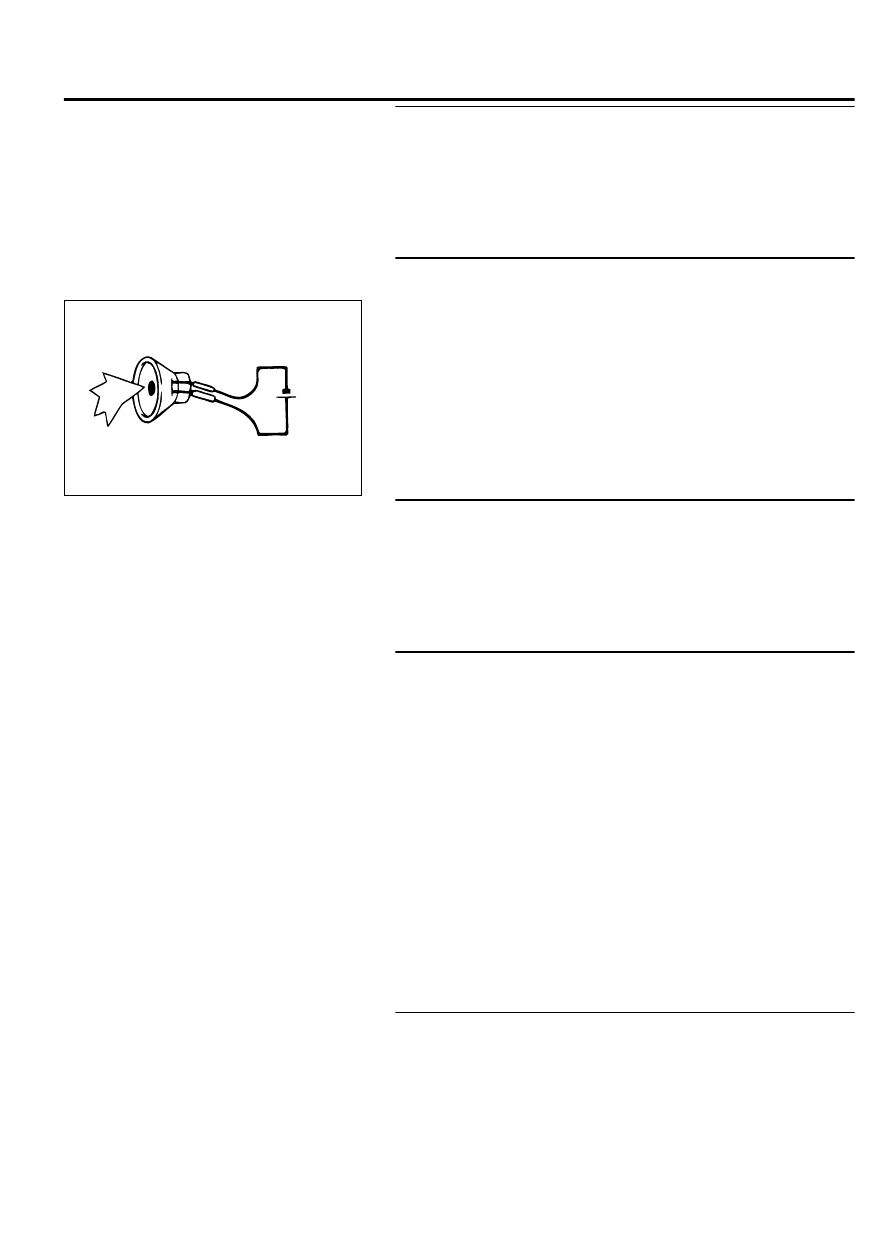

STEP 28. Check the tweeter (LH).

(1)

Remove the tweeter (LH). Refer to P.54B-170.

ZC3064660000

5 volts

(2)

Check that the tweeter (LH) outputs the noise when five volts
are applied to the tweeter (LH) connector terminal.

Q:Does the tweeter (LH) output the noise?

YES:

 Go to Step 29.

NO:

 Replace the tweeter (LH).

STEP 29. Check audio amplifier connector D-127 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-127 in good condition?

YES:

 Go to Step 30.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 30. Check the wiring harness between audio amplifier
connector D-127 (terminal 6, 14) and tweeter (LH) connector
E-14 (terminal 2, 1).

NOTE:

Also check intermediate connectors C-22 and C-113 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-22 or
C-113 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection P.
00E-2.

Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-127  (terminal  6,  14)  and  tweeter  (LH)  connector  E-14

(terminal 2, 1) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 31. Check subwoofer connector D-15 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is subwoofer connector D-15 in good condition?

AUDIO AND NAVIGATION SYSTEM

54B-107

DIAGNOSIS

YES:

 Go to Step 32.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

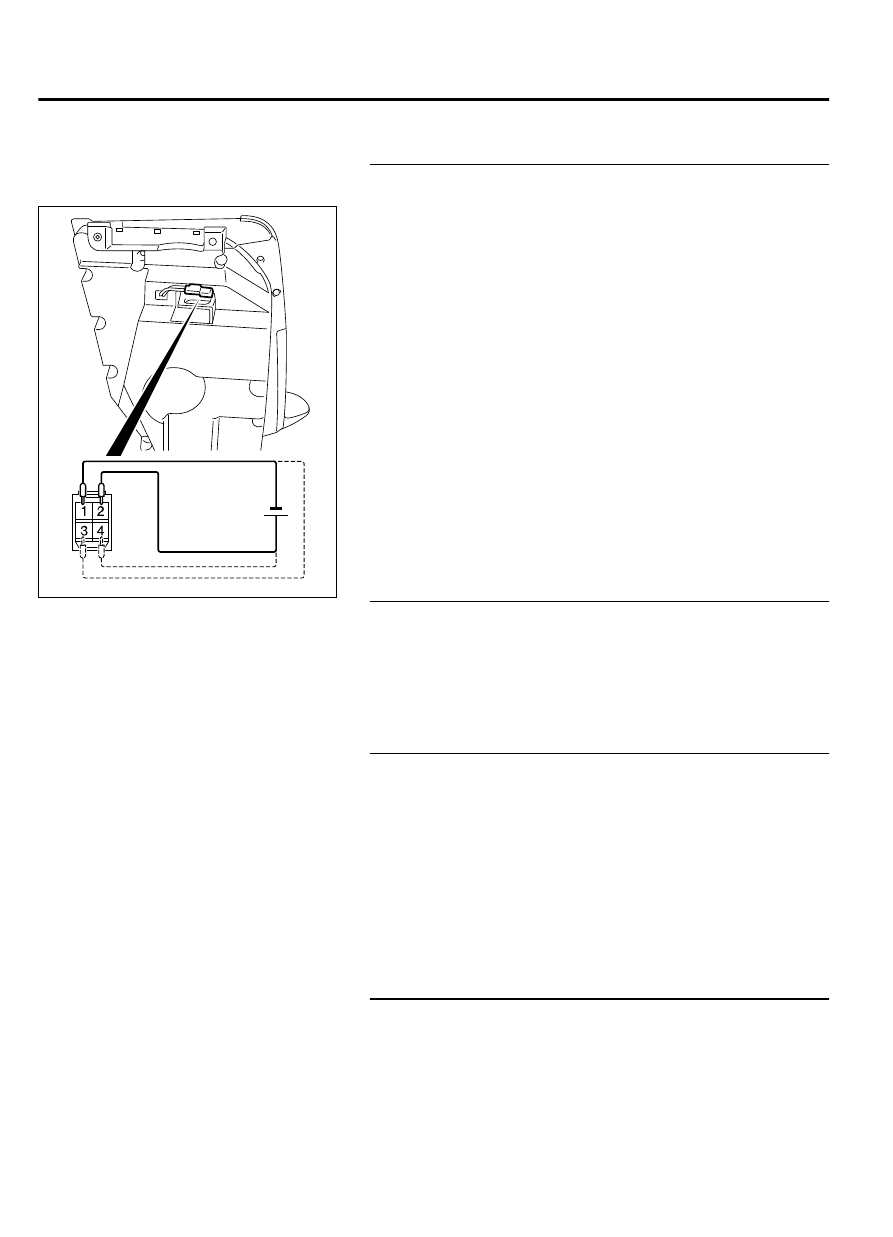

STEP 32. Check the Subwoofer.

(1)

Remove the subwoofer. Refer to P.54B-170.

ZC3061380000

5 volts

(2)

Check that the subwoofer outputs the noise when five volts
are applied to the subwoofer connector terminal.

Q:Does the subwoofer output the noise?

YES:

 Go to Step 33.

NO:

 Replace the subwoofer.

STEP 33. Check audio amplifier connector D-126 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is audio amplifier connector D-126 in good condition?

YES:

 Go to Step 34.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2.

STEP 34. Check the wiring harness between audio amplifier
connector D-126 (terminal 21, 22, 29, 30) and subwoofer
connector D-15 (terminal 4, 2, 3, 1).

Check the communication lines for open circuit.

Q:Is the wiring harness between audio amplifier connector

D-126 (terminal 21, 22, 29, 30) and subwoofer connector

D-15 (terminal 4, 2, 3, 1) in good condition?

YES:

 Check the trouble symptom, and go to Step 35.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary.

STEP 35. Replace the audio amplifier temporarily, and
check the trouble symptom.
Replace  the  audio  amplifier  temporarily,  and  check  that  the
sound is output from the speaker.

Q:Is the check result normal?

54B-108

AUDIO AND NAVIGATION SYSTEM

DIAGNOSIS
