Mitsubishi Outlander XL. Manual - part 105

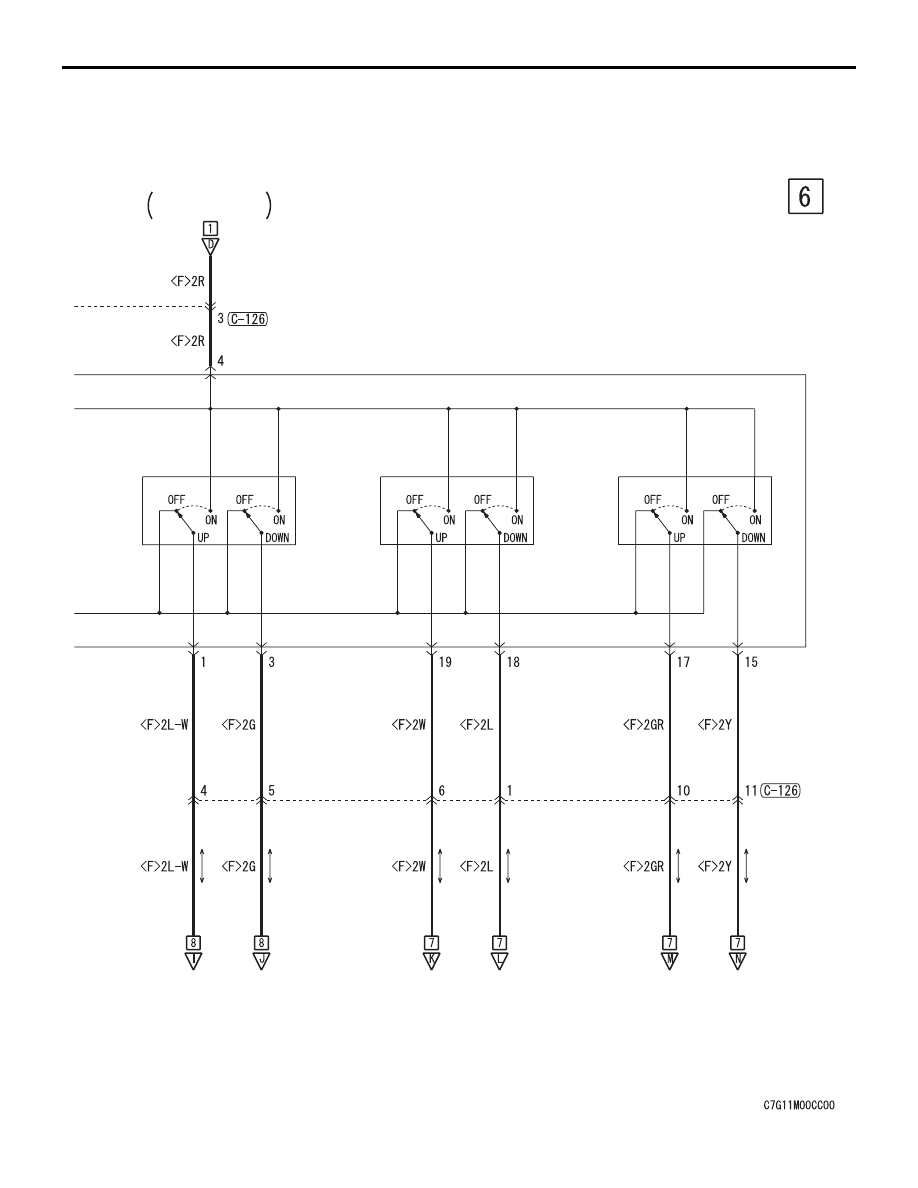

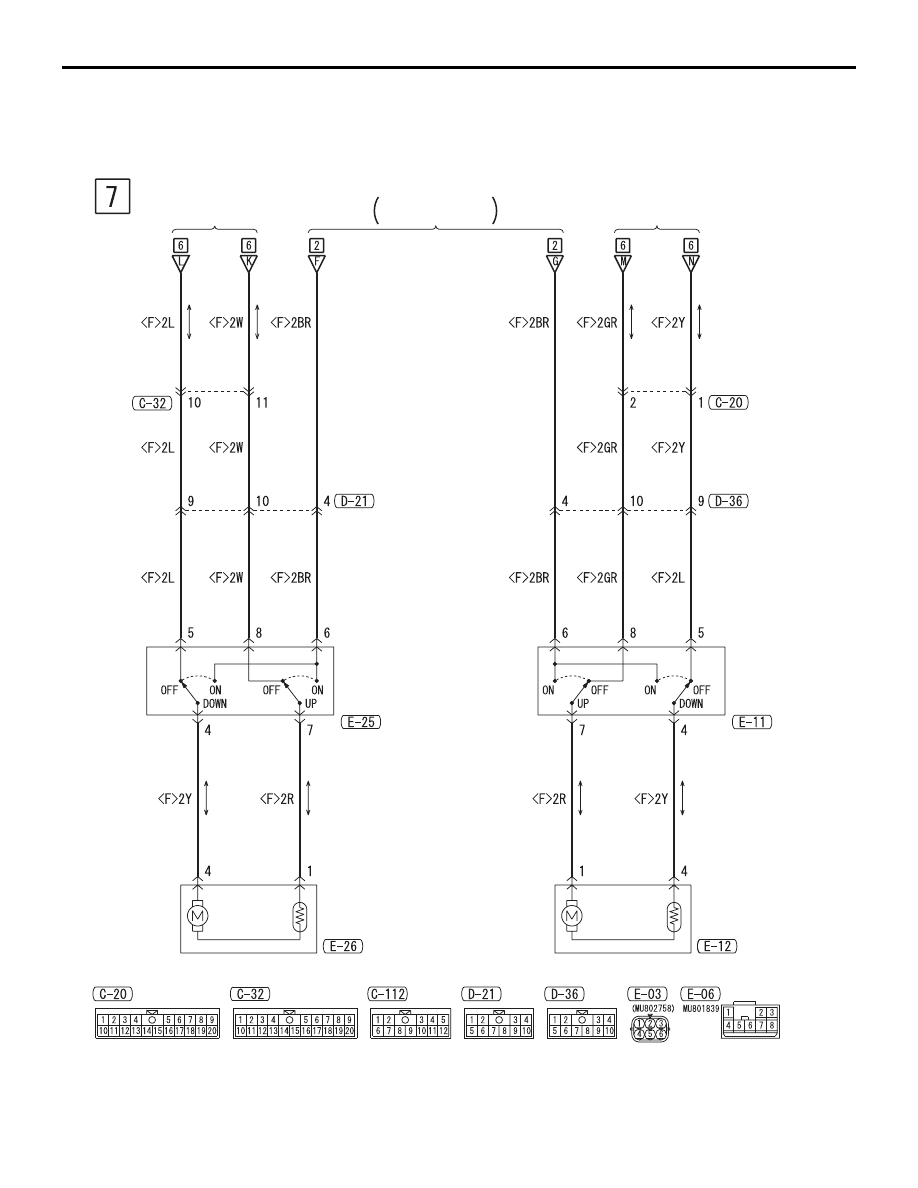

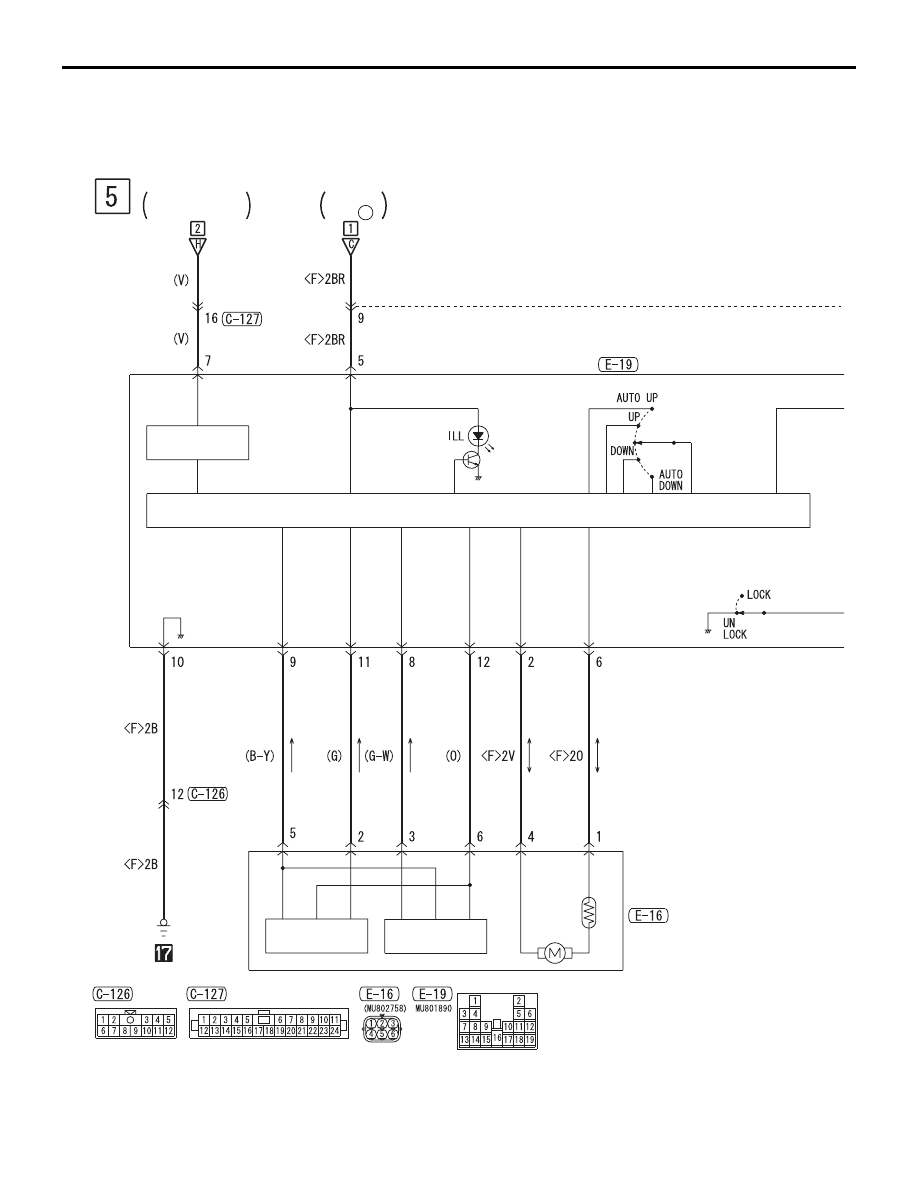

POWER WINDOWS

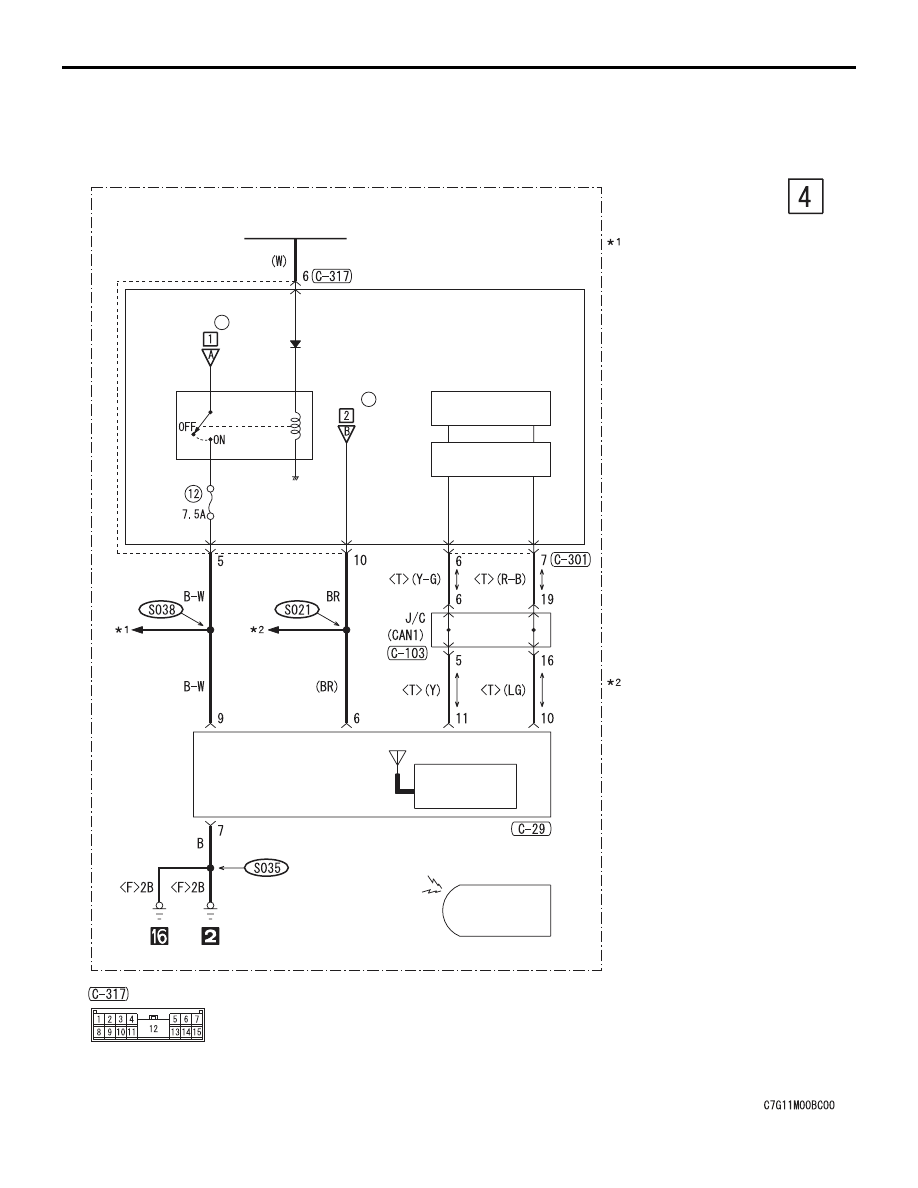

CIRCUIT DIAGRAMS
90-117
KEYLESS
ENTRY
RECEIVER
KEYLESS
ENTRY
TRANSMITTER
WIRELESS CONTROL MODULE
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE
IGNITION
SWITCH (IG1)
ETACS-ECU
INTERFACE
CIRCUIT
CAN DRIVE
CIRCUIT
FUSIBLE
LINK
34
8
FUSE
IG1
RELAY
<VEHICLES WITHOUT KOS>
: ·AIR CONDITIONING SYSTEM
·BRAKE WARNING LIGHT
·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·FOG LIGHT
·FUEL WARNING LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER TONE ALARM
·METER AND GAUGE
·OIL PRESSURE WARNING LIGHT
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·TAILLIGHT, POSITION LIGHT, LICENSE
PLATE LIGHT AND LIGHTING MONITOR
TONE ALARM
·TURN-SIGNAL LIGHT AND HAZARD
WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
AND ACTIVE SKID CONTROL SYSTEM
(ASC)
·AUTO-CRUISE CONTROL SYSTEM
·BRAKE WARNING LIGHT
·CHARGING SYSTEM
·CONTROLLER AREA NETWORK (CAN)
·DAYTIME RUNNING LIGHT
·DOOR AJAR WARNING TONE ALARM
·ELECTRIC CONTROLLED AWD
·FOG LIGHT
·FUEL WARNING LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEADLIGHT AUTOMATIC LEVELING
SYSTEM
·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE ALARM
·INVECS-II 6A/T
·METER AND GAUGE
·MFI SYSTEM
·OIL PRESSURE WARNING LIGHT
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT SYSTEM
(SRS)
·TAILLIGHT, POSITION LIGHT, LICENSE
PLATE LIGHT AND LIGHTING MONITOR
TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING SYSTEM
(TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
:
NOTE
