Inspection Procedure 4: ETACS-ECU does not receive any signal from the front door
lock actuator.

M15410600081USA0000010000

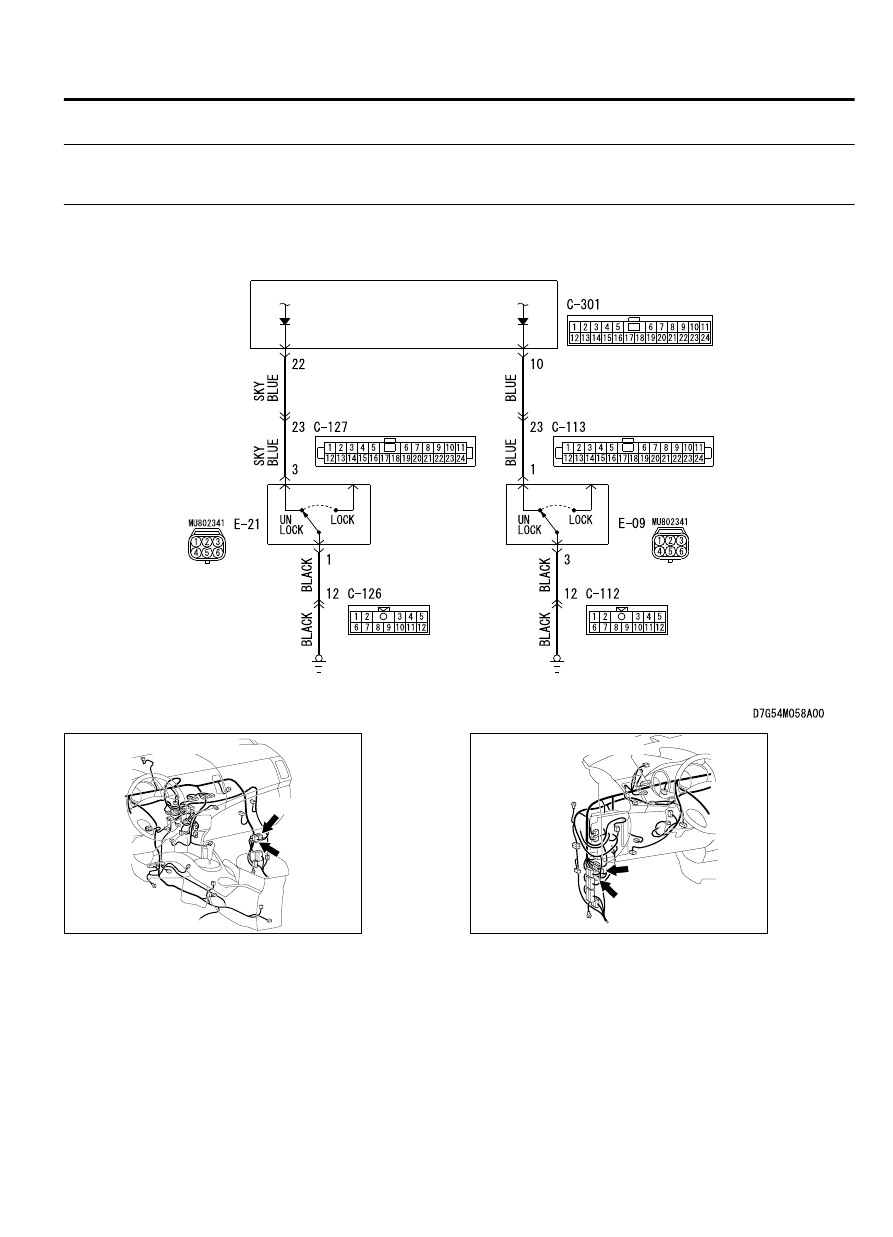

Door Look Actuator Input Circuit

FRONT DOOR
LOCK ACTUATOR (LH)

FRONT DOOR
LOCK ACTUATOR (RH)

ETACS-ECU

ZC6008760022

Connectors: C-112, C-113

C-112

C-113 (BR)

ZC6008750016

Connectors: C-126, C-127

C-127 (BR)

C-126

ETACS

54Ad-67

DIAGNOSIS

ZC6008780000

Connector: C-301

ZC6008810005

Connectors: E-09, E-21

E-09 (B)

E-21 (B)

COMMENTS ON TROUBLE SYMPTOM
The  front  door  lock  actuator  (LH)  or  front  door  lock
actuator  (RH)  <vehicles  with  KOS>  input  signal  is
used  for  the  operation  judgment  of  the  functions
below. If the signal is abnormal, these functions will
not work normally.

Key reminder function

Central door locking

KOS

Keyless entry system

Interior light

PROBABLE CAUSES

The front door lock actuator (LH) may be defective

The front door lock actuator (RH) may be defective
<vehicles with KOS>

The ETACS-ECU may be defective

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

MB991223: Harness Set

MB992006: Extra Fine Probe

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

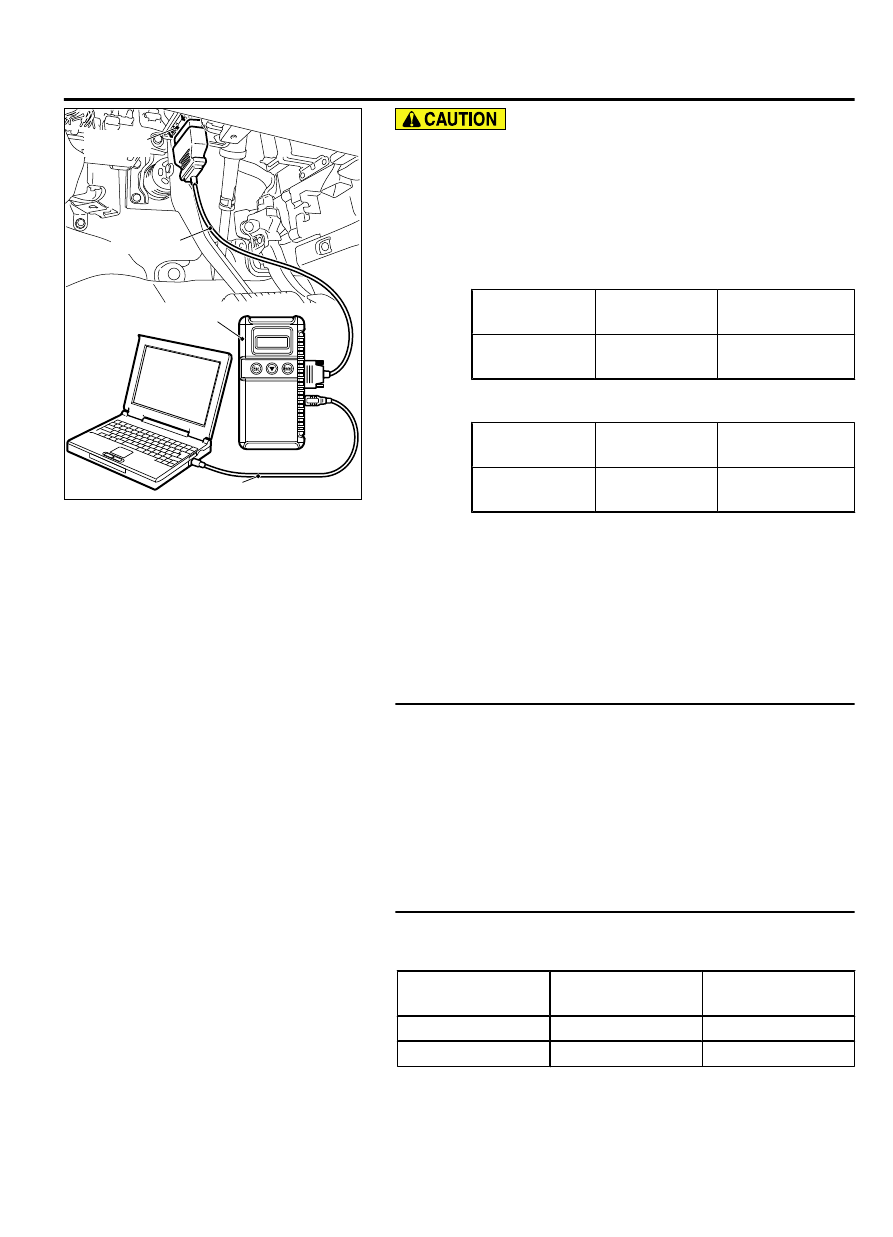

STEP 1. Using scan tool MB991958, check data list.
Check the input signals from the front door lock actuators.

54Ad-68

ETACS

DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check the ETACS data list.

Set the driver's door to "UNLOCK."

Item No.

Item name

Normal
condition

Item 271

Dr  door  unlock
switch

Unlock

Set  the  front  passenger's  door  to  "UNLOCK."  <vehicles
with KOS>

Item No.

Item name

Normal
condition

Item 272

As door unlock
switch

Unlock

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Are normal conditions displayed on the "Dr door unlock

switch" and "As door unlock switch"?

YES<Normal conditions are displayed for all the items>:

No action is necessary and testing is complete.

NO<Normal condition is not displayed for item No.271>:

Go to Step 2.

NO<Normal condition is not displayed for item No.272>:

Go to Step 8.

STEP 2. Check front door lock actuator (LH) connector E-21
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:Is front door lock actuator (LH) connector E-21 in good

condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the input signal of front door lock actuator (LH) is
normal.

STEP 3. Check the front door lock actuator (LH).
Disconnect front door lock actuator (LH) connector E-21. Then
check continuity between the terminals.

Lever position

Tester connection Specified

condition

UNLOCK

1 - 2

Less than 2 ohms

LOCK

1 - 2

Open circuit

Q:Is the front door lock actuator (LH) in good condition?

ETACS

54Ad-69

DIAGNOSIS

YES:

 Go to Step 4.

NO:

 Replace the front door lock actuator (LH). Check that

the input signal of front door lock actuator (LH) is
normal.

STEP 4. Check the ground circuit to the front door lock
actuator (LH). Measure the resistance at front door lock
actuator (LH) connector E-21.

(1)

Disconnect front door lock actuator (LH) connector E-21 and
measure the resistance available at the wiring harness side
of the connector.

ZC6022230005

Connector E-21
(Harness side)

(2)

Measure  the  resistance  value  between  terminal  1  and
ground.

The resistance should be 2 ohms or less.

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 6.

NO:

 Go to Step 5.

STEP 5. Check the wiring harness between front door lock
actuator (LH) connector E-21 (terminal 1) and ground.

NOTE:

Also check intermediate connector C-126 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector C-126 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection P.00E-2.

Q:Is  the  wiring  harness  between  front  door  lock  actuator

(LH)  connector  E-21  (terminal  1)  and  ground  in  good

condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the input signal of front
door lock actuator (LH) is normal.

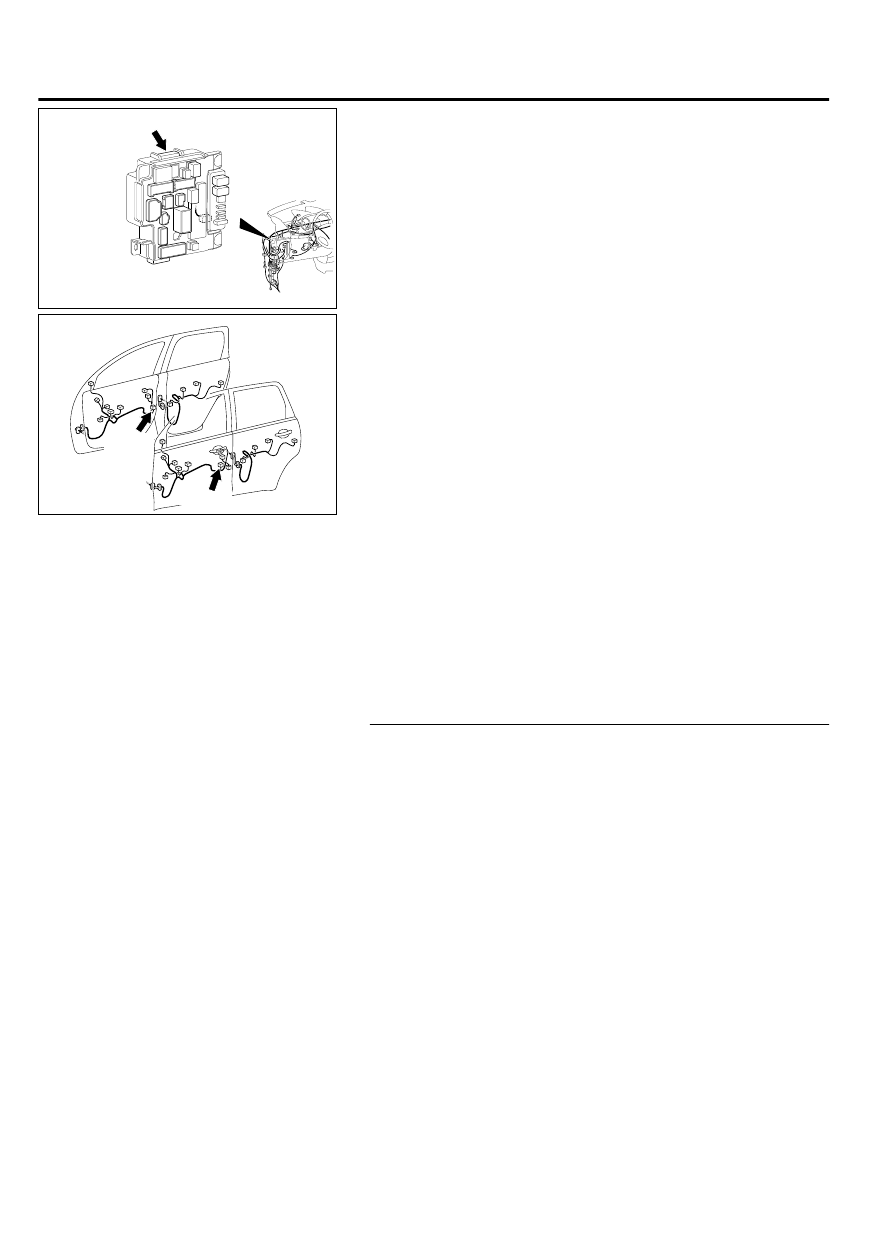

STEP 6. Check ETACS-ECU connector C-301 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-301 in good condition?

YES:

 Go to Step 7.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the input signal of front door lock actuator (LH) is
normal.

STEP 7. Check the wiring harness between front door lock
actuator (LH) connector E-21 (terminal 3) and ETACS-ECU
connector C-301 (terminal 22).

NOTE:

Also check intermediate connector C-127 for loose,

corroded, or damaged terminals, or terminals pushed back in

54Ad-70

ETACS

DIAGNOSIS
