STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the ETACS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the transaxle control module and the ETACS-ECU.
(Refer to GROUP 00, How to Cope with Intermittent
Malfunction P.00-15)

DTC U0114: AWD-ECU CAN timeout

M15410600053USA0000010000

｠

If DTC U0114 is set to the ETACS-ECU, always
diagnose the CAN bus line.

｠

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

TROUBLE JUDGMENT
If the signal from AWD-ECU cannot be received, the
ETACS-ECU sets DTC U0114.

JUDGMENT CRITERIA
After the following statuses continue to be true for 5
seconds,  if  the  communication  with  the  AWD-ECU
cannot  be  established  for  0.6  second  or  more,  the

ETACS-ECU  determines  that  a  problem  has
occurred.

｠

No abnormality is present to the network.

｠

Ignition switch is in the ON position.

｠

No abnormality is present to the power supply fuse,
or the odometer value is at 80.5 km (50.0 miles) or
more.

｠

ETACS-ECU system voltage is at 10-16 volts.

TROUBLESHOOTING HINTS

｠

The AWD-ECU may be defective.

｠

The ETACS-ECU may be defective.

｠

The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ETACS

54Ad-15

DIAGNOSIS

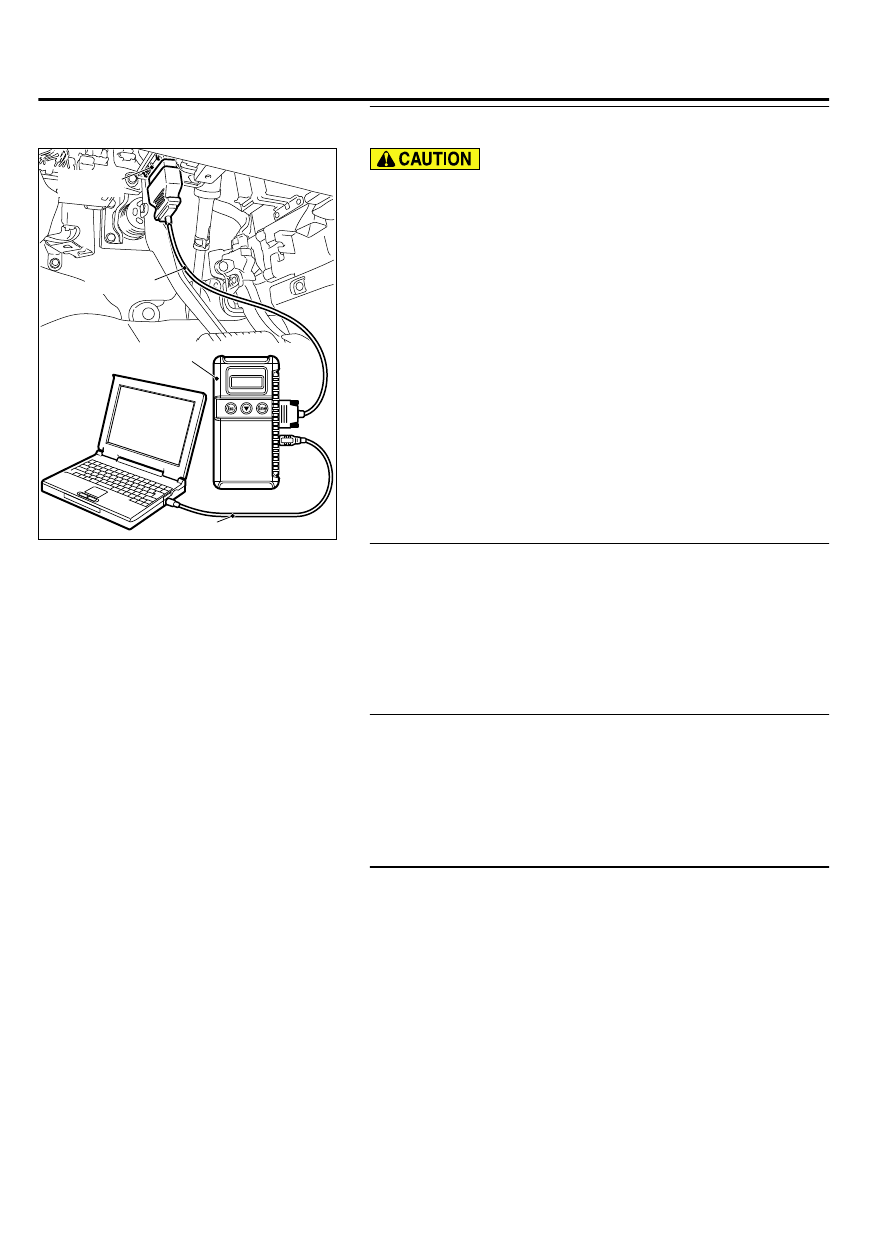

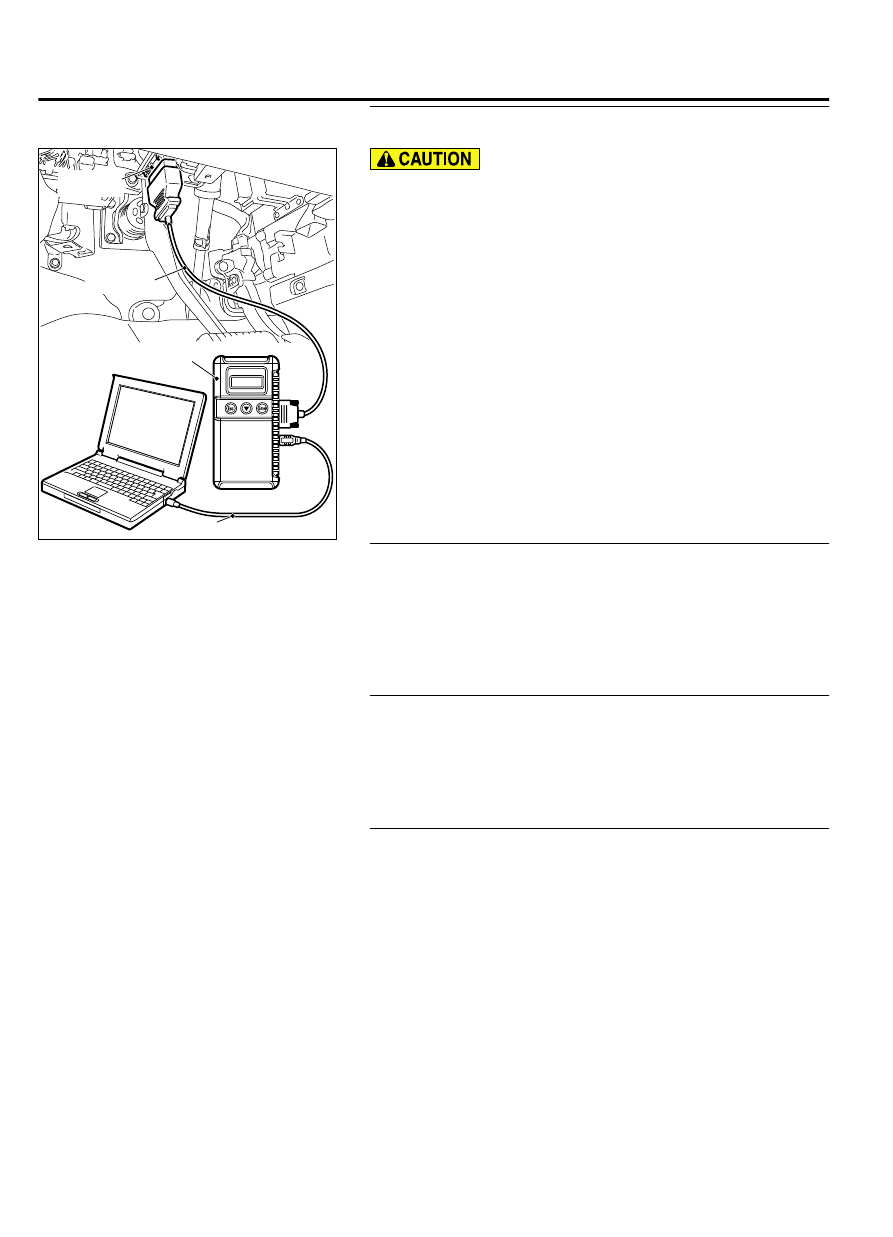

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the AWD-ECU
diagnostic trouble code
Check if DTC is set to the AWD-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the electronic control AWD. (Refer to

GROUP 27C, Troubleshooting P.27C-9.)

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if the DTC U0114 is set to the combination.

Q:Is the DTC set?

YES:

 Go to Step 4.

NO:

 Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the AWD-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the AWD-ECU and the ETACS-ECU. (Refer to GROUP 00,
How to Cope with Intermittent Malfunction P.00-15)

54Ad-16

ETACS

DIAGNOSIS

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the ETACS-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the AWD-ECU and the ETACS-ECU. (Refer to GROUP 00,
How to Cope with Intermittent Malfunction P.00-15)

DTC U0121: ABS-ECU or ASC-ECU CAN timeout

M15410600054USA0000010000

｠

If DTC U0121 is set to the ETACS-ECU, always
diagnose the CAN bus line.

｠

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

TROUBLE JUDGMENT
If the signal from ABS-ECU or ASC-ECU cannot be
received, the ETACS-ECU sets DTC U0121.

JUDGMENT CRITERIA
After the following statuses continue to be true for 5
seconds, if the communication with the ABS-ECU or
ASC-ECU  cannot  be  established  for  0.6  second  or

more,  the  ETACS-ECU  determines  that  a  problem
has occurred.

｠

No abnormality is present to the network.

｠

Ignition switch is in the ON position.

｠

No abnormality is present to the power supply fuse,
or the odometer value is at 80.5 km (50.0 miles) or
more.

｠

ETACS-ECU system voltage is at 10-16 volts.

TROUBLESHOOTING HINTS

｠

The ABS-ECU may be defective.

｠

The ASC-ECU may be defective.

｠

The ETACS-ECU may be defective.

｠

The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ETACS

54Ad-17

DIAGNOSIS

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, check for any ABS or
ASC diagnostic trouble code.
Check if DTC is set to the ABS-ECU or ASC-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the ABS or ASC. (Refer to GROUP 35B,

Diagnosis P.35B-9<ABS> or GROUP 35C, Diagnosis P.
35C-11<ASC>.)

NO:

 Go to Step 3.

STEP 3. Using scan tool MB991958, read the transaxle
control module diagnostic trouble code.
Check if the DTC U0121 is set to the transaxle control module
ECU.

Q:Is the DTC set?

YES:

 Go to Step 4.

NO:

 Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace the ABS-ECU or ASC-ECU.

NO:

 The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus lines
between the ABS-ECU or ASC-ECU and the ETACS-ECU. (Refer

54Ad-18

ETACS

DIAGNOSIS
