Mitsubishi Outlander XL. Manual - part 1020

YES<Normal conditions are displayed for all items.>:

 Go

to step 3.

NO<Normal condition is not displayed for item No.
228.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 4 "ETACS-ECU does not
receive any signal from the front door lock actuator" P.
54Ad-67.

NO<Normal condition is not displayed for item No.
254.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 4 "ETACS-ECU does not
receive any signal from the ignition switch (IG1)" P.
54Ad-62.

NO<Normal condition is not displayed for item No.
256.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 5 "ETACS-ECU does not
receive any signal from the front door switch (LH)" P.
54Ad-73.

NO<Normal condition is not displayed for item No.
257.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 6 "ETACS-ECU does not
receive any signal from the front door switch (RH)" P.
54Ad-75.

NO<Normal condition is not displayed for item No.
258.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 7 "ETACS-ECU does not
receive any signal from the rear door switch (LH)" P.
54Ad-77.

NO<Normal condition is not displayed for item No.
259.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 8 "ETACS-ECU does not
receive any signal from the rear door switch (RH)" P.
54Ad-80.

NO<Normal condition is not displayed for item No.
260.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 9 "ETACS-ECU does not
receive any signal from the liftgate switch" P.
54Ad-82.

NO<Normal condition is not displayed for item No.
264.>:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 3 "ETACS-ECU does not
receive any signal from the key reminder switch" P.
54Ad-64.

STEP 3. Check luggage compartment light connector F-02
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:Is  luggage  compartment  light  connector  F-02  in  good

condition?

YES:

 Go to Step 4.

NO:

 Repair the damaged parts.

STEP 4. Luggage compartment light bulb check
Check that the luggage compartment light bulb is normal.

LIGHTING

54Ac-153

DIAGNOSIS

Q:Does luggage compartment light work normal?

YES:

 Go to Step 5.

NO:

 Replace the luggage compartment light bulb.

STEP 5. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connectors C-311 in good condition?

YES:

 Go to Step 6.

NO:

 Repair the damaged parts.

STEP 6. Check the wiring harness between luggage
compartment light connector F-02 (terminal No. 2/1) and
ETACS-ECU connector C-311 (terminal No. 3/17).

NOTE:

Prior to the wiring harness inspection, check

intermediate connector D-12, and repair if necessary.

Q:Is  wiring  harness  between  luggage  compartment  light

connector  F-02  (terminal  No.  2/1)  and  ETACS-ECU

connector C-311 (terminal No. 3/17) in good condition?

YES:

 Go to Step 7.

NO:

 Repair the wiring harness.

STEP 7. Retest the system
Check  that  the  luggage  compartment  light  illuminates/
extinguishes normally.

Q:Do the luggage compartment work normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the ETACS-ECU.

54Ac-154

LIGHTING

DIAGNOSIS

Inspection Procedure 4: The foot light does not illuminate normally.

M15410900174USA0000010000

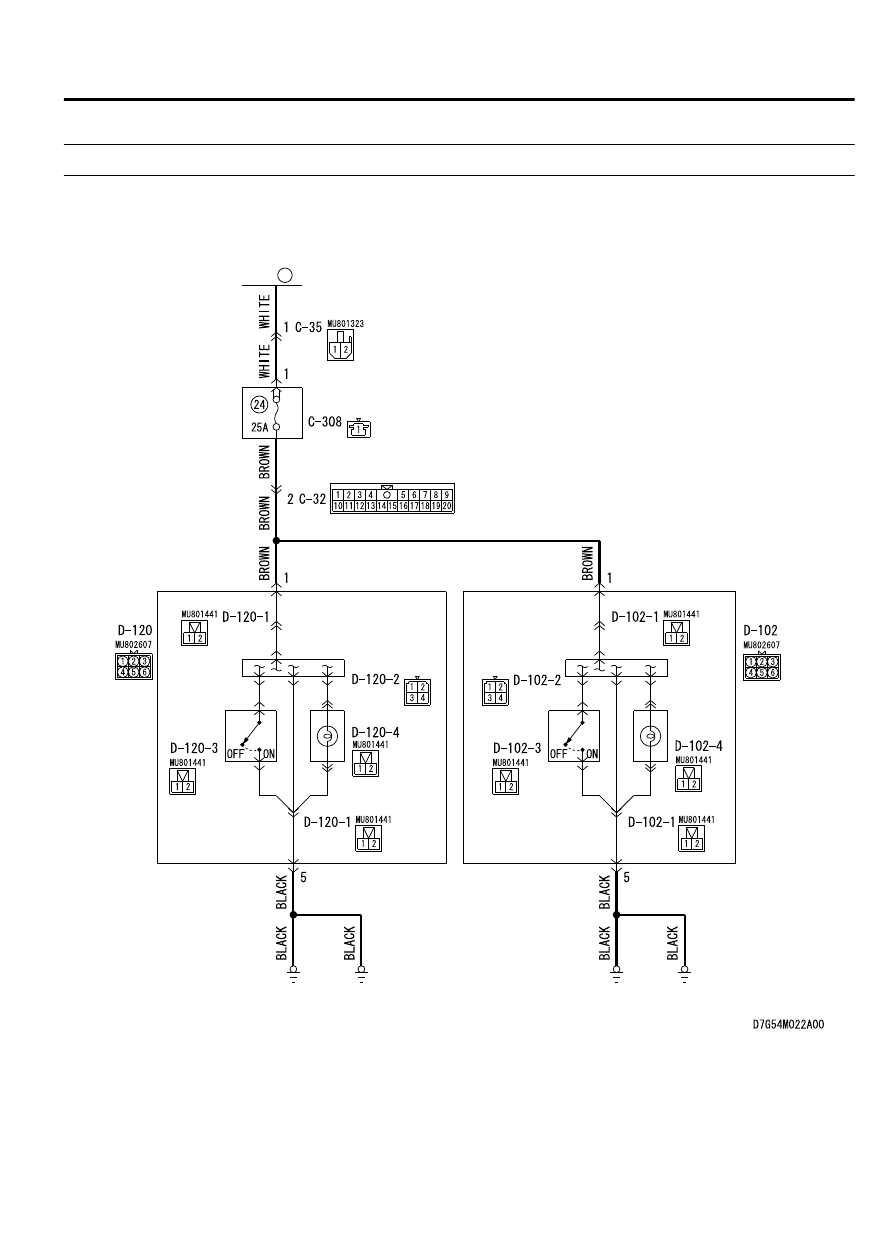

Foot Light Circuit

FUSIBLE
LINK

34

RELAY
BOX

FOOT
LIGHT (LH)

FOOT
LIGHT (RH)

LIMIT
SWITCH

LIMIT
SWITCH

FOOT LIGHT

FOOT
LIGHT

TIMER RELAY

TIMER RELAY

LIGHTING

54Ac-155

DIAGNOSIS

ZC6008800022

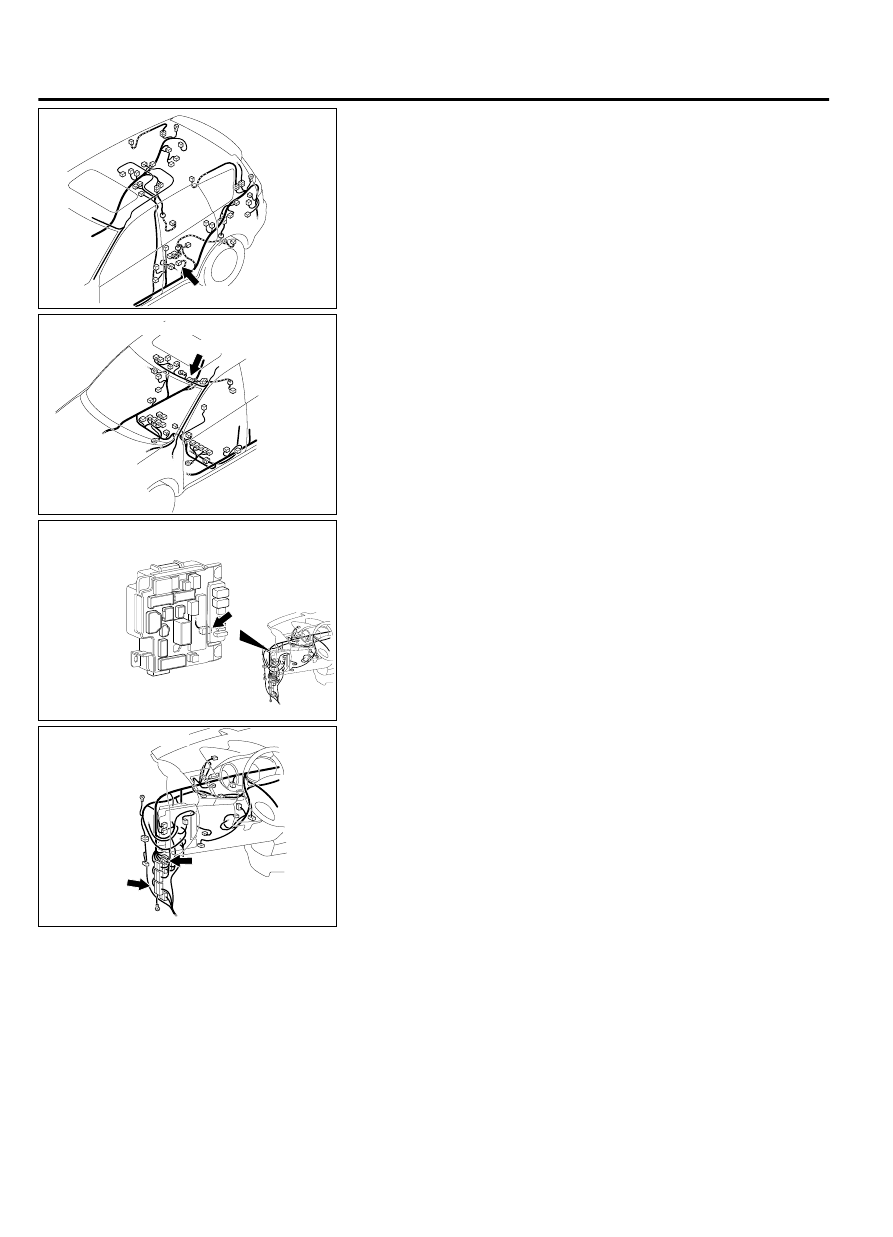

Connector: D-120

D-120 (B)

ZC6008790024

Connector: D-102

D-102 (B)

ZC6008780027

Connector: C-308

C-308 (GR)

ZC6008750012

C-35

Connector: C-32, C-35

C-32

TROUBLE JUDGMENT
If the foot light does not illuminate normally, the power
supply circuit(s), ground circuit, or under cover rear
may have a problem.

TROUBLESHOOTING HINTS

｠

Malfunction of under cover rear

｠

Damaged harness wires and connectors

DIAGNOSIS

54Ac-156

LIGHTING

DIAGNOSIS
