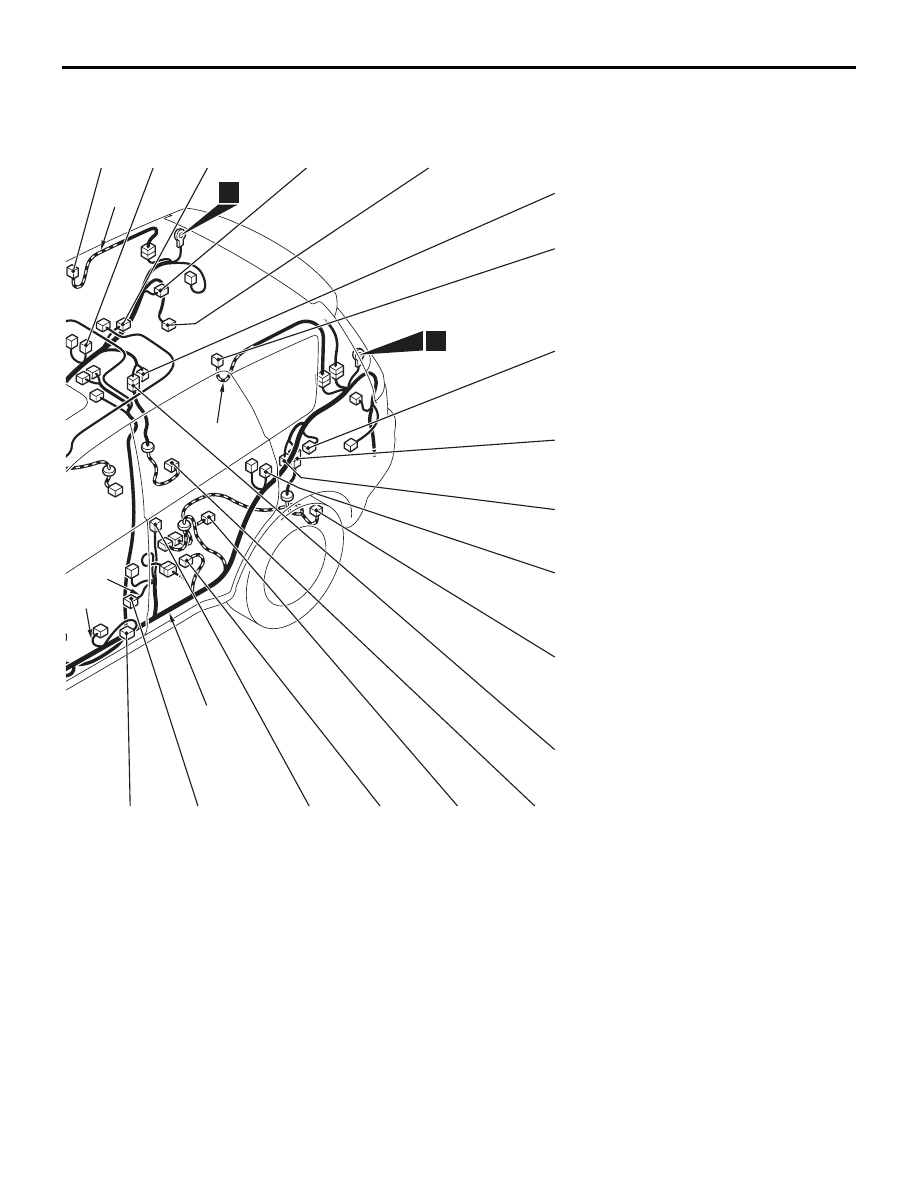

FLOOR AND ROOF

CONFIGURATION DIAGRAMS

80A-19

ZC600328

ZC6003280001

8

10

D-104

D-132

D-105

D-106

D-108

D-133

D-109

D-112

D-113

D-114

D-115

D-116

D-117

D-118

D-119

D-120

D-131

D-121

D-122

Y

Y

Y

Y

Floor
wiring
harness

D-118 (3)

Rear height sensor <Headlight
automatic leveling system>

D-119 (2)

Electronic control coupling solenoid
<AWD>

D-120 (6-B)

Foot light (LH)

D-121 (2-B)

Seat belt pre-tensioner (LH)

D-122 (4-Y)

Side impact sensor (Front: LH)

D-123 (24)

Instrument panel wiring harness and
rear display wiring harness
combination

D-124 (3)

Inside transmission antenna assembly
(Front)

D-125 (1-B)

Parking brake switch

D-126 (18)

Audio amplifier

D-127 (14)

Audio amplifier

D-128 (12)

AC inverter

D-129 (4-Y)

Side impact sensor (Front: RH)

D-130 (2-B)

Seat belt pre-tensioner (RH)

D-131 (3)

Outside transmission antenna
assembly (Driver's side)

D-132 (4-Y)

Side impact sensor (Rear: RH)

D-133 (2-B)

Rear wheel speed sensor (RH)

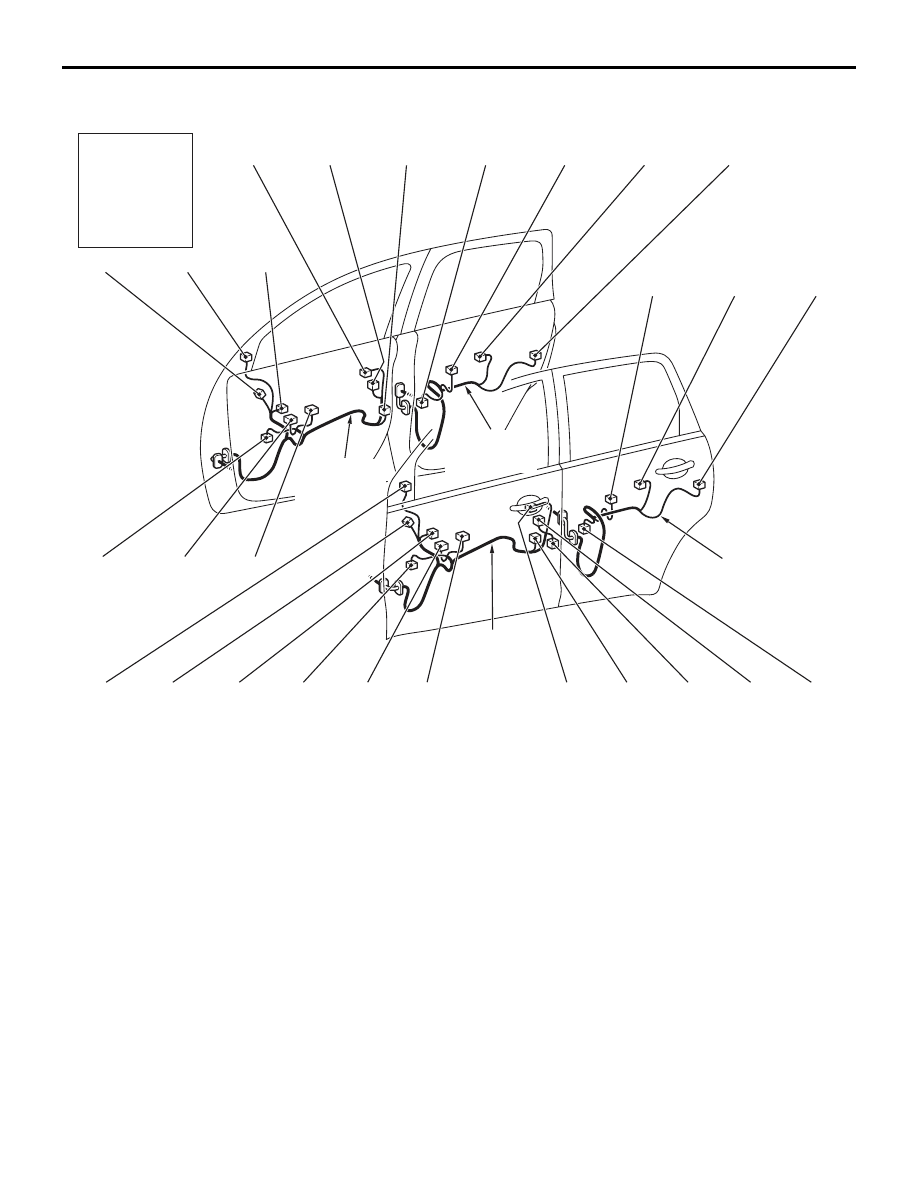

DOOR

CONFIGURATION DIAGRAMS

80A-20

DOOR

ZC6003290000

Connector
symbol

E

E-07

E-08

E-09

E-10

E-11

E-12

E-13

E-25

E-26

E-27

E-01

E-02

E-03

E-04

E-05

E-06

E-14

E-15

E-16

E-17

E-18

E-19

E-20

E-21

E-22

E-23

E-24

Front door
wiring harness
(LH)

Rear door
wiring harness
(LH)

Front door
wiring harness
(RH)

Rear door
wiring harness
(RH)

E-01

(7)

Door mirror assembly (RH)

E-02

(2-B)

Tweeter (RH)

E-03

(6-GR)

Front power window motor (RH)

E-04

(2)

Front door speaker (RH)

E-05

(4)

Front power window sub switch

E-06

(8)

Front power window sub switch

E-07

(6)

Unlock sensor (Front door: RH)

E-08

(2-GR)

Lock switch (Front door: RH)

E-09

(6-B)

Front door lock actuator (RH)

E-10

(2)

Rear door speaker (RH)

E-11

(8)

Rear power window sub switch (RH)

E-12

(6-GR)

Rear power window motor (RH)

E-13

(6-B)

Rear door lock actuator (RH)

E-14

(2-B)

Tweeter (LH)

E-15

(7)

Door mirror assembly (LH)

E-16

(6-GR)

Front power window motor (LH)

E-17

(2)

Front door speaker (LH)

E-18

(11-L)

Remote controlled mirror switch

E-19

(19)

Power window main switch

E-20

(6)

Unlock sensor (Front door: LH)

E-21

(6-B)

Front door lock actuator (LH)

E-22

(3-B)

Door lock key cylinder switch

E-23

(2-GR)

Lock switch (Front door: LH)

E-24

(2)

Rear door speaker (LH)

E-25

(8)

Rear power window sub switch (LH)

E-26

(6-GR)

Rear power window motor (LH)

E-27

(6-B)

Rear door lock actuator (LH)

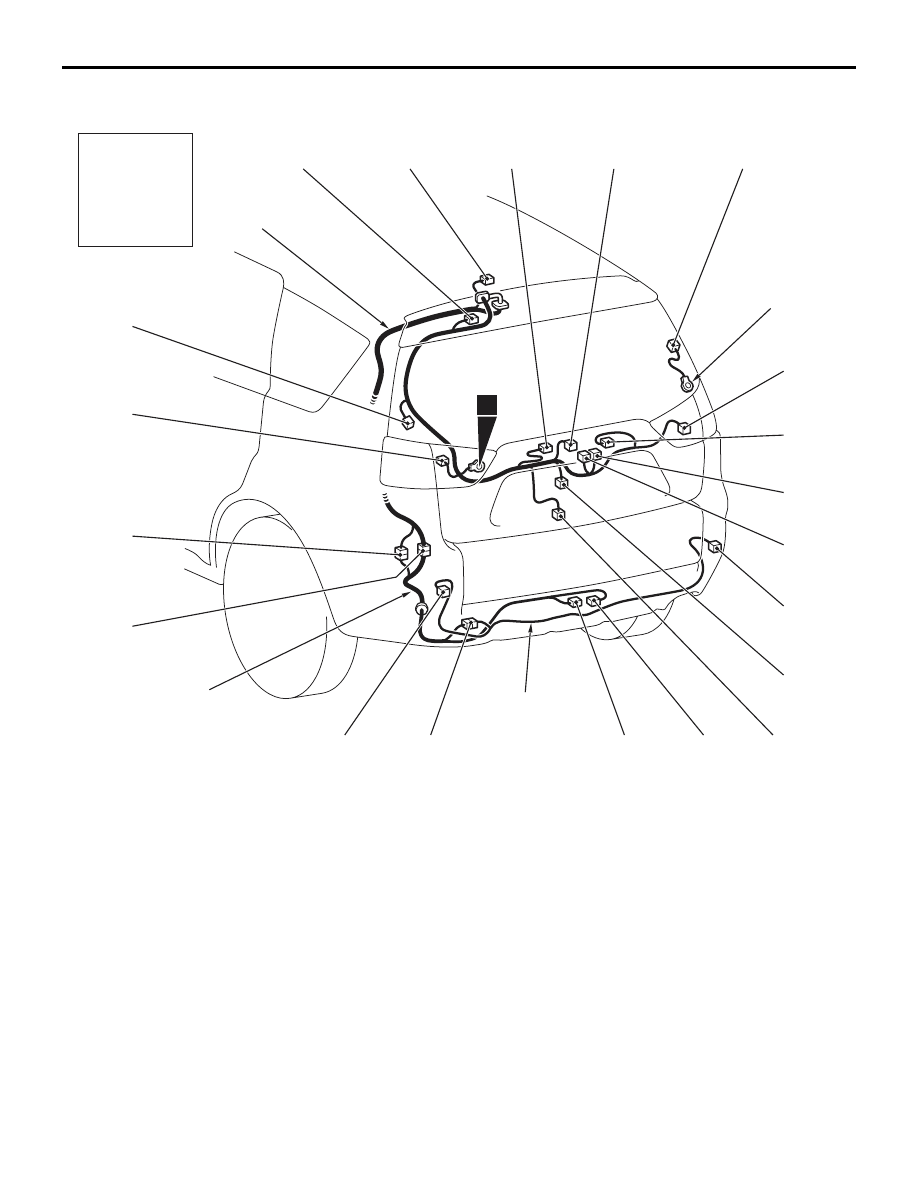

LIFTGATE

CONFIGURATION DIAGRAMS

80A-21

LIFTGATE

ZC6003300000

Connector
symbol

F

F-01

F-02

F-03

F-04

F-05

F-06

F-07

F-08

F-09

F-10

F-11

F-13

F-12

F-14

F-15

F-16

F-17

F-18

F-19

F-20

Liftgate
wiring harness

Rear window
defogger
grounding

Rear bumper
wiring harness

Rear end
wiring harness

9

F-01

(2)

High-mounted stoplight

F-02

(2-GR)

Luggage compartment light

F-03

(2)

License plate light (LH)

F-04

(4)

Rear wiper motor

F-05

(1-B)

Rear window defogger (

−)

F-06

(2)

Backup light (RH)

F-07

(2)

License plate light (RH)

F-08

(2)

Lock switch (Liftgate)

F-09

(2)

Liftgate lock release handle

F-10

(2)

Rear side marker light (RH)

F-11

(2-B)

Liftgate lock actuator

F-12

(1-B)

Liftgate switch

F-13

(2-GR)

Outer tone alarm

F-14

(3-GR)

Outside transmission antenna
assembly (Liftgate)

F-15

(4-B)

Rear end wiring harness and rear
bumper wiring harness combination

F-16

(2)

Rear side marker light (LH)

F-17

(16)

Floor wiring harness and rear end
wiring harness combination

F-18

(6)

Floor wiring harness and rear end
wiring harness combination

F-19

(2)

Backup light (LH)

F-20

(1-B)

Rear window defogger (+)
