Mitsubishi Outlander GS45X. Manual - part 944





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-709

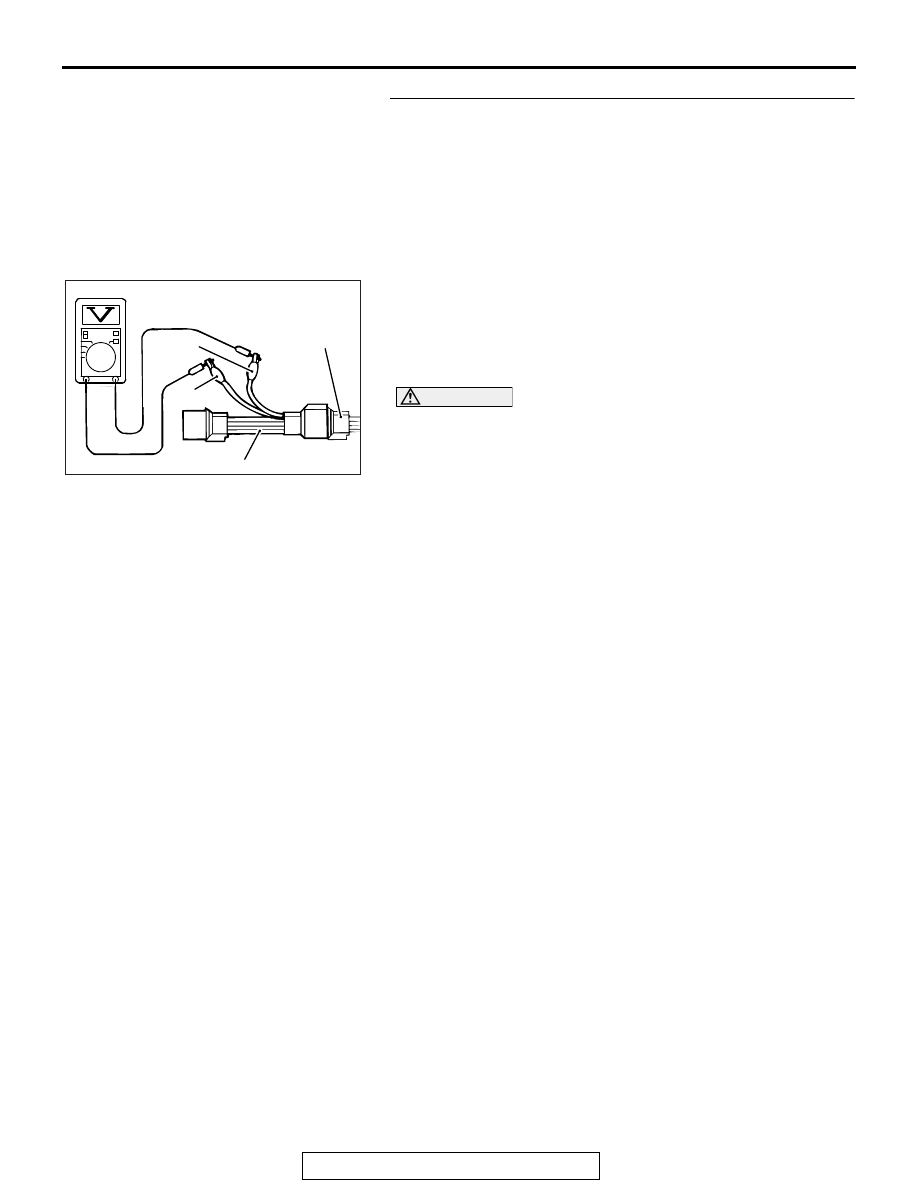

STEP 3. Check the left bank heated oxygen sensor (front).
(1) Disconnect the left bank heated oxygen sensor (front)

connector B-14 and connect test harness special tool
MD998464 to the connector on the left bank heated oxygen
sensor (front) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Rev the engine for 5 minutes or more with the engine speed

of 2,000 r/min.

(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) While repeatedly revving the engine, measure the left bank

heated oxygen sensor (front) output voltage.

 Standard value: 0.6

 1.0 V

CAUTION

• Be very careful when connecting the jumper wires;

incorrect connection can damage the heated oxygen
sensor.

• Be careful the heater can be damaged if a voltage

beyond 8 volts is applied to the heated oxygen sensor
heater.
NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

°

C (752

°

F) or

more] even though the heated oxygen sensor is normal, the
output voltage would be possibly low in spite of the rich air/
fuel ratio. Therefore, if the output voltage is low, use a
jumper wire to connect the terminal No. 1 (red clip) and the
terminal No. 3 (blue clip) of the heated oxygen sensor with
the positive terminal and the negative terminal of 8 volts
power supply respectively, then check again.

Q: Is the measured voltage between 0.6 and 1.0 volt?

YES : Go to Step 4.
NO :  Replace the left bank heated oxygen sensor (front).

Then go to Step 11.

AK700104

MD998464

White

Black

AB

Heated oxygen
sensor component
side connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-710

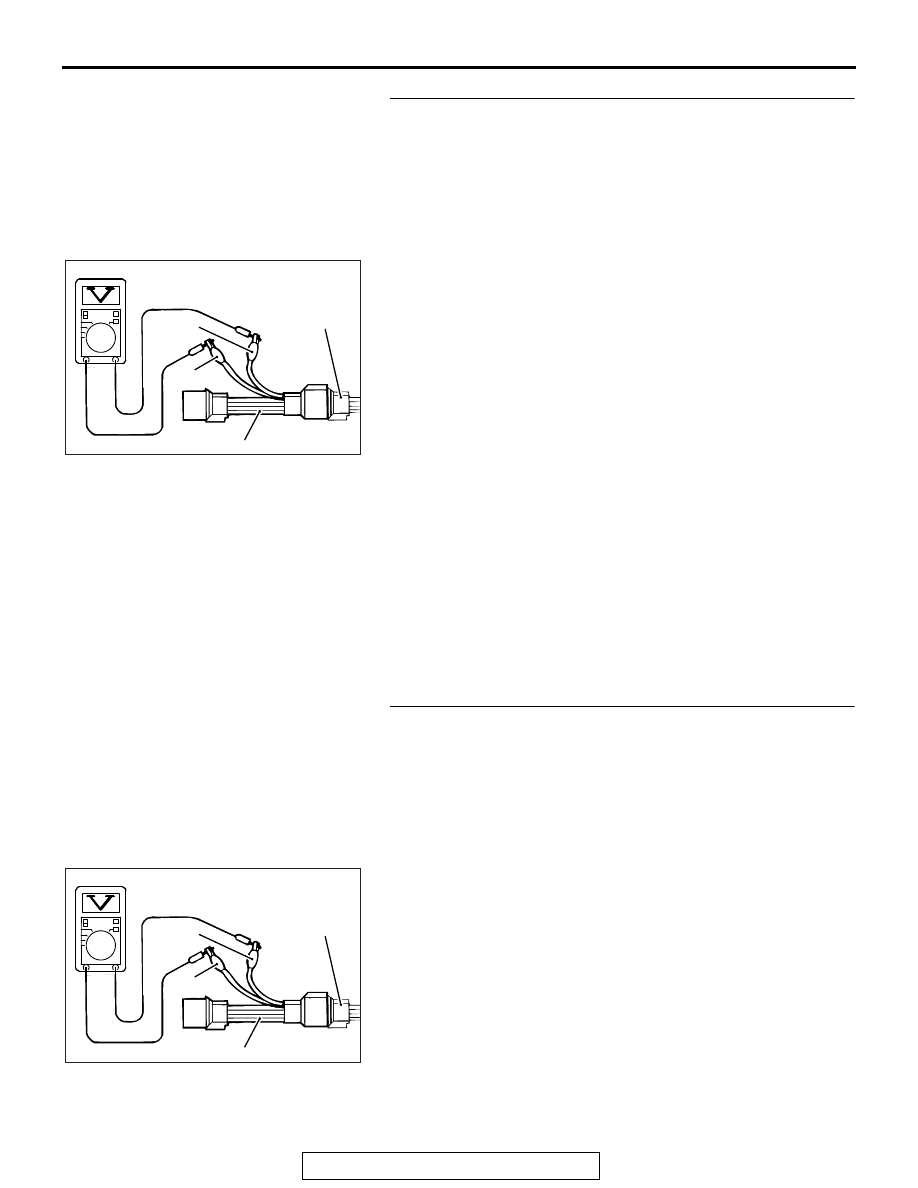

STEP 4. Check the right bank heated oxygen sensor (rear).
(1) Disconnect the right bank heated oxygen sensor (rear)

connector B-02 and connect test harness special tool
MD998464 to the connector on the right bank heated
oxygen sensor (rear) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Drive at 50 km/h (31 mph) or more for 10 minutes.
(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) Measure the output voltage of heated oxygen sensor under

the following driving.

• Transaxle: 2nd speed

• Drive with wide open throttle

• Engine: 3,500 r/min or more

 Standard value: 0.6

 1.0 V

NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

°

C (752

°

F) or

more] even though the heated oxygen sensor is normal, the
output voltage would be possibly low in spite of the rich
air-fuel ratio.
NOTE: When the vehicle is driven with high loads, the tem-
perature of the sensing area of the heated oxygen sensor is
sufficiently high. Thus, it is not necessary to apply the volt-
age to the heater.

Q: Is the measured voltage between 0.6 and 1.0 volt?

YES : Go to Step 5.
NO :  Replace the right bank heated oxygen sensor (rear).

Then go to Step 11.

STEP 5. Check the left bank heated oxygen sensor (rear).
(1) Disconnect the left bank heated oxygen sensor (rear)

connector B-13 and connect test harness special tool
MB991316 to the connector on the left bank heated oxygen
sensor (rear) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Drive at 50 km/h (31 mph) or more for 10 minutes.
(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) Measure the output voltage of heated oxygen sensor under

the following driving.

• Transaxle: 2nd speed

• Drive with wide open throttle

• Engine: 3,500 r/min or more

 Standard value: 0.6

 1.0 V

NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

°

C (752

°

F) or

more] even though the heated oxygen sensor is normal, the
output voltage would be possibly low in spite of the rich
air-fuel ratio.

AK700104

MD998464

White

Black

AB

Heated oxygen
sensor component
side connector

AK700102

MB991316

White

Black

AB

Heated oxygen
sensor component
side connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-711

NOTE: When the vehicle is driven with high loads, the tem-
perature of the sensing area of the heated oxygen sensor is
sufficiently high. Thus, it is not necessary to apply the volt-
age to the heater.

Q: Is the measured voltage between 0.6 and 1.0 volt?

YES : Go to Step 6.
NO :  Replace the left bank heated oxygen sensor (rear).

Then go to Step 11.

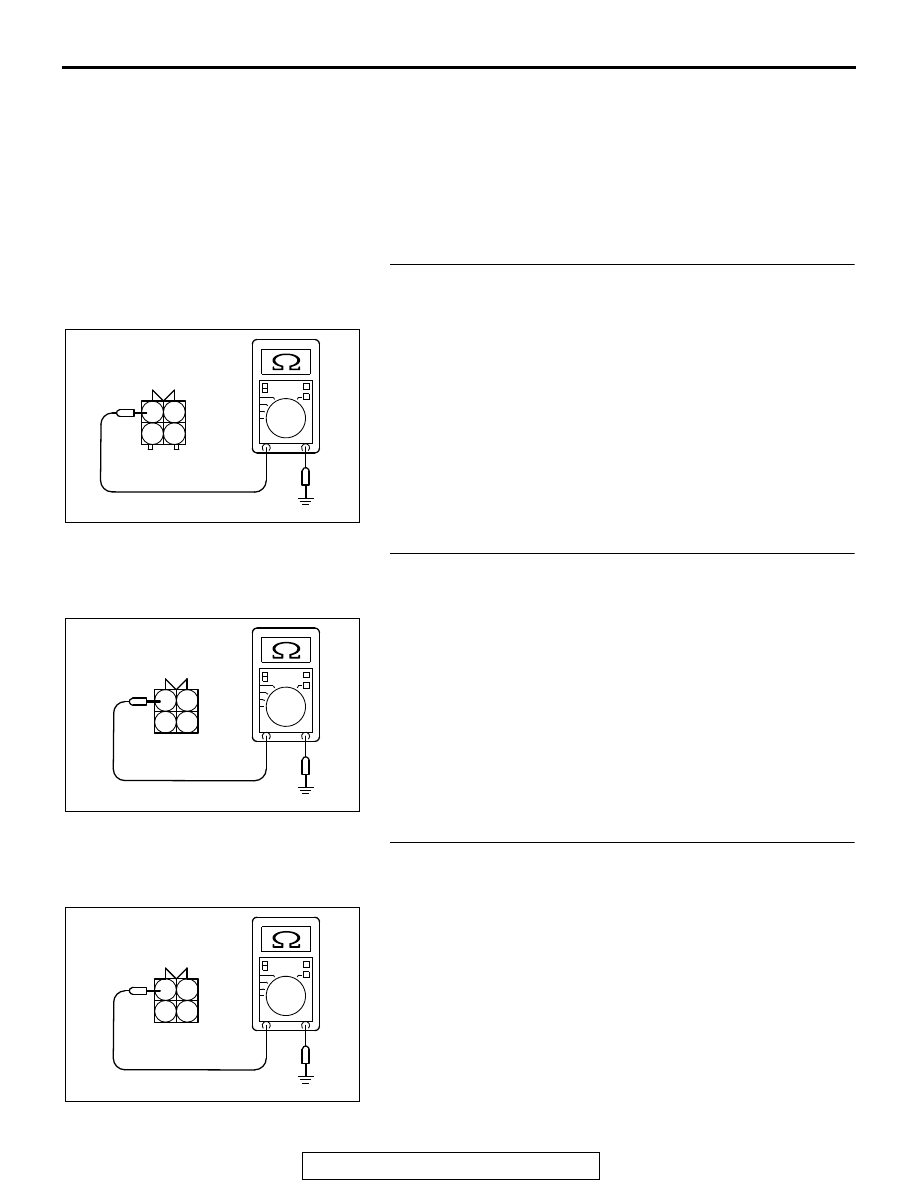

STEP 6. Check for short circuit to ground between the
right bank heated oxygen sensor (front) connector B-03
and the ECM connector B-10.
(1) Disconnect the right bank heated oxygen sensor (front)

connector B-03 and the ECM connector B-10.

(2) Check for the continuity between the right bank heated

oxygen sensor (front) connector B-03 (terminal No. 2) and
ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair it. Refer to GROUP 00E, Harness Connector

Inspection

P.00E-2

. Then go to Step 11.

STEP 7. Check for short circuit to ground between the left
bank heated oxygen sensor (front) connector B-14 and the
ECM connector B-10.
(1) Disconnect the left bank heated oxygen sensor (front)

connector B-14 and the ECM connector B-10.

(2) Check for the continuity between the left bank heated

oxygen sensor (front) connector B-14 (terminal No. 2) and
ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Go to Step 8.
NO :  Repair it. Refer to GROUP 00E, Harness Connector

Inspection

P.00E-2

. Then go to Step 11.

STEP 8. Check for short circuit to ground between the
right bank heated oxygen sensor (rear) connector B-02
and the ECM connector B-10.
(1) Disconnect the right bank heated oxygen sensor (rear)

connector B-02 and the ECM connector B-10.

(2) Check for the continuity between the right bank heated

oxygen sensor (rear) connector B-02 (terminal No. 2) and
ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Go to Step 9 .
NO :  Repair it. Refer to GROUP 00E, Harness Connector

Inspection

P.00E-2

. Then go to Step 11.

1

2

3

4

AK900300 AB

B-03 harness
connector:
component side

1

2

3

4

AK900326 AB

B-14 harness
connector:
component side

1

2

3

4

AK900326 AC

B-02 harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-712

STEP 9. Check for short circuit to ground between the left
bank heated oxygen sensor (rear) connector B-13 and the
ECM connector B-10.
(1) Disconnect the left bank heated oxygen sensor (rear)

connector B-13 and the ECM connector B-10.

(2) Check for the continuity between the left bank heated

oxygen sensor (rear) connector B-13 (terminal No. 2) and
ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Go to Step 10 .
NO :  Repair it. Refer to GROUP 00E, Harness Connector

Inspection

P.00E-2

. Then go to Step 11.

STEP 10. Check the trouble symptoms.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle Pattern 22

P.13B-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P2252 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 11.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunctions

P.00-15

.

STEP 11. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle Pattern 22

P.13B-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P2252 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

1

2

3

4

AK900327AB

B-13 harness
connector:
component side
