MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-633

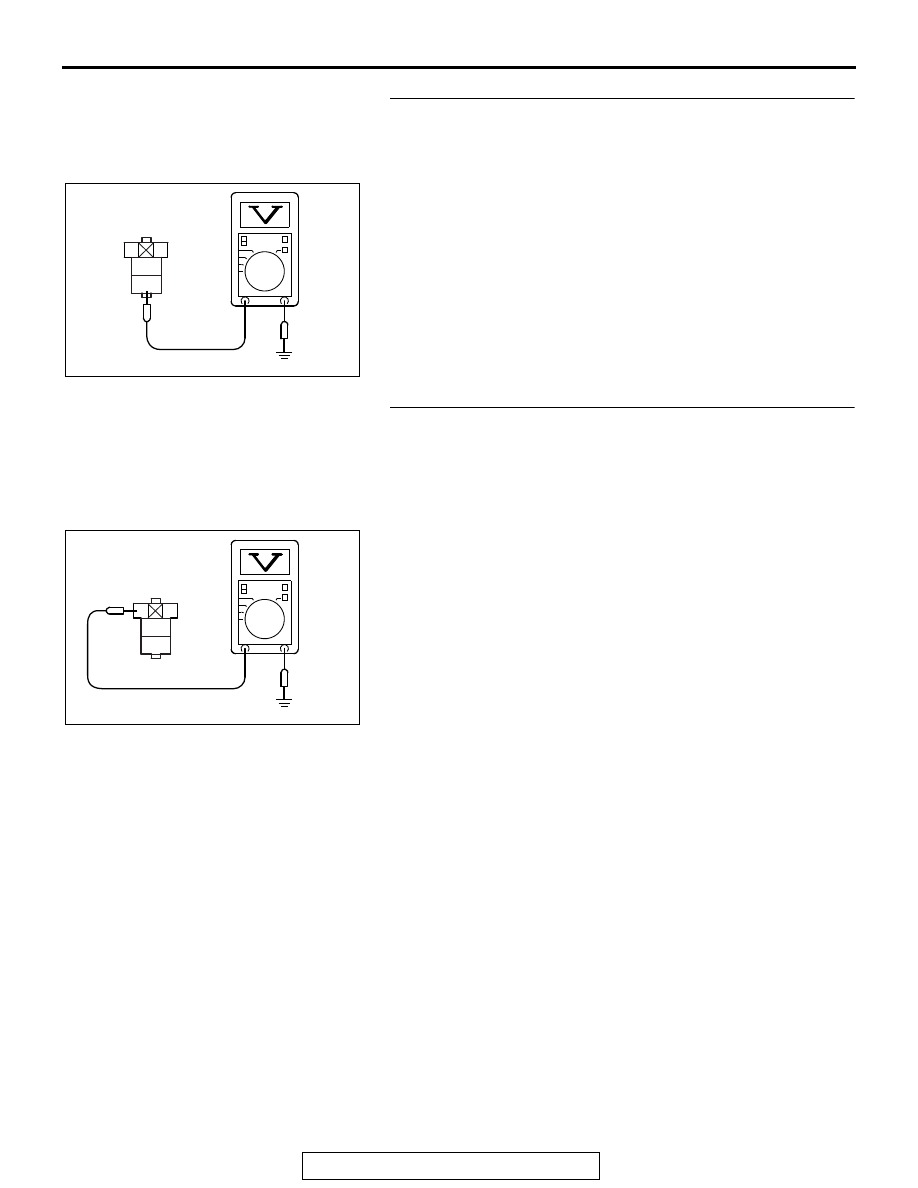

STEP 3. Measure the power supply voltage at throttle
actuator control motor relay harness side connector A-21X
(1) Disconnect the connector A-21X and measure at the

harness side.

(2) Measure the voltage between terminal No. 4 and ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 4.
NO :  Repair it because of open circuit between relay box

(fuse No. 8) and throttle actuator control motor relay
connector A-21X (terminal No. 4). Then go to Step 7.

STEP 4. Measure the power supply voltage at throttle
actuator control motor relay harness side connector
A-21X.
(1) Disconnect the connector A-21X and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 2 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 5.
NO :  Repair it because of open circuit or harness damage

between relay box (fuse No. 22) and throttle actuator
control motor relay connector A-21X (terminal No. 2).
Then go to Step 7.

AK700258

2

1

3
4

AB

A-21X harness
connector:
component side

AK700259

2

1

3
4

AB

A-21X harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-634

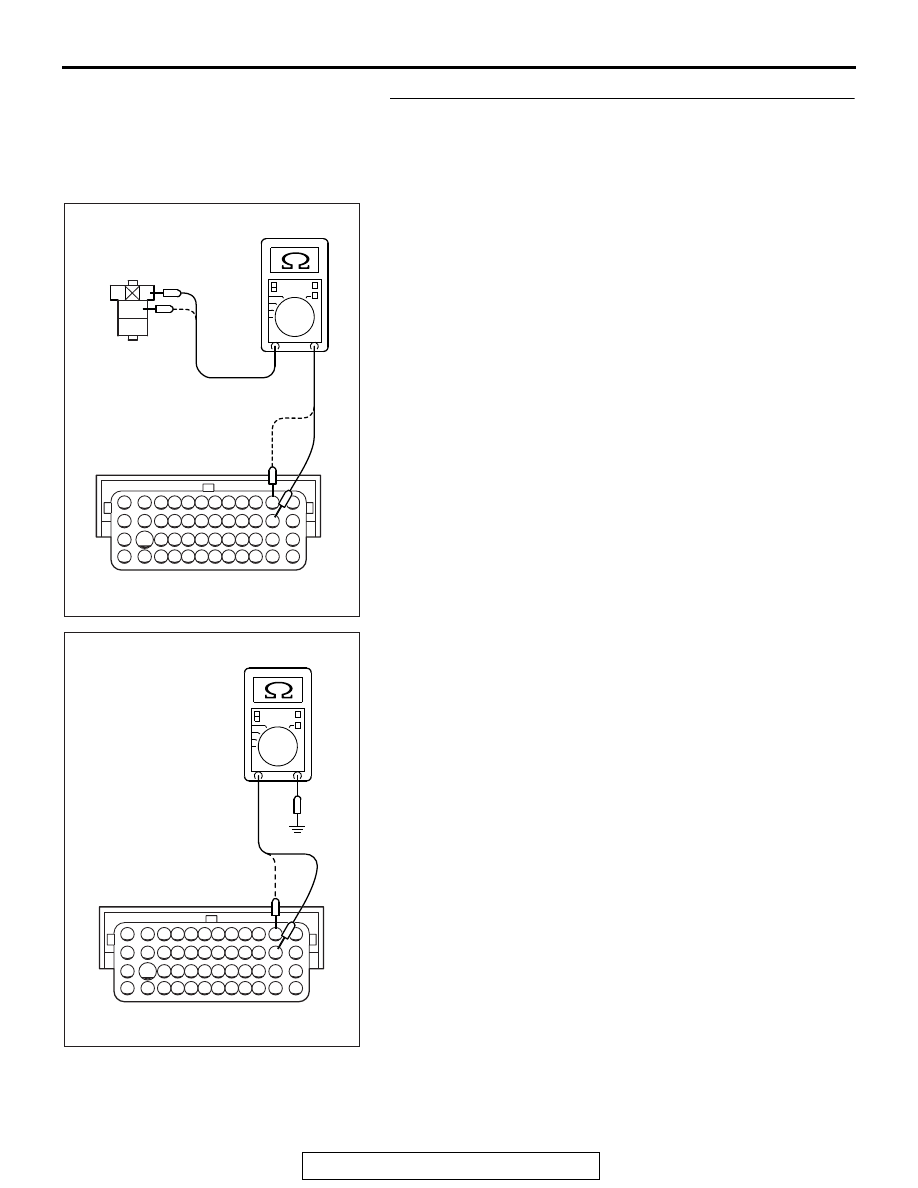

STEP 5. Check for open circuit and short circuit to ground
and harness damage between throttle actuator control
motor relay connector A-21X and ECM connector B-11.
(1) Disconnect the connector A-21X and B-11 measure at the

harness side.

(2) Measure the resistance between connector A-21X and

connector B-11.

a. Connector A-21X (terminal No. 1) and connector B-11

(terminal No. 84).

b. Connector A-21X (terminal No. 3) and connector B-11

(terminal No. 72).

• Should be less than 2 ohms.

(3) Check for the continuity between connector B-11 and

ground.

a. Connector B-11 (terminal No. 72) and ground.
b. Connector B-11 (terminal No. 84) and ground.

• Not continuity.

Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it. Then go to Step 7.

AK700260

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

2

1

3
4

AB

A-21X harness
connector:
component side

B-11 harness
connector:
component side

AK700261

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

AB

B-11 Harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-635

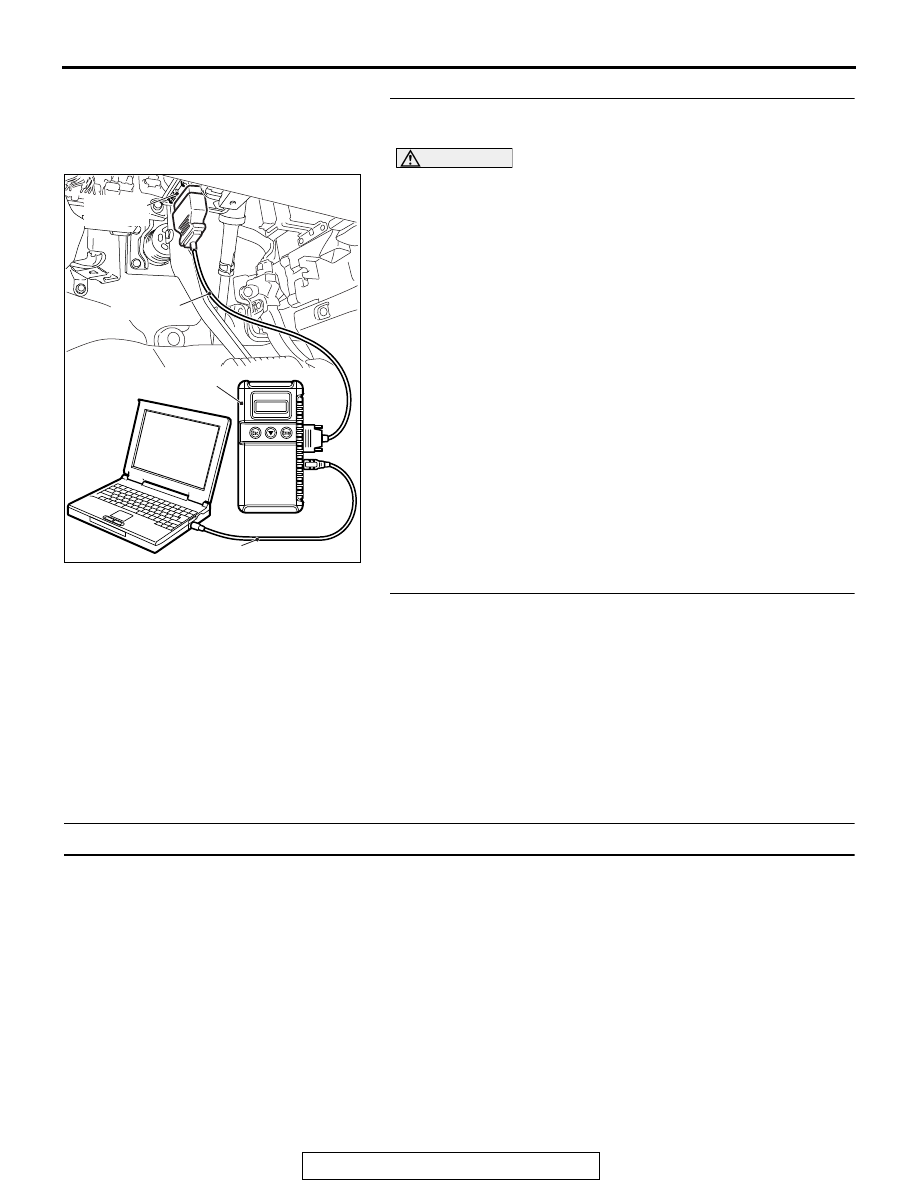

STEP 6. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0657 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 7.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

STEP 7. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0657 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P1231: Active Stability Control Plausibility <Vehicles with ASC>

.

TECHNICAL DESCRIPTION

• Checks for an abnormal signal of active stability

control (ASC) via the CAN communication.

.

DTC SET CONDITIONS

Check Condition

• Ignition switch is "ON" position.

Judgment Criterion

• A torque demand signal from the active stability

control is not normal.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Active stability control system failed.

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-636

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

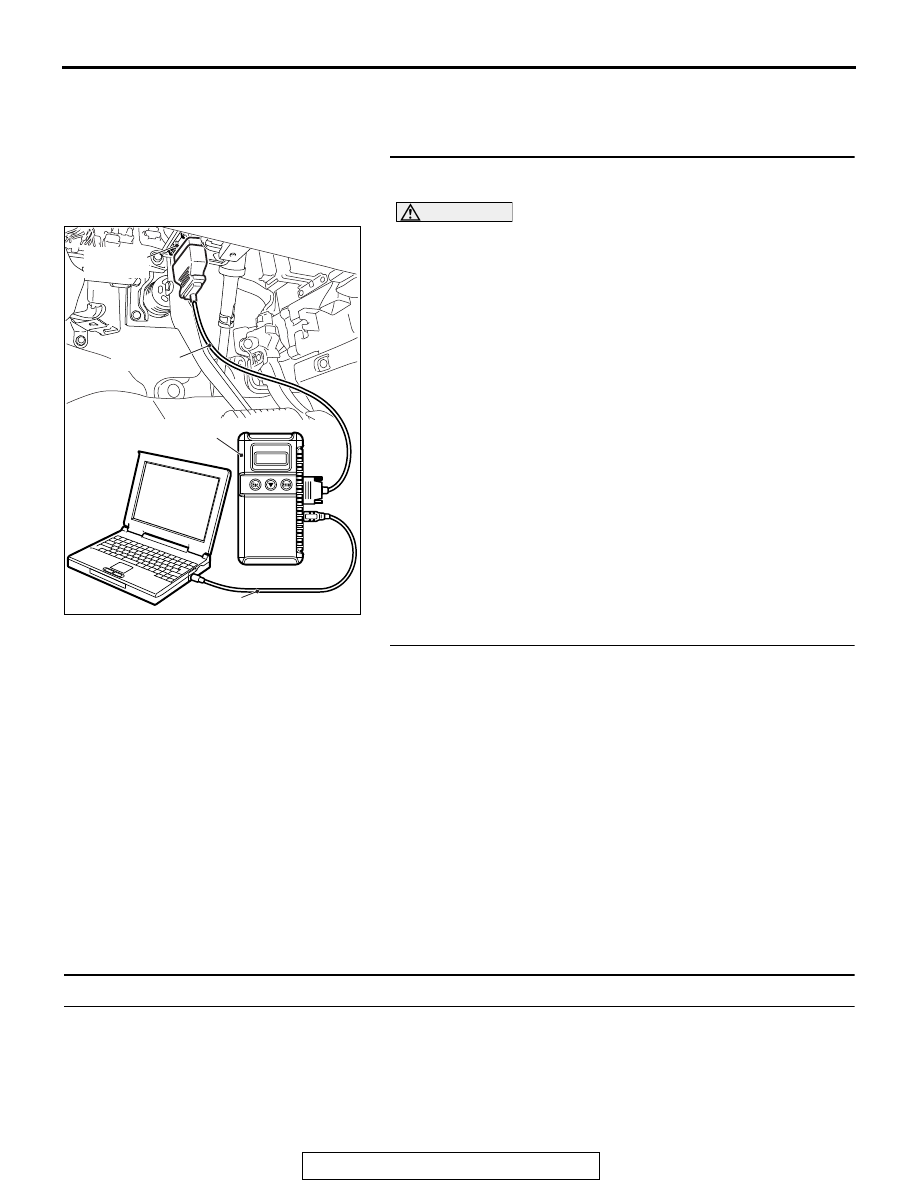

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC P1231 set?

YES : Go to Step 2.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) After the DTC has been deleted, read the ASC-DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the ASC-DTC set?

YES : Refer to GROUP 35C, Diagnosis

− Diagnostic

Trouble Code Chart

P.35C-18

.

NO :  Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Codes Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

.

DTC P1238: Mass Airflow Sensor Plausibility (Torque Monitor)

.

TECHNICAL DESCRIPTION

Compare the actual measurement of volumetric effi-
ciency by a mass airflow sensor signal with volumet-
ric efficiency estimated from a throttle position
sensor (main or sub) signal.

.

MONITOR EXECUTION

Continuous

.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector
