MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-545

TECHNICAL DESCRIPTION

• The ECM monitors the Evaporative Emission

(EVAP) System pressure.

• The ECM controls the evaporative emission ven-

tilation solenoid. It closes the evaporative emis-
sion ventilation solenoid to seal the evaporative
emission canister side of the system.

• The evaporative emission purge solenoid is

opened to allow manifold vacuum to create low
pressure (vacuum) in the EVAP system.

• When the EVAP system develops a vacuum of 2

kPa (0.29 psi), the evaporative emission purge
solenoid is closed and the fuel system vacuum is
maintained at 2 kPa (0.29 psi).

• The ECM determines whether there is a leak in

the EVAP system by monitoring the vacuum
inside the fuel tank.

• The test is stopped when fuel vapor pressure

exceeds predetermined limits.

.

DESCRIPTIONS OF MONITOR METHODS

• Measure reverting pressure after depressurizing

by intake manifold negative pressure and detect
malfunction if reverting pressure rises largely.

.

MONITOR EXECUTION

• Once per driving cycle.

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Evaporative emission purge solenoid monitor

• Evaporative emission purge system monitor

• Fuel tank differential pressure sensor monitor

• Evaporative emission ventilation solenoid monitor

• Fuel level sensor monitor

• Fuel temperature sensor monitor

Sensor (The sensors below are determined to be

normal)

• Mass airflow sensor

• Barometric pressure sensor

• Intake air temperature sensor

• Engine coolant temperature sensor

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-546

DTC SET CONDITIONS

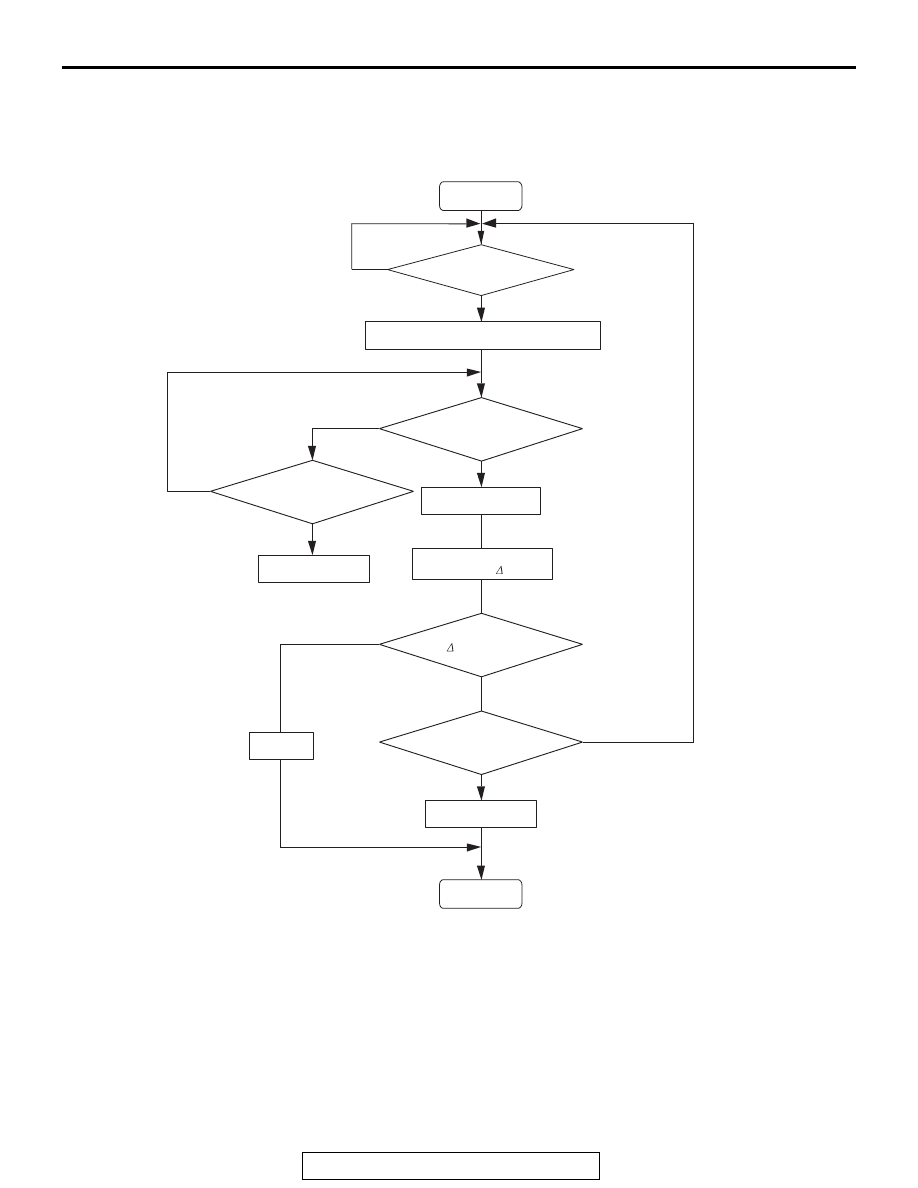

Logic Flow Chart (Monitor Sequence)

.

Check Conditions

• Engine coolant temperature is less than 36°C

(97

°F) when the engine is started.

• Intake air temperature is less than 36°C (97°F)

when the engine is started.

• Engine coolant temperature is more than 20°C

(68

°F).

• When the evaporative emission purge solenoid

and evaporative emission ventilation solenoid are
closed, the change of the pressure in the fuel
tank is less than 324 Pa (0.09 in.Hg).

• Amount of remaining fuel is 40 − 85 percent of

capacity when the engine is started.

• Barometric pressure is more than 76 kPa (22.4

in.Hg).

• Intake air temperature is more than −10°C (14°F).

• Fuel temperature is less than 33°C (91°F).

AK604523

Start

Yes

No

Monitoring
conditions?

Depressurize fuel tank pressure

Yes

Yes

No

No

Gross leak

monitoring conditions

Shut purge line

Specified times

have passed

Malfunction

(Gross leak)

Measure reverting
pressure:     PFT

Yes

Yes

No

No

PFT > PT

Specified times

monitored

Malfunction

End

Good

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-547

• Fuel tank differential pressure sensor output volt-

age is between 1.0 and 4.0 volts.

• At least 10 seconds have passed since the last

monitor was complete.

• Monitoring time: 10 − 14 minutes

Judgement Criterion

• In case the amount of change in the pressure that

is monitored for a given length of time inside the
tank is beyond the specified value after sealing
off the fuel tank and the vapor line.
NOTE: The specified value varies depending on
the fuel temperature and fuel level.

.

OBD-ll DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 6

P.13B-11

.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Loose fuel cap.

• Fuel cap relief pressure is incorrect.

• Malfunction of the evaporative emission canister

seal.

• Malfunction of the fuel tank, purge line or vapor

line seal.

• Malfunction of the evaporative emission ventila-

tion solenoid.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-548

STEP 1. Using scan tool MB991958, check the evaporative
emission system monitor test.

CAUTION

• To prevent damage to scan tool MB991958, always turn

the ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

• During this test, the ECM will automatically increase

the engine speed to 1,600 r/min or greater. Check that
the transaxle is set to "P" position.

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Erase the DTCs using scan tool MB991958.
(4) Check that the fuel cap is securely closed (Tighten until

three clicks are heard).

(5) Start the engine.
(6) Select "System Test."
(7) Select "Evap Leak Mon."
(8) During this test, keep the accelerator pedal at the idle

position.

(9) Keep the engine speed and engine load within the specified

range. When the monitor test starts, the "In Progress" item
on scan tool MB991958 will change from "NO" to "YES".

(10) Turn the ignition switch to the "LOCK" (OFF) position, and

disconnect scan tool MB991958.

Q: Is "Evap Leak Mon. Completed. Test Failed and DTCs

Set" displayed on scan tool MB991958?
YES : A malfunction has been detected during the monitor

test. Refer to the Diagnostic Trouble Code Chart and
diagnose any other DTCs that are set

P.13B-50

. If no

other DTC's have been set, go to Step 2 .

NO <"Evap Leak Mon. Completed. Test Passed" is
displayed on scan tool MB991958.> : The evaporative

emission system is working properly at this time.
Explain to the customer that an improperly tightened
fuel cap can cause the MIL to illuminate. Return the
vehicle to the customer.

NO <"Evap Leak Mon. Discontinued. Retest again from
the first" is displayed on scan tool MB991958.> : The

EVAP monitor has been interrupted during the test.
Turn the ignition switch to the "LOCK" (OFF) position
once, and repeat the monitoring from Step 1 .

AK700568AB

MB991824

MB991827

MB991910

Data link
connector
