Mitsubishi Outlander GS45X. Manual - part 876

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-437

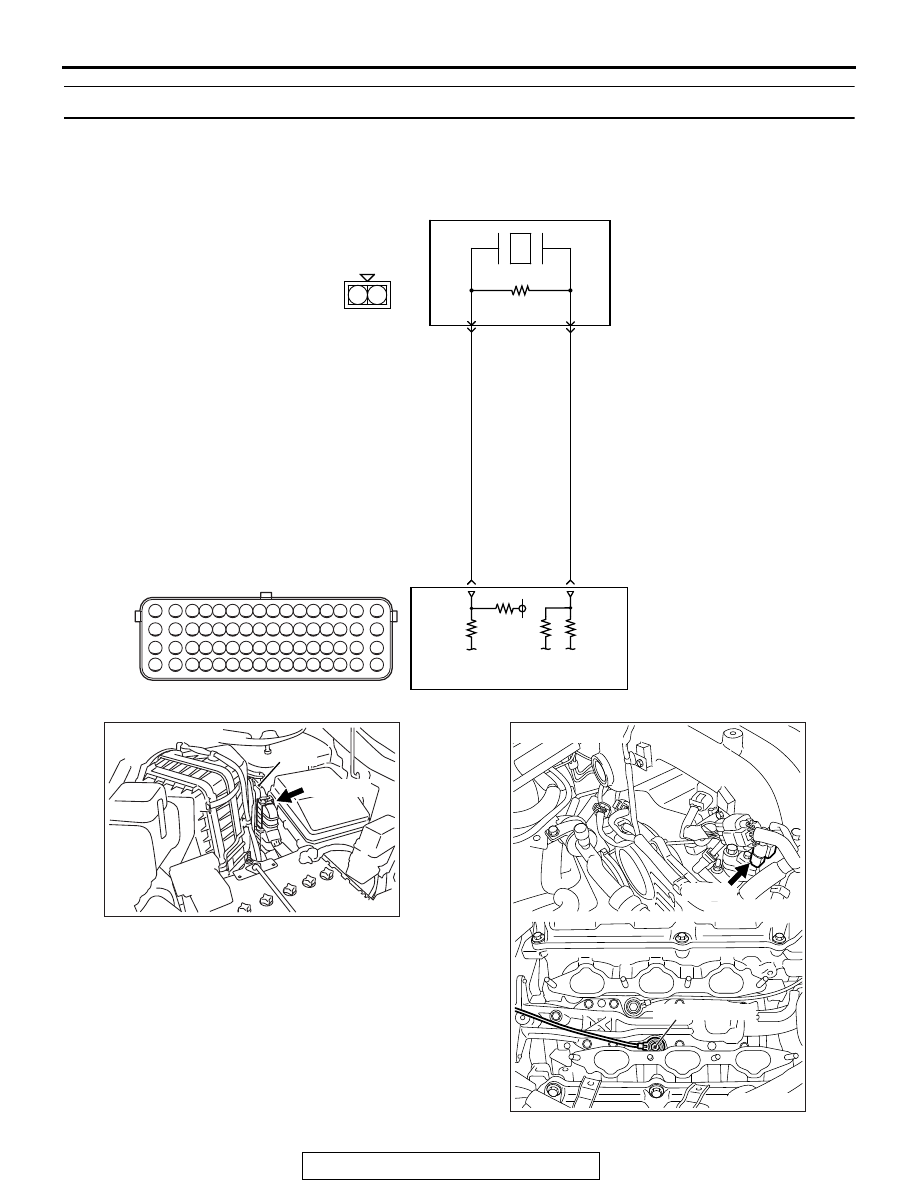

DTC P0332: Knock Sensor Circuit Low (Bank 2)

AK800938

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

B-20

(MU802601)

KNOCK SENSOR 2 CIRCUIT

KNOCK SENSOR 2

B-10

ENGINE
CONTROL
MODULE

GREEN

BLUE

5 V

AK700401AB

ECM

B-10 (GR)

Connector: B-10

AK900145

B-20 (B)

Knock sensor 2

Connector: B-20

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-438

CIRCUIT OPERATION

• The knock sensor (terminal No. 1) sends a signal

voltage to the ECM (terminal No. 25).

• The ground terminal (terminal No. 2) is grounded

with ECM (terminal No. 42).

TECHNICAL DESCRIPTION

• The knock sensor converts the vibration of the

cylinder block into a voltage and outputs it.

• The ECM checks whether the voltage is within a

specified range.

DESCRIPTIONS OF MONITOR METHODS

Knock sensor output voltage is out of specified

range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-439

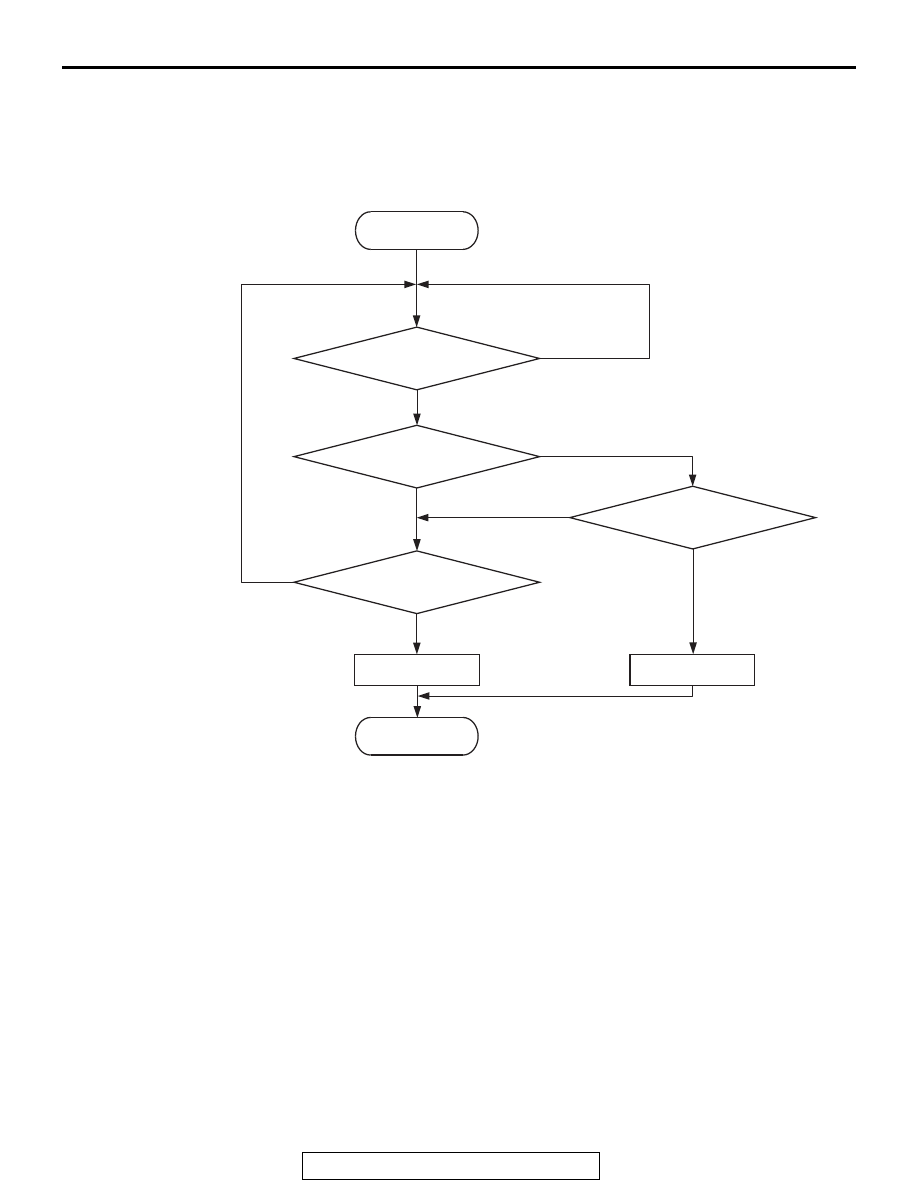

DTC SET CONDITIONS

Logic Flow Chart

Check Condition

• 2 seconds or more have passed since the engine

starting sequence was completed.

Judgement Criterion

• Knock sensor output voltage has continued to be

lower than 0.5 volt for 2 seconds.

FAIL-SAFE AND BACKUP FUNCTION

• Fix the ignition timing with an allowance against

knock.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 22

P.13B-11

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Knock sensor 2 failed.

• Open or shorted knock sensor 2 circuit or con-

nector damage.

• ECM failed.

End

Malfunction

Output voltage

< 0.5V

Output voltage

> 2.3V

Good

AK704271

Start

Yes

Continuous
failure for 2secs

Monitoring
conditions

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-440

DIAGNOSIS

STEP 1. Check harness connector B-20 at the knock
sensor 2 and harness connector B-10 at ECM for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 5.

STEP 2. Check for open circuit between knock sensor 2
connector B-20 (terminal No. 2) and ECM connector B-10
(terminal No. 42).
Q: Is the harness wire in good condition?

YES : Go to Step 3.
NO : Repair it. Then go to Step 5.

STEP 3. Check for open circuit and short circuit to ground
between knock sensor 2 connector B-20 (terminal No. 1)
and ECM connector B-10 (terminal No. 25).
Q: Is the harness wire in good condition?

YES : Go to Step 4.
NO : Repair it. Then go to Step 5.

STEP 4. Replace the knock sensor.
(1) Replace the knock sensor.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0332 set?

YES : Replace the ECM. When the ECM is replaced,

with KOS>

P.42B-15

or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 5.

NO : Replace the knock sensor. Then go to Step 5.

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13B-11

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0332 set?

YES : Retry the troubleshooting.
NO : The inspection is complete.
