MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-285

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the ECM (ter-
minal No. 40) from the output terminal (terminal
No. 4) of the left bank heated oxygen sensor
(rear).

• Terminal No. 2 of the left bank heated oxygen

sensor (rear) is grounded with ECM (terminal No.
41).

• The ECM applies an offset voltage of 0.5 volt to

terminal No. 2 of the left bank heated oxygen
sensor (rear).

.

TECHNICAL DESCRIPTION

• The output signal of the left bank heated oxygen

sensor (front) is compensated by the output sig-
nal of the left bank heated oxygen sensor (rear).

• The ECM check for the left bank heated oxygen

sensor (rear) output voltage.

.

DESCRIPTIONS OF MONITOR METHODS

Left bank heated oxygen sensor (rear) out put volt-
age is under the specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor (front) monitor

• Heated oxygen sensor (rear) heater monitor

• Heated oxygen sensor (front) heater monitor

• Heated oxygen sensor (front) inactive monitor

• Heated oxygen sensor offset voltage monitor

• Air/fuel ratio feedback monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-286

DTC SET CONDITIONS

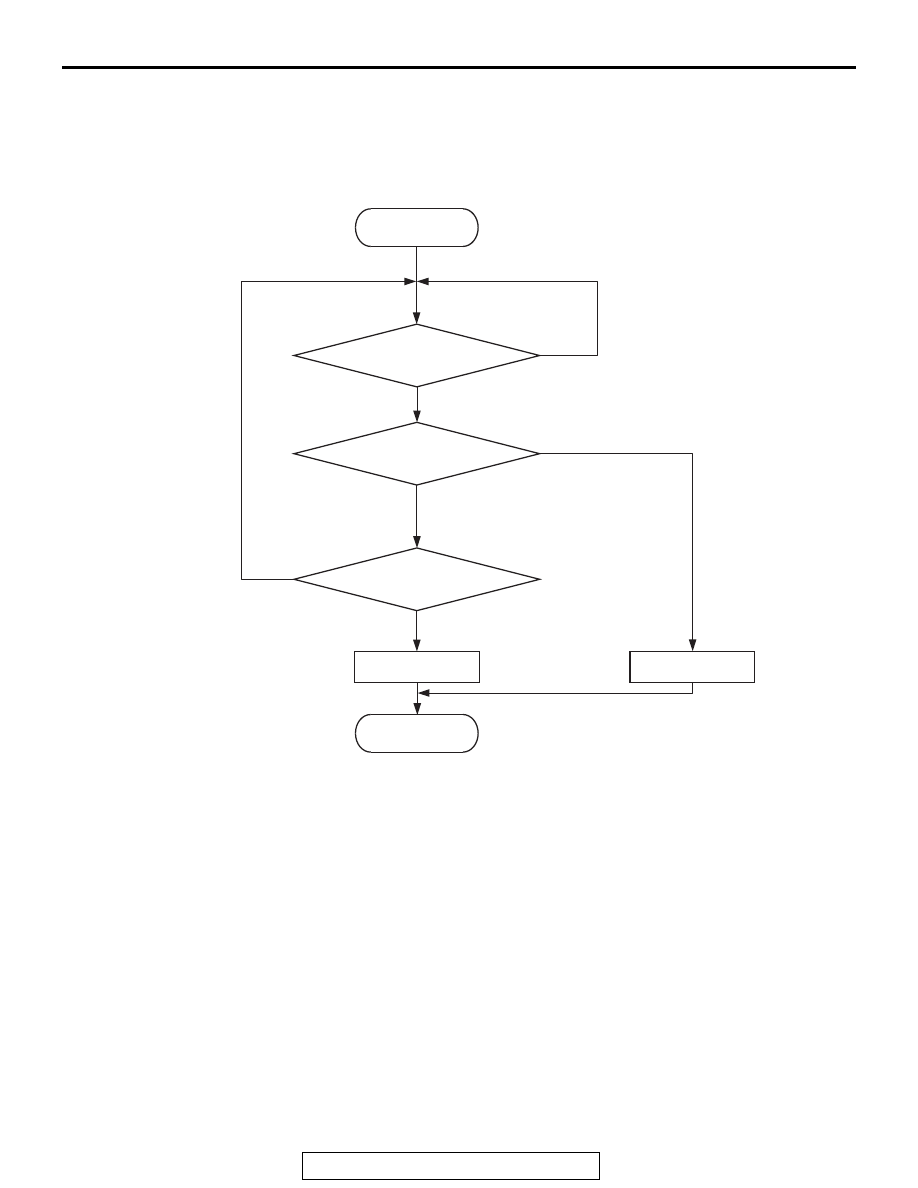

Logic Flow Chart

.

Check Conditions

• Heated oxygen sensor offset voltage is between

0.4 and 0.6 volt.

• Battery positive voltage is between 11 and 16.5

volts.

• 3 minutes or more have passed since the engine

starting sequence was completed.

Judgement Criterion

• Left bank heated oxygen sensor (rear) output

voltage is lower than 0.2 volt for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Pattern 21

P.13B-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Left bank heated oxygen sensor (rear) failed.

• Connector damage.

• Harness damage.

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991316: Test Harness

End

Malfunction

Yes

Yes

Yes

No

No

No

2secs have passed?

Output voltage

< 0.2V

Monitoring
conditions

Good

Start

AK700471

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-287

STEP 1. Check harness connector B-13 at the left bank
heated oxygen sensor (rear) and harness connector B-10
at the ECM for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 5.

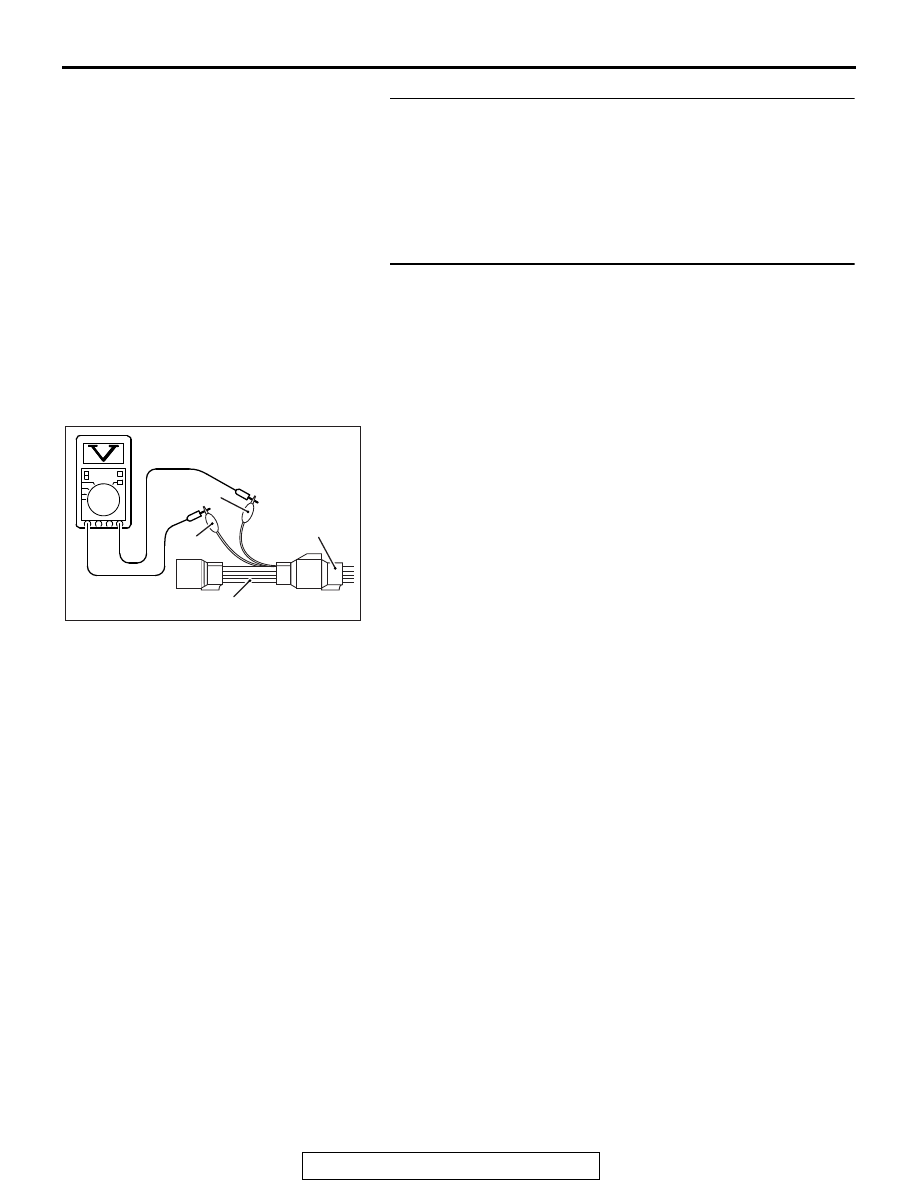

STEP 2. Check the left bank heated oxygen sensor (rear).
(1) Disconnect the left bank heated oxygen sensor (rear)

connector B-13 and connect test harness special tool,
MD991316 to the connector on the left bank heated oxygen
sensor (rear) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Drive at 50 km/h (31 mph) or more for 10 minutes.
(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) Measure the output voltage of heated oxygen sensor under

the following driving.

a. Transaxle: 2nd speed
b. Drive with wide open throttle

c. Engine: 3,500 r/min or more

Standard value: 0.6

− 1.0 volts

NOTE: If the temperature of sensing area does not reach
the high temperature [of approximately 400

°

C (752

°

F) or

more] even though the oxygen sensor is normal, the output
voltage would be possibly low in spite of the rich air-fuel
ratio.
NOTE: When the vehicle is driven with high loads, the tem-
perature of the sensing area of the heated oxygen sensor is
sufficiently high. Thus, it is not necessary to apply the volt-
age to the heater.

Q: Is the measured resistance between 11 and 18 ohms [at

20

°C (68°F)?

YES : Go to Step 3.
NO :  Replace the left bank heated oxygen sensor (rear).

Then go to Step 5.

AK700551

Heated
oxygen
sensor
component
side
connector

MB991316

Black

White

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L ENGINE>

13B-288

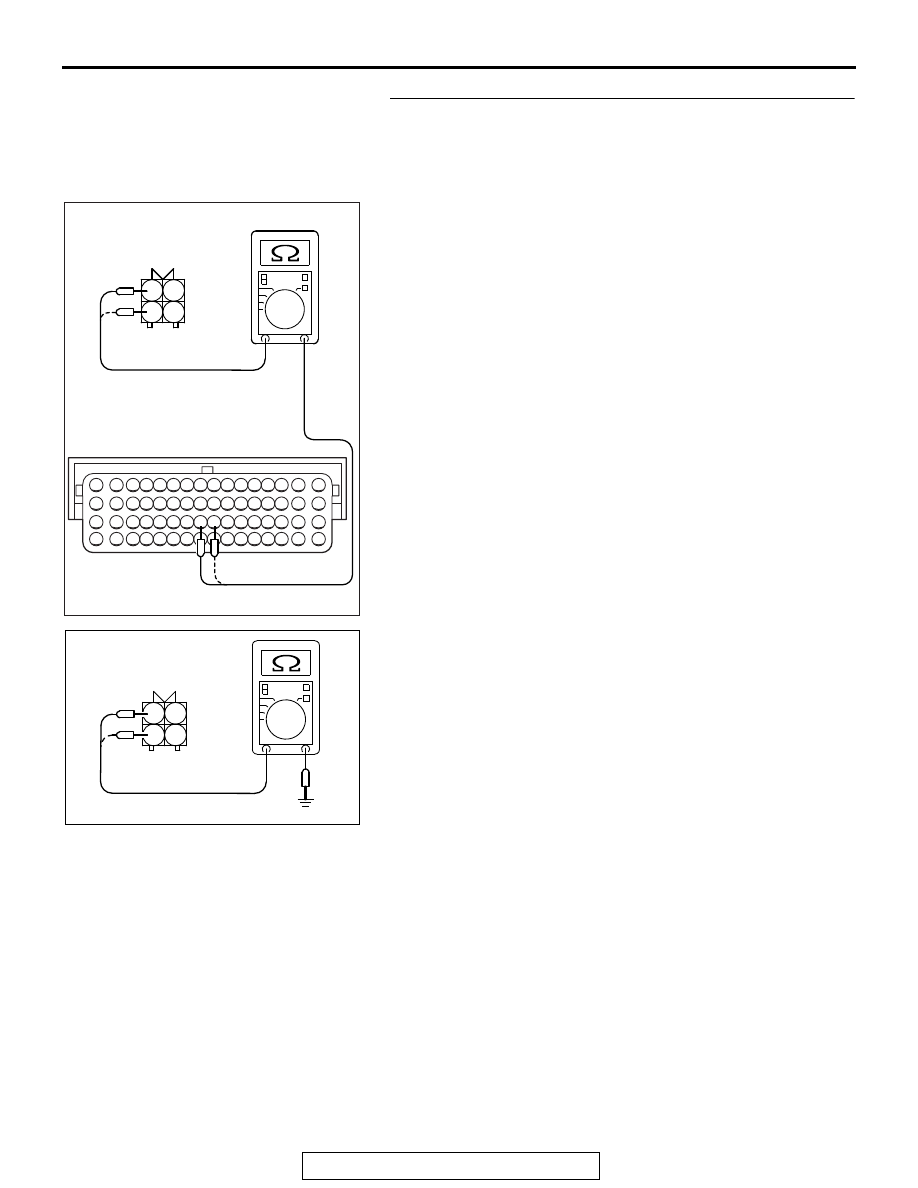

STEP 3. Check for harness between the left bank heated
oxygen sensor (rear) connector B-13 and ECM connector
B-10.
(1) Disconnect the left bank heated oxygen sensor (rear)

connector B-13 and the ECM connector B-10.

(2) Measure the resistance between the heated oxygen sensor

connector B-13 and the ECM connector B-10.

a. Connector B-13 (terminal No. 2) and connector B-10

(terminal No. 41).

b. Connector B-13 (terminal No. 4) and connector B-10

(terminal No. 40).

• Should be less than 2 ohms.

(3) Check for the continuity between the oxygen sensor

connector B-13 and ground.

a. Connector B-13 (terminal No. 2) and ground
b. Connector B-13 (terminal No. 4) and ground

• Not continuity.

Q: Is the harness wire in good condition?

YES : Go to Step 4.
NO :  Repair it. Refer to GROUP 00E, Harness Connector

Inspection

P.00E-2

. Then go to Step 5.

AK700289

1

2

3

4

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AB

B-13 harness
connector:
component side

B-10 harness
connector:
component side

1

2

3

4

AK700290AB

B-13 harness
connector:
component side
