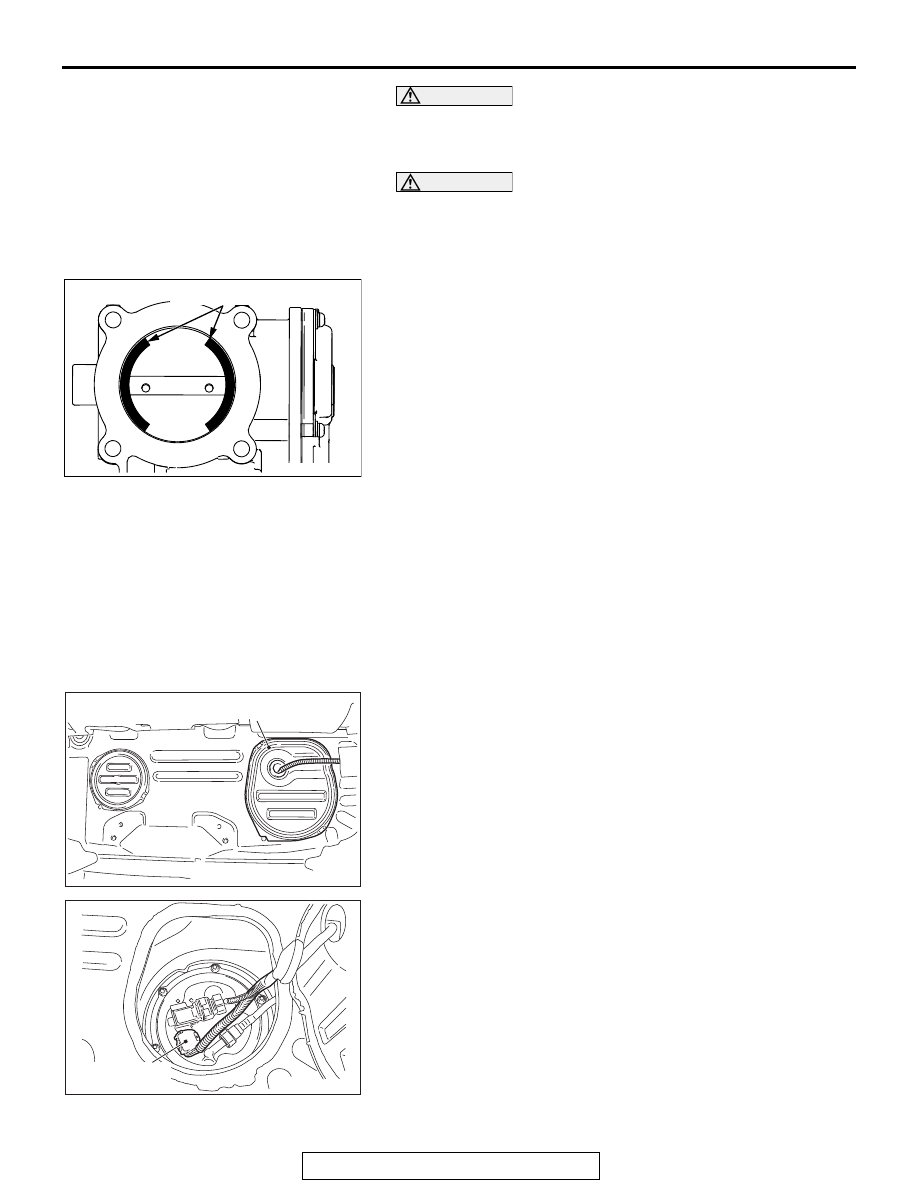

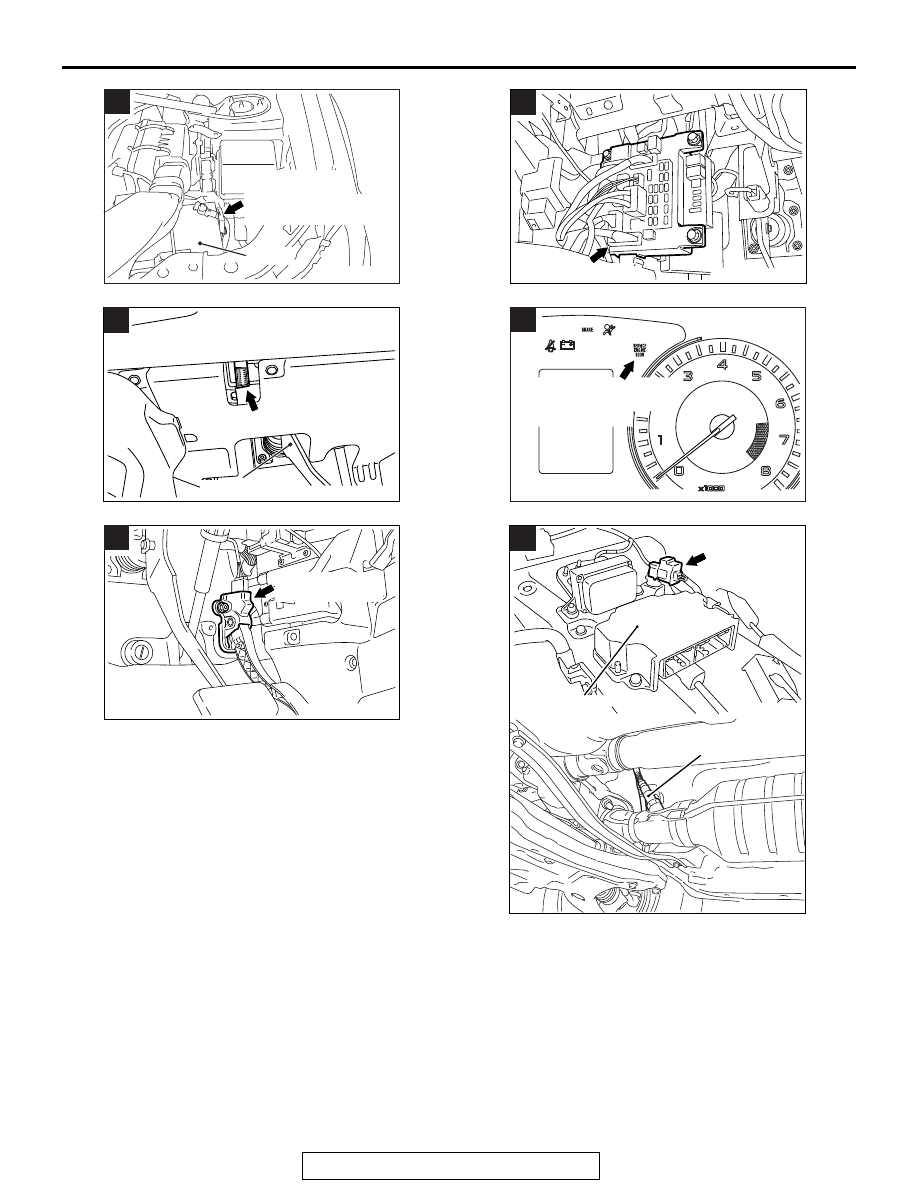

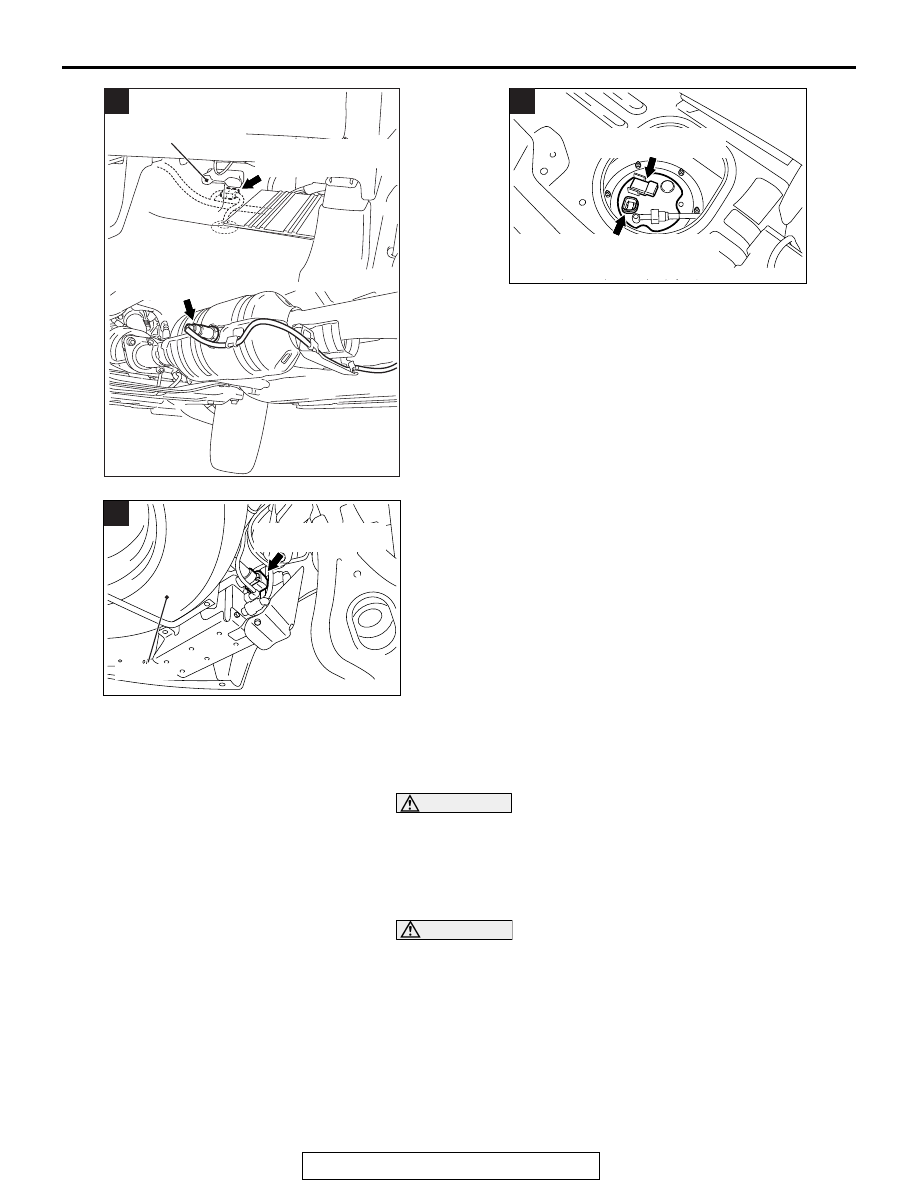

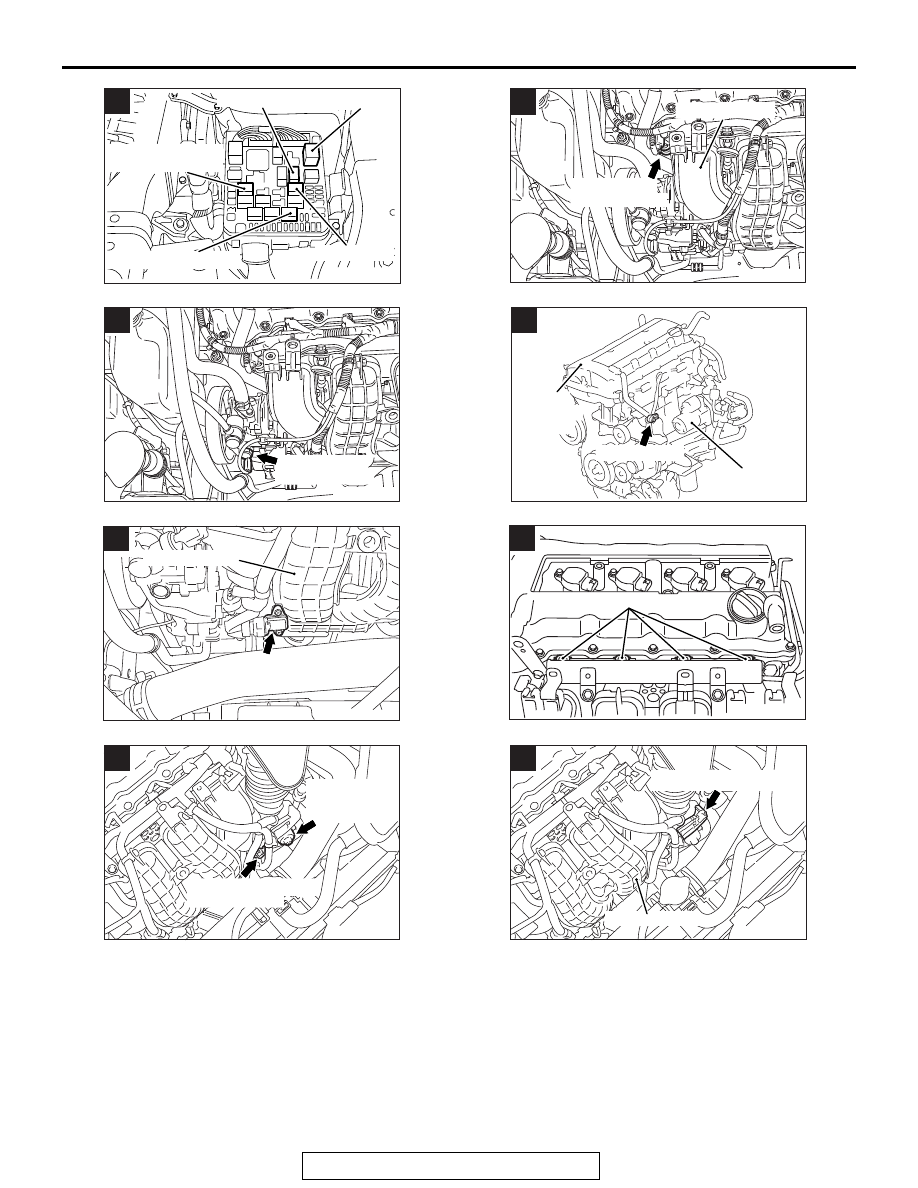

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-863

AK703705

Stater relay

Injector relay

Throttle actuator
control motor relay

A/C compressor relay

MFI relay

I

AB

AK703706AB

Intake engine
oil control valve

Intake manifold

J

AK703707

Power steering
pressure switch

AB

K

AK703708AB

Knock sensor

Starter assembly

L

Cylinder
head cover
assembly

AK703709 AB

Manifold absolute
pressure sensor

Intake manifold

M

AK703710

Injector

AB

N

AK703711

Evaporative emission
purge solenoid

Exhaust gas
recirculation
(EGR) valve

AB

O

AK703712AB

Throttle body assembly

Intake manifold

P

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-864

AKA00841

Battery

Battery current
sensor
(incorporating battery
 temperature sensor)

AB

Q

AK703713

AC

ETACS-ECU

R

AK704437

AC

Data link connector

Brakepedal

S

AK703714AC

Mulfunction indicator lamp
(service engine soon or
check engine lamp)

T

AK700069

AD

Accelerator pedal
position sensor

U

AK703716AD

Linear air-fuel
ratio sensor
connector

SRS-ECU

V

Linear air-fuel
ratio sensor

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-865

THROTTLE BODY (THROTTLE VALVE AREA)
CLEANING

M1131001001595

WARNING

When touching the throttle valve, surely shut off the
driving circuits of the throttle valve. In the event that
the throttle valve is operated, a finger might be
injured as the result of being caught by the throttle
valve.

CAUTION

When the throttle body cleaning is performed, use scan
tool MB991958 to initialize the learning value (Refer to
GROUP 00, Precautions Before Service

− Initialization Pro-

cedure for Learning Value in MFI Engine

P.00-53

).

1. Disconnect the electronic-controlled throttle valve connector.
2. Remove the air intake hose from the throttle body.
3. Remove the throttle body.

AK900668

Heated oxygen sensor
(rear) connector

Heated oxygen
sensor (rear)

Rear heater duct (RH)

AC

W

AK703718

AC

Fuel tank differential
pressure sensor

Fuel pump module (incorporating
fuel level sensor (main) and
fuel tank temperature sensor)

X

AK703703

AC

Evaporative emission
ventilation solenoid

Spare tire

Y

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-866

CAUTION

Do not spray the cleaning solvent directly to the throttle
valve.
4. Spray cleaning solvent on a clean cloth.

CAUTION

• Make sure the cleaning solvent does not enter the

motor and the sensor through the shaft.

• Do not remove molybdenum. which is applied around

the throttle valve of the throttle body.

5. Wipe off the dirt around the throttle valve with the cloth

sprayed with cleaning solvent.

6. Install the throttle body.
7. Install the air intake hose.
8. Connect electronic-controlled throttle valve connector.

FUEL PUMP CONNECTOR DISCONNECTION
(HOW TO REDUCE PRESSURIZED FUEL LINES)

M1131000902101

When removing the fuel pipes and fuel hoses, follow the proce-
dure below to release fuel pressure in the line and prevent fuel
from running out, because fuel pressure in the fuel line is high.
1. Remove the second seat assembly (Refer to GROUP 52A,

Second Seat Assembly

P.52A-25

) and turn up the floor

carpet.

2. Remove the floor inspection lid (LH).

3. Disconnect the fuel pump module connector.
4. Crank the engine for at least two seconds.
5. If the engine does not start, turn the ignition switch to the

"LOCK" (OFF) position.

6. If the engine starts, turn the ignition switch to the "LOCK"

(OFF) position after the engine stops.

7. Connect the fuel pump module connector.
8. Install the floor inspection lid (LH).
9. Return the floor carpet to the original condition and install

the second seat assembly (Refer to GROUP 52A, Second
Seat Assembly

P.52A-25

).

AK502993AD

Areas on throttle valve to

apply molybdenum disulfide

AC710046AB

Floor inspection lid (LH)

AC703400AB

Fuel pump module
connector
