MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-715

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) After the MFI-DTC has been deleted, read the MFI-DTC

again.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U0415 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 4.

NO :  It can be assumed that this malfunction is intermittent

of CAN bus line between ECM and ASC-ECU. Refer
to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

STEP 4. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) After the MFI-DTC has been deleted, read the MFI-DTC

again.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U0415 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC U1180: Combination Meter Time-out

CAUTION

• If the ECM output the DTC U1180, make sure

to diagnose the CAN bus line.

• Before replacing the ECU, make sure that the

communication circuit is operating normally.

.

DESCRIPTIONS OF MONITOR METHODS

There is no data from combination meter for the

specified time. (Meter also detect communication
error with ECM.)

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-716

DTC SET CONDITIONS

Lgic Flow Chart

Check Condition

• Battery positive voltage is between 10 and 16.5

volts.

Judgement Criterion

• Unable to receive combination meter signals

through the CAN bus line for 4 seconds.

.

COMMENT

Current Trouble

• Some of the possible causes are a harness or

connector damage between the ECM and the
combination meter on the CAN bus line, a failure
in the combination meter power supply system, a
failure in the combination meter, or a failure in the
ECM.

Past Trouble

• Proceed to troubleshoot based on a harness or

connector damage on the CAN bus line between
the ECM and combination meter, and a failure in
the combination meter power supply system.
Refer to "How to cope with past trouble" (Refer to
GROUP 00, How to Use Troubleshooting/Inspec-
tion Service Points

− How to Treat Past Trouble

P.00-17

).

NOTE: If a malfunction occurred in the past, a failure
cannot be discovered through the M.U.T.

 III CAN

bus diagnosis even if there might be a problem with
the CAN bus. In this case, refer to GROUP 00, How
to Use Troubleshooting/Inspection Service Points



How to Cope with Intermittent Malfunctions

P.00-15

AK604369

Start

Yes

Yes

Yes

No

No

No

Continuous failure

for specified time

Malfunction

End

Good

Monitoring
conditions

Communication status

fails

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-717

Furthermore, it is possible to narrow down the areas
of the possible failures from the DTCs that are output
by the ECUs, which are communicating on the CAN
bus (Refer to GROUP 54C, CAN bus line Diagnos-
tics Flow

P.54C-10

).

.

OBD-II DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• CAN line harness damage or connector damage.

• Combination meter failed.

• ECM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using scan tool MB991958, diagnose CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Diagnose CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. Refer to GROUP 54C,

Diagnosis

− Can Bus Diagnostics Table

P.54C-17

Then go to Step 4.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) Read the combination meter-DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the combination meter-DTC set?

YES : Refer to GROUP 54A, Combination Meter

−

Diagnostic Trouble Code Chart

P.54A-34

.

NO :  Go to Step 3.

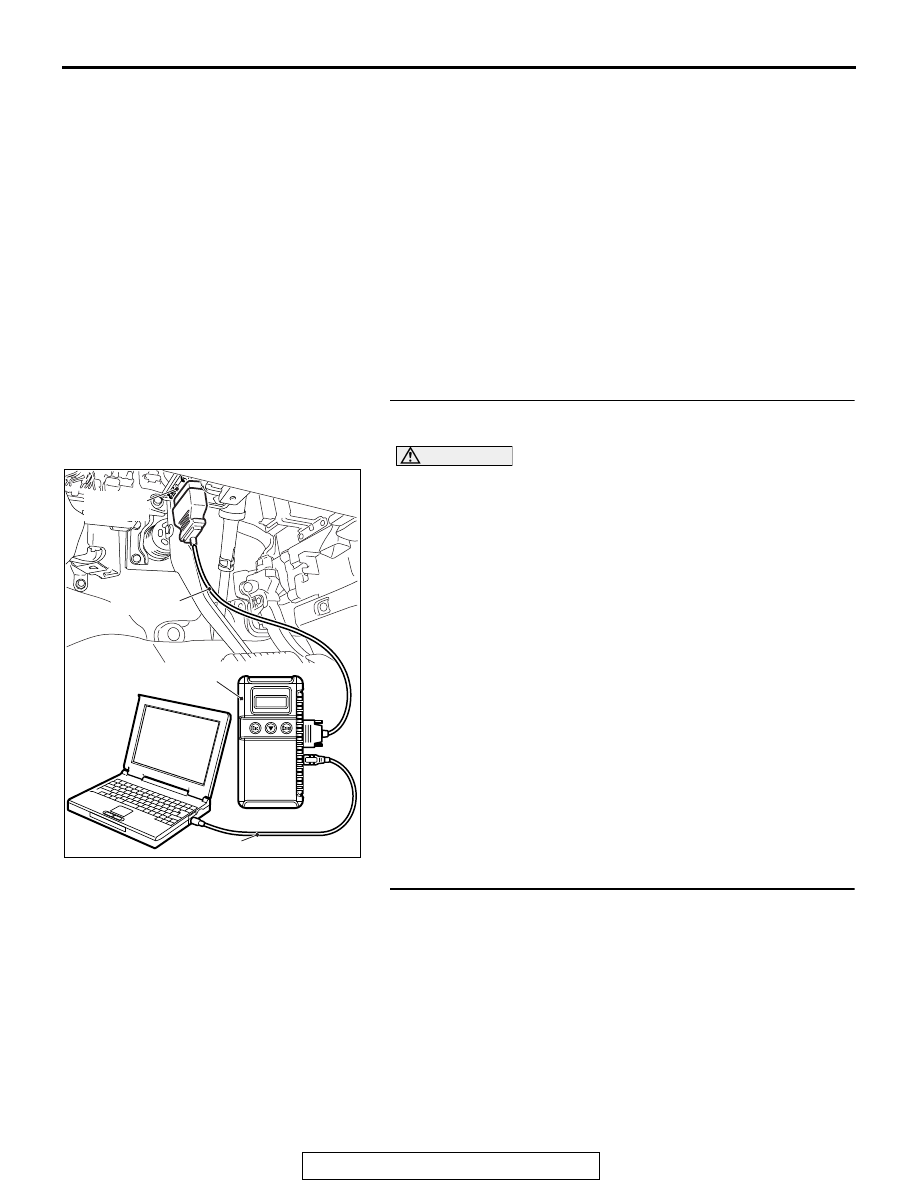

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-718

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) After the MFI-DTC has been deleted, read the MFI-DTC

again.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1180 set?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 4.

NO :  It can be assumed that this malfunction is intermittent

of CAN bus line between ECM and combination
meter. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

.

STEP 4. Using scan tool MB991958, read the diagnostic
trouble code (DTC).
(1) Turn the ignition switch to the "ON" position.
(2) After the MFI-DTC has been deleted, read the MFI-DTC

again.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1180 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.
