MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-415

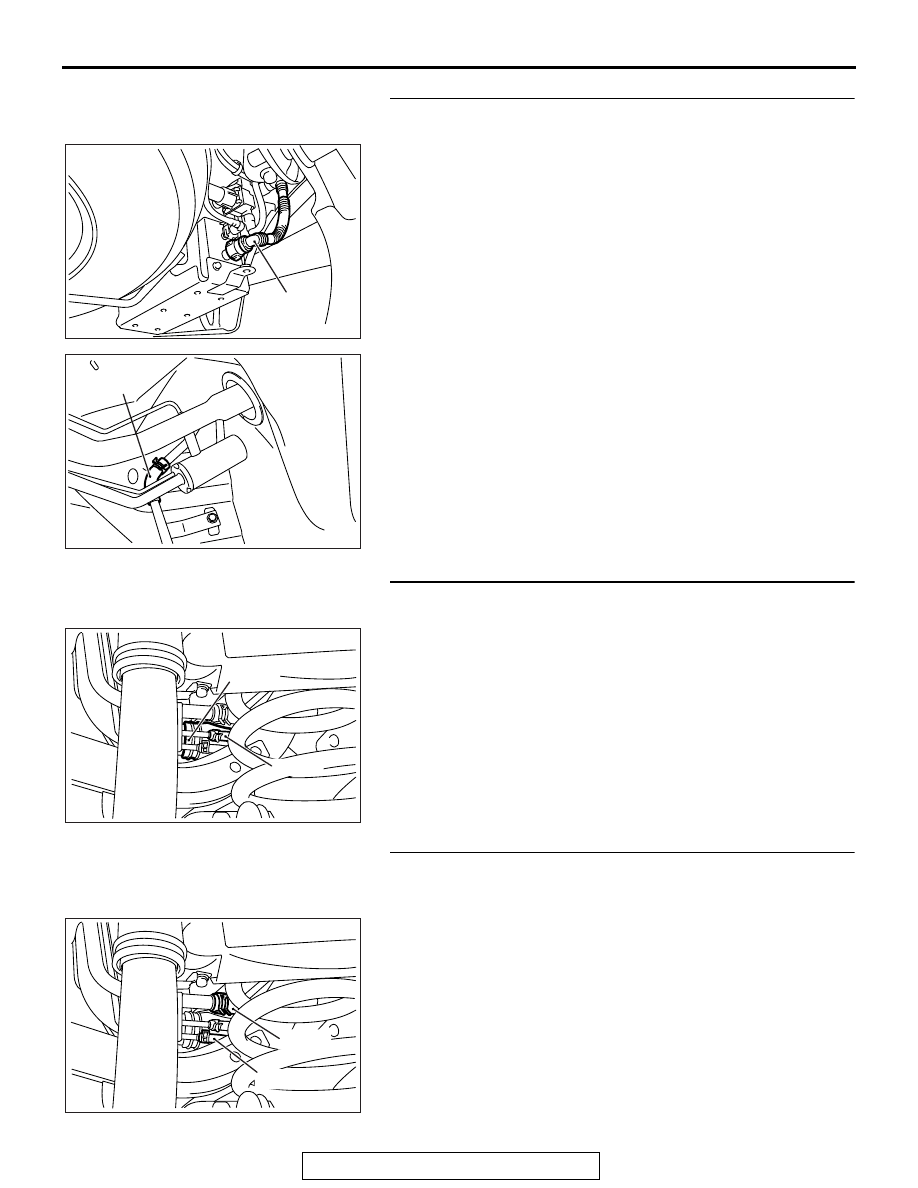

STEP 7. Check for leaks in evaporative emission hoses D
and E.

Use a hand vacuum pump to test each hose D and E.

Q: Do the hoses hold vacuum?

YES : Go to Step 8 .
NO :  Replace any damaged hose. Then go to Step 13 .

STEP 8. Check for leaks in evaporative emission hoses F
and G.
(1) Remove the fuel tank assembly
(2) Use a hand vacuum pump to test each hose F and G.
Q: Do the hoses hold vacuum?

YES : Go to Step 9 .
NO :  Replace any damaged hose. Then go to Step 13 .

STEP 9. Check for leaks in evaporative emission hoses H
and I.
(1) Remove the fuel tank assembly.
(2) Use a hand vacuum pump to test each hose H and I.
Q: Does the hose hold vacuum?

YES : Go to Step 10 .
NO :  Replace the hose and reinstall the fuel tank assembly.

Then go to Step 13 .

AK704162

Hose D

AC

AK901209AB

Hose E

AK704393AC

Hose F

Hose G

AK704394

Hose H

Hose I

AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-416

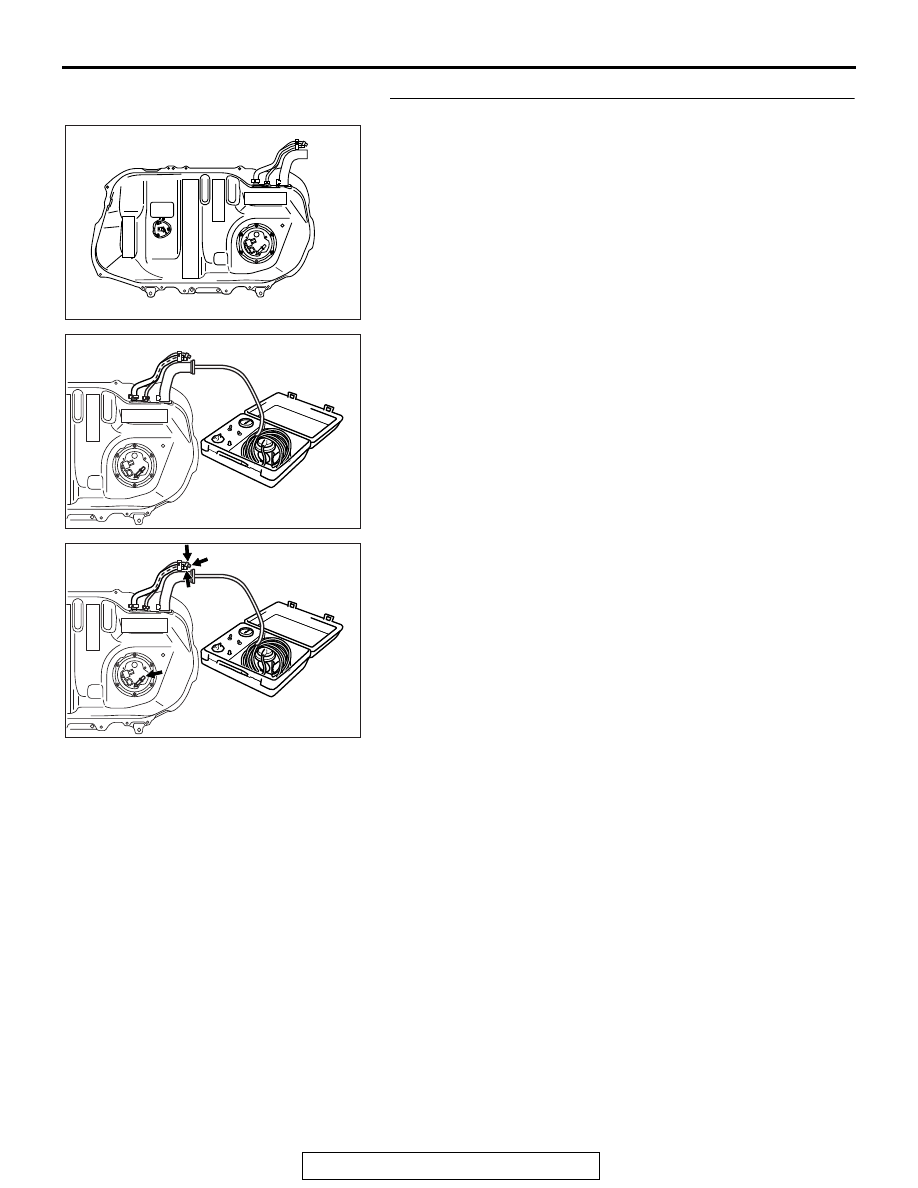

STEP 10. Check for leaks in the fuel tank.
(1) Visually check for cracks or other leaks in the fuel tank.

NOTE: Carefully check the fuel pump module and the fuel
tank differential pressure sensor installation in the fuel tank.

(2) Connect the evaporative emission system pressure pump

(Miller number 6872A) to the fuel filler hose.

(3) Plug the hose and the nipple shown in the illustration.

NOTE: If these items are not securely plugged now, the fuel
could leak in the next step.

(4) Pressurize the fuel tank with the evaporative emission

system pressure pump.

(5) In the pressurized state, check for leaks by applying a

soapy water solution to each section and look for bubbles.

Q: Are any leaks found?

YES <When there is a leak from the attachment points of
the fuel pump module, fuel tank differential pressure
sensor, fuel level sensor or leveling valve.> : Repair or

replace the leaked parts and check again that there
are no leaks. Then reinstall the fuel tank. Then go to
Step 13 .

YES <When there is a leak from the fuel tank.> : Replace

the fuel tank. Go to Step 13 .

NO :  When there is no leak, reinstall the fuel tank. Then go

to Step 11 .

AK704168

AK704169

AK704170AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-417

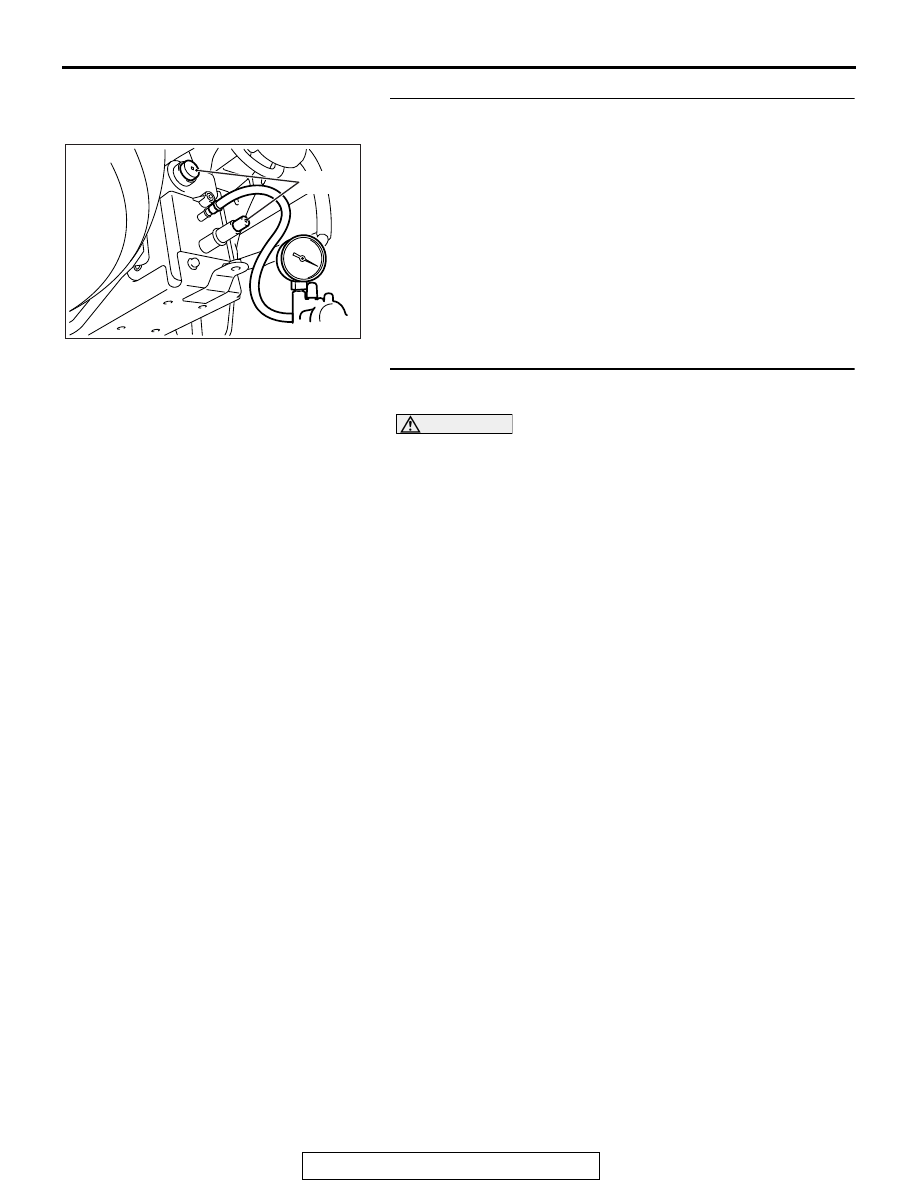

STEP 11. Check the evaporative emission canister for
vacuum leaks.
(1) Connect a hand vacuum pump to the evaporative emission

canister and plug the other nipples.

(2) Apply a pressure on the hand vacuum pump, and confirm

that air is maintained.

(3) Disconnect the hand vacuum pump and remove the plugs.
Q: Is the evaporative emission canister in good condition?

YES : Go to Step 12 .
NO :  Replace the evaporative emission canister. Then go

to Step 13 .

STEP 12. Using scan tool MB991958, check the
evaporative emission system monitor test.

CAUTION

• During this test, the ECM automatically increases the

engine speed to 1,600 r/min or greater. Check that the
transaxle is set to "P" position.

(1) Turn the ignition switch to the "ON" position.
(2) Erase the DTCs using scan tool MB991958.
(3) Check that the fuel cap is securely closed (Tighten until

three clicks are heard).

(4) Start the engine.
(5) Select "System Test."
(6) Select "Evap Leak Mon."
(7) During the test, keep the accelerator pedal at the idle

position.

(8) Keep the engine speed and engine load within the specified

range. When the monitor test starts, the "In Progress" item
on scan tool MB991958 will change from "NO" to "YES".

(9) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is "Evap Leak Mon. Completed. Test Failed and DTCs

Set" displayed on scan tool MB991958?
YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Code Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 13 .

NO <"Evap Leak Mon. Completed. Test Passed" is
displayed on scan tool MB991958.> : The evaporative

emission system is working properly at this time. Go
to Step 13  .

NO <"Evap Leak Mon. Discontinued. Retest again from
the first" is displayed on scan tool MB991958.> : The

EVAP monitor has been interrupted during the test.
Turn the ignition switch to the "LOCK" (OFF) position
once, and repeat the monitoring from Step 12 .

AK704171

Plugs

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-418

STEP 13. Perform the OBD-II drive cycle.
(1) Confirm the repair by performing the appropriate drive cycle

(Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Pattern 5

P.13A-11

).

(2) Read the DTC.
Q: Is DTC P0442 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.
