MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-379

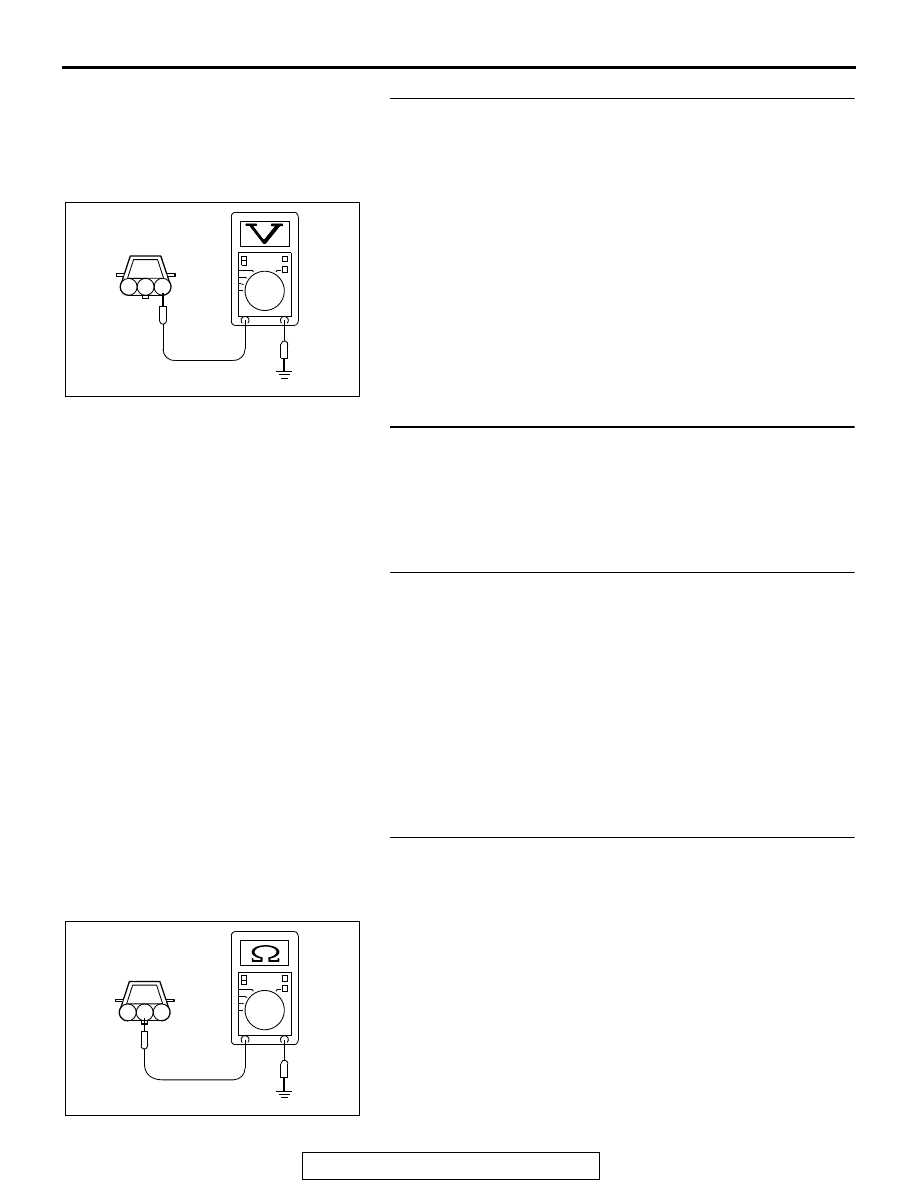

STEP 10. Measure the power supply voltage at crankshaft
position sensor harness side connector B-119.
(1) Disconnect the connector B-119 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 13.
NO :  Go to Step 11.

STEP 11. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 12.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

STEP 12. Check for open circuit and short circuit to
ground between crankshaft position sensor connector
B-119 (terminal No. 1) and ECM connector B-10 (terminal
No. 9).
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 20.

NO :  Repair it. Then go to Step 20.

STEP 13. Check the continuity at crankshaft position
sensor harness side connector B-119.
(1) Disconnect the connector B-119 and measure at the

harness side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Continuity (2 ohms or less)

Q: Does continuity exist?

YES : Go to Step 16.
NO :  Go to Step 14.

AK604199

1

2

3

AC

B-119 harness
connector:
component side

AK604200

1

2

3

AC

B-119 harness
connector:
component side

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-380

STEP 14. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 15.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

STEP 15. Check for open circuit and harness damage
between crankshaft position sensor connector B-119
(terminal No. 2) and ECM connector B-10 (terminal No. 24).
Q: Is the harness wire in good condition?

YES : Replace the ECM. When the ECM is replaced,

register the ID code. Refer to GROUP 42B, Diagnosis
− ID Code Registration Judgment Table <Vehicles

with KOS>

P.42B-15

 or GROUP 42C, Diagnosis

− ID

Codes Registration Judgment Table <Vehicles with
WCM>

P.42C-10

. Then go to Step 20.

NO :  Repair it. Then go to Step 20.

STEP 16. Check harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 17.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

STEP 17. Check for harness damage between ECM
connector B-10 (terminal No. 9) and crankshaft position
sensor connector B-119 (terminal No. 1).
Q: Is the harness wire in good condition?

YES : Go to Step 18.
NO :  Repair it. Then go to Step 20.

STEP 18. Check for harness damage between crankshaft
position sensor connector B-119 (terminal No. 3) and ECM
connector B-10 (terminal No. 8).
Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair it. Then go to Step 20.

STEP 19. Check the crankshaft position sensing ring.
Q: Is the crankshaft position sensing ring in good

condition?
YES :
Replace the crankshaft position sensor. Then go to

Step 20.

NO :  Replace the crankshaft sensing ring. Then go to Step

20.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-381

STEP 20. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 23

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0335 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

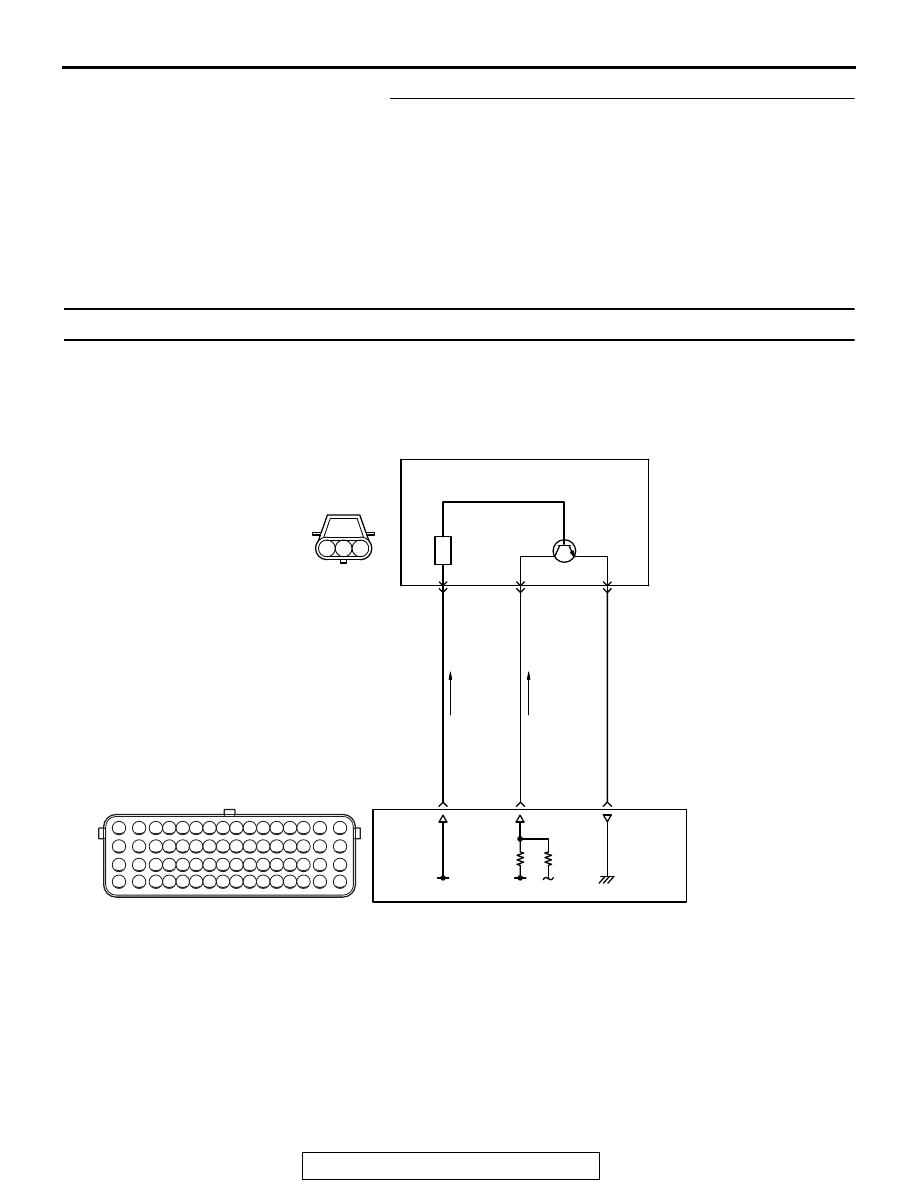

DTC P0340: Intake Camshaft Position Sensor Circuit

AK604246

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

3

2

1

INTAKE CAMSHAFT POSITION SENSOR CIRCUIT

B-123

(MU802348)

B-10

9

1

14

3

RED-WHITE

30

2

5 V

AF

INTAKE CAMSHAFT
POSITION SENSOR

BLA

CK-YELLO

W

BLUE-YELLO

W

ENGINE
CONTROL
MODULE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-382

.

CIRCUIT OPERATION

• The intake camshaft position sensor power is

supplied from the ECM (terminal No. 9).

• Terminal No. 2 of the intake camshaft position

sensor is grounded with ECM (terminal No. 30).

• A 5-volt voltage is applied on the intake camshaft

position sensor output terminal (terminal No. 3)
from the ECM (terminal No. 14). The intake cam-
shaft position sensor generates a pulse signal
when the output terminal is opened and
grounded.

.

TECHNICAL DESCRIPTION

• The intake camshaft position sensor detects the

position of the intake camshaft and inputs the
pulse signal to the ECM.

• In response to the intake camshaft position sen-

sor signal and the crankshaft sensor signal, the
ECM detects the compression top dead center of
the No. 1 cylinder.

• Also, in response to the intake camshaft position

sensor signal, the ECM controls variable valve
timing (V.V.T.).

.

DESCRIPTIONS OF MONITOR METHODS

• Intake camshaft position sensor signal does not

change.

• Intake camshaft position sensor signal is not nor-

mal pattern.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

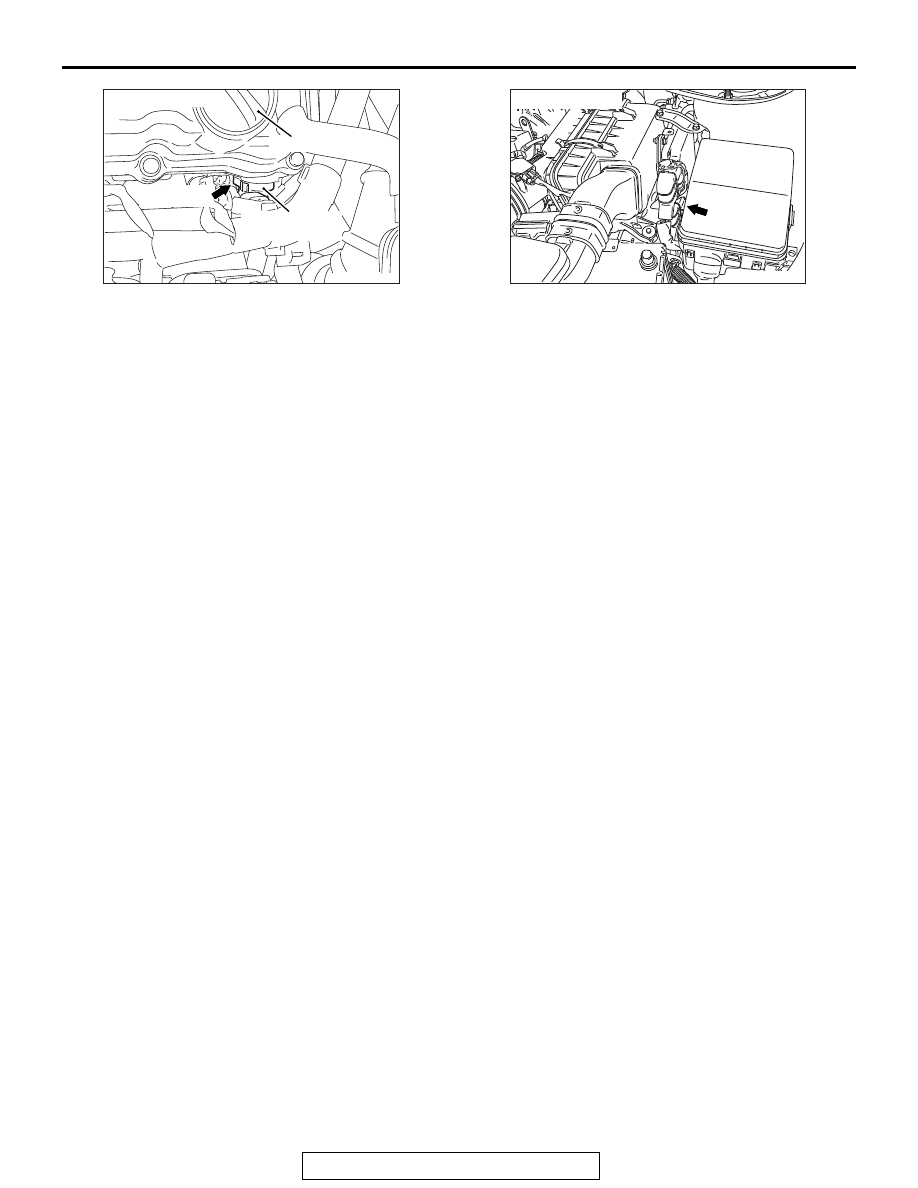

AK704127 AB

Intake camshaft
position sensor

Engine oil filler cap

Connector: B-123

B-123 (GR)

AK704090AB

Connector: B-10

B-10 (GR)
