MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-239

STEP 1. Check harness connector C-142 at linear air-fuel
ratio sensor and harness connector B-10 at ECM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 5.

STEP 2. Check for open circuit and harness damage
between linear air-fuel ratio sensor connector C-142
(terminal No. 4) and ECM connector B-10 (terminal No. 38).
NOTE: Check harness after checking intermediate connector
A-12. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 5.
Q: Is the harness wire in good condition?

YES : Go to Step 3.
NO :  Repair it. Then go to Step 5.

STEP 3. Check for open circuit and harness damage
between linear air-fuel ratio sensor connector C-142
(terminal No. 5) and ECM connector B-10 (terminal No. 39).
NOTE: Check harness after checking intermediate connector
A-12. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 5.
Q: Is the harness wire in good condition?

YES : Go to Step 4.
NO :  Repair it. Then go to Step 5.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-240

STEP 4. Test the OBD-II drive cycle.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

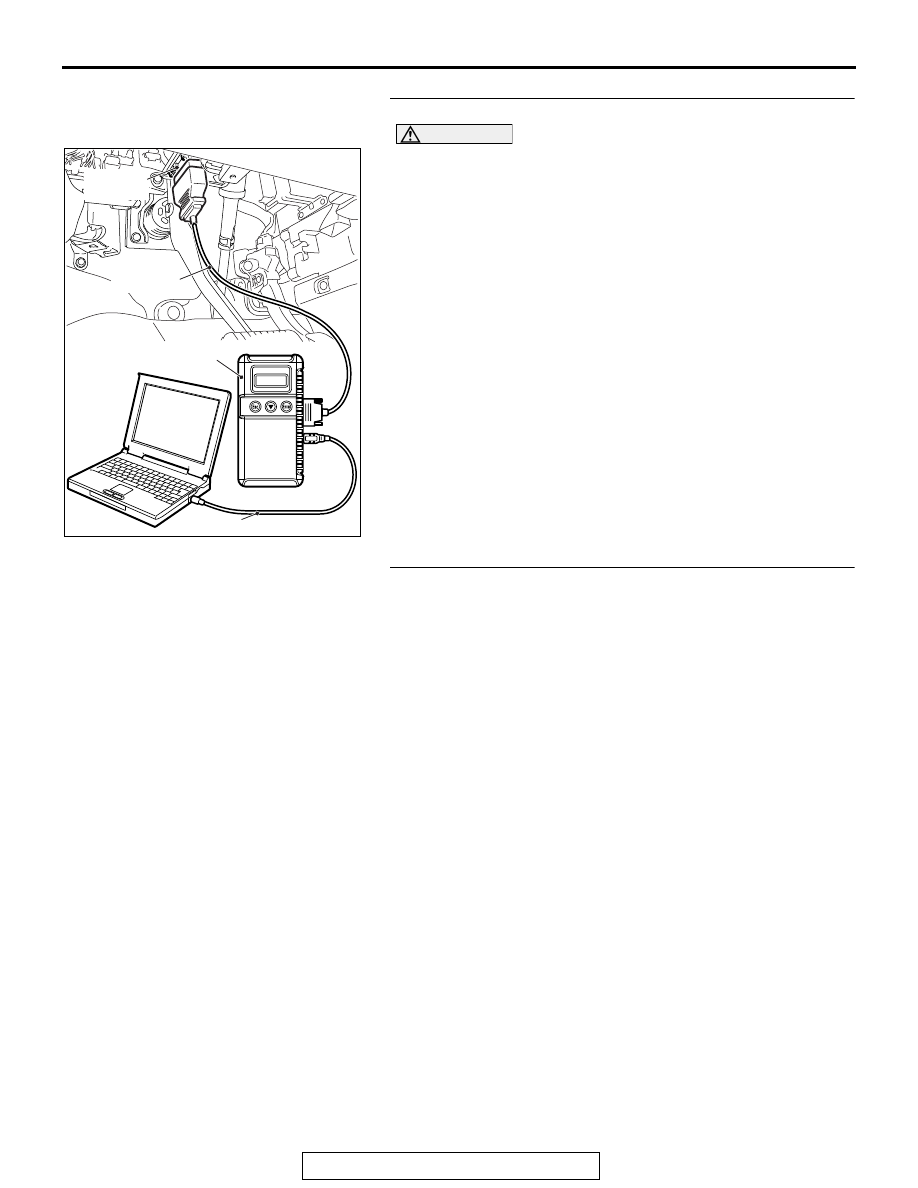

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position and delete the

DTC.

(3) Carry out the test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13A-11

.

(4) Check the diagnostic trouble code (DTC).
Q: Is DTC P0134 set?

YES : Replace the linear air-fuel ratio sensor. Then go to

Step 5.

NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunctions

P.00-15

.

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Pattern 22

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0134 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK700568AB

MB991824

MB991827

MB991910

Data link
connector

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-241

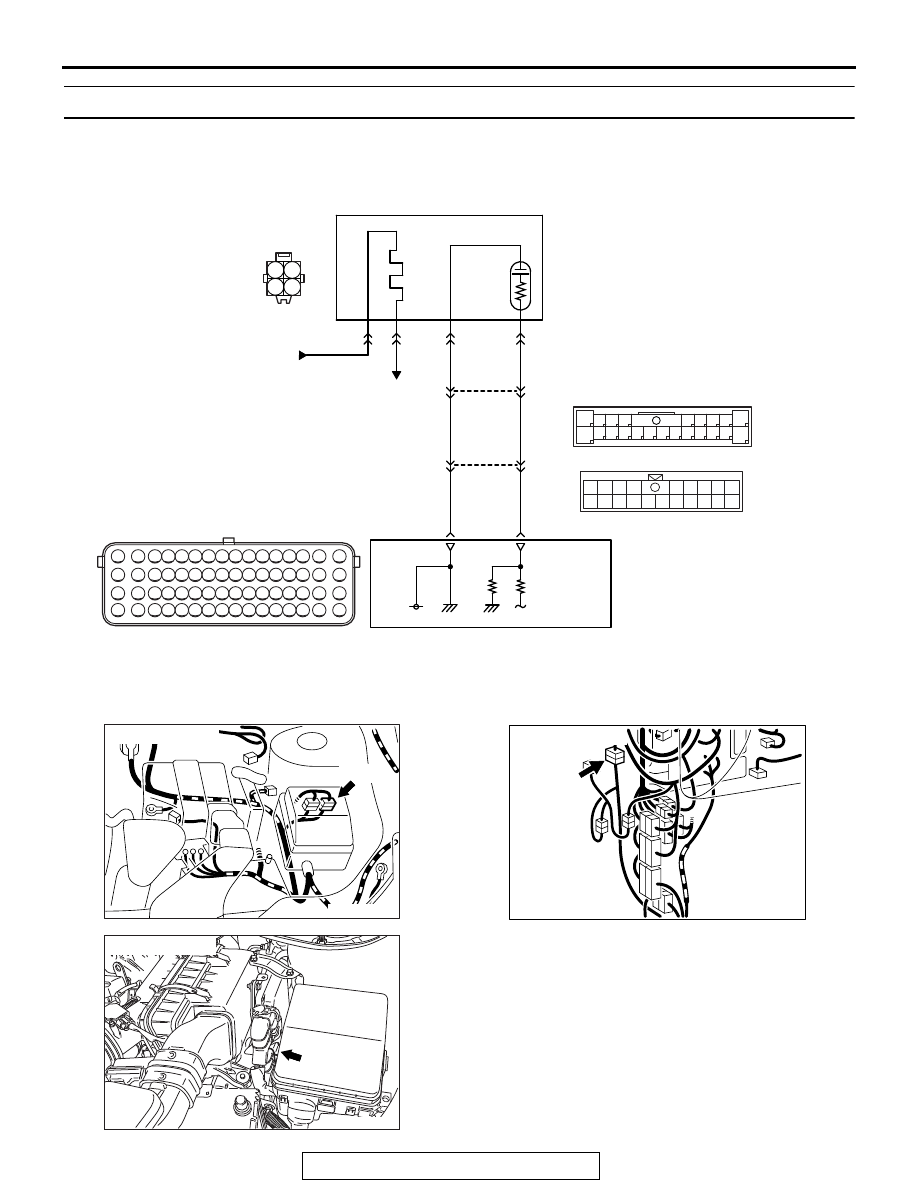

DTC P0137: Heated Oxygen Sensor (rear) Circuit  Low Voltage

AK900383

1 2
3 4

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

2

8

7

6

5

4

3

11

21

20

19

18

17

16

15

14

13

12

9

22

1

10

AD

D-37

FROM MFI RELAY

TO ECM

1

4

2

3

HEATED OXYGEN SENSOR (REAR) CIRCUIT

HEATED OXYGEN
SENSOR (REAR)

B-10

YELLO

W

ORANGE

ORANGE

YELLO

W

ENGINE
CONTROL
MODULE

0.5 V

C-129

18

41

40

17

17

ORANGE

YELLO

W

15

A-13

AK704087AB

Connector: A-13

A-13

AK704090AB

Connector: B-10

B-10 (GR)

AK900595

Connector: C-129

C-129

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-242

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the ECM (ter-
minal No. 40) from the output terminal (terminal
No. 3) of the heated oxygen sensor (rear).

• Terminal No. 4 of the heated oxygen sensor

(rear) is grounded with ECM (terminal No. 41).

• The ECM applies an offset voltage of 0.5 volt to

terminal No. 4 of the heated oxygen sensor
(rear).

.

TECHNICAL DESCRIPTION

• The output signal of the linear air-fuel ratio sensor

is compensated by the output signal of the
heated oxygen sensor (rear).

• The ECM checks for the heated oxygen sensor

(rear) output voltage.

.

DESCRIPTIONS OF MONITOR METHODS

Heated oxygen sensor (rear) output voltage is under

the specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Linear air-fuel ratio sensor monitor

• Linear air-fuel ratio sensor heater monitor

• Heated oxygen sensor (rear) heater monitor

• Heated oxygen sensor offset voltage monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

.

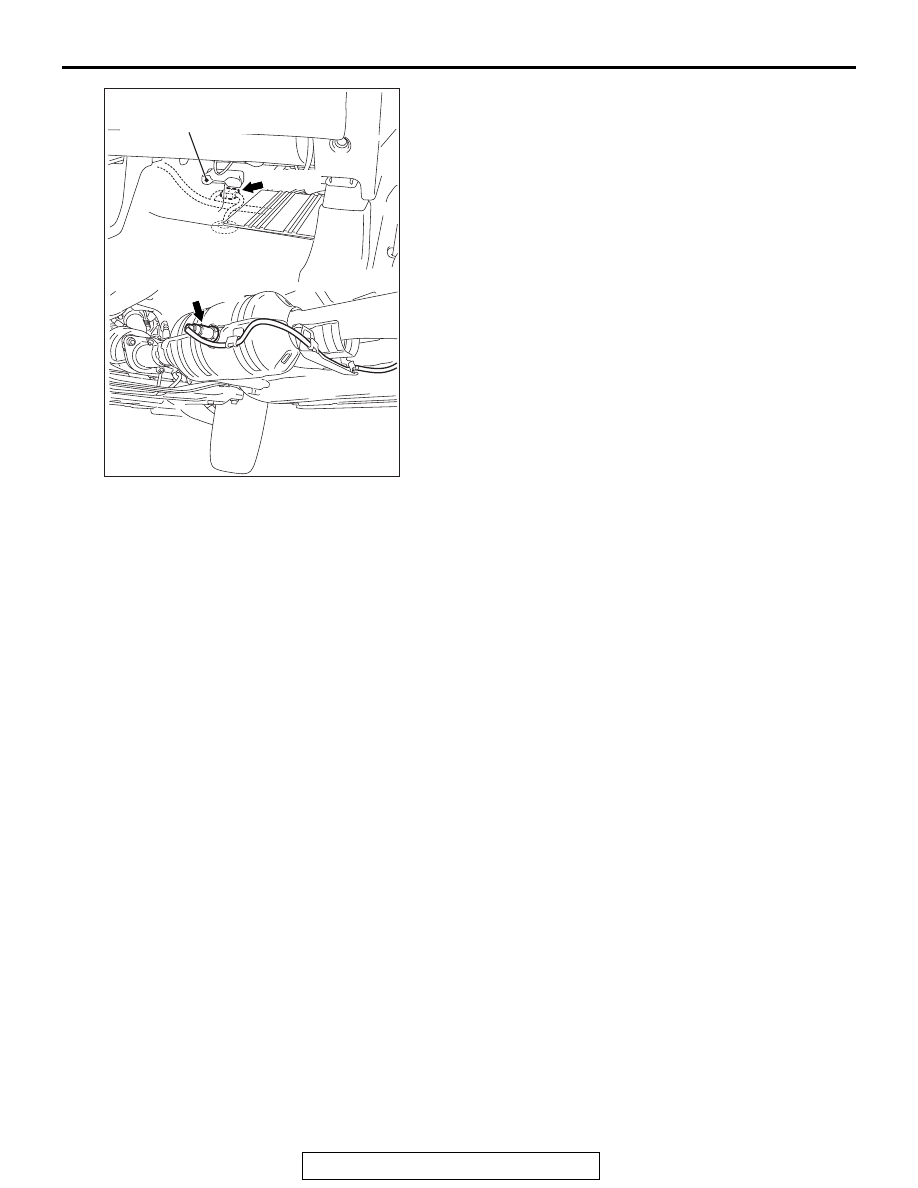

AK900665

D-37 (B)

Rear heater duct (RH)

Heated oxygen
sensor (rear)

AB

Connector: D-37
