MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-55

.

Driving

Hesitation, sag, Stumble, Poor acceleration or
Surge

14

P.13A-758

Acceleration shock

15

P.13A-761

Knocking

16

P.13A-763

Too high CO and HC concentration when idling

17

P.13A-764

IM240 test failure

Transient, mass emission tailpipe test failure

18

P.13A-767

Purge flow test of the evaporative emission
canister failure

19

P.13A-771

Pressure test of the evaporative system failure

20

P.13A-772

Power supply system and ignition switch-IG system

21

P.13A-777

Fuel pump system

22

P.13A-788

Ignition switch-ST system and starter relay system

23

P.13A-795

Ignition circuit system

24

P.13A-807

A/C system

25

P.13A-812

Engine oil pressure switch system

26

P.13A-814

TROUBLE SYMPTOMS

INSPECTION
PROCEDURE

REFERENCE PAGE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-56

PROBLEM SYMPTOMS TABLE (FOR YOUR INFORMATION)

ITEMS

SYMPTOM

At starting

Won't start

The starter cranks the engine, but there is no combustion within the
cylinders, and the engine won't start.

Starts up and
dies

The engine starts, but then engine soon stalls.

Hard starting

Engine starts after cranking a while.

Idling stability Hunting

Engine speed doesn't remain constant; changes at idle.

Rough idle

Usually, a judgement can be based upon the movement of the
tachometer pointer, and the vibration transmitted to the steering wheel,
shift lever, body, etc.

Incorrect idle
speed

The engine doesn't idle at the correct speed.

Engine stall (die
out)

The engine stalls when the foot is taken from the accelerator pedal,
regardless of whether the vehicle is moving or not.

Engine stall (pass
out)

The engine stalls when the accelerator pedal is depressed.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-57

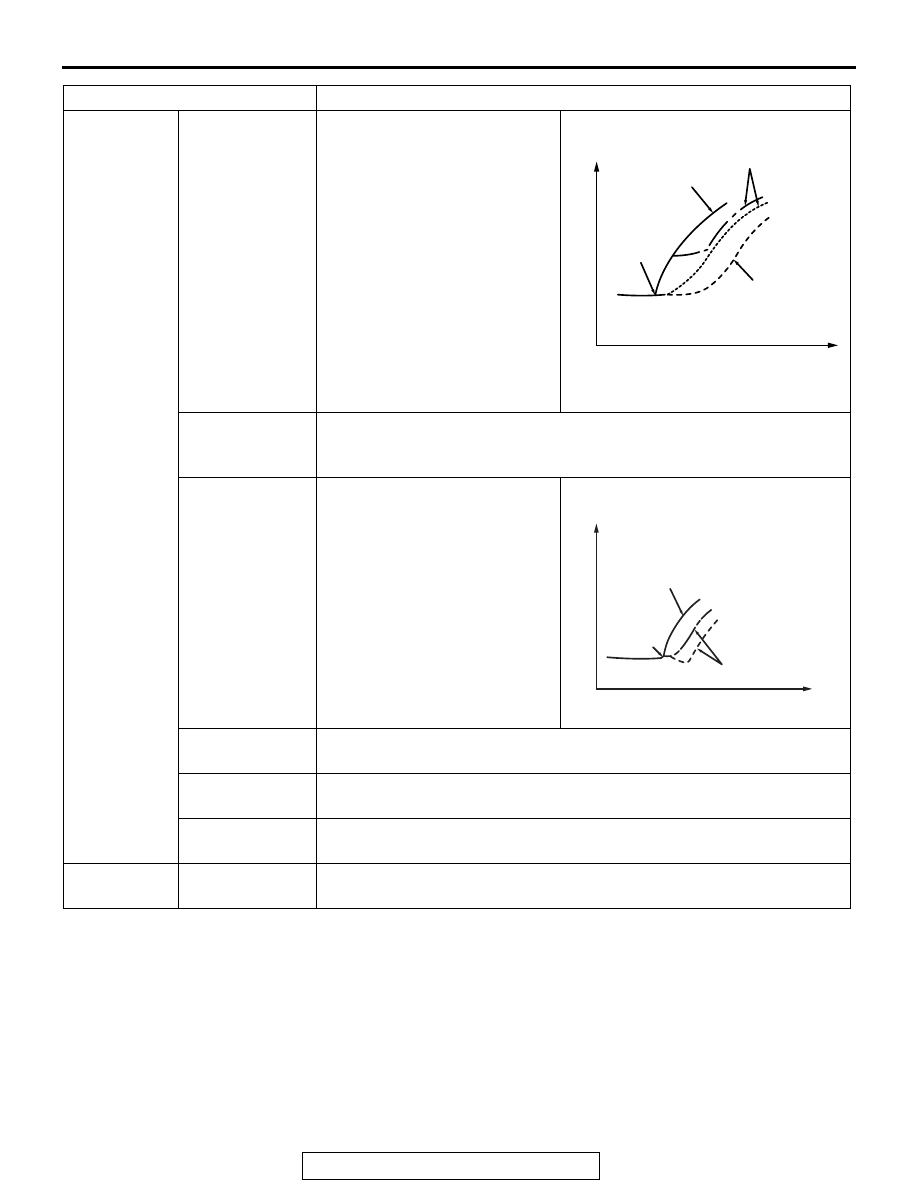

At driving

Hesitation Sag

"Hesitation" is the delay in
response of the vehicle speed
(engine speed). This occurs
when the accelerator is
depressed in order to accelerate
from the speed at which the
vehicle is now traveling, or a
temporary drop in vehicle speed
(engine speed) during such
acceleration.
Serious hesitation is called
"sag".

Poor acceleration Poor acceleration is inability to obtain an acceleration corresponding to

the degree of throttle opening, even though acceleration is smooth. Also
the inability to reach maximum speed.

Stumble

Engine speed increase is
delayed when the accelerator
pedal is initially depressed for
acceleration.

Shock

The feeling of a comparatively large impact or vibration when the engine
is accelerated or decelerated.

Surge

This is slight acceleration and deceleration feel usually felt during
steady, light throttle cruise. Most notable under light loads.

Knocking

A sharp sound during driving, which sounds like a hammer striking the
cylinder walls. It makes poor driveability.

At stopped

Run on
("Dieseling")

The condition in which the engine continues to run after the ignition
switch is turned to the "LOCK" (OFF) position. Also called "dieseling".

ITEMS

SYMPTOM

AKX01361

Vehicle
speed

Time

Normal

Hesitation

Sag

Initial
accelerator
pedal
depression

AC

AKX01362

Stumble

Idling

Vehicle
speed

Time

Normal

Initial
accelerator
pedal
depression

AD

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-58

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC P0010: Intake Engine Oil Control Valve Circuit

AK704142

1

2

3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

1

3

2

4

1

10 111213 14 1516 17 1819 20

2 3 4

5 6 7 8 9

1 2

1

1

2

B-25

B-10

20A

WHITE

WHITE

WHITE

VIOLET

WHITE

A-33X

4

3

1

2

22

OFF

ON

AB

36

FUSIBLE LINK

4

A-13

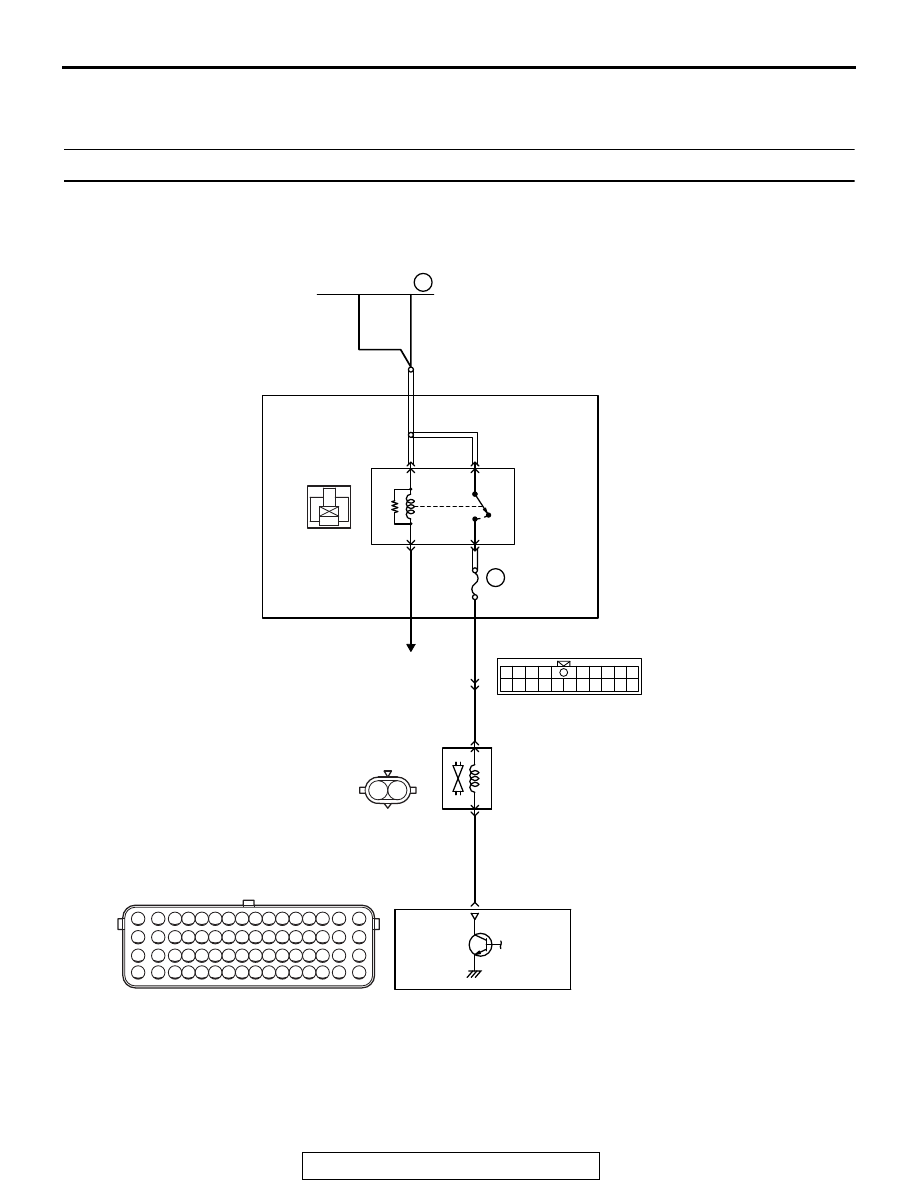

INTAKE ENGINE OIL CONTROL VALVE CIRCUIT

INTAKE ENGINE OIL
CONTROL VALVE

MFI
RELAY

RELAY BOX
(ENGINE COMPARTMENT)

ENGINE
CONTROL
MODULE

TO ECM
