CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-29

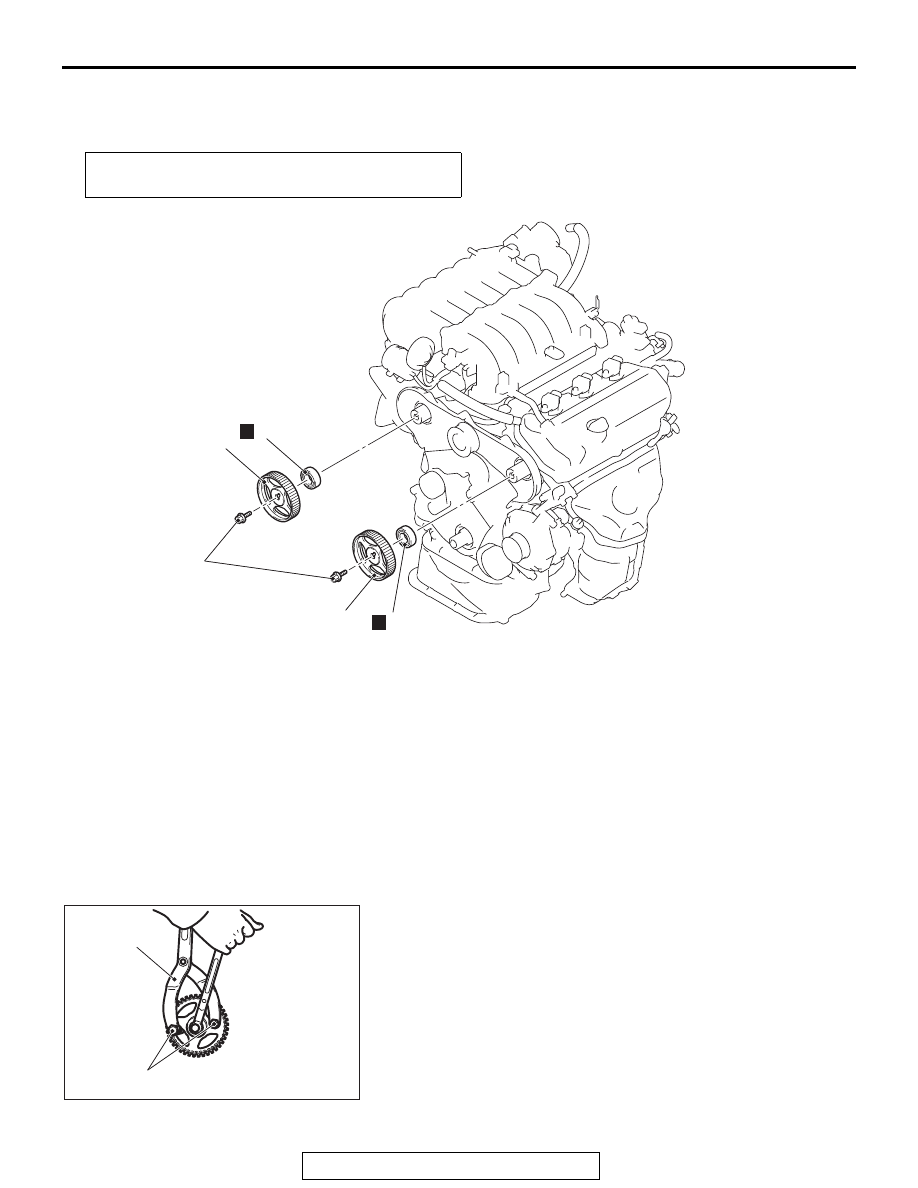

CAMSHAFT OIL SEAL

REMOVAL AND INSTALLATION

M1112002200512

Required Special Tools:

• MB990767: Front Hub and Flange Yoke Holder

• MD998713: Camshaft Oil Seal Installer

• MD998719: Pin

• MD998777: Camshaft Oil Seal Installer Adapter

REMOVAL SERVICE POINTS

.

<<A>> CAMSHAFT SPROCKET REMOVAL

Use special tools MB990767 and MD998719 to remove the
camshaft sprocket.

.

Pre-removal and Post-installation Operation
• Timing Belt Removal and Installation (Refer to

P.11C-55

).

AC703047

1

2

3

4

N

N

90 ± 10 N·m
67 ± 7 ft-lb

AB

Removal steps

<<A>>

>>B<<

1.

Left bank camshaft sprocket

<<B>>

>>A<<

2.

Camshaft oil seal

<<A>>

>>B<<

3.

Right bank camshaft sprocket

<<B>>

>>A<<

4.

Camshaft oil seal

Removal steps (Continued)

AC703052

MB990767

MD998719

AB

CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-30

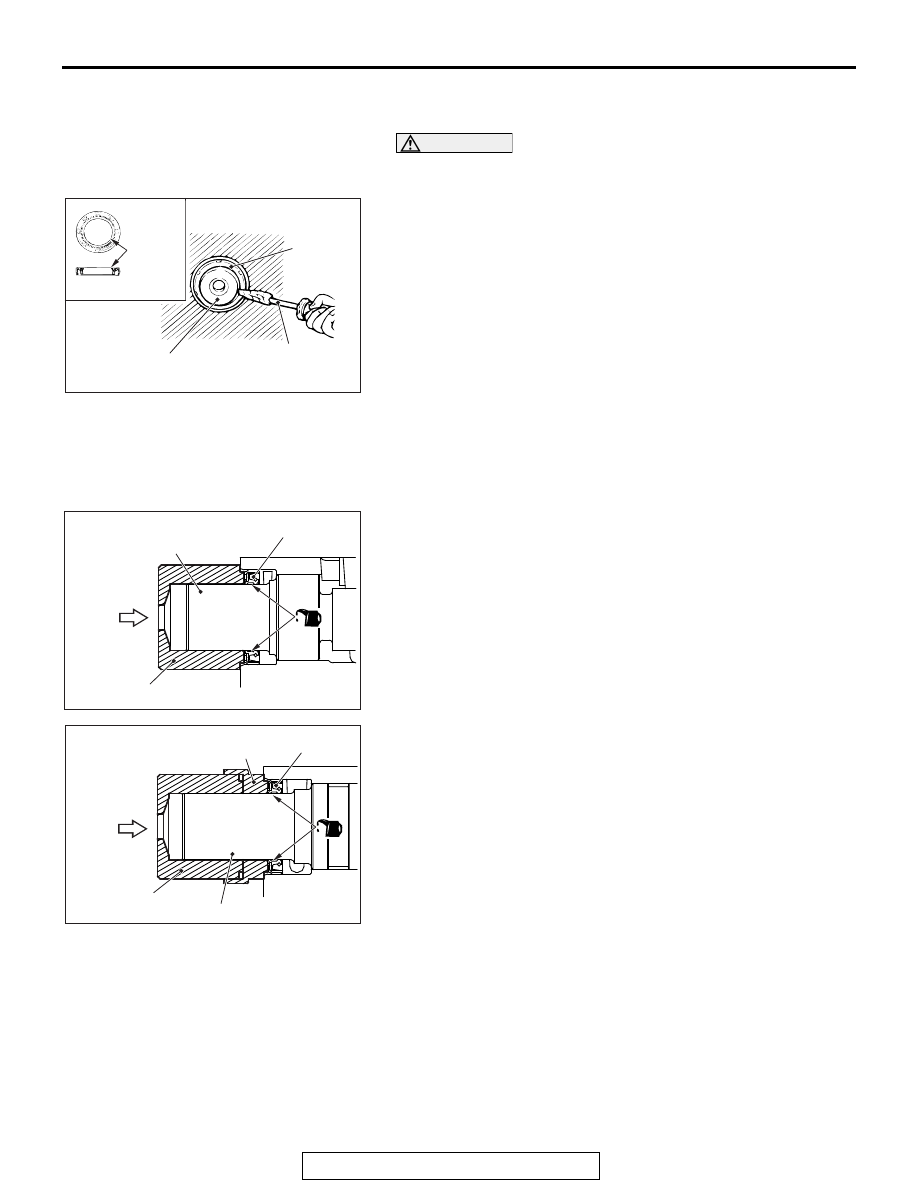

<<B>> CAMSHAFT OIL SEAL REMOVAL

1. Make a notch in the oil seal lip section with a knife, etc.

CAUTION

Be careful not to damage the camshaft and the cylinder
head.
2. Cover the end of a flat-tipped screwdriver with a shop towel

and insert into the notched section of the oil seal, and pry
out the oil seal to remove it.

INSTALLATION SERVICE POINTS

.

>>A<< CAMSHAFT OIL SEAL INSTALLATION

1. Apply engine oil to the camshaft oil seal lip.
2. Use special tools MD998713 and MD998777 to press-fit the

camshaft oil seal.

.

AC703053

Lip
section

Oil seal

Camshaft

Flat-tipped
screwdriver

AB

AC703083

<Right bank>

MD998713

Oil seal

Camshaft

AB

AC703082

MD998713

MD998777

Camshaft

Oil seal

<Left bank>

AB

CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-31

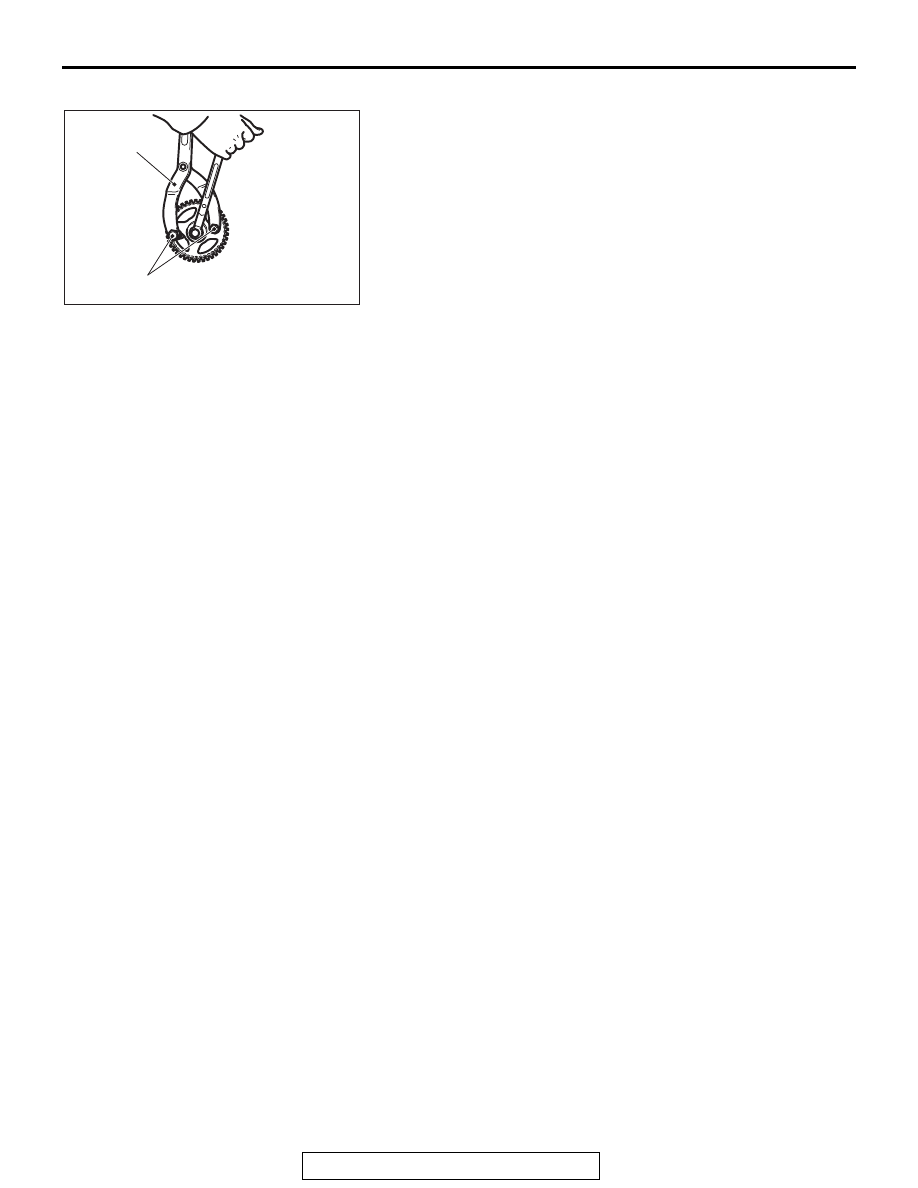

>>B<< CAMSHAFT SPROCKET INSTALLATION

1. Use special tools MB990767 and MD998719 in the same

way as during removal to hold the camshaft sprocket.

2. Tighten the camshaft sprocket mounting bolt to the specified

torque.

Tightening torque: 90

± 10 N⋅m (67 ± 7 ft-lb)

AC703052

MB990767

MD998719

AB

CAMSHAFT AND VALVE STEM SEAL

TSB Revision

ENGINE MECHANICAL <3.0L ENGINE>

11C-32

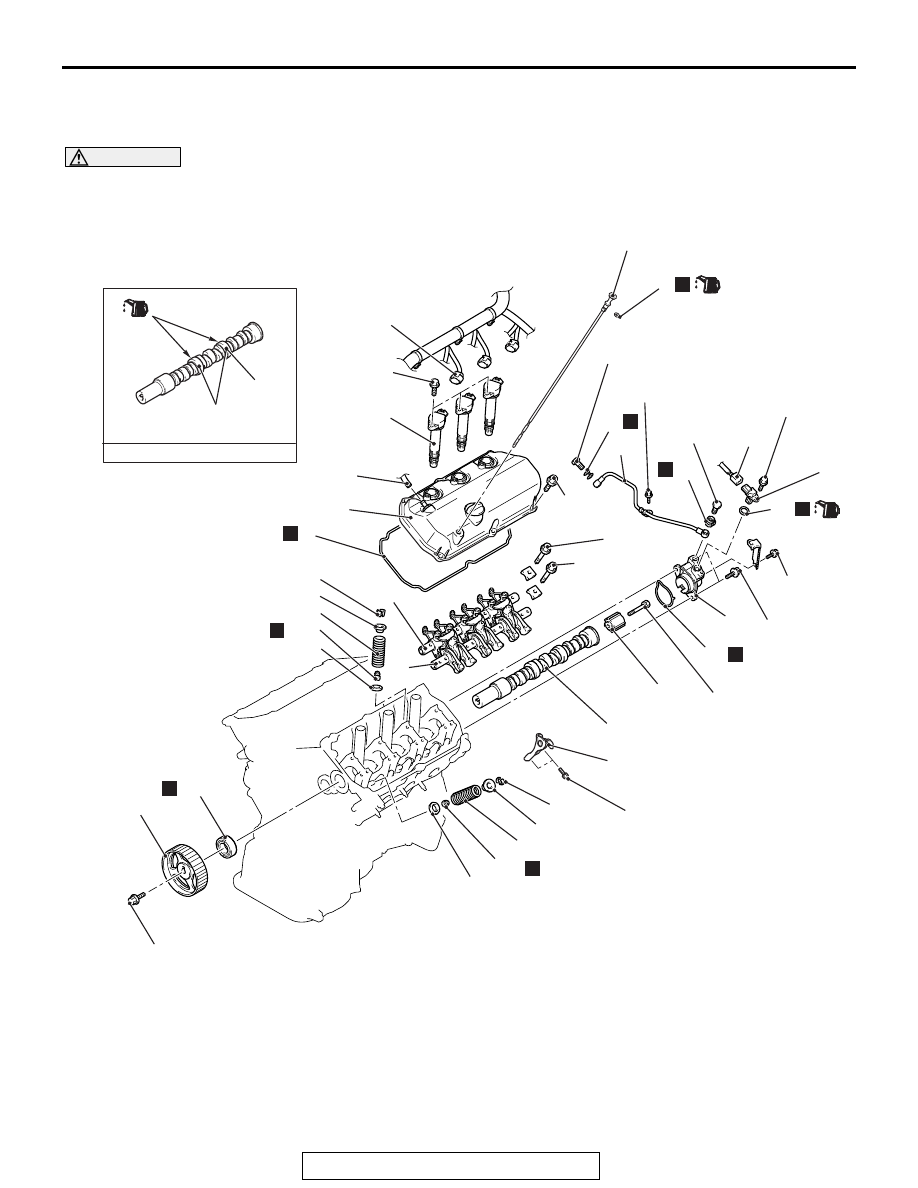

CAMSHAFT AND VALVE STEM SEAL

REMOVAL AND INSTALLATION

M1112006602217

CAUTION

*Remove and assemble the marked parts in each cylinder unit.

<LEFT BANK>

AC809144

AB

Cam section and
journal section

19

Engine oil

1

2

3

4

5

7

6

9

8

10

11

12

13

14

15

16

17

18

19

20

22*

23*
24*

22*

23*

24*

25*

26*

25*

26*

11

N

N

N

N

N

N

N

N

N

21

(Engine oil)

(Engine oil)

13 ± 1 N·m
115 ± 8 in-lb

31 ± 3 N·m
23 ± 2 ft-lb

9.5 ± 2.5 N·m
84 ± 22 in-lb

8.3 ± 1.0 N·m
73 ± 8 in-lb

30 ± 3 N·m
22 ± 2 ft-lb

30 ± 3 N·m
22 ± 2 ft-lb

11 ± 1 N·m
97 ± 8 in-lb

9.5 ± 2.5 N·m
84 ± 22 in-lb

11 ± 1 N·m
97 ± 8 in-lb

23 ± 6 N·m
17 ± 4 ft-lb

22 ± 4 N·m
16 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

Camshaft removal steps

•

Engine cover (Refer to GROUP 16,
Ignition System

− Ignition Coil

P.16-49

).

•

Timing belt (Refer to

P.11C-55

).

•

Thermostat housing (Refer to
GROUP 14, Water Hose and Water
Pipe

P.14-45

).

1.

Engine oil dipstick

2.

O-ring

3.

PCV hose connection

4.

Ignition coil connector

5.

Ignition coil

>>

E

<< 6.

Rocker cover

7.

Rocker cover gasket

Camshaft removal steps
