DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-91

• MB991910: M.U.T.-III Main Harness A

STEP 1. Using scan tool MB991958, diagnose the CAN bus
lines.
Use scan tool to diagnose the CAN bus lines.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the CAN bus lines (Refer to GROUP 54C

−

CAN Bus Diagnostics Table

P.54C-17

). On

completion, go to Step 2.

STEP 2. DTC recheck after resetting CAN bus lines
Q: Is DTC C1044 set?

YES : Go to Step 3.
NO :  The procedure is complete.

STEP 3. Using scan tool MB991958, check the DTC
Check that the DTC C102B is also set.
Q: Is the DTC C102B also set?

YES : Perform the diagnosis for the DTC C102B (Refer to

P.35C-37

).

NO :  Go to Step 4.

STEP 4. Check for wheel speed sensor <RR> installation
Check how the wheel speed sensor <RR> is installed (Discon-
nection of wheel speed sensor <RR>, loose mounting bolt,
etc.).
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Reinstall the wheel speed sensor <RR> correctly

(Refer to

P.35C-288

). Then go to Step 5.

STEP 5. Check for wheel speed sensor <RR> output
current
Refer to

P.35C-277

.

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Replace the wheel speed sensor <RR> (Refer to

P.35C-288

). Then go to Step 9.

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-92

STEP 6. Check for wheel bearing looseness
NOTE:

.

•

Loose wheel bearing may increase the gap between the
wheel speed sensor <RR> and the wheel speed detection
magnet encoder.

•

Check the Rear wheel hub assembly <RR (FWD)> (Refer to
GROUP 27A

−

 Wheel Bearing Play Check

P.27A-6

).

•

Check the wheel bearing <RR (AWD)> for looseness (Refer
to GROUP 27B

−

 Wheel Bearing Play Check

P.27B-17

).

Q: Is the check result normal?

YES : Go to Step 7.
NO (FWD) : Replace the rear wheel hub assembly <RR>

(Refer to GROUP 27A

− Rear Axle Hub Assembly

P.27A-8

). Then go to Step 10.

NO (AWD) : Replace the wheel bearing <RR> (Refer to

GROUP 27B

− Rear Axle Hub Assembly

P.27B-19

).

Then go to Step 10.

STEP 7. Check of wheel speed detection encoder
Check the encoder for adhesion of foreign materials or defor-
mation.
Q: Is the check result normal?

YES : Go to Step 8.
NO (Adhesion of foreign materials) : Remove the foreign

materials and clean the encoder so as not to disturb
the magnetization pattern on it while taking care of the
magnet, magnetic substance, and magnetic
attraction.

NO <Deformation (FWD)> : Replace the rear wheel hub

assembly <RR> (Refer to GROUP 27A

− Rear Axle

Hub Assembly

P.27A-8

). Then go to Step 10.

NO <Deformation (AWD)> : Replace the wheel bearing

<RR> (Refer to GROUP 27B

− Rear Axle Hub

Assembly

P.27B-19

). Then go to Step 10.

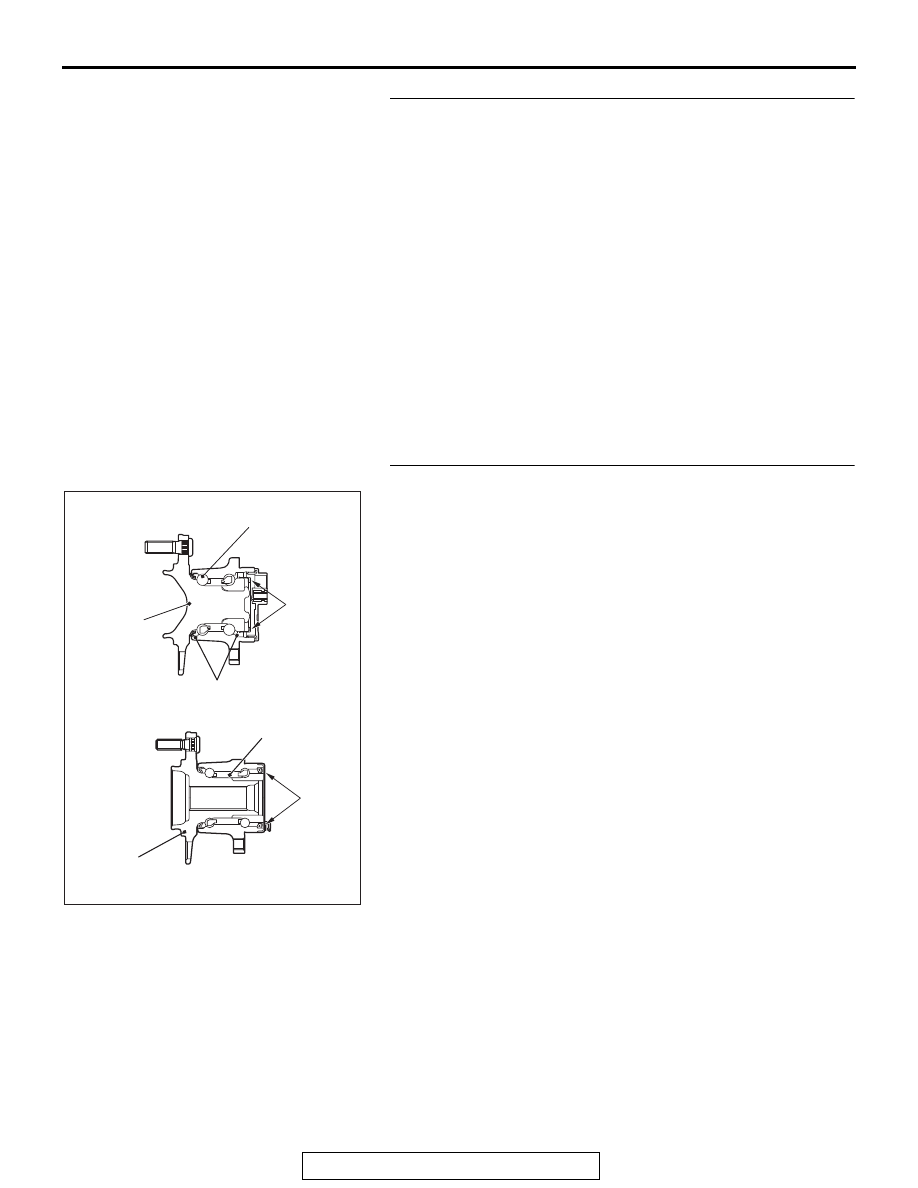

AC704785

Rear hub

Oil seal

Ball bearing

Magnetic
encoder

AB

Magnetic
encoder

Rear hub
assembly

Rear wheel bearing

<FWD>

<AWD>

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-93

STEP 8. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12mph (20 km/h) or higher.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12mph (20 km/h) or higher.

Q: Is DTC C1044 set?

YES : Replace the wheel speed sensor <RR> (Refer to

P.35C-288

). Then go to Step 9.

NO :  Intermittent malfunction (Refer to GROUP 00

− How

to Use Troubleshooting/How to Cope with Intermittent
Malfunctions

P.00-15

).

STEP 9. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12 mph (20 km/h) or higher.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12 mph (20 km/h) or
higher.

Q: Is DTC C1044 set?

YES : Replace the hydraulic unit (integrated with ASC-ECU)

(Refer to

P.35C-287

). Then go to Step 10.

NO :  The procedure is complete.

STEP 10. Check whether the DTC is reset.
(1) Erase the DTC.
(2) Drive the vehicle at 12 mph (20 km/h) or higher.

NOTE: The ABS warning light does not turn OFF in some
cases unless the vehicle runs at 12 mph (20 km/h) or
higher.

Q: Is DTC C1044 set?

YES : Return to Step 1.
NO :  The procedure is complete.

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-94

DTC C1046: FL wheel speed sensor control phase time exceeded

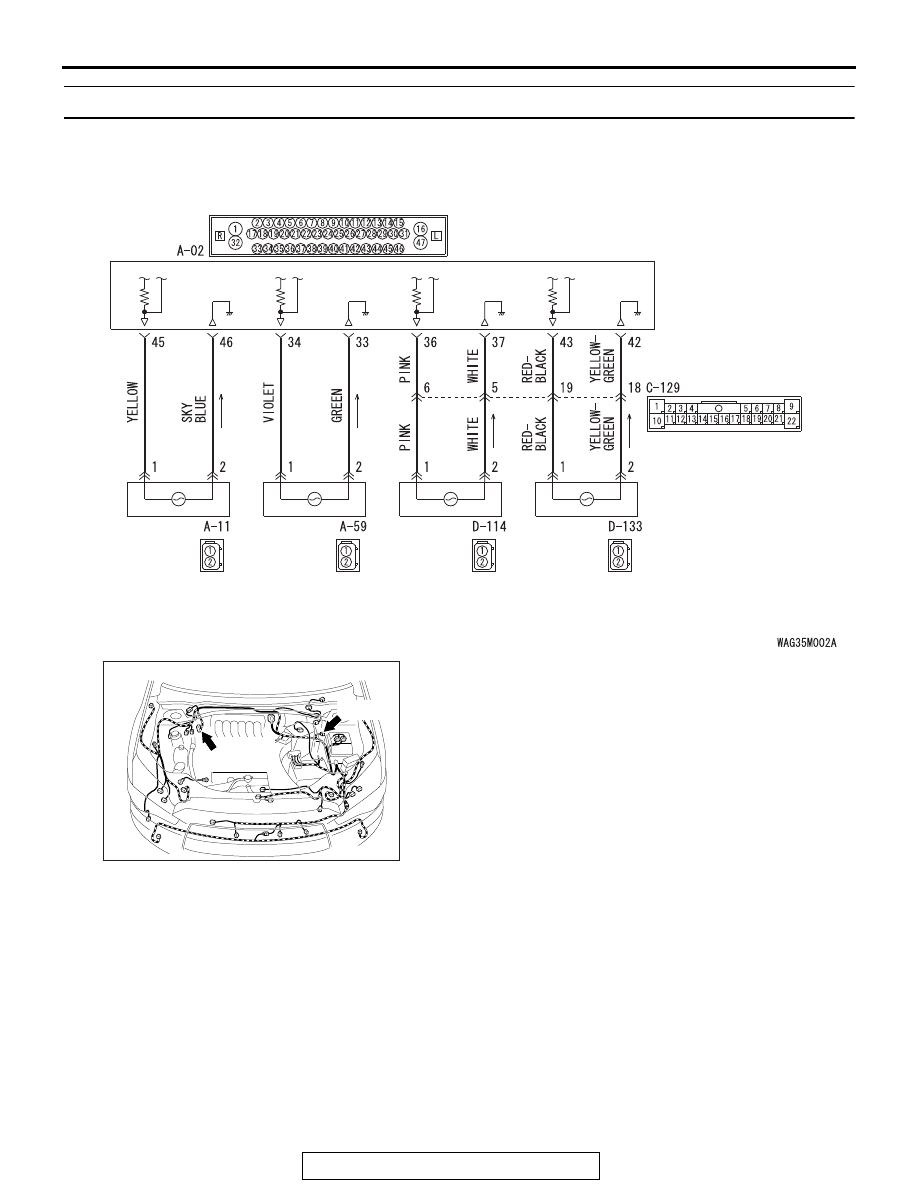

Wheel Speed Sensor Circuit

ASC-ECU

FRONT
WHEEL
SPEED
SENSOR
(LH)

FRONT
WHEEL
SPEED
SENSOR
(RH)

REAR
WHEEL
SPEED
SENSOR
(LH)

REAR
WHEEL
SPEED
SENSOR
(RH)

AC901112

Connectors: A-02, A-11

A-02 (B)

AN

A-11 (B)
