DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-19

C102A

Mutual monitoring of RL wheel speed sensor

P.35C-70

C1035

Mutual monitoring of RR wheel speed sensor

P.35C-74

C1041

Abnormality in periodical signal for FL wheel speed sensor

P.35C-78

C1042

Abnormality in periodical signal for FR wheel speed sensor

P.35C-82

C1043

Abnormality in periodical signal for RL wheel speed sensor

P.35C-85

C1044

Abnormality in periodical signal for RR wheel speed sensor

P.35C-89

C1046

FL wheel speed sensor control phase time exceeded

P.35C-94

C1047

FR wheel speed sensor control phase time exceeded

P.35C-99

C1048

RL wheel speed sensor control phase time exceeded

P.35C-104

C1049

RR wheel speed sensor control phase time exceeded

P.35C-109

C104B

Abnormality in FL wheel inlet valve system

P.35C-114

C104F

Abnormality in FR wheel inlet valve system

C1053

Abnormality in RL wheel inlet valve system

C1057

Abnormality in RR wheel inlet valve system

C105F

Abnormality in FL wheel outlet valve system

C1063

Abnormality in FR wheel outlet valve system

C1067

Abnormality in RL wheel outlet valve system

C105B

Abnormality in RR wheel outlet valve system

C1200

Abnormality in FL/RR wheel cut valve system

C1204

Abnormality in FR/RL wheel cut valve system

C1208

Abnormality in FL/RR wheel suction valve system

C120C

Abnormality in FR/RL wheel suction valve system

C2104

Faulty valve power supply circuit

P.35C-116

C1073

Faulty motor drive circuit

P.35C-121

C2116

Low or high power supply voltage in pump motor

P.35C-126

C121D

Abnormality in brake fluid pressure sensor circuit

P.35C-131

C121E

Abnormality in brake fluid pressure sensor output signal

P.35C-133

C1000

Abnormality in stoplight switch circuit

P.35C-136

C123B

Prolonged operation of ASC

P.35C-140

C2200

Abnormality in ASC-ECU

P.35C-143

C2101

Abnormality in battery voltage (high
voltage)

18.0

± 1.0 V or more

P.35C-144

C1395

Brake fluid filling not completed

P.35C-146

C121C

Torque request signal rejection

P.35C-147

C1290

CAN time-out error

P.35C-149

C2203

VIN not recorded

P.35C-152

C2206

Re-execution of variant coding

P.35C-154

Diagnosis
code No.

Item

Reference
page

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-20

C1210

*

Abnormality in G and yaw rate sensor

Abnormality in longitudinal G-sensor
output voltage

P.35C-156

C1242

*

Abnormality in G and yaw rate sensor

Abnormality in longitudinal G-sensor
output signal

P.35C-159

C123C

Abnormality in G and yaw rate sensor

Abnormality in lateral G sensor output
value (incorrect installation)

P.35C-163

C2204

Internal abnormality in G and yaw rate
sensor

Communication error

P.35C-167

Abnormality in lateral G-sensor output
voltage
Abnormality in yaw rate sensor output
voltage
Abnormality in G and yaw rate sensor
supply voltage

C2111

Brake fluid pressure sensor power
supply circuit

Low input

P.35C-171

C2112

Brake fluid pressure sensor power
supply circuit

High input

C2114

Abnormality in G and yaw rate sensor
supply voltage

Low voltage (below 6.5

± 0.5 V)

P.35C-173

C2115

Abnormality in G and yaw rate sensor
supply voltage

High voltage (18.0

± 1.0 V or more)

C123A

Abnormality in sensor calibration

P.35C-178

C1219

Abnormality in steering wheel sensor signal

P.35C-180

C121A

Abnormality in steering wheel sensor
initialization

Steering wheel sensor neutral point not
learned

P.35C-183

C2205

Internal malfunction of steering wheel sensor

P.35C-184

C2003

Control parameter not implement

P.35C-187

C1608

Implausible diagnosis data

P.35C-191

C2002

Valve calibration not completed

P.35C-186

U0001

Bus-off

P.35C-196

U0100

Engine time-out error

P.35C-198

U0101

A/T or CVT time-out error

U0114

*

AWD-ECU time-out error

U0126

Steering wheel sensor time-out error

U0141

ETACS time-out error

U0125

G and yaw rate sensor message time-out error/message error

P.35C-201

U0401

Engine malfunction detected

P.35C-203

U0428

Communication error in steering wheel sensor

P.35C-205

U1003

G and yaw rate sensor bus-off

P.35C-207

U1415

Variant coding not implemented

P.35C-210

U1417

Variant coding value invalid (includes faulty installation)

P.35C-212

Diagnosis
code No.

Item

Reference
page

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-21

NOTE:

*

: When the diagnosis codes relating to the CAN communication error are output, make sure of the

vehicle equipment. When the vehicle is not equipped with the system the ASC-ECU communicates to, the
diagnosis code is always output. This is not abnormal.

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC C100A: Abnormality in FL wheel speed sensor circuit

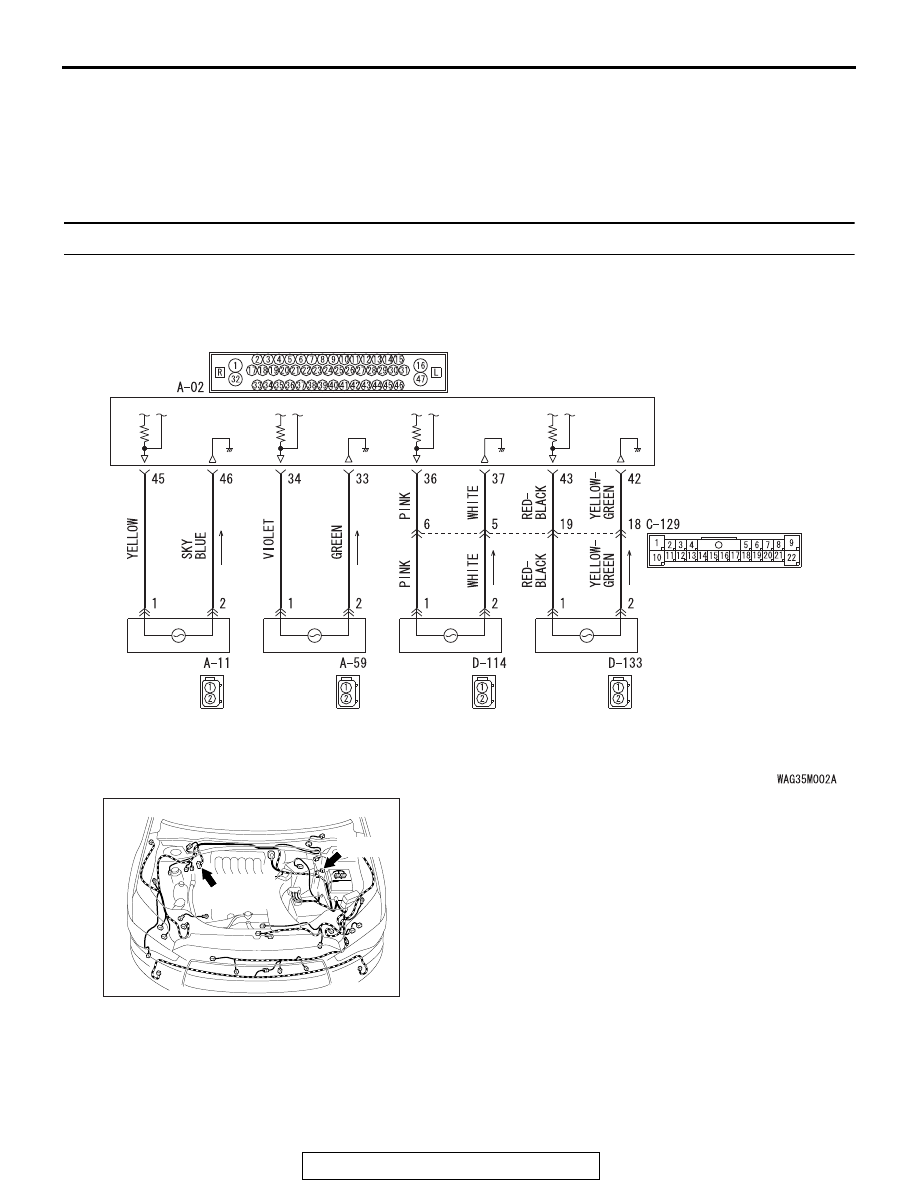

Wheel Speed Sensor Circuit

ASC-ECU

FRONT
WHEEL
SPEED
SENSOR
(LH)

FRONT
WHEEL
SPEED
SENSOR
(RH)

REAR
WHEEL
SPEED
SENSOR
(LH)

REAR
WHEEL
SPEED
SENSOR
(RH)

AC901112

Connectors: A-02, A-11

A-02 (B)

AN

A-11 (B)

DIAGNOSIS

TSB Revision

ACTIVE STABILITY CONTROL SYSTEM (ASC)

35C-22

CAUTION

• If there is any problem in the CAN bus lines, an incor-

rect diagnostic trouble code may be set. Prior to this
diagnosis, diagnose the CAN bus lines (Refer to
GROUP 54C

− CAN Bus Line Diagnostic Flow

P.54C-10

).

• Whenever ECU is replaced, ensure that the CAN bus

lines are normal.

• When the hydraulic unit (integrated with ASC-ECU) is

replaced, always carry out the calibration of the steer-
ing wheel sensor, the G and yaw rate sensor and brake
fluid pressure sensor (Refer to

P.35C-283

,

P.35C-282



and

P.35C-284

).

.

OPERATION

• The wheel speed sensor is a kind of a pulse generator. It

consists of encoders (a plate on which north and south pole
sides of the magnets are arranged alternately) for detecting
the wheel speed which rotates at the same speed of the
wheels and wheel speed sensors. This sensor outputs fre-
quency pulse signals in proportion to the wheel speed.

• The pulse signals, which the wheel speed sensor creates,

are sent to ASC-ECU. ASC-ECU uses the frequency of the
pulse signals to determine the wheel speed.

.

DTC SET CONDITIONS

ASC-ECU monitors the voltage fluctuation in each wheel speed
sensor circuit. If ASC-ECU detects the open or short circuit in
the circuit, it will set a diagnostic trouble code.

.

PROBABLE CAUSES

Current trouble

• Damaged wiring harness and connectors

• Noise interference

• Malfunction of wheel speed sensor

• ASC-ECU malfunction

Past trouble

• Carry out diagnosis with particular emphasis on wiring har-

ness and connector failures between ASC-ECU and the
wheel speed sensor. For diagnosis procedures, refer to
How to treat past trouble (GROUP 00

− How to Use Trou-

bleshooting/How to Treat Past Trouble

P.00-17

).

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

• MB991997: ASC check harness
